Toyota HILUX 阀体和滤油网(ATM) — Figure 3512

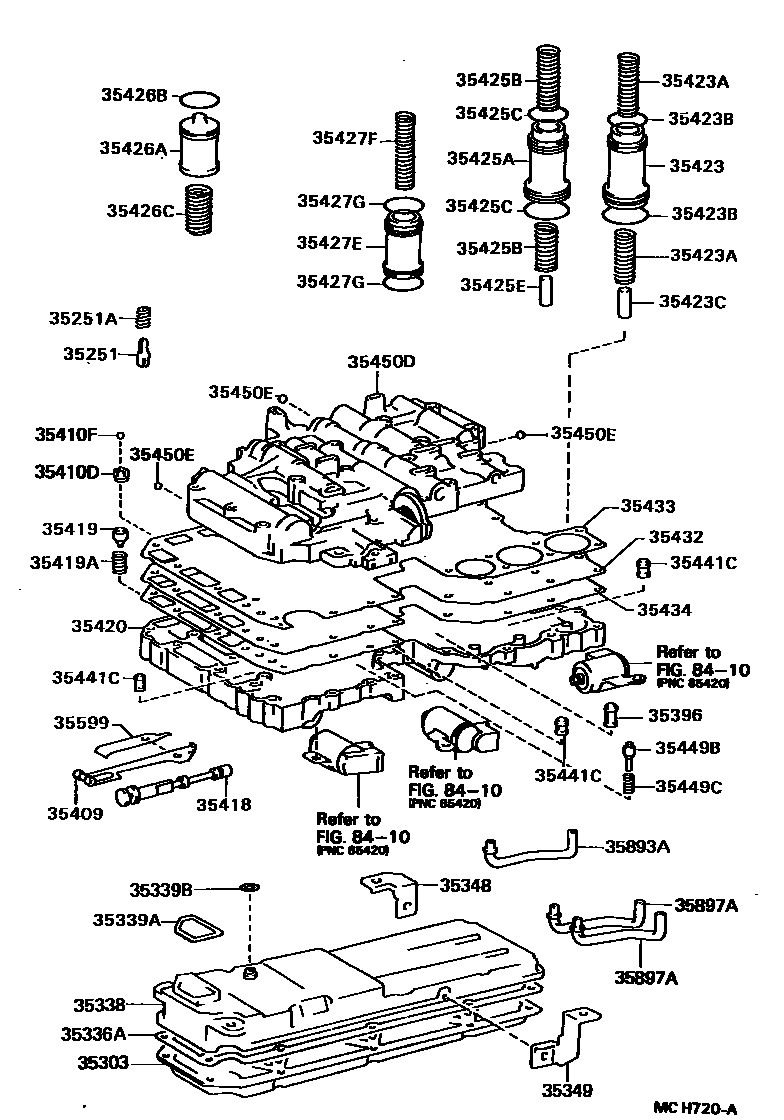

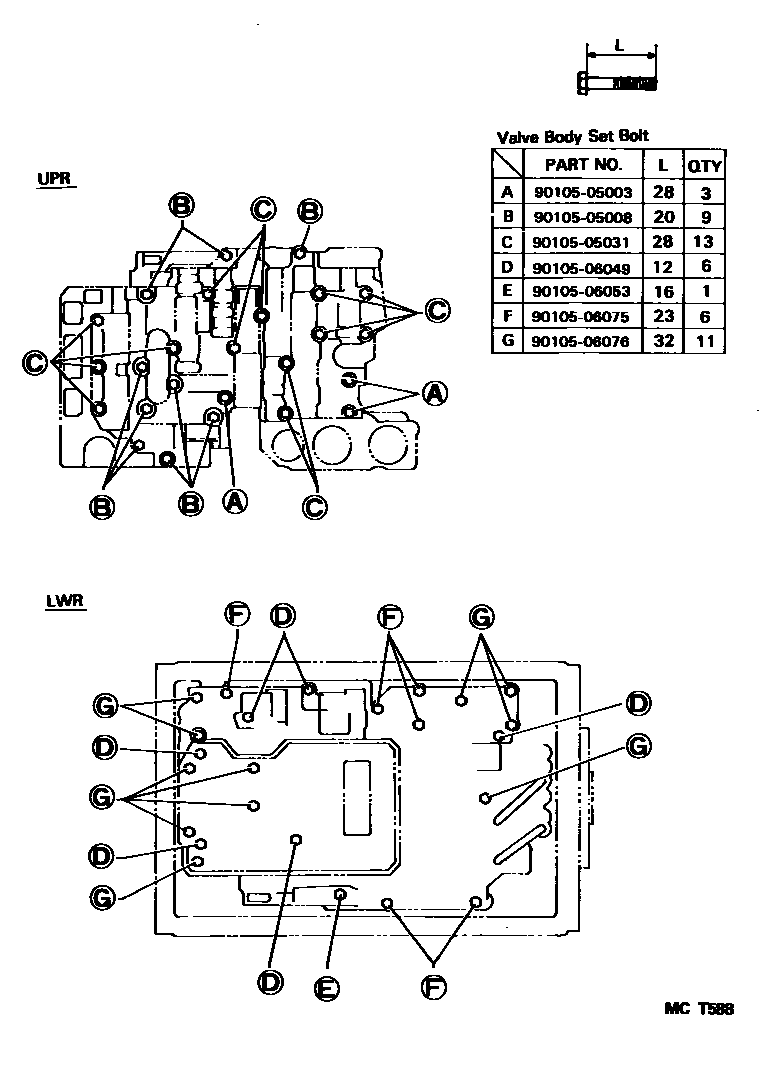

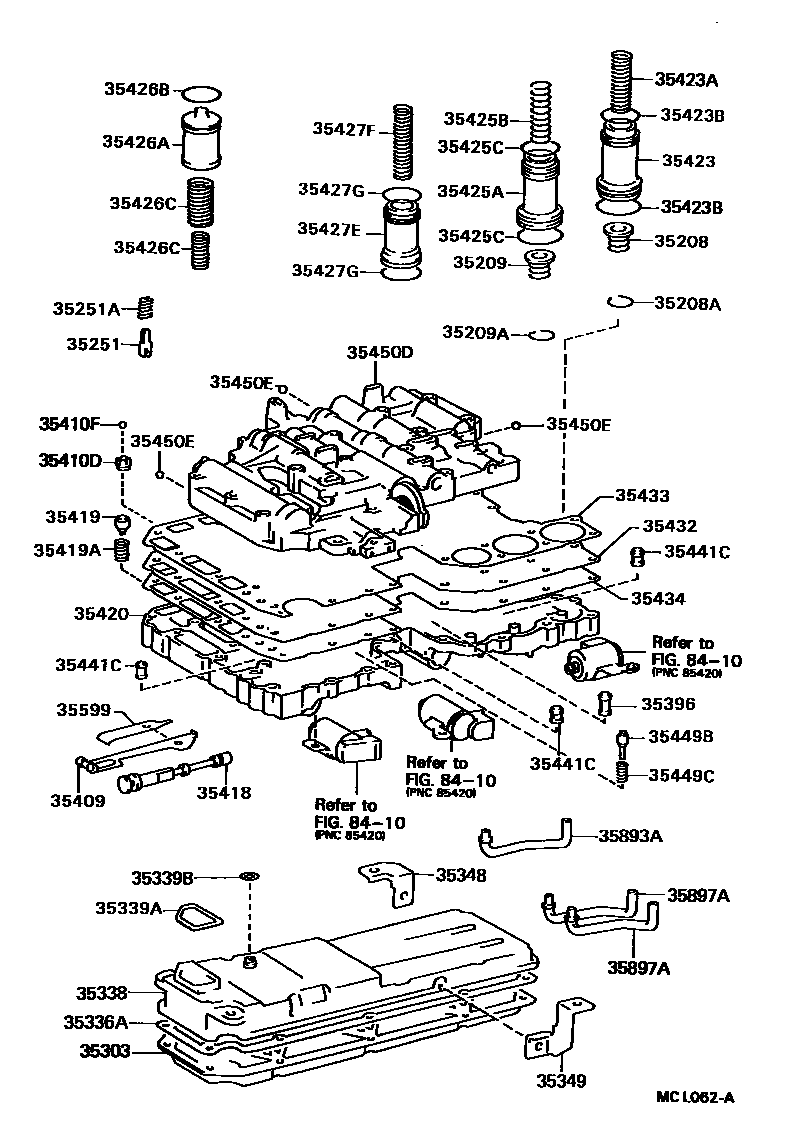

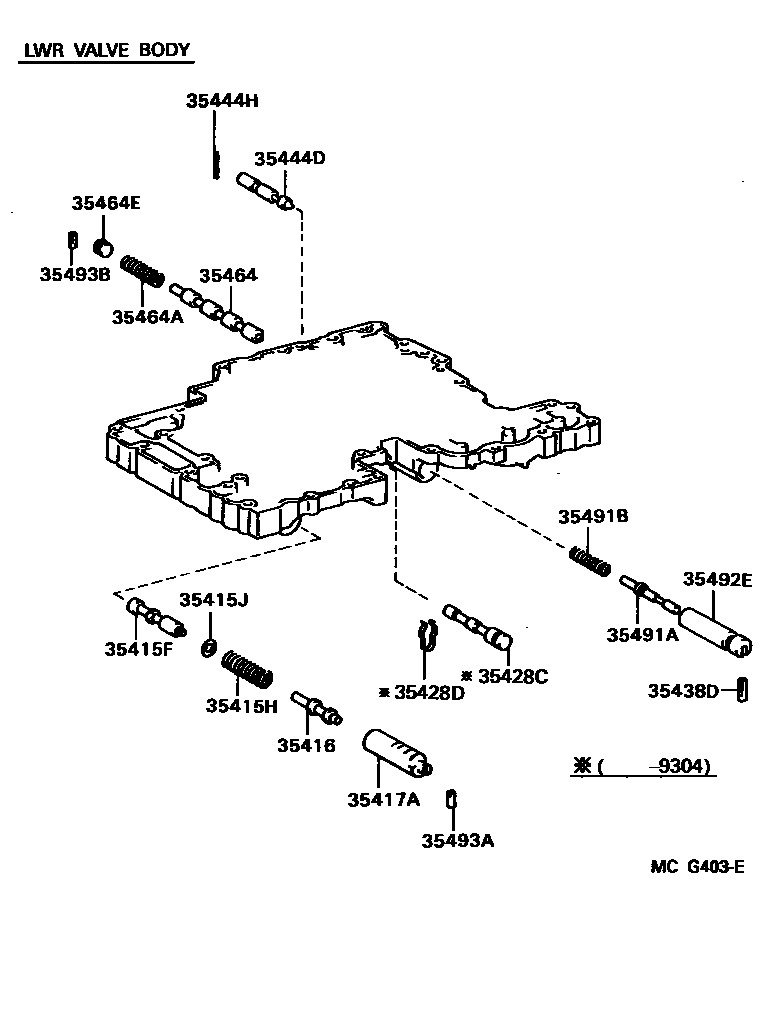

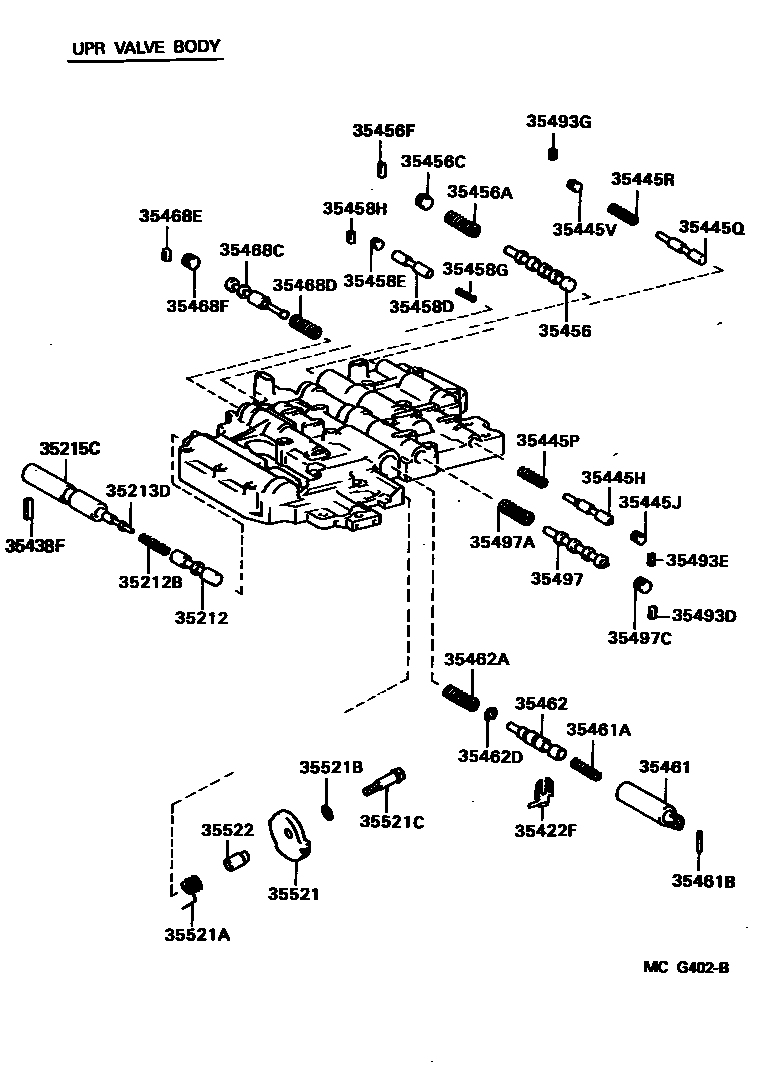

Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 5 images and 105 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35208 | B-2 Accumulator Spring Sub-Assembly | 35208-22010 |
| 35208A | Hole snap ring (for B-2 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-22020 |
| 35209A | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35212 | lock relay valve | 35212-12010 |
| 35212B | Compression spring (for locking relay valve) | 90501-06037 |
| 35213D | Lock relay valve plunger | 35213-30020 |
| 35215C | No. 1 locking relay valve sleeve | 35215-30020 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35303 | Oil filter sub-assembly | 35303-35010 |
| 35336A | Oil filter separator gasket | 35336-35010 · 35336-60010 |
| 35338 | Oil filter septum | 35338-35010 |
| 35339A | No. 1 oil filter gasket | 35339-30070 |
| 35339B | No. 2 oil filter gasket | 90430-10010 |
| 35348 | No. 1 oil filter bracket | 35348-35010 |
| 35349 | No. 2 oil filter bracket | 35349-35010 |
| 35396 | Throttle valve oil filter | 35396-30010 |
| 35409 | Manual lock spring sub-assembly | 35409-30020 |
| 35410D | One-way valve | 90917-10073 |
| 35410F | Ball (for one-way valve) | 90360-06004 |
| 35415F | Main regulator valve | 35415-30030 |
| 35415H | Compression spring (for main regulator valve) | 90501-16077 · 90501-17013 |
| 35415J | Gasket (for main regulator valve) | 90201-08021 |
| 35416 | No. 1 main regulator valve plunger | 35416-30040 · 35416-35010 |
| 35417A | Main regulator valve sleeve | 35417-30060 · 35417-35010 |
| 35418 | Manual valve | 35418-30070 |
| 35419 | No. 1 one-way valve | 35419-12030 |
| 35419A | Compression spring (for one-way valve) | 90501-11039 |
| 35420 | Lower valve body assembly | 35420-35033 · 35420-35041 |
| 35422F | Valve damping stop | 35422-30010 |
| 35423 | B-2 Accumulator Piston | 35423-30020 · 35423-30030 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-26054 · 90501-27019 · 90501-32017 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-23194 · 90301-31002 |
| 35423C | Direct sales (for B-2 accumulator piston) | 90250-12004 |
| 35425A | C-2 Accumulator Piston | 35425-30010 · 35425-30020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-21008 · 90501-22010 · 90501-22015 · 90501-25027 · 90501-32018 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-25003 · 90301-31002 |
| 35425E | Direct sales (for C-2 accumulator piston) | 90250-14002 |
| 35426A | C-0 Accumulator Piston | 35426-30010 · 35426-40010 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-24001 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-22008 · 90501-23062 · 90501-23073 |
| 35427E | B-0 accumulator piston | 35427-30030 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-20087 · 90501-22011 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20002 · 90301-26002 |
| 35428C | pressure relief plug | 35428-30010 |
| 35428D | Clip (for pressure relief plug) | 90468-05068 |
| 35432 | No. 1 valve body plate | 35432-35032 · 35432-35080 · 35432-35100 |
| 35433 | No. 1 valve body gasket | 35433-30064 |
| 35434 | No. 2 valve body gasket | 35434-30076 |
| 35438D | Accumulator control valve spring seat | 35438-22020 |
| 35438F | Lock spring seat | 35438-22020 |
| 35441C | Solenoid valve oil filter | 35441-30020 · 35441-30030 · 35441-30031 |
| 35444D | release control valve | 35444-30020 |
| 35444H | Direct pin (for intermediate regulator valve plunger) | 90250-03045 |
| 35445H | Second gear slide regulator valve | 35445-30011 |
| 35445J | Plunger (for second gear slide regulator valve) | 90339-04002 |
| 35445P | Compression spring (for second gear coast regulator valve) | 90501-11026 |
| 35445Q | Low gear coast regulator valve | 35445-30011 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-08088 |
| 35445V | Plunger (for low range coast regulator valve) | 90339-04002 |
| 35449B | Pressure reducing valve | 35449-32010 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 |
| 35450D | Upper valve body assembly | 35450-35031 |
| 35450E | Ball (for upper valve body) | 35495-22020 · 35496-22030 · 90360-06004 |
| 35456 | 2nd-3rd gear shift valve | 35456-30060 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-09053 |
| 35456C | Plunger (for 2-3 gear shift valve) | 90339-05014 |
| 35456F | Straight key (for 2-3 gear shift valve) | 35493-22020 |
| 35458D | reverse valve | 35458-30030 |
| 35458E | Plunger (for reverse valve) | 90339-04002 |
| 35458G | Compression spring (for reverse valve) | 90501-06026 |
| 35458H | Straight key (for reverse valve) | 90282-03003 |
| 35461 | Downshift plug | 35408-30040 |
| 35461A | Compression spring (for downshift plug) | 90501-10119 |
| 35461B | Direct sales (for downshift plug) | 90250-03045 |
| 35462 | throttle valve | 35462-30020 |
| 35462A | Compression spring (for throttle valve) | 90501-07051 · 90501-07067 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464 | 1-2 gear shift valve | 35464-12030 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-09053 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-05014 |
| 35468C | Secondary regulator valve | 35468-12020 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-15007 |
| 35468E | Straight key (for secondary regulator valve) | 35493-22020 |
| 35468F | Plunger (for secondary regulator valve) | 90339-05014 |
| 35491A | No. 1 accumulator control valve | 35491-35020 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-08083 |
| 35492E | Accumulator control valve sleeve | 35492-35020 |
| 35493A | Main regulator valve plunger seat | 35493-30020 |
| 35493B | 1-2 gear shift valve plunger seat | 35493-30090 |
| 35493D | 3rd-4th gear shift valve plunger seat | 35493-30090 |
| 35493E | Second gear slide regulator valve plunger seat | 35493-30080 |
| 35493G | Low gear coast regulator valve plunger seat | 35493-30090 |
| 35497 | 3rd-4th gear shift valve | 35497-30040 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-09053 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90339-05014 |
| 35521 | throttle cam | 35521-35010 |
| 35521A | Spring (for throttle cam return) | 90508-11007 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90105-06018 |
| 35522 | Throttle valve cam pin | 35522-22010 |
| 35599 | Manual locking spring cover | 35599-30020 |
| 35893A | Throttle valve pressure oil pipe | 35893-35010 |
| 35897A | No. 1 first and reverse brake pipe | 35897-35010 |
