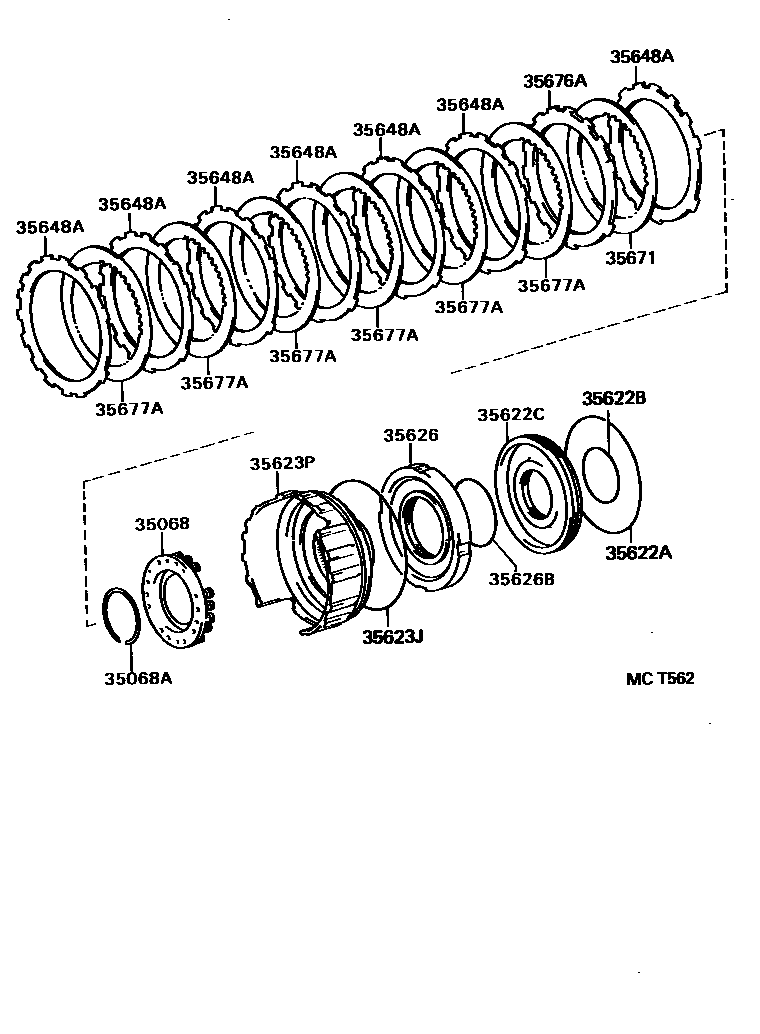

Toyota HILUX 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota HILUX EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-35010 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-52262 |
| 35622A | Outer ring (for brake piston) | 90301-99193 |
| 35622B | Inner ring (for brake piston) | 90301-57188 |
| 35622C | No. 1 first and reverse brake piston | 35622-30010 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99192 |
| 35623P | No. 2 first and reverse brake piston | 35623-35011 · 35623-35031 |
| 35626 | Brake reaction sleeve | 35626-30020 |
| 35626B | Inner ring (for brake reaction sleeve) | 90301-68191 |
| 35648A | Clutch disc (for first and reverse brakes) | 35648-30031 |
| 35671 | brake cushion | 35671-35010 |
| 35676A | Brake flange (for first and reverse brakes) | 35676-50010 · 35676-50020 · 35676-50030 · 35676-50040 · 35676-50050 · 35676-50060 |
| 35677A | Clutch disc (for first and reverse brake) | 35677-30110 |
