Toyota HILUX 制动带和多片式离合器(ATM) — Figure 3507

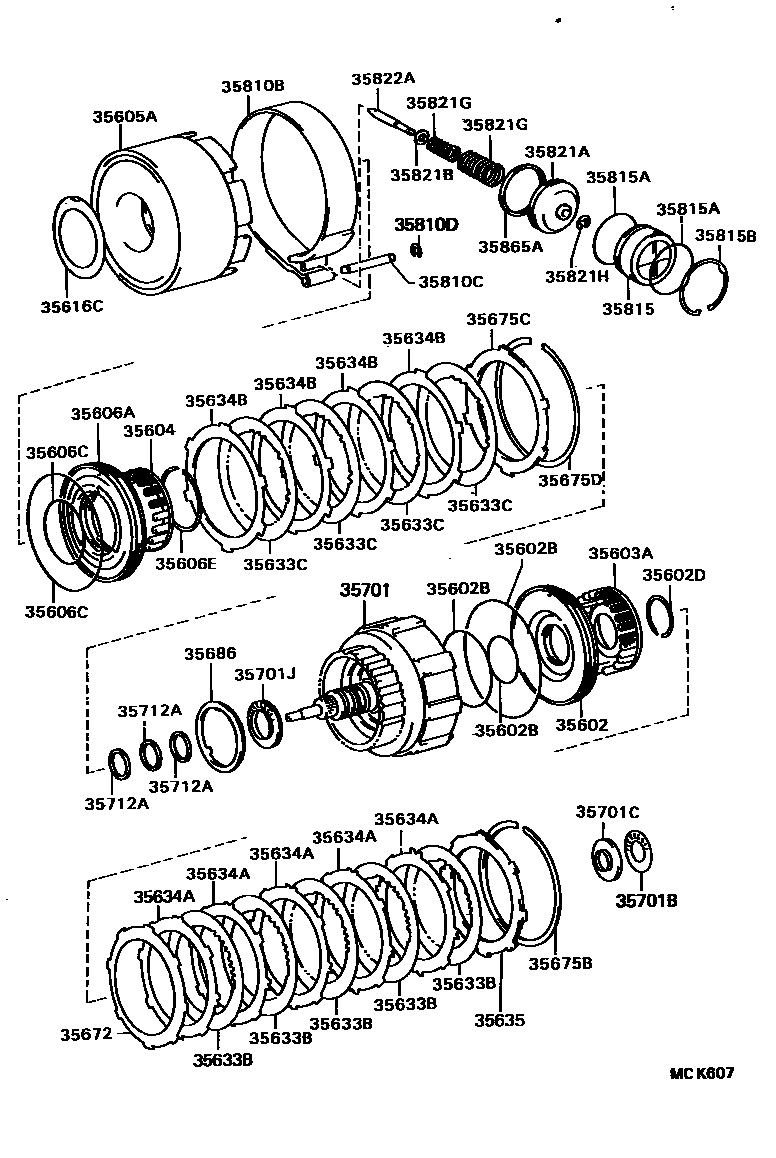

Toyota HILUX EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35602 | Front clutch piston sub-assembly | 35602-30061 · 35602-30062 |
| 35602B | O-ring (for forward clutch piston) | 90301-39005 · 90301-72003 · 90301-99058 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-35001 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-30011 |
| 35604 | Direct clutch return spring sub-assembly | 35604-35010 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-22030 · 35605-30031 · 35605-35011 |
| 35606A | Direct clutch piston sub-assembly | 35606-22030 · 35606-35010 |
| 35606C | O-ring (for direct clutch piston) | 90301-65005 · 90301-99016 · 90301-99065 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90520-58001 |
| 35616C | Clutch drum thrust washer (for direct gear clutch drum) | 35616-30050 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35677-30090 · 35677-30170 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35667-30012 · 35667-40010 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-30100 · 35634-30110 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35647-14010 · 35647-30011 |
| 35635 | forward clutch flange | 35635-30010 · 35635-30020 · 35635-30030 · 35635-50010 · 35635-50020 · 35635-50030 · 35635-50040 · 35635-50050 · 35635-50060 |
| 35672 | clutch cushion | 35672-30010 |
| 35675B | Hole snap ring (for forward clutch flange) | 90521-99001 |
| 35675C | Direct clutch flange | 35675-30051 · 35675-30061 · 35675-30071 · 35675-30081 · 35675-30091 · 35675-30101 · 35675-30111 · 35675-30120 |
| 35675D | Hole snap ring (for direct clutch flange) | 90521-99032 |
| 35686 | Clutch drum thrust washer (for input shaft) | 35686-30010 |
| 35701 | Input shaft sub-assembly | 35701-22050 · 35701-22060 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-25005 |
| 35701C | Rear thrust bearing race (for input shaft) | 35789-30110 |
| 35701J | Front thrust needle roller bearing (for input shaft) | 90374-33001 |
| 35712A | Input shaft oil ring | 35712-30020 |
| 35810B | Second gear coasting brake band assembly | 35810-30020 |
| 35810C | Pin (for second gear coast brake band) | 90249-07011 |
| 35810D | E-ring (for second gear coasting brake belt pin) | 96160-00500 |
| 35815 | Second gear coast brake cover | 35815-30010 |
| 35815A | O-ring (for second gear coast brake cover) | 90301-48001 |
| 35815B | Hole snap ring (for second gear coast brake cover) | 90521-60002 |
| 35821A | Second gear coast brake piston | 35821-30020 |
| 35821B | Flat washer (for second gear coast brake piston) | 90201-06557 |
| 35821G | Compression spring (for second gear coast brake piston) | 90501-26024 · 90501-27009 |
| 35821H | E-ring (for second gear coast brake piston) | 96160-00500 |
| 35822A | Second gear coast brake piston rod | 35822-32010 · 35822-32020 |
| 35865A | Second gear coasting brake piston oil protection ring | 35865-30010 |
