Toyota HILUX 变速器壳和油底壳(ATM) — Figure 3503

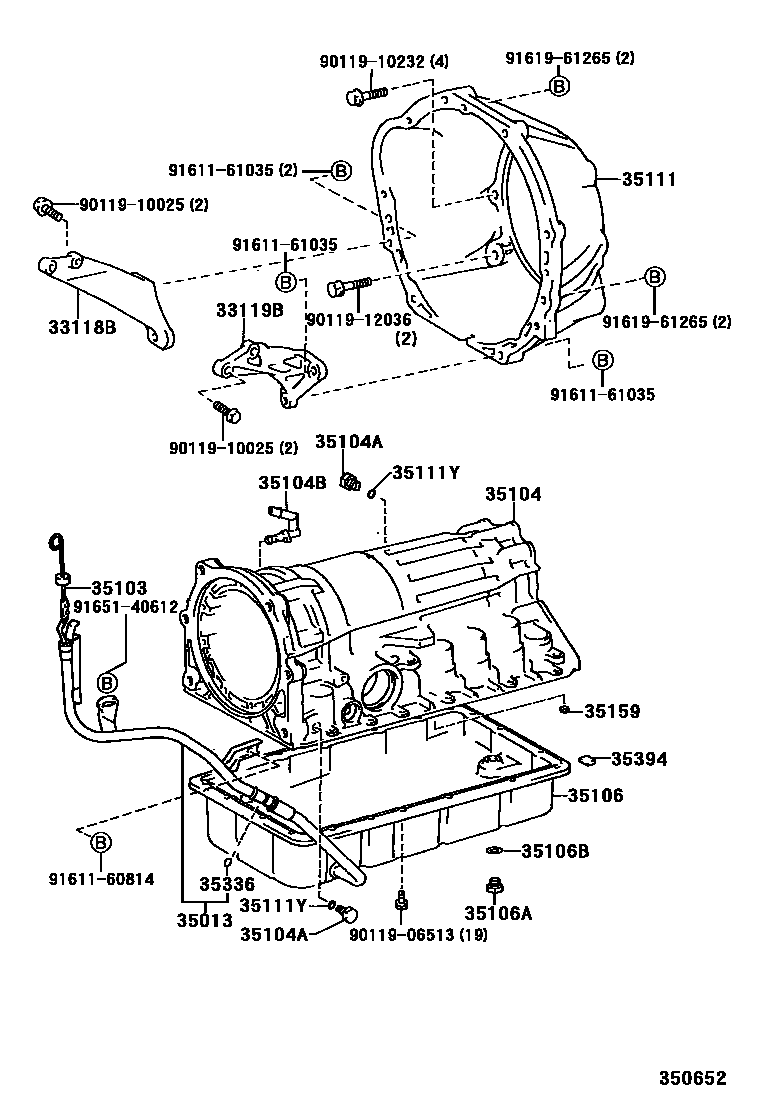

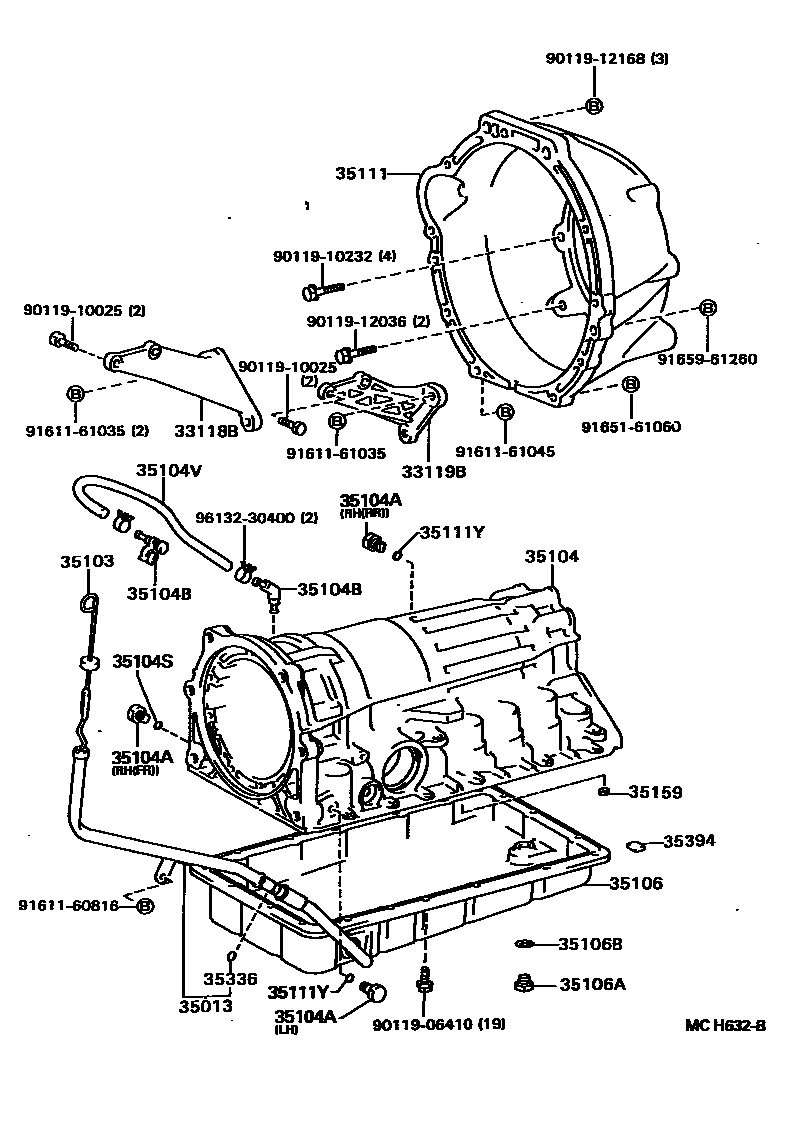

Toyota HILUX EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33118B | Right reinforcement plate (ATM) | 33118-28010 · 33118-35040 |
| 33119B | Left reinforcement plate (ATM) | 33119-28010 · 33119-35030 |
| 35013 | Transmission oil pipe sub-assembly | 35013-35150 · 35013-35200 |
| 35103 | Transmission oil level scoring assembly | 35103-35140 · 35103-35190 |
| 35104 | Automatic transmission housing sub-assembly | 35104-35011 |
| 35104A | automatic transmission plug | 90341-08001 · 90341-14011 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03098 · 90930-03099 · 90930-03116 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-11006 |
| 35104V | Hoses (for breather plug) | 90445-10020 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-35011 · 35106-35012 · 35106-35022 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10006 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 |
| 35111 | automatic transmission housing | 35111-35040 · 35111-35051 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35159 | brake drum gasket | 35159-30010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09011 · 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
