Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502

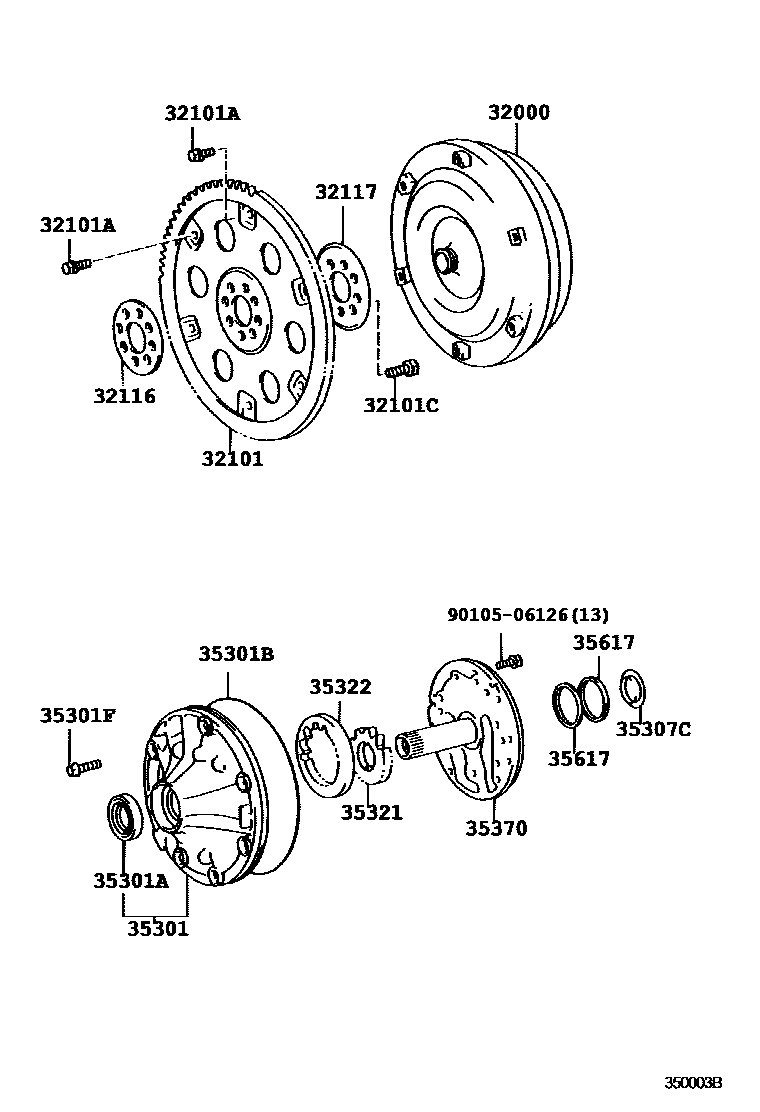

Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-35050 · 32000-35110 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-28010 · 32101-35010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 · 90119-09009 · 90119-09010 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10046 · 90105-10048 |
| 32116 | Front transmission plate spacer | 32116-28010 · 32116-32020 |
| 32117 | Rear transmission plate spacer | 32117-20030 · 32117-32020 |
| 35301 | Front oil pump body sub-assembly | 35301-35010 |
| 35301A | Oil seal (for front oil pump) | 90311-38029 |
| 35301B | O-ring (for front oil pump body) | 90301-99033 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08091 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-30020 |
| 35321 | Front oil pump driving gear | 35321-12020 · 35321-12030 · 35321-12040 · 35321-12050 · 35321-12060 |
| 35322 | Front oil pump driven gear | 35322-35010 |
| 35370 | stator shaft assembly | 35370-30031 |
| 35617 | Clutch drum oil ring | 35617-30020 |
