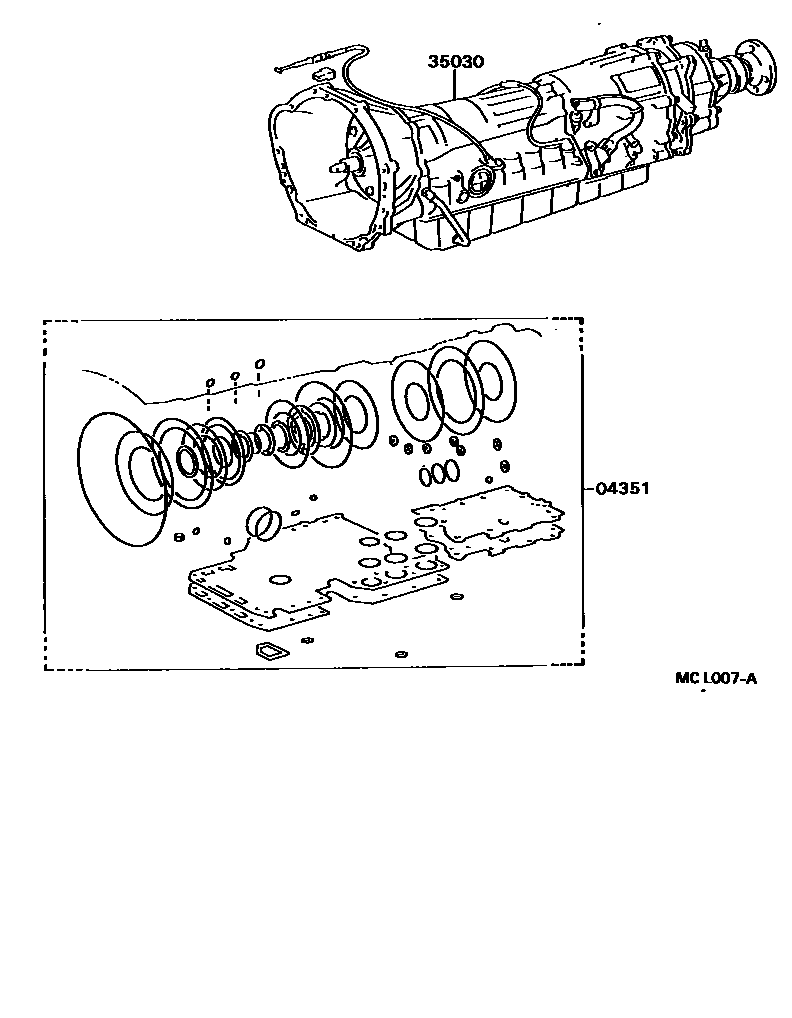

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota HILUX EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351 | Automatic transmission overhaul gasket assembly | 04351-35022 · 04351-35030 |
| 35030 | Automatic transmission assembly with transfer case | 35030-35160 · 35030-35220 · 35030-35230 · 35030-35290 · 35030-35300 · 35030-35340 · 35030-35350 · 35030-35380 · 35030-35390 |
