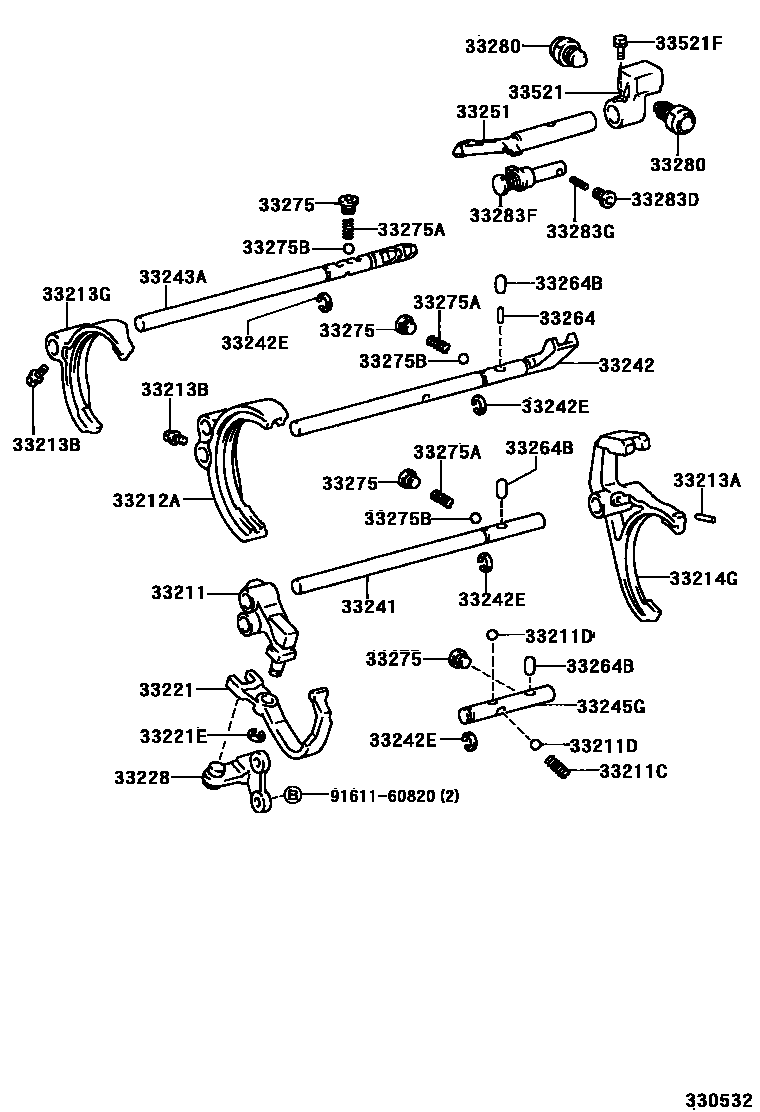

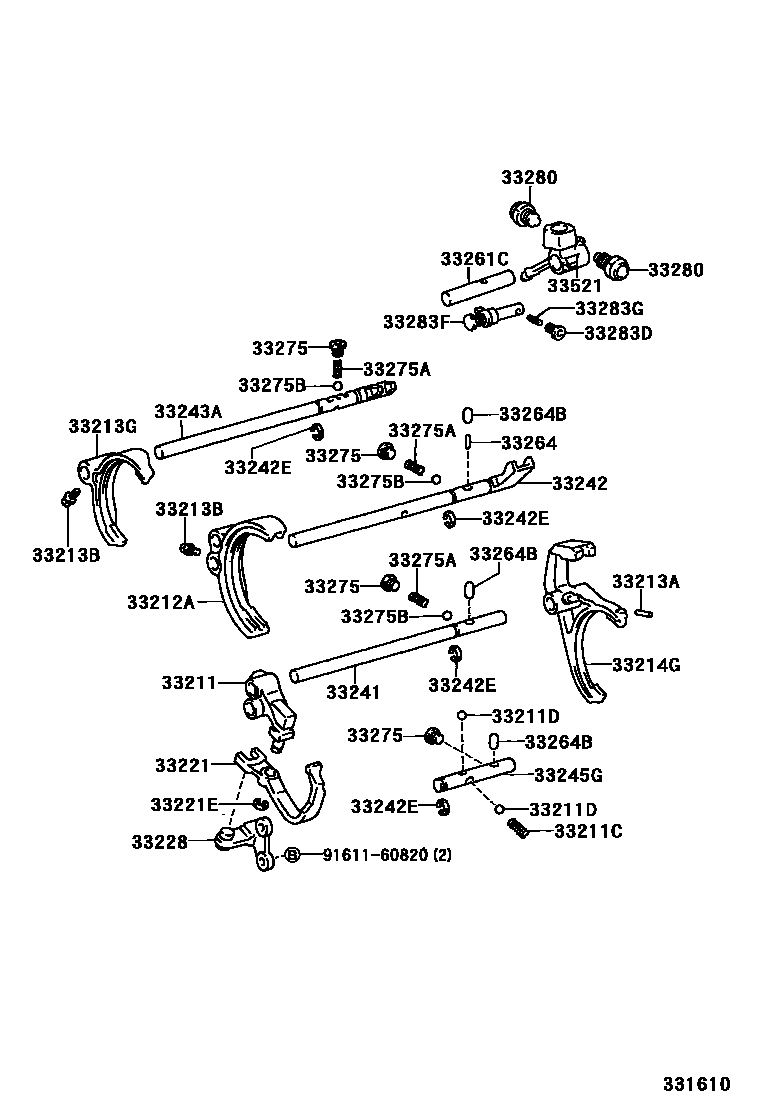

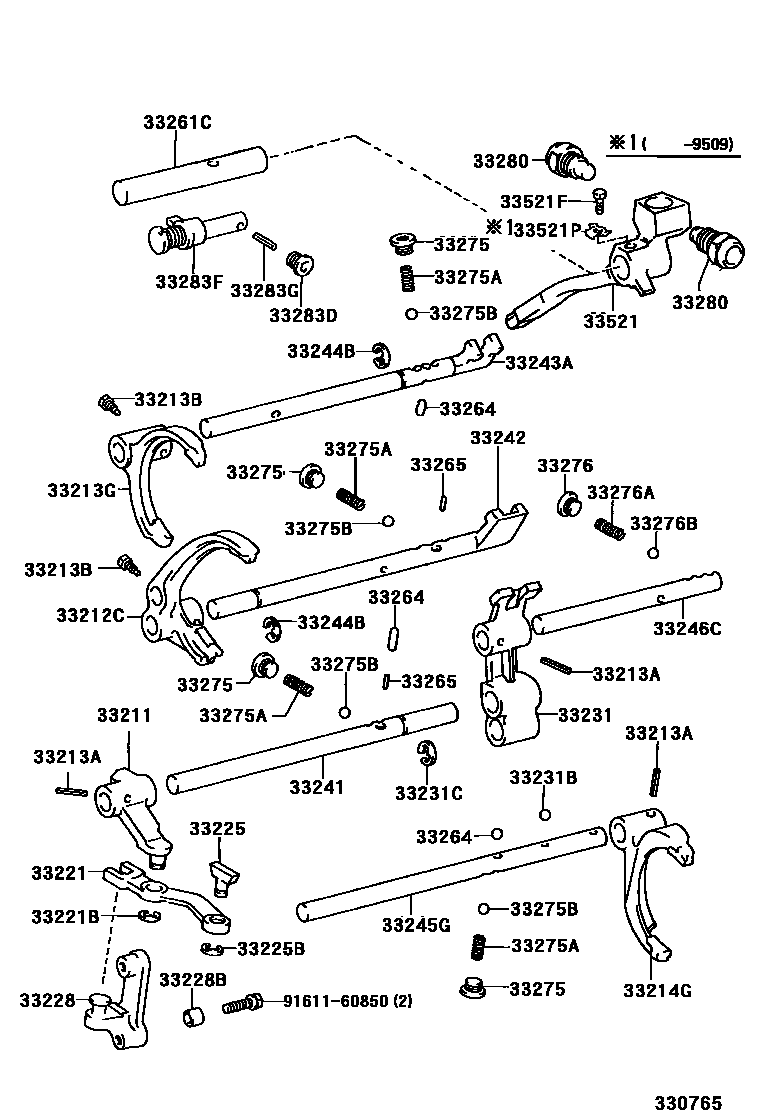

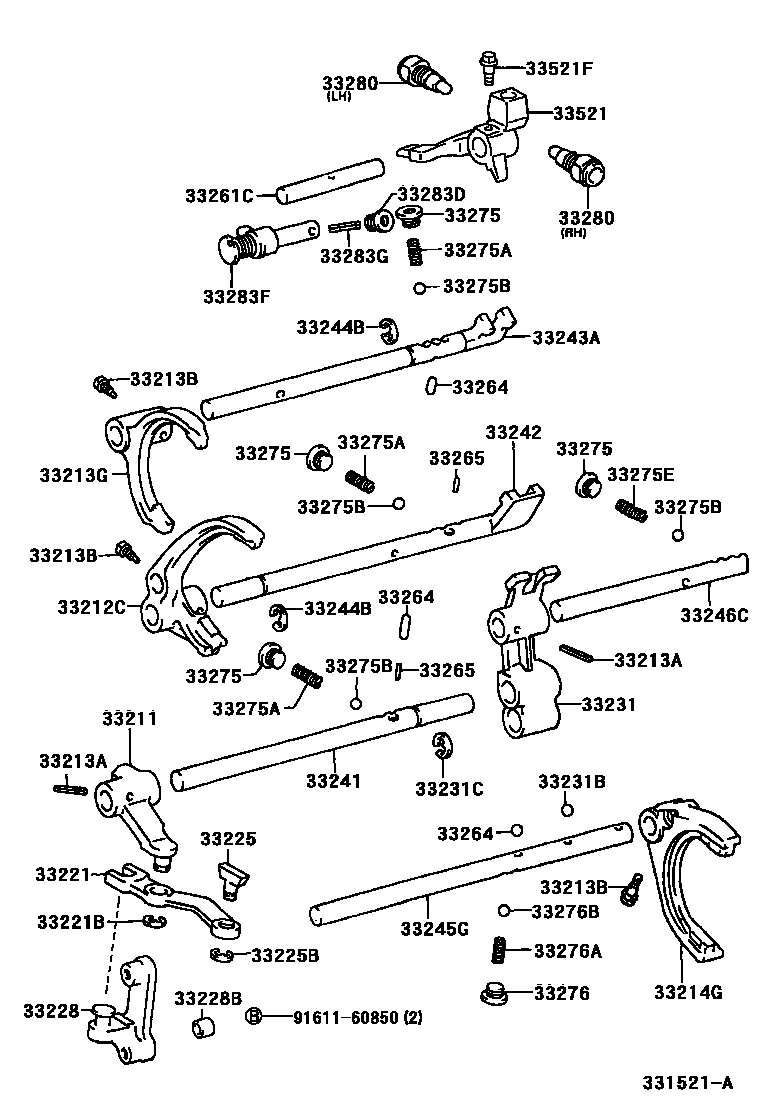

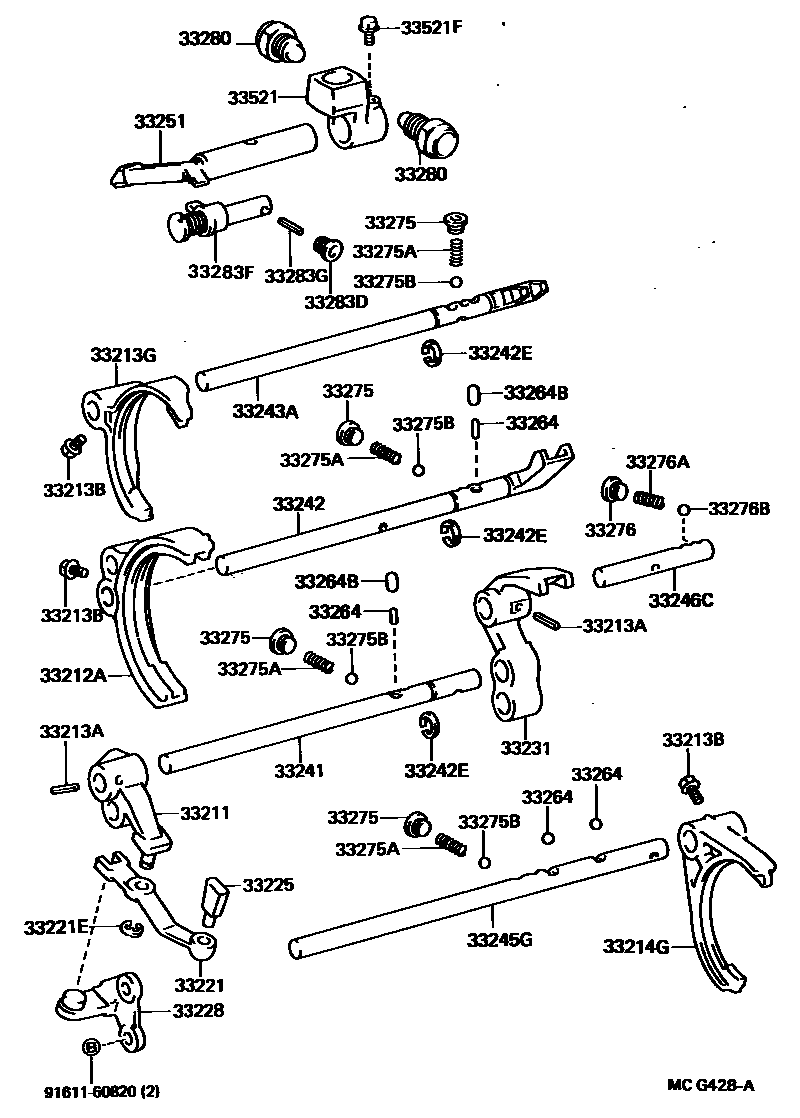

Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 5 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33211 | Reverse Shift Fork | 33211-28010 · 33211-35030 · 33211-35050 |
| 33211C | Compression spring (for reverse shift fork return) | 90501-12166 |
| 33211D | Steel ball (for reverse shift fork) | 90360-10003 |
| 33212A | No. 1 shift fork | 33212-35032 |
| 33212C | No. 1 shift fork | 33212-35023 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06052 · 90105-06077 · 90105-06143 |
| 33213G | No. 2 shift fork | 33213-35032 · 33213-35033 · 33213-35040 |
| 33214G | No. 3 shift fork | 33214-35020 · 33214-35030 · 33214-35040 · 33230-35010 · 33230-35011 |
| 33221 | Reverse shift arm | 33221-28010 · 33221-35030 · 33221-35050 |
| 33221B | E-ring (for reverse shift arm) | 96160-01000 |
| 33221E | Ring (for reverse shift arm end shaft) | 96160-01000 |
| 33225 | shift arm shoe | 33225-35030 · 33225-35040 |
| 33225B | E-ring (for shift arm shoe) | 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-28010 · 33228-35010 · 33228-35030 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33231 | Reverse gear shift guide block | 33231-35040 · 33231-35060 · 33231-35061 · 33231-35070 |
| 33231B | Reverse gear shift positioning steel ball | 90360-10003 |
| 33231C | Ring (for reverse shift guide block) | 90520-12003 · 90520-12006 |
| 33241 | Reverse shift fork shaft | 33244-35021 · 33244-35040 · 33244-35050 · 33244-35060 |
| 33242 | No. 1 shift fork shaft | 33242-35022 · 33242-35030 · 33242-35031 · 33242-35040 · 33242-35050 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-35042 · 33243-35070 · 33243-35071 · 33243-35080 · 33243-60120 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-12006 |
| 33245G | No. 4 shift fork shaft | 33245-35040 · 33245-35050 · 33245-35070 · 33245-35080 · 33245-35090 |
| 33246C | No. 5 shift fork shaft | 33246-35020 · 33246-35030 |
| 33251 | shift lever | 33251-35100 · 33251-35101 · 33251-35150 |
| 33261C | shift lever shaft | 33261-35080 · 33261-35081 · 33261-35120 · 33261-35121 · 33261-35130 · 33261-35131 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-05029 · 90360-10003 · 90361-10002 · 90361-10003 |
| 33264B | Roller No. 1 (for shift interlock) | 90361-10003 |
| 33265 | No. 2 shift interlock pin | 90250-05020 |
| 33275 | No. 1 shift lock steel ball spring seat | 90341-12008 · 90341-12014 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14061 · 90501-14062 · 90501-14096 · 90501-14123 · 90501-14132 · 90501-16143 · 90501-16147 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-10061 |
| 33276 | No. 2 shift lock steel ball spring seat | 90341-12008 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-10061 · 90501-14123 · 90501-16159 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-27011 · 33280-35020 · 33280-35021 · 33280-35030 · 33280-35031 · 33280-35060 · 33280-35062 · 33280-35070 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-12008 · 90341-12014 |
| 33283F | Reverse gear positioning pin | 33280-35040 · 33280-35050 · 33280-35100 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 |
| 33521 | shift lever housing | 33521-35090 · 33521-35150 · 33521-35240 · 33521-35280 · 33521-35330 · 33521-35331 |
| 33521F | Pin or bolt (for shifter housing) | 90105-08079 · 90109-08305 · 90113-08001 |
| 33521P | Lock washer (for shift lever housing) | 90215-09003 |
