Toyota HILUX 废气再循环系统 — Figure 2501

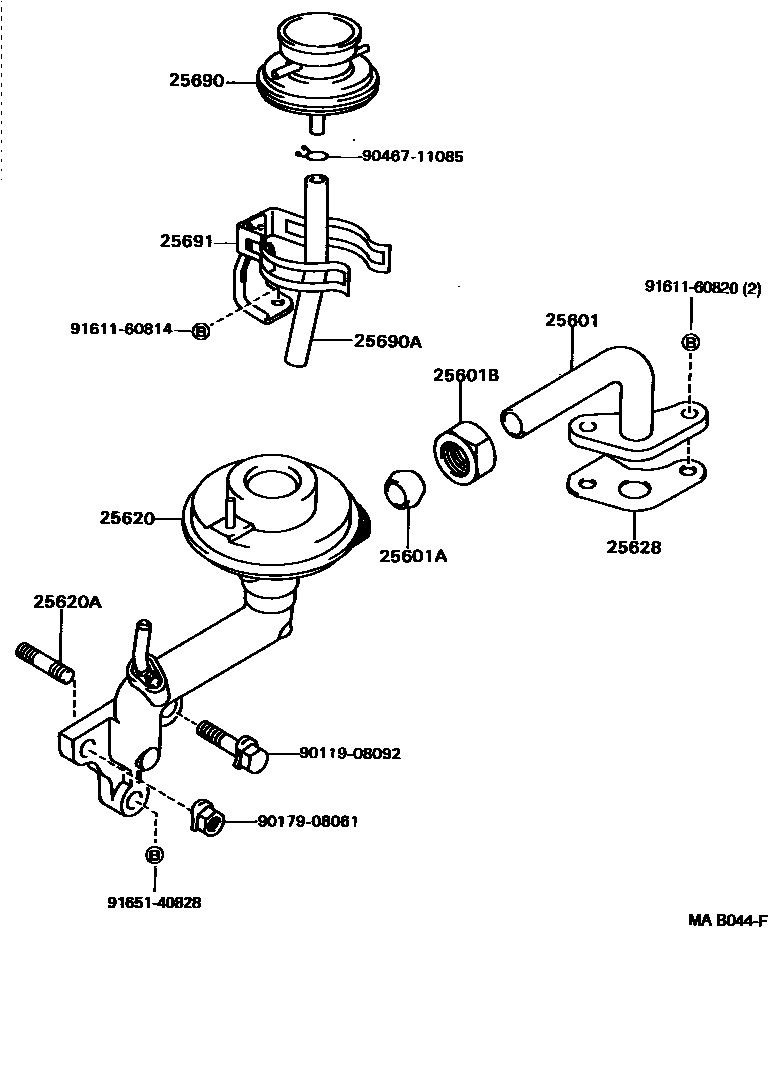

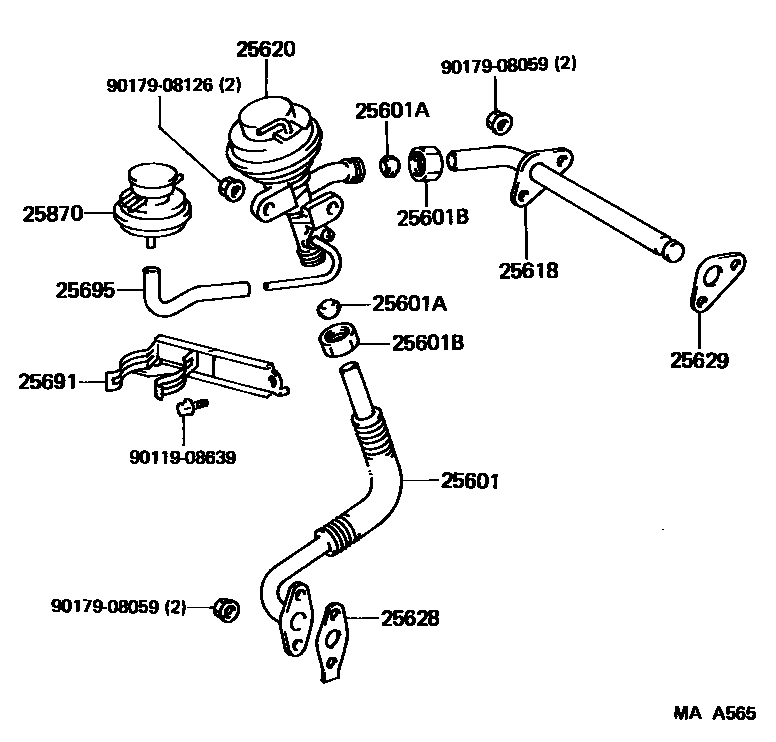

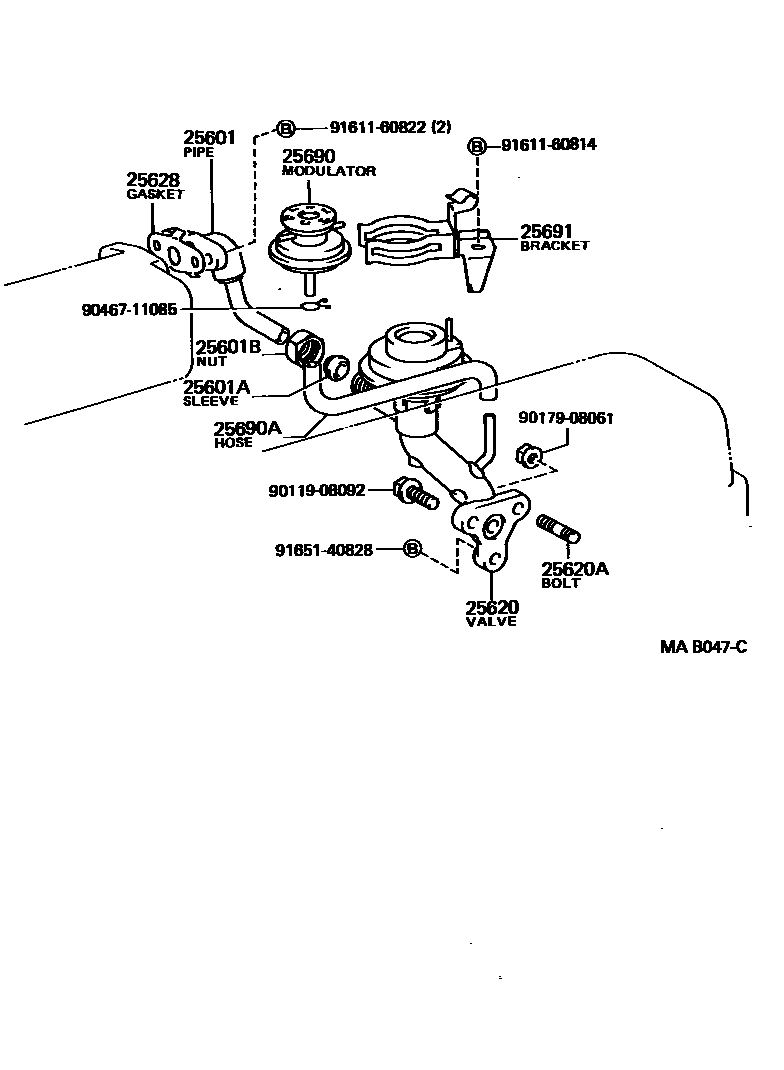

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-35040 · 25601-35060 · 25601-35070 · 25611-65010 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-16001 · 90410-16044 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-22005 · 90402-22081 |
| 25618 | EGR air inlet | 25618-65010 |
| 25620 | EGR valve assembly | 25620-35100 · 25620-35180 · 25620-65011 · 25620-73130 |
| 25620A | Stud bolts (for EGR valve) | 90116-08207 |
| 25627 | EGR valve gasket | 25627-71011 |
| 25628 | EGR air intake gasket | 25628-35020 · 25628-35030 · 25628-38010 · 25628-65010 |
| 25629 | EGR valve adapter gasket | 25629-65010 · 25629-65011 |
| 25690 | EGR vacuum regulator assembly | 25870-35100 · 25870-35130 · 25870-71041 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-35020 · 25695-35030 · 90445-11017 |
| 25691 | EGR vacuum regulator bracket | 25691-35030 · 25691-35040 · 25691-65010 · 25691-73020 |
| 25695 | EGR vacuum regulator hose | 25695-65010 |
| 25870 | EGR vacuum regulator valve assembly | 25870-65010 |
