Toyota HILUX 燃油喷射系统 — Figure 2211

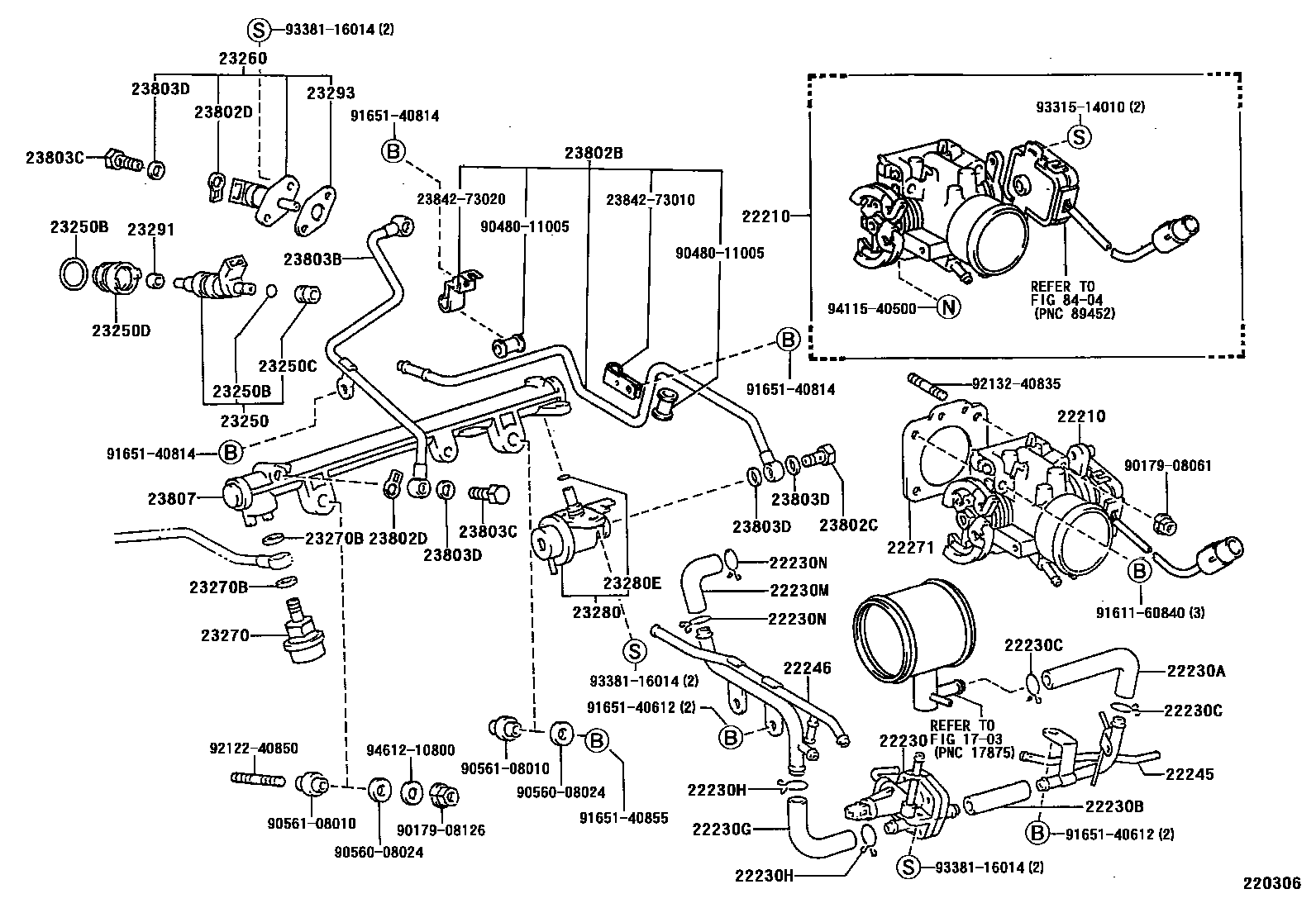

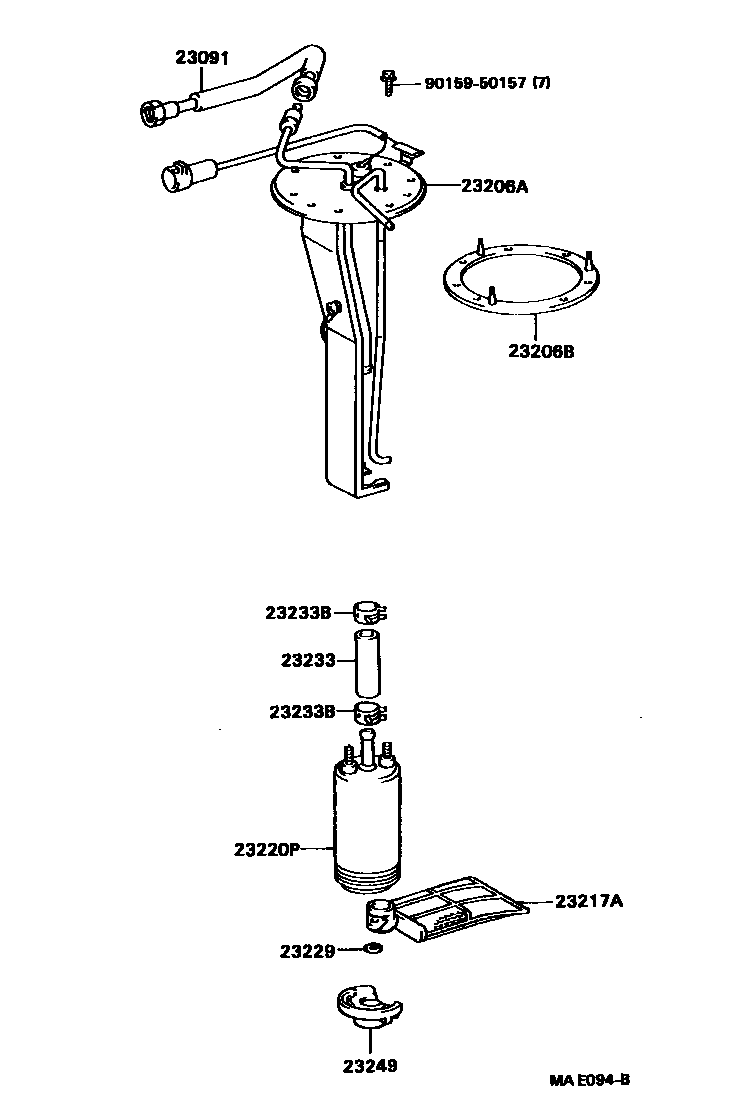

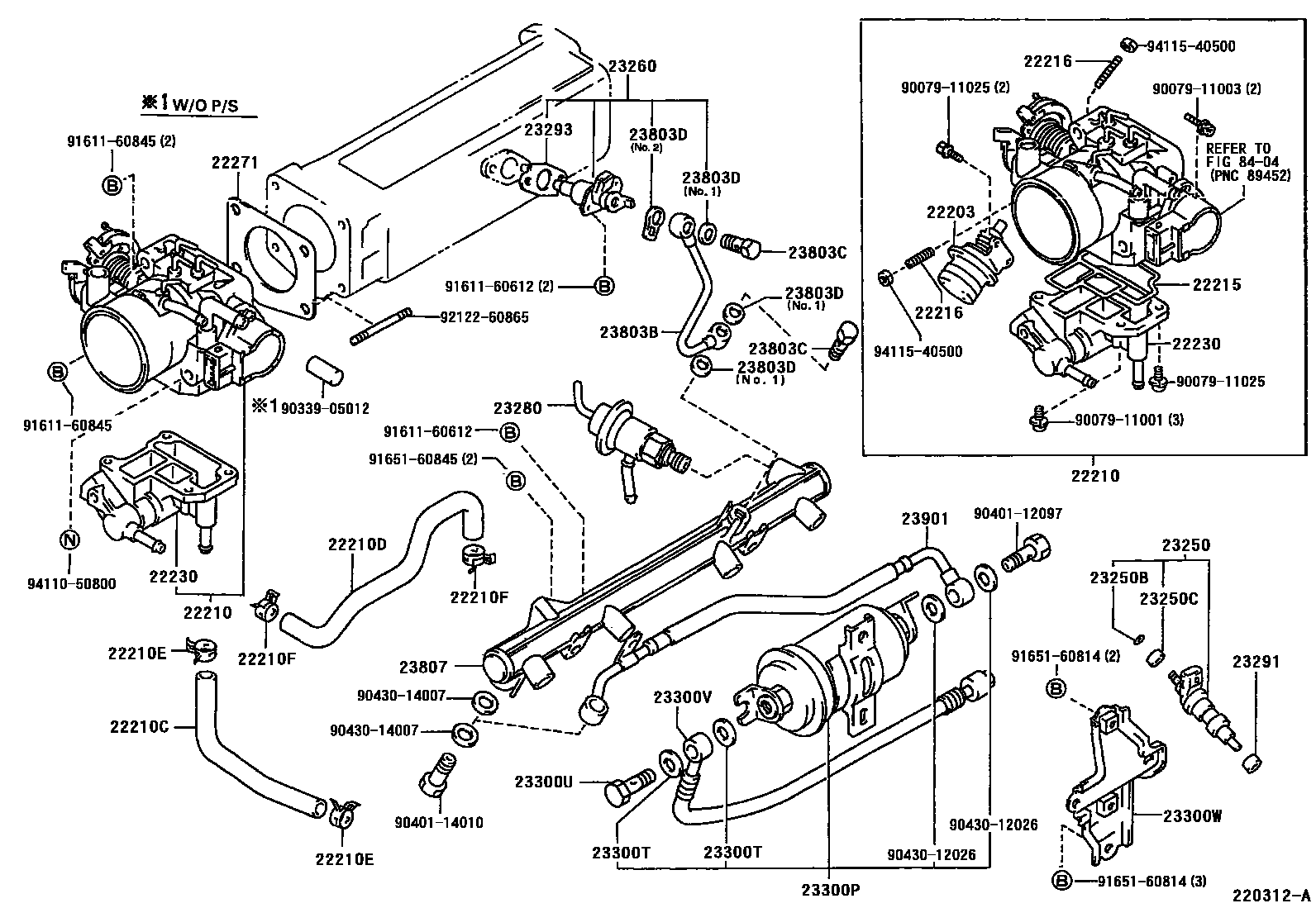

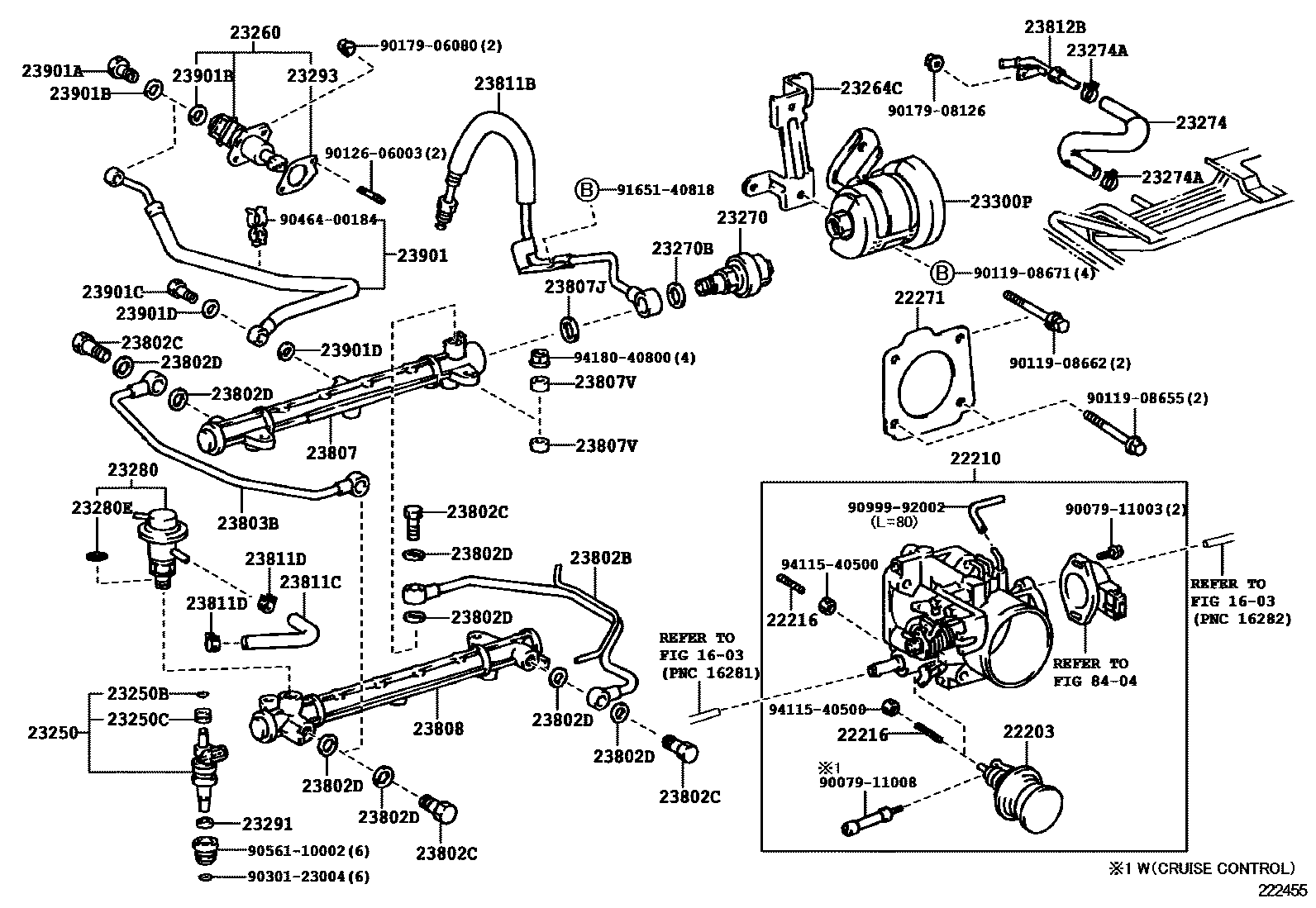

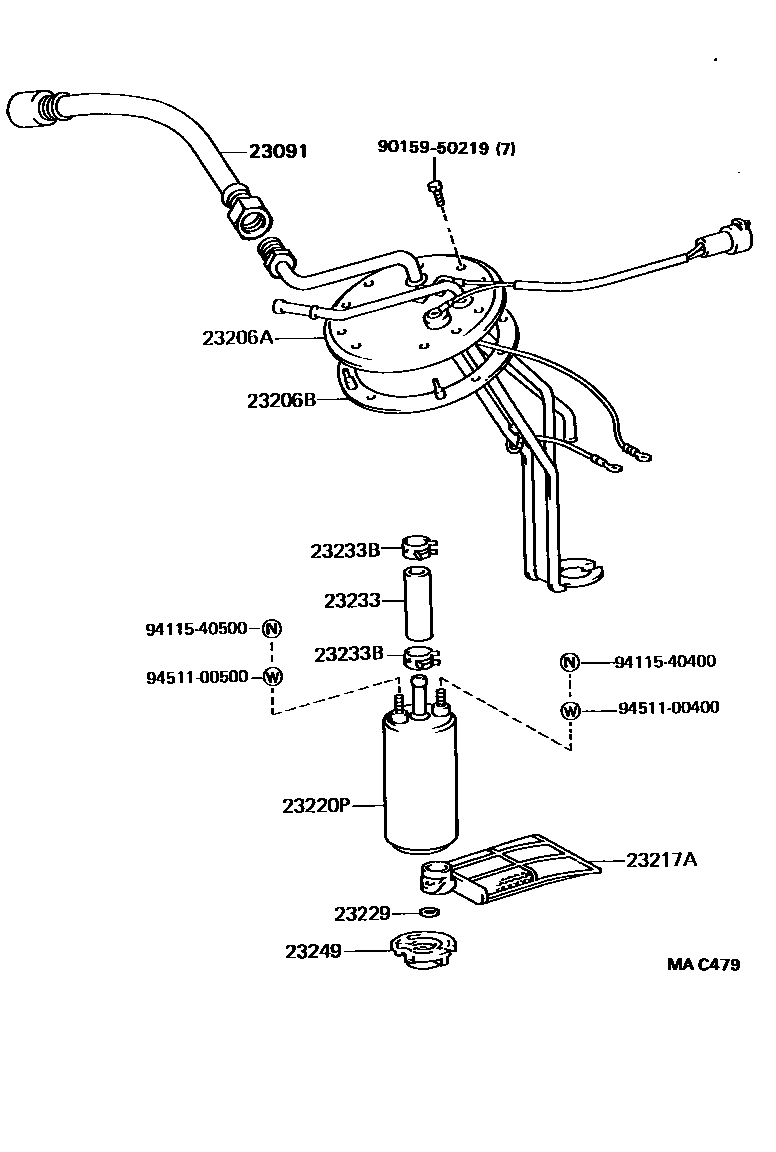

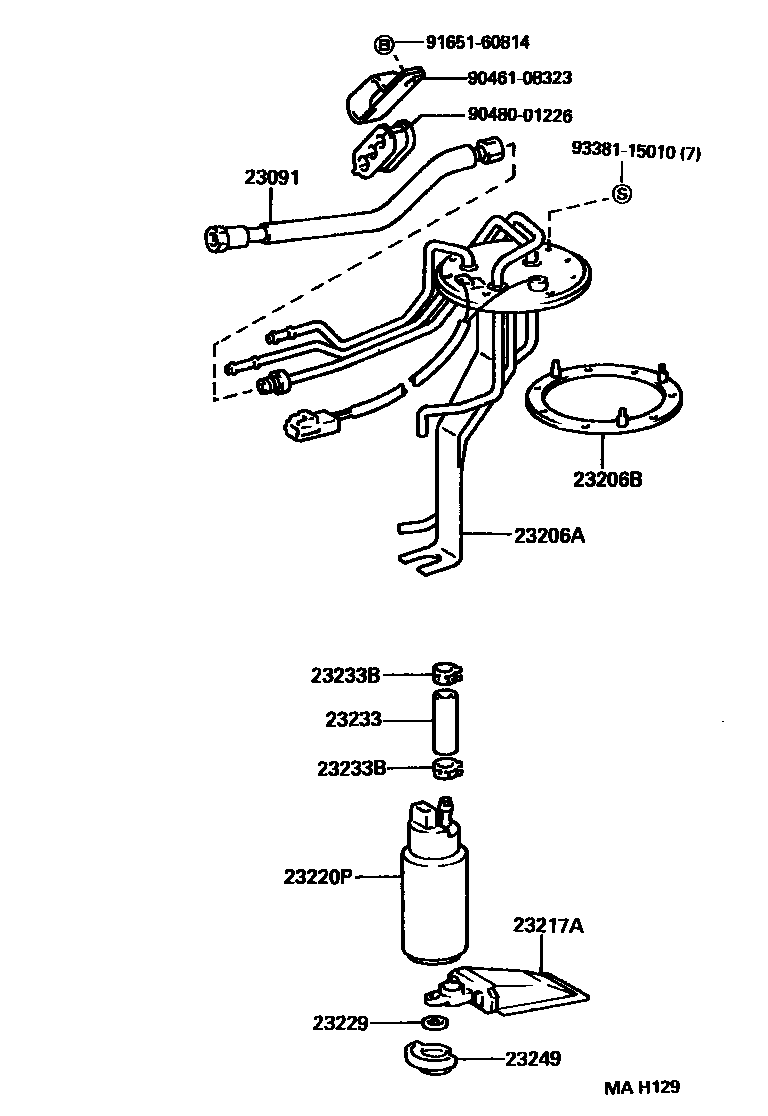

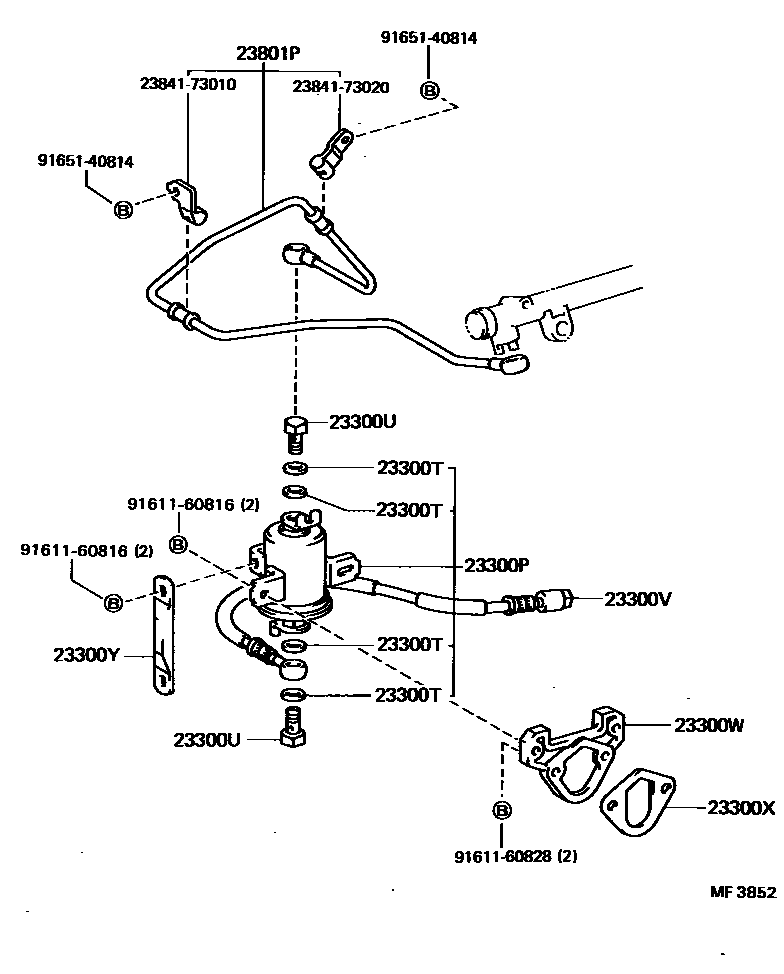

Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 7 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-35300 · 22202-65030 · 22202-65040 |
| 22210 | Throttle body assembly | 22210-35300 · 22210-35301 · 22210-65052 · 22210-65062 · 22210-65090 · 22210-65100 · 22210-73050 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16267-35030 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16264-35030 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13001 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13001 |
| 22215 | Throttle body cover gasket | 22215-35270 |
| 22216 | Deceleration buffer adjustment screw | 22216-35300 · 22216-65030 · 22216-73020 |
| 22230 | Auxiliary air valve assembly | 22230-35030 · 22230-73011 |
| 22230A | No. 1 auxiliary air valve hose | 22233-73021 |
| 22230B | No. 2 auxiliary air valve hose | 90445-21008 |
| 22230C | No. 1 auxiliary air valve hose clip | 90467-19003 |
| 22230G | No. 3 auxiliary air valve hose | 22236-73011 |
| 22230H | No. 3 auxiliary air valve hose clip | 90467-19003 |
| 22230M | No. 4 auxiliary air valve hose | 22237-73010 |
| 22230N | No. 4 auxiliary air valve clip | 90467-19003 |
| 22245 | No. 2 auxiliary air pipe | 22245-73020 |
| 22246 | No. 3 auxiliary air pipe | 22246-73012 |
| 22271 | Throttle body gasket | 22271-35020 · 22271-65020 · 22271-73010 · 22271-73011 |
| 23091 | Fuel pump pipe sub-assembly | 23091-35080 · 23091-35090 |
| 23206A | fuel pump bracket | 23206-35220 · 23206-35270 · 23206-35280 · 23206-35290 |
| 23206B | fuel pump bracket gasket | 77169-14010 |
| 23217A | fuel pump filter | 23217-11020 · 23217-35040 · 23217-74021 |
| 23220P | fuel pump assembly | 23220-16084 · 23220-16190 · 23221-16490 · 23221-46010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23239-11010 · 23239-63010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 · 90467-13054 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74150 · 23249-74610 |
| 23250 | Fuel injector assembly | 23209-35040 · 23209-45011 · 23209-65020 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 · 90301-23004 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23250D | Spacer (for injector) | 90561-10002 |
| 23260 | Cold start injector assembly | 23260-39075 · 23260-69055 · 23260-79085 |
| 23264C | fuel filter bracket | 23264-65010 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-65010 · 23270-73010 |
| 23270B | Gasket (for pulsation damper hose) | 23232-28010 · 90430-12005 · 90430-18016 · 90430-18028 |
| 23274 | No. 3 fuel hose | 23274-65010 |
| 23274A | Clamp (for No. 3 fuel hose) | 90467-11009 |
| 23280 | Fuel pressure regulator assembly | 23280-35030 · 23280-65010 · 23280-73040 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-09002 |
| 23291 | Injector vibration isolation pad | 23291-41010 · 23291-73010 |
| 23293 | Cold start injector gasket | 23293-35020 · 23293-73010 · 23293-73011 |
| 23300P | Fuel filter (for EFI) | 23300-39065 · 23300-65010 · 23300-79165 |
| 23300T | Gasket (for fuel filter) | 90430-12005 · 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12029 · 90401-12097 |
| 23300V | Fuel hose (for fuel inlet) | 23906-35040 · 90923-01342 |
| 23300W | fuel filter bracket | 23264-35020 · 23264-73010 |
| 23300X | Vibration isolation pad (for fuel filter bracket) | 90923-06006 · 90923-06013 |
| 23300Y | Fuel filter support | 23921-73010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-73010 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-65020 · 23802-65030 · 23802-73020 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-12015 · 90401-12036 · 90401-12097 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08011 · 90430-12005 · 90430-12026 |
| 23803B | No. 3 fuel pipe sub-assembly | 23801-35010 · 23803-65020 · 23803-73011 |
| 23803C | Gasket (No. 3 injector overflow pipe) | 90401-08003 · 90401-08004 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90430-08009 · 90430-08014 · 90430-08015 |
| 23807 | Oil pipe sub-assembly | 23807-35020 · 23807-65010 · 23807-73010 |
| 23807J | Oil pipe inlet gasket | 90430-18016 · 90430-18028 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-08055 |
| 23808 | No. 2 oil pipeline sub-assembly | 23808-65011 |
| 23811B | No. 1 fuel pipe | 23801-65030 · 23801-65031 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 23273-65010 |
| 23811D | Hose clip (for fuel hose) | 96135-41100 |
| 23812B | fuel return pipe | 23812-65010 · 23812-65020 |
| 23901 | Fuel pipe sub-assembly | 23901-35010 · 23901-65010 |
| 23901A | Connector bolt (for fuel pipe) | 90401-08010 · 90401-08011 |
| 23901B | Gasket (for fuel lines) | 90430-08005 · 90430-08012 |
| 23901C | Joint bolts | 90401-08010 · 90401-08011 |
| 23901D | Gasket (for fuel lines) | 90430-08005 · 90430-08012 |
