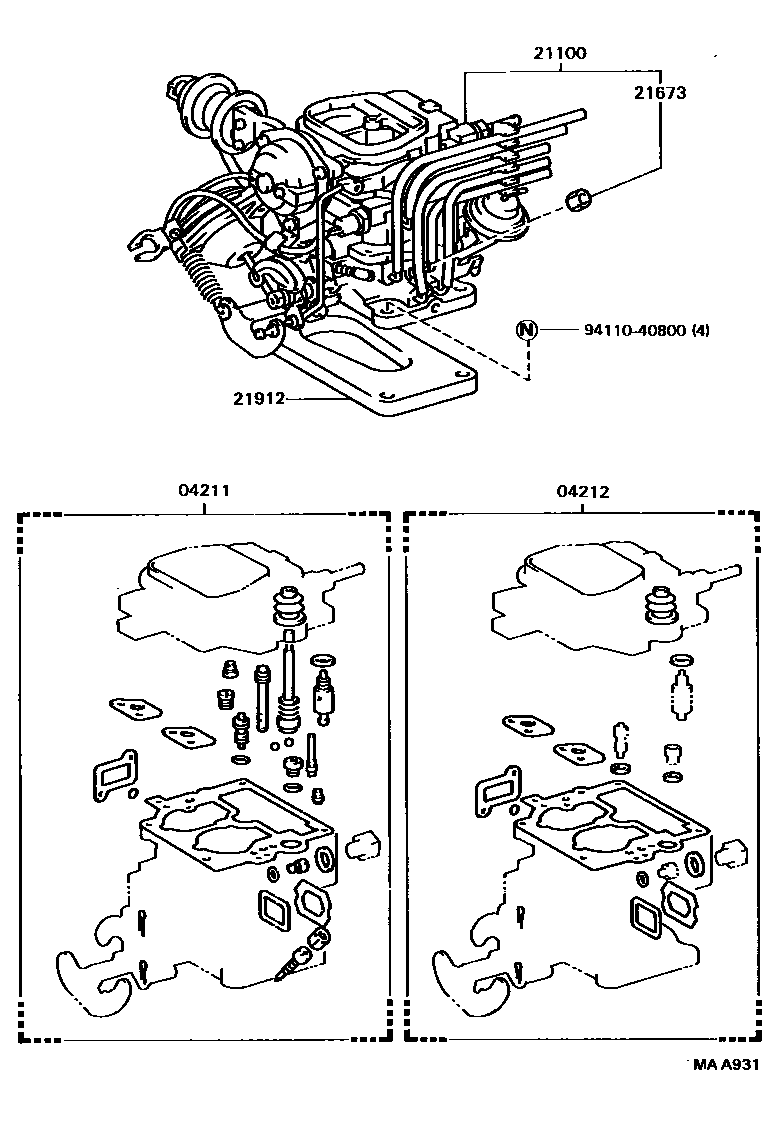

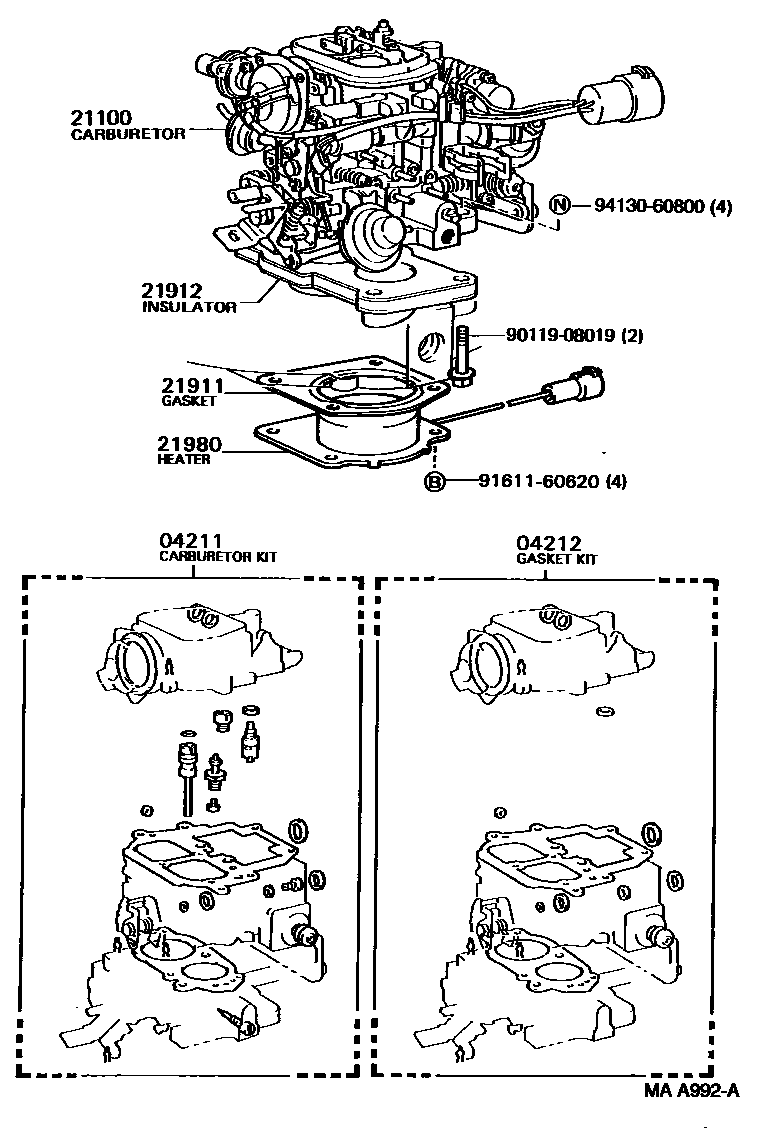

Toyota HILUX carburetor assembly — Figure 2102
Toyota HILUX EPC diagram 2102, carburetor assembly, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-35430 · 04211-35431 · 04211-35432 · 04211-35450 · 04211-35451 · 04211-35452 · 04211-35460 · 04211-35461 · 04211-35462 · 04211-72270 · 04211-73240 · 04211-73300 |
| 04212 | carburetor gasket assembly | 04212-35042 · 04212-35420 · 04212-35421 · 04212-35422 · 04212-35430 · 04212-35431 · 04212-73071 |
| 21100 | carburetor assembly | 21100-35520 · 21100-35540 · 21100-35550 · 21100-35570 · 21100-35580 · 21100-72340 · 21100-73350 · 21100-73400 |
| 21673 | Idle speed limit cap | 21673-71030 |
| 21911 | carburetor gasket | 21995-35020 |
| 21912 | Carburetor insulation pad | 21912-35030 · 21912-35040 · 21912-35050 · 21912-37030 · 21912-71020 · 21912-71021 · 21912-73020 |
| 21980 | Cold mixture heater assembly | 21980-35010 |
