Toyota HILUX vacuum tube — Figure 1708

Toyota HILUX EPC diagram 1708, vacuum tube, with 17 images and 35 PNC and OE references.

Toyota HILUX vacuum tube EPC diagram — 170021 — vacuum tube — 170021 (198808 – 999999)

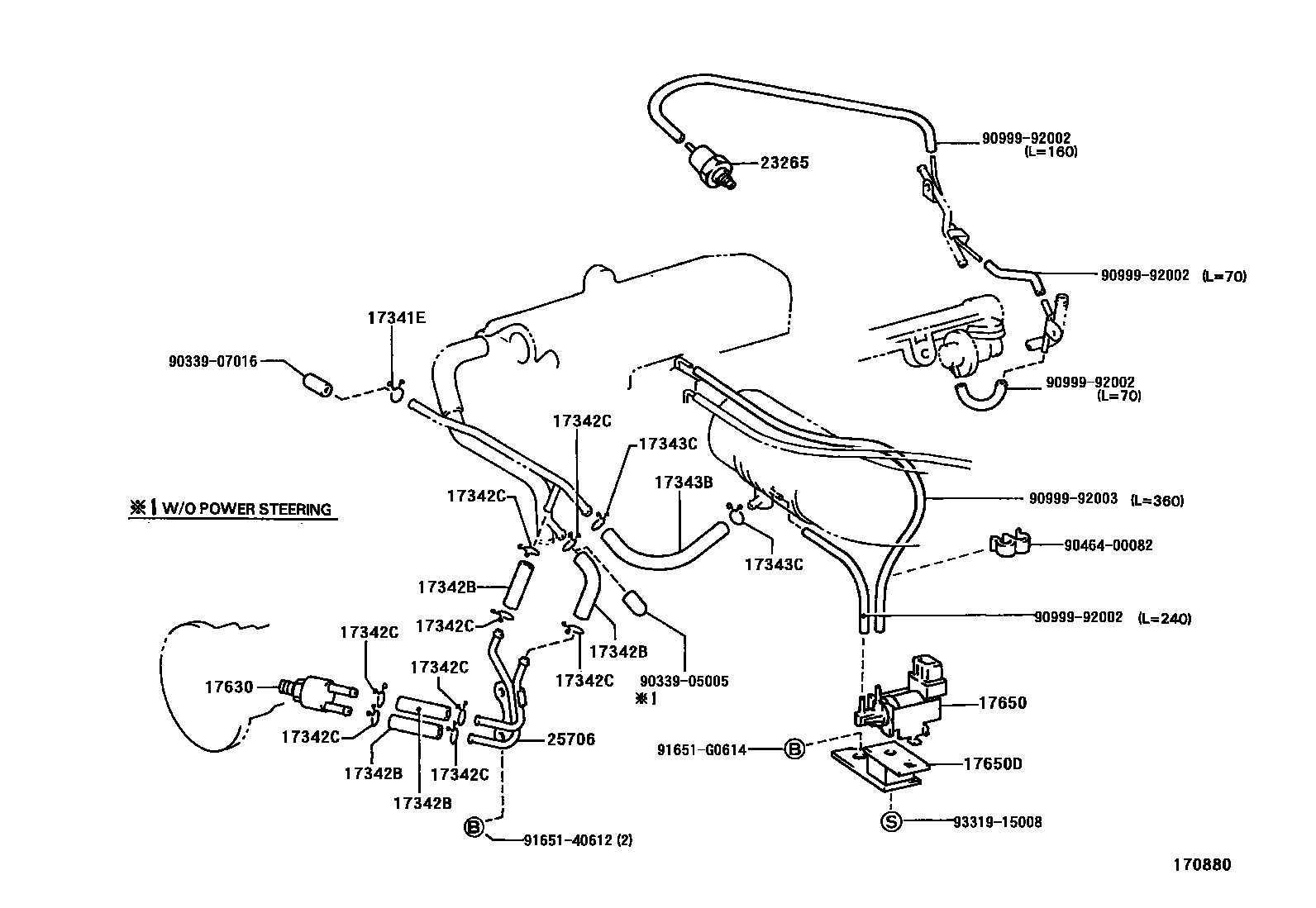

Toyota HILUX vacuum tube EPC diagram — 170880 — vacuum tube — 170880 (198908 – 199008)

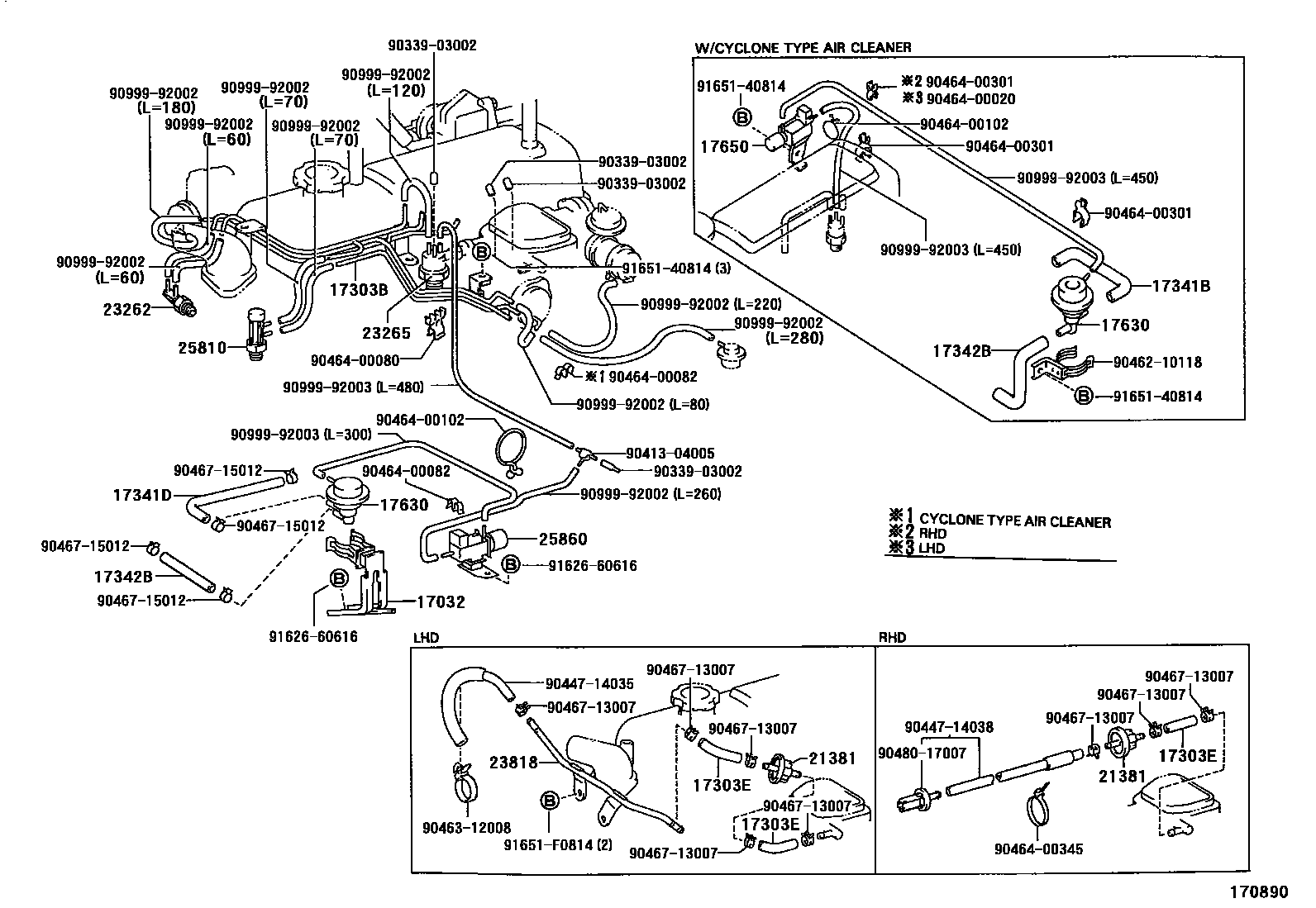

Toyota HILUX vacuum tube EPC diagram — 170890 — vacuum tube — 170890 (199108 – 999999)

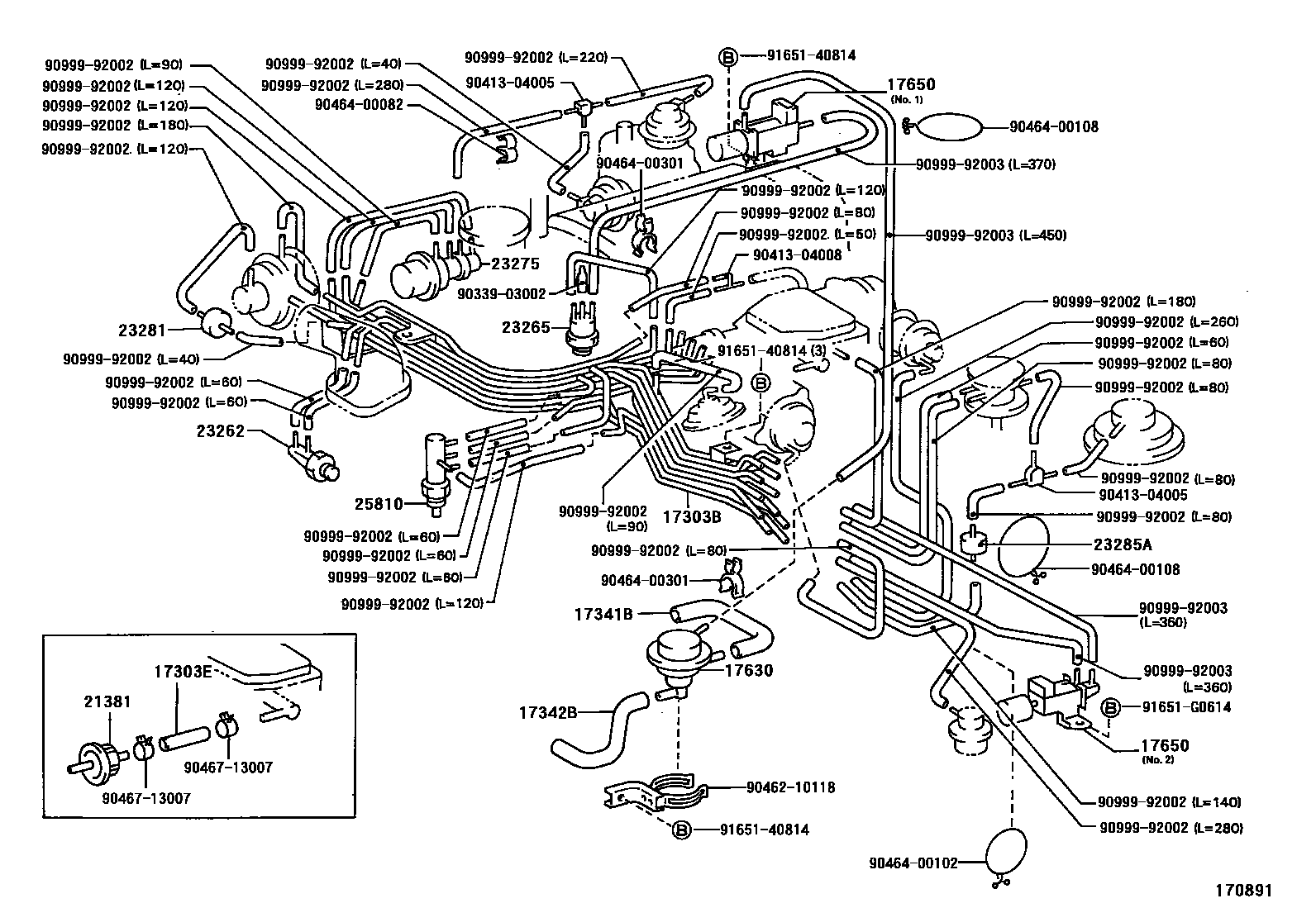

Toyota HILUX vacuum tube EPC diagram — 170891 — vacuum tube — 170891 (199401 – 199612)

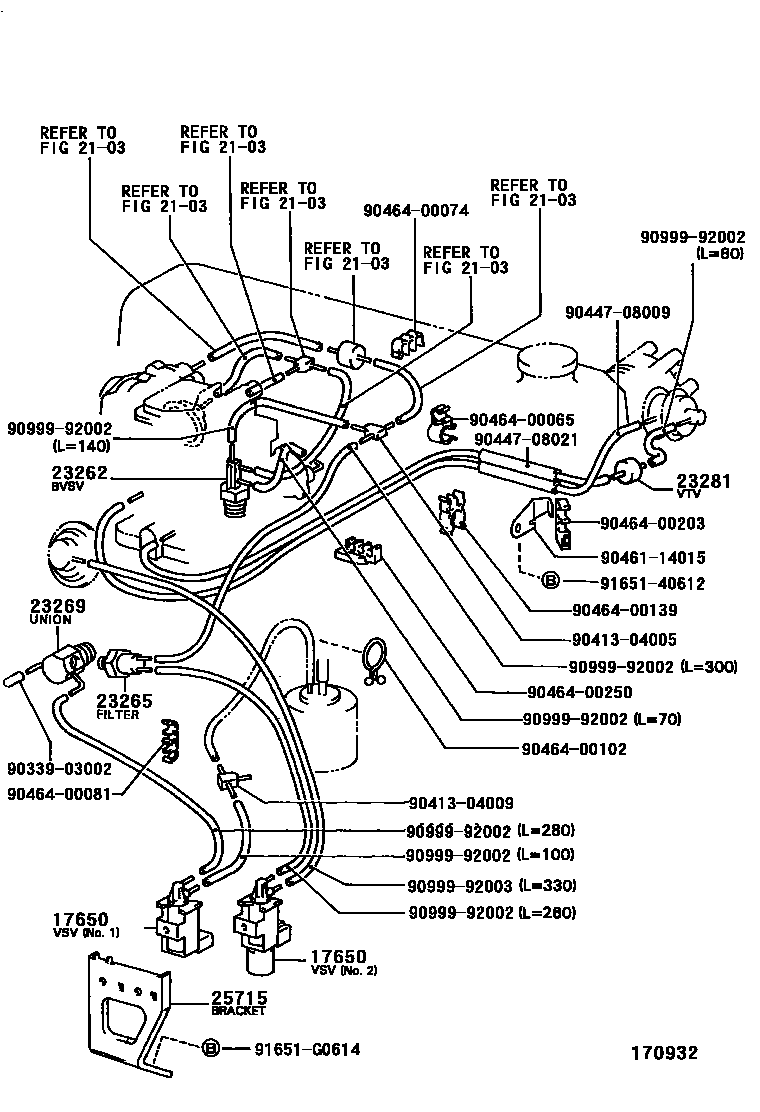

Toyota HILUX vacuum tube EPC diagram — 170932 — vacuum tube — 170932 (198808 – 999999)

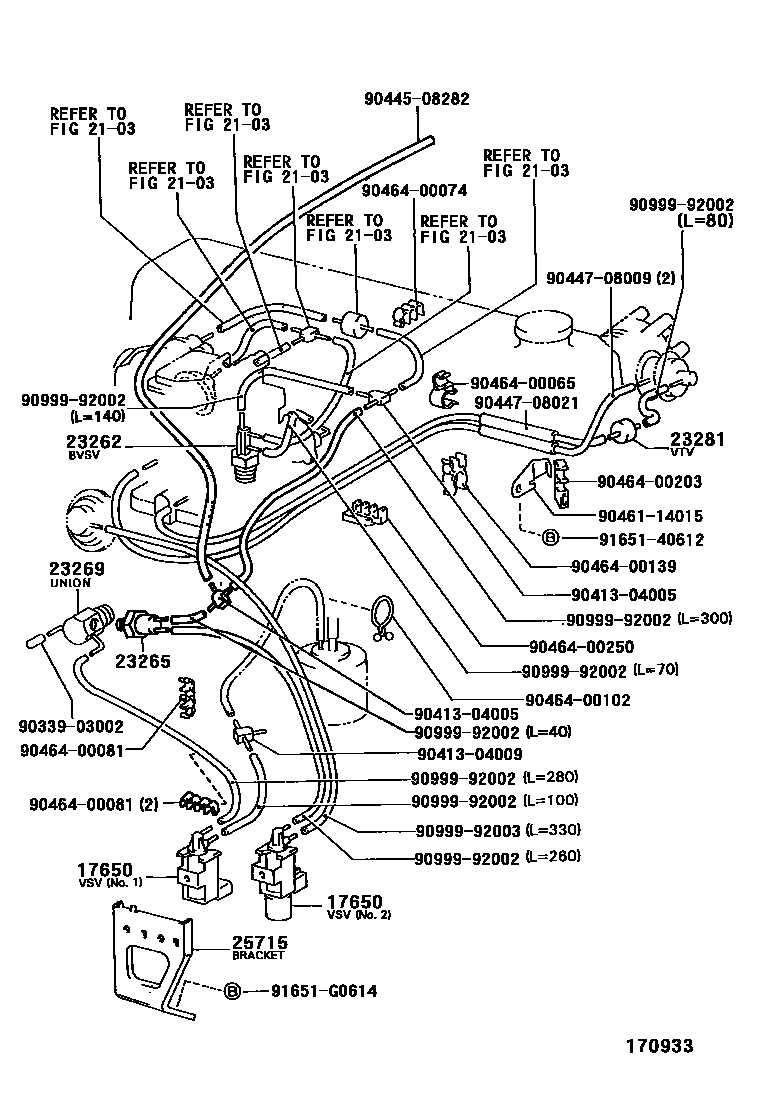

Toyota HILUX vacuum tube EPC diagram — 170933 — vacuum tube — 170933 (199005 – 999999)

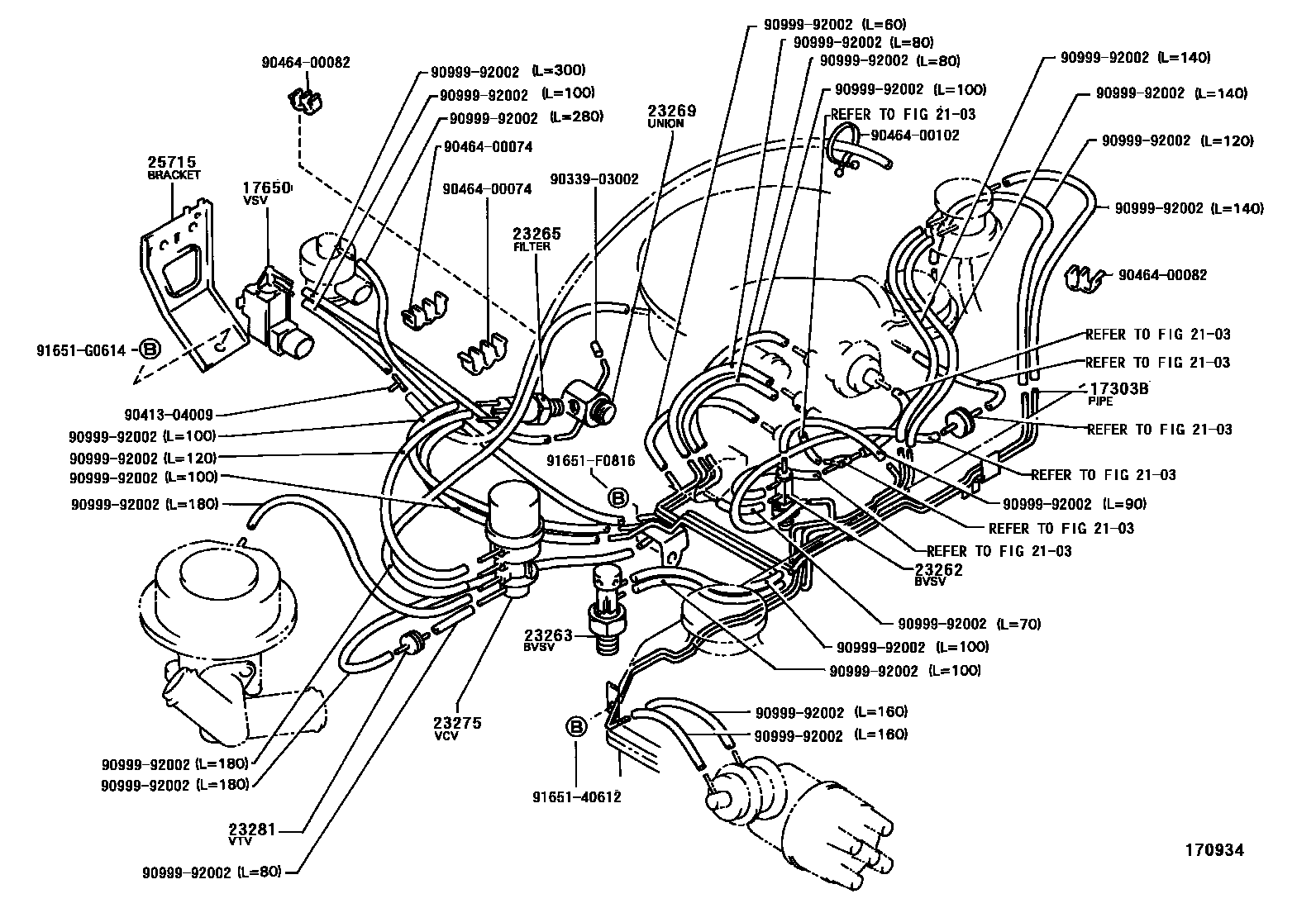

Toyota HILUX vacuum tube EPC diagram — 170934 — vacuum tube — 170934 (198808 – 199005)

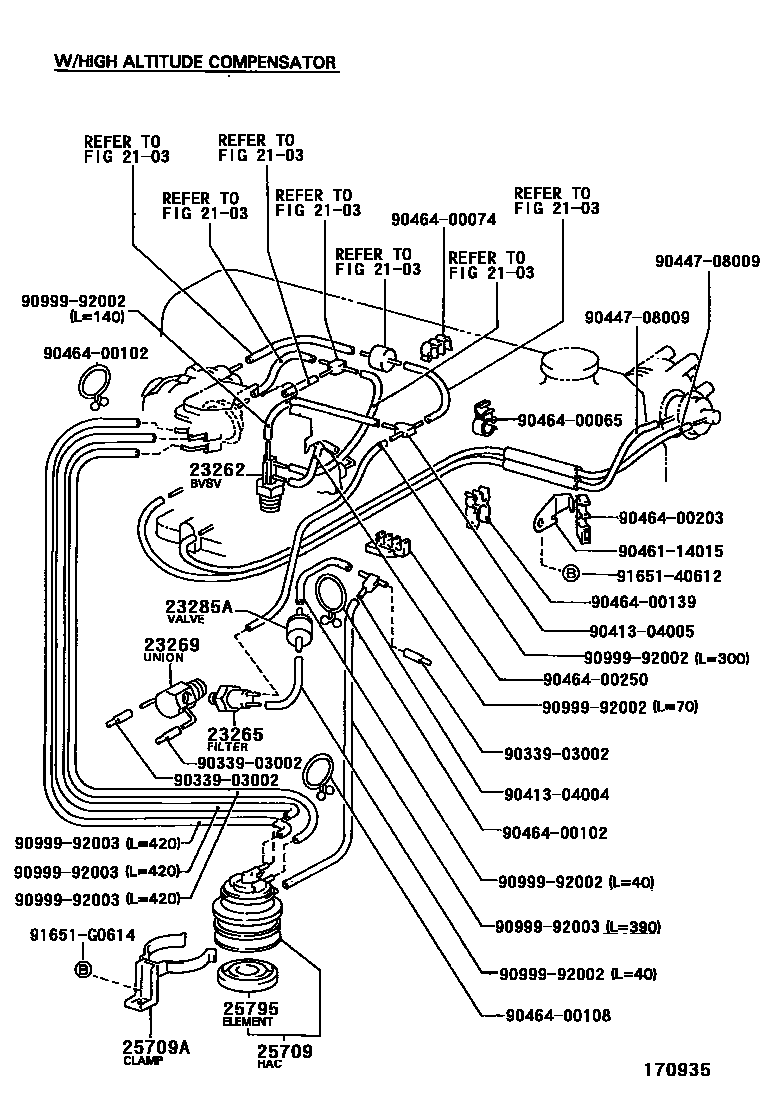

Toyota HILUX vacuum tube EPC diagram — 170935 — vacuum tube — 170935 (199108 – 999999)

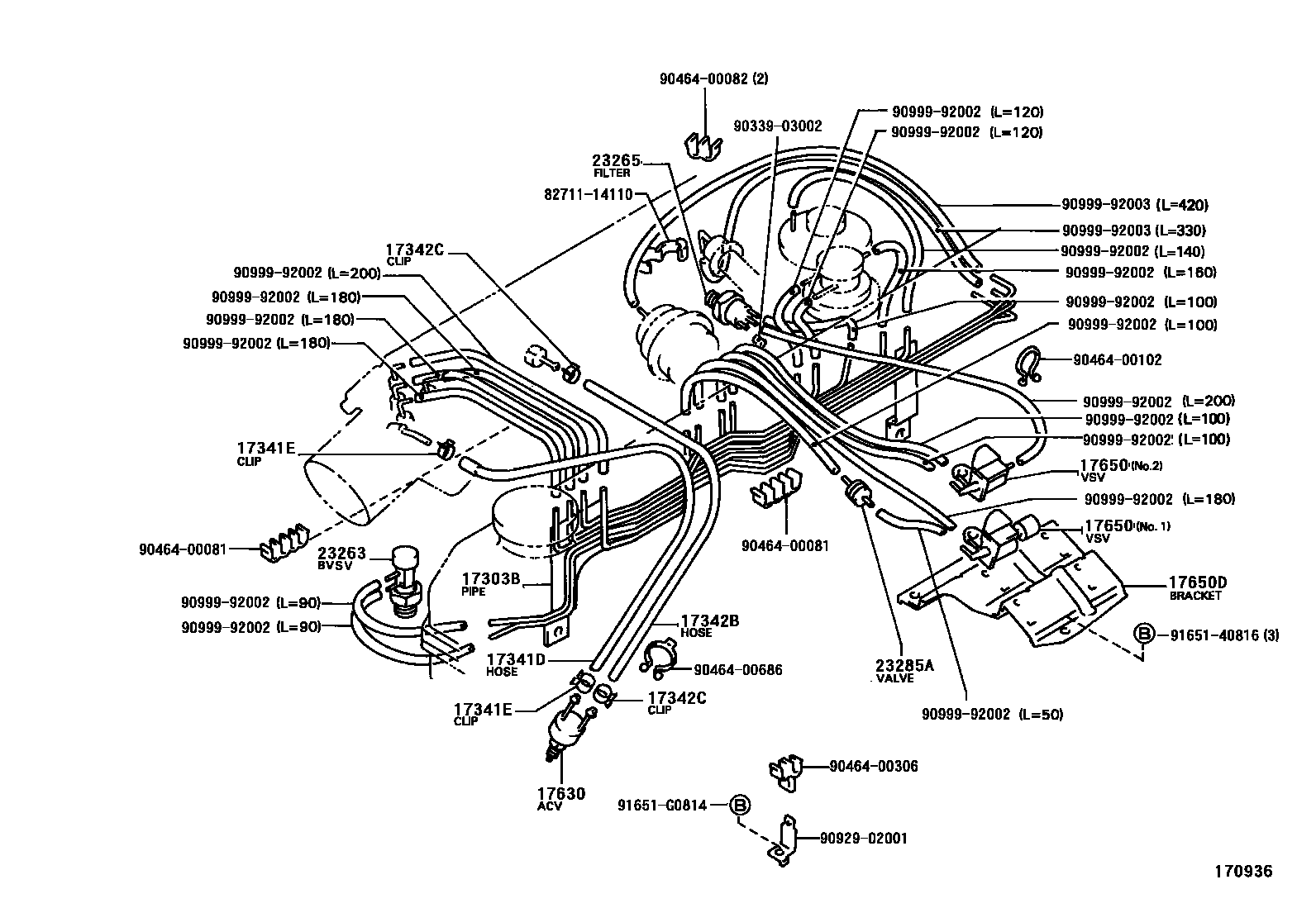

Toyota HILUX vacuum tube EPC diagram — 170936 — vacuum tube — 170936 (199401 – 999999)

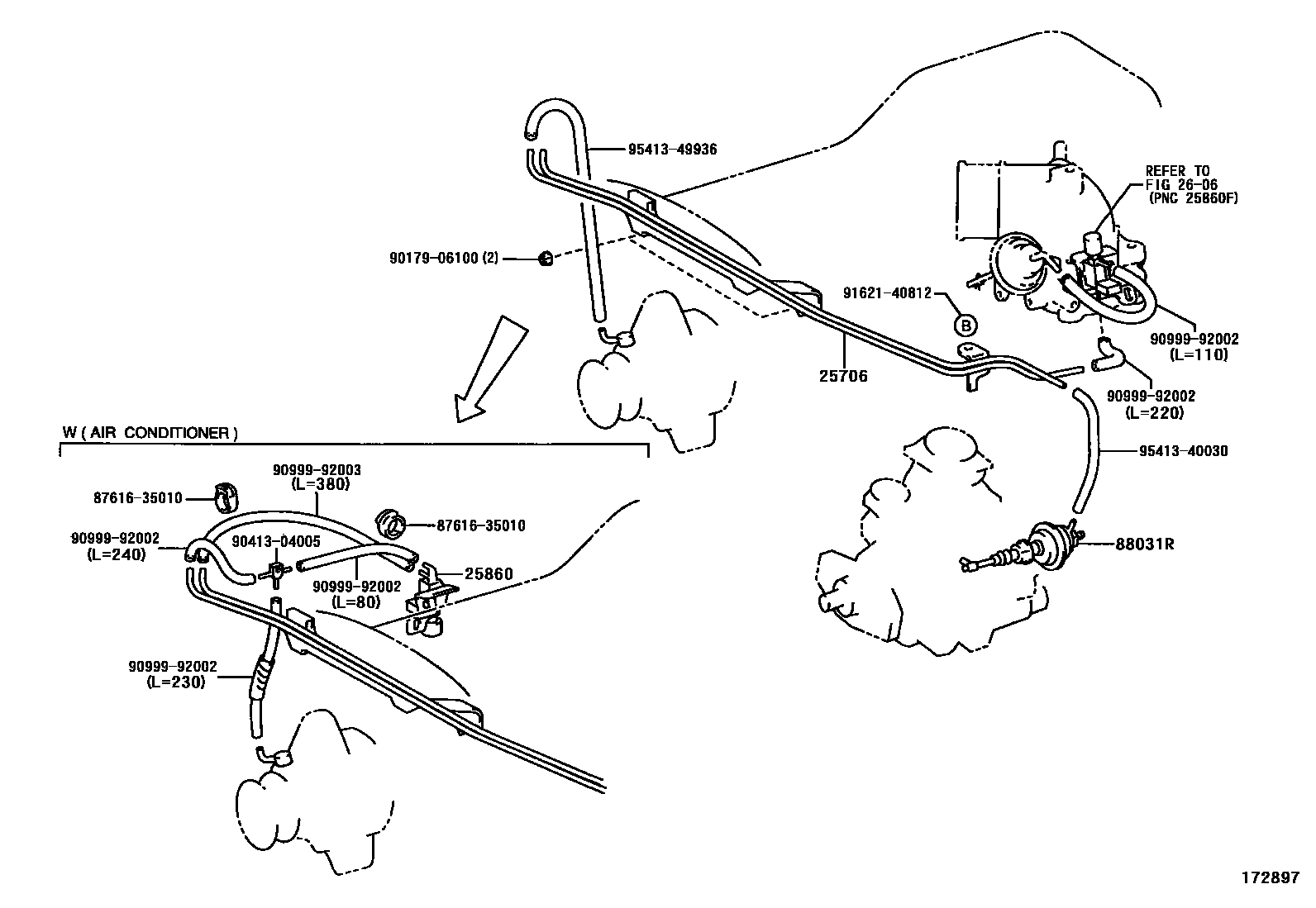

Toyota HILUX vacuum tube EPC diagram — 172897 — vacuum tube — 172897 (200106 – 999999)

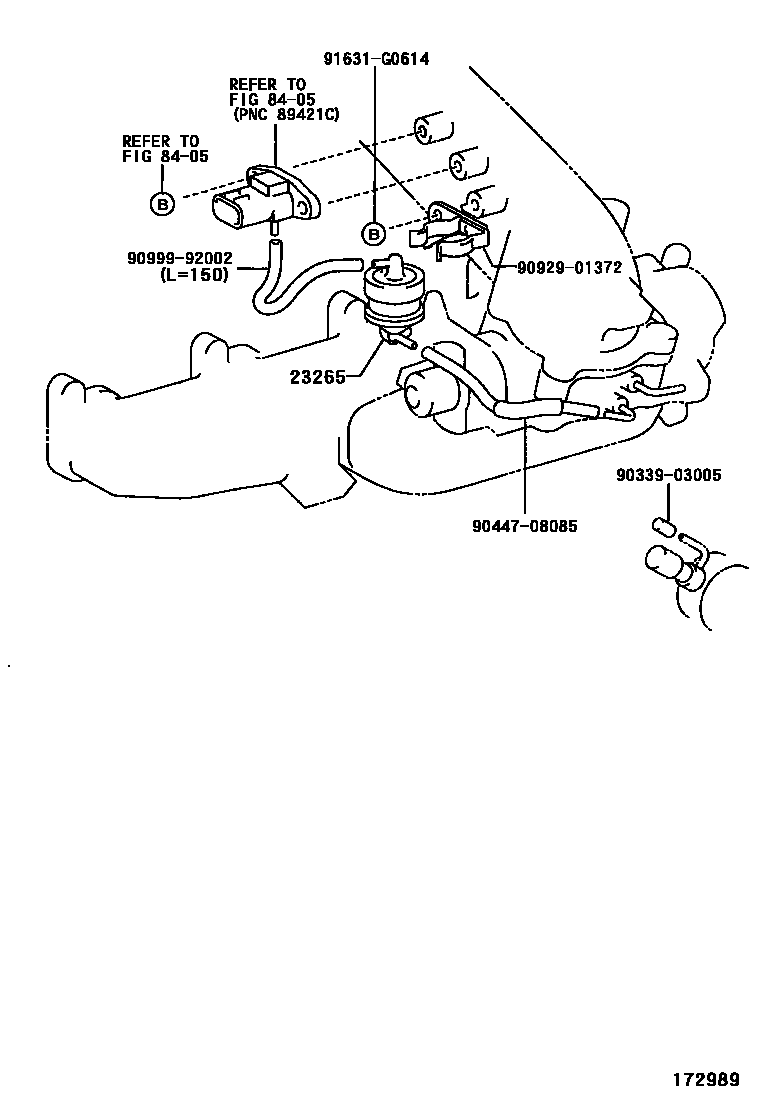

Toyota HILUX vacuum tube EPC diagram — 172989 — vacuum tube — 172989 (200108 – 999999)

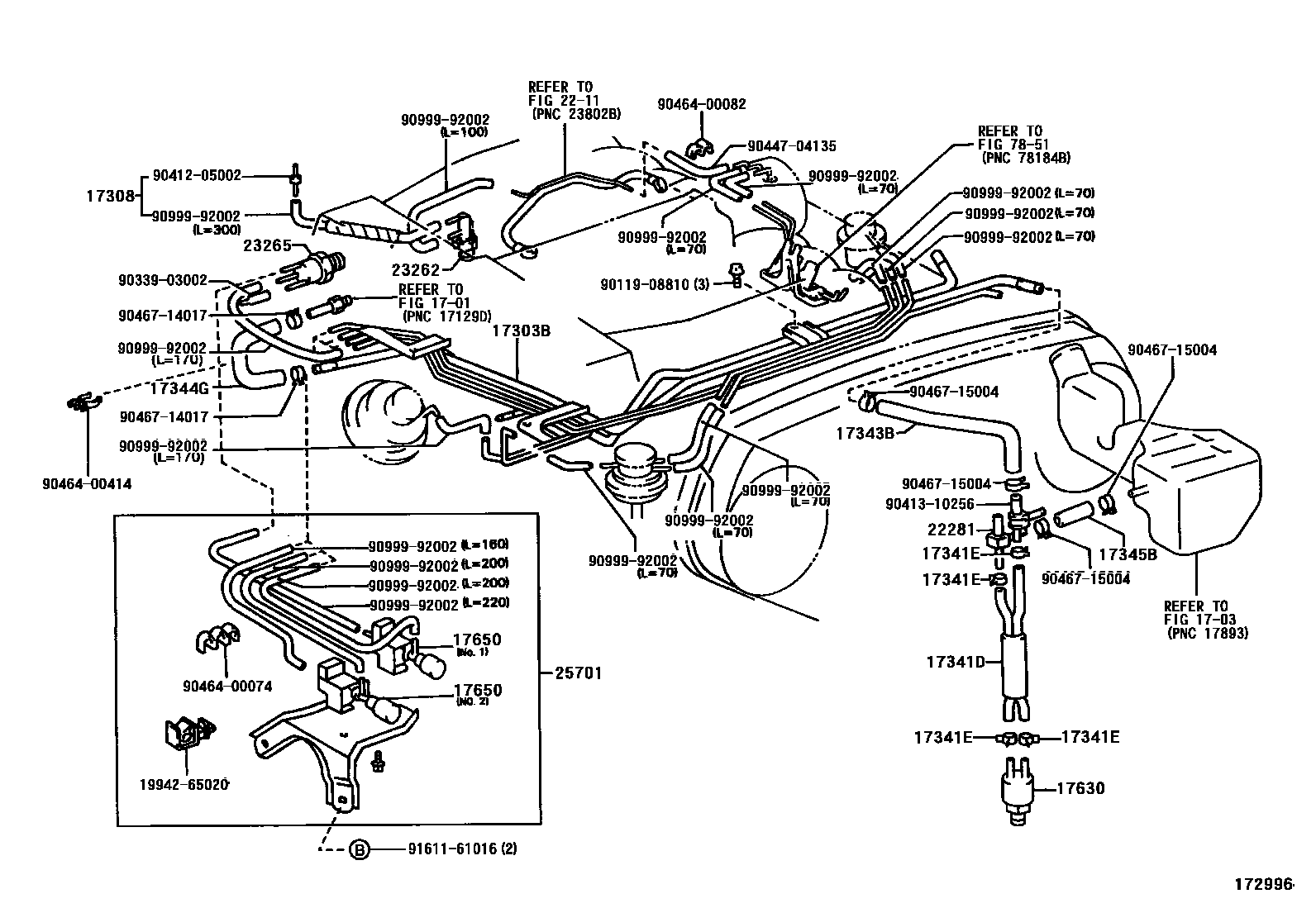

Toyota HILUX vacuum tube EPC diagram — 172996 — vacuum tube — 172996 (199108 – 199511)

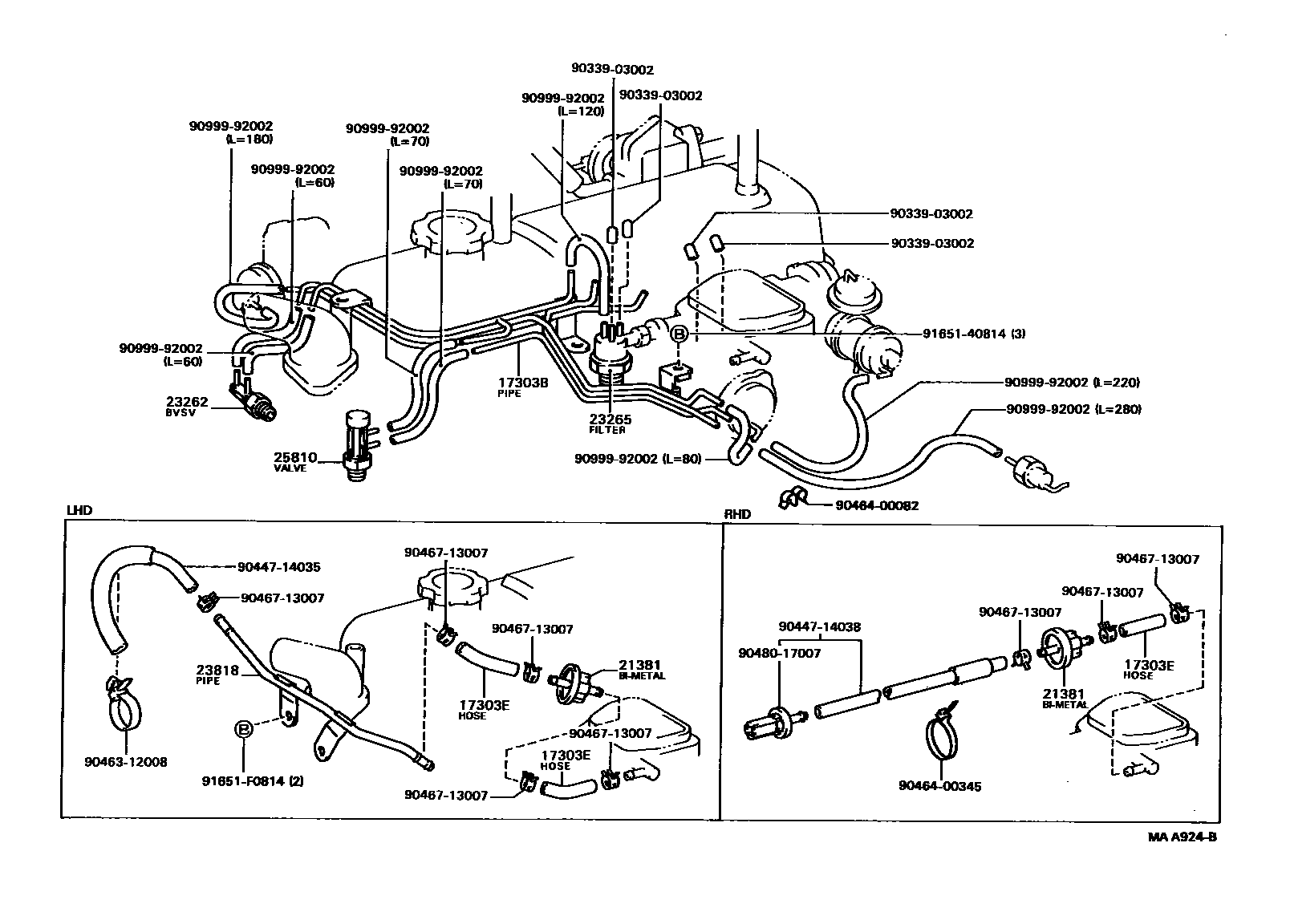

Toyota HILUX vacuum tube EPC diagram — MAA924B — vacuum tube — MAA924B (198808 – 199108)

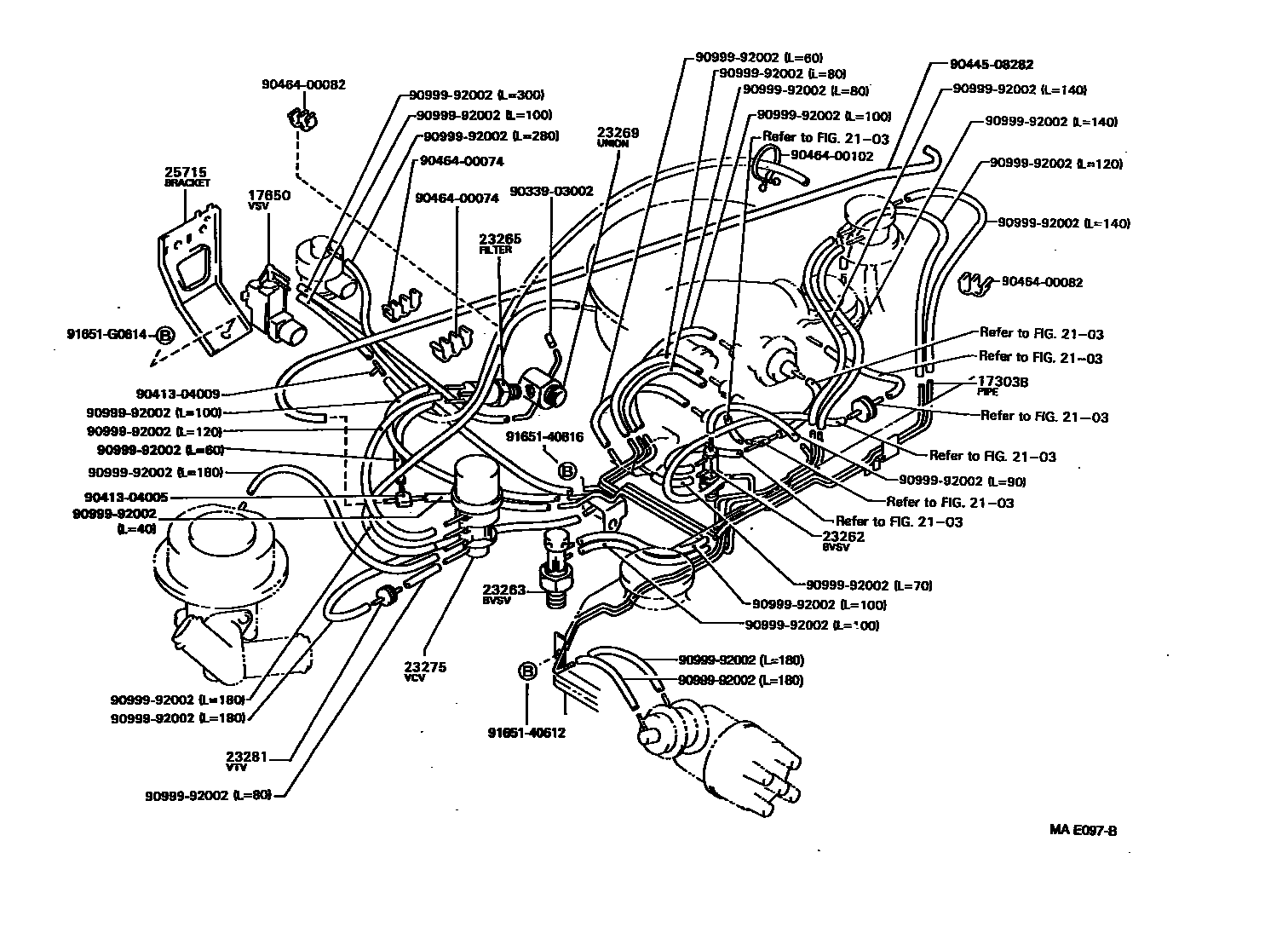

Toyota HILUX vacuum tube EPC diagram — MAE097B — vacuum tube — MAE097B (199005 – 999999)

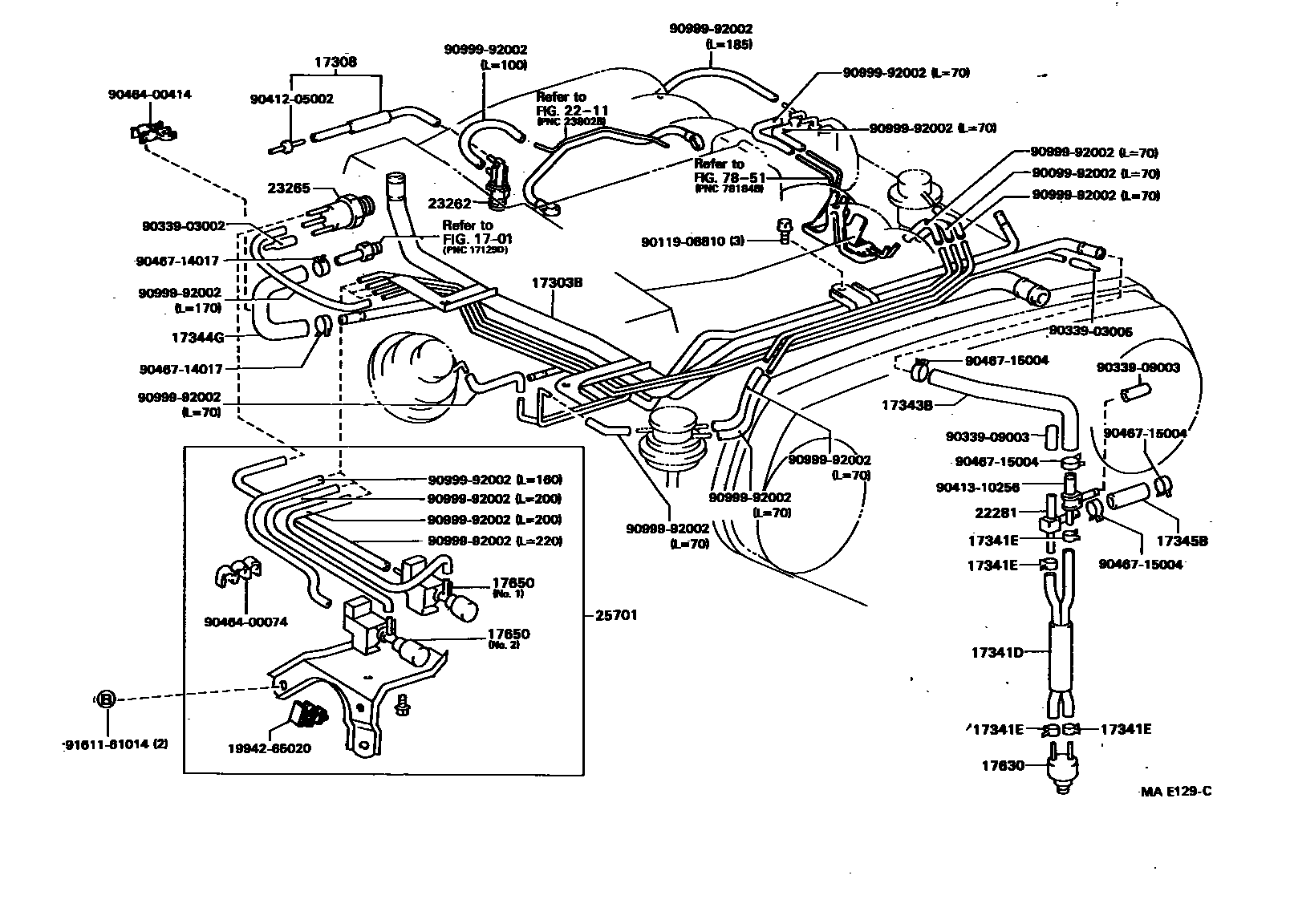

Toyota HILUX vacuum tube EPC diagram — MAE129C — vacuum tube — MAE129C (199008 – 199108)

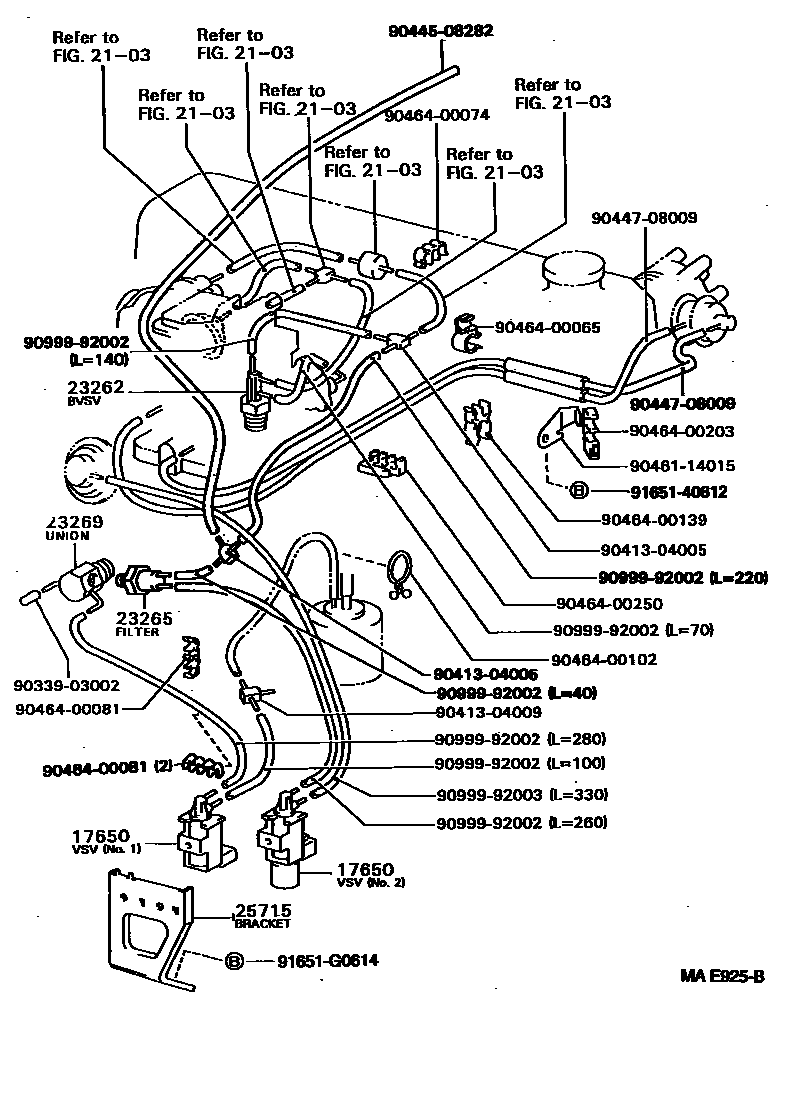

Toyota HILUX vacuum tube EPC diagram — MAE925B — vacuum tube — MAE925B (199108 – 999999)

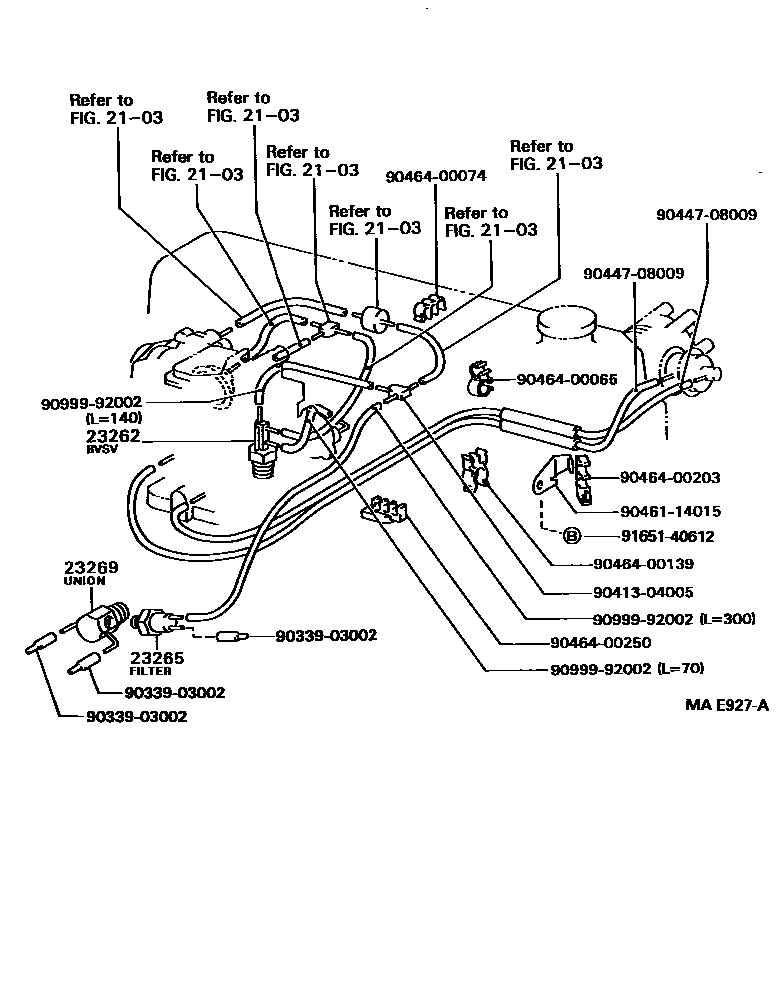

Toyota HILUX vacuum tube EPC diagram — MAE927A — vacuum tube — MAE927A (199108 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17032	Air valve bracket sub-assembly	17032-73010
17303B	No. 1 air pipe sub-assembly	17303-35240 · 17303-35250 · 17303-65010 · 17303-65020 · 17303-73050 · 17303-73080
17303E	No. 1 hose (for air pipe)	90445-14075 · 90445-14079
17308	Vacuum hose sub-assembly (for idle boost)	17308-65010
17341B	Hoses No. 1 (for air injection systems)	17341-73040
17341D	No. 1 hose (for idle boost)	17341-35180 · 17341-65030 · 17341-73060 · 17342-35050
17341E	Clamp No. 1 (for idle lift hose)	90467-12058 · 96132-30400 · 96132-41000 · 96132-41100
17342B	No. 2 hose (for idle boost)	17342-35050 · 17342-72020 · 17342-73030 · 90445-12127 · 90445-16040
17342C	Clamp No. 2 (for idle lift hose)	90467-12058 · 96132-41000
17343B	No. 3 hose (for idle speed boost)	17343-65020 · 90445-12211
17343C	Clamp No. 3 (for idle lifting hose)	90467-12058
17344G	No. 4 air hose	17344-65010 · 17344-65020
17345B	No. 5 hose (for idle speed boost)	17345-65010
17630	Air control valve assembly	17300-73011 · 17300-73020 · 17630-28010 · 17630-74010
17650	Vacuum switch valve assembly	89570-35200 · 90910-12035 · 90910-12036 · 90910-12038 · 90910-12039 · 90910-12074 · 90910-12075 · 90910-12084 · 90910-12085
17650D	Vacuum switch valve bracket	25861-35020 · 25861-73020
21381	thermostat bimetal	21381-71050
22281	Air delivery pipe joint	22281-65010
23262	No. 1 bimetallic vacuum switch valve	25810-27010 · 90925-05044 · 90925-05047
23263	No. 2 bimetallic vacuum switch valve	25820-13010 · 90925-05073
23265	No. 1 gas filter	90917-11022 · 90917-11023 · 90917-11024 · 90917-11027 · 90917-11044
23269	Connector (for gas filter)	90404-54030
23275	Vacuum control valve No. 1	90925-03104 · 90925-03166
23281	Vacuum Transfer Valve No. 1	90925-01027 · 90925-01041 · 90925-01084
23285A	No. 1 one-way valve	90917-10049
23818	Fuel vapor supply pipe	23818-71011 · 23818-71012
25701	Emission control valve assembly	25701-65030 · 25701-65040
25706	No. 1 vacuum transfer tube sub-assembly	17645-73011 · 25706-54041
25709	High altitude compensator valve sub-assembly	25709-38010
25709A	Clamp (for high altitude compensator valve)	90461-10178
25715	Emission control valve bracket	25715-35050
25795	Altitude compensator filter element	25795-38010
25810	Bimetal valve assembly	25820-37010 · 90925-02077
25860	No. 1 vacuum switch valve assembly	25860-54330 · 25860-73040
88031R	Idle speed lift actuator assembly	88031-35130 · 88031-35131
