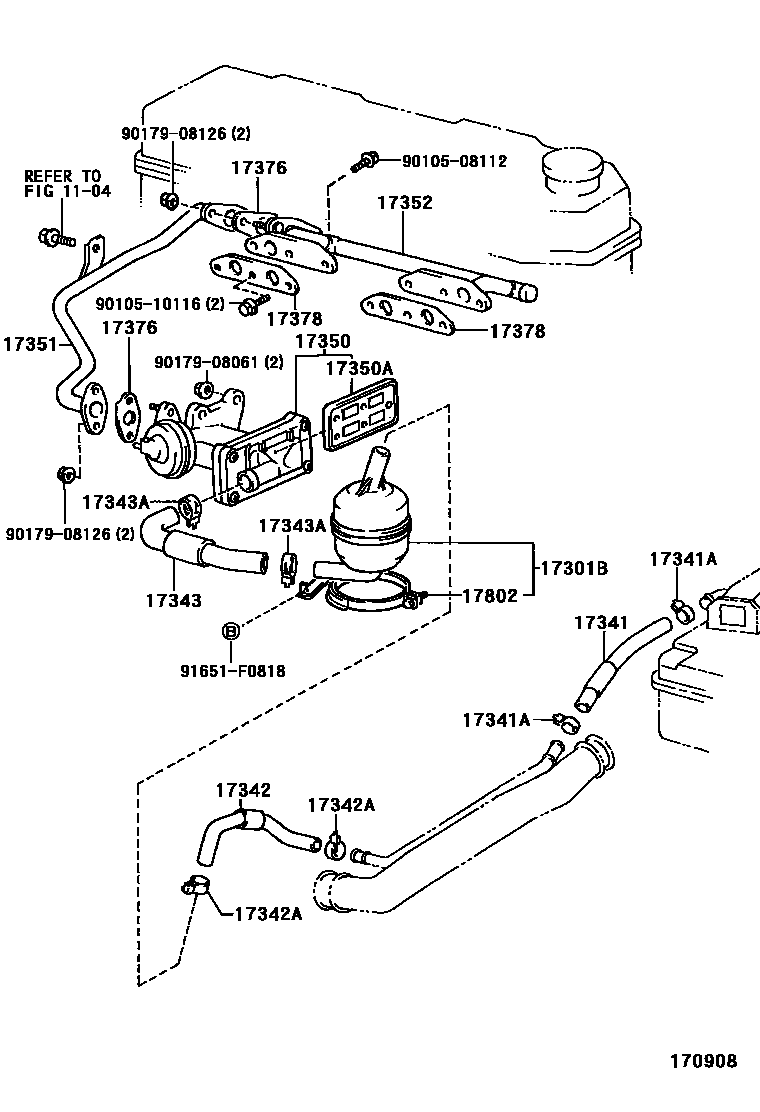

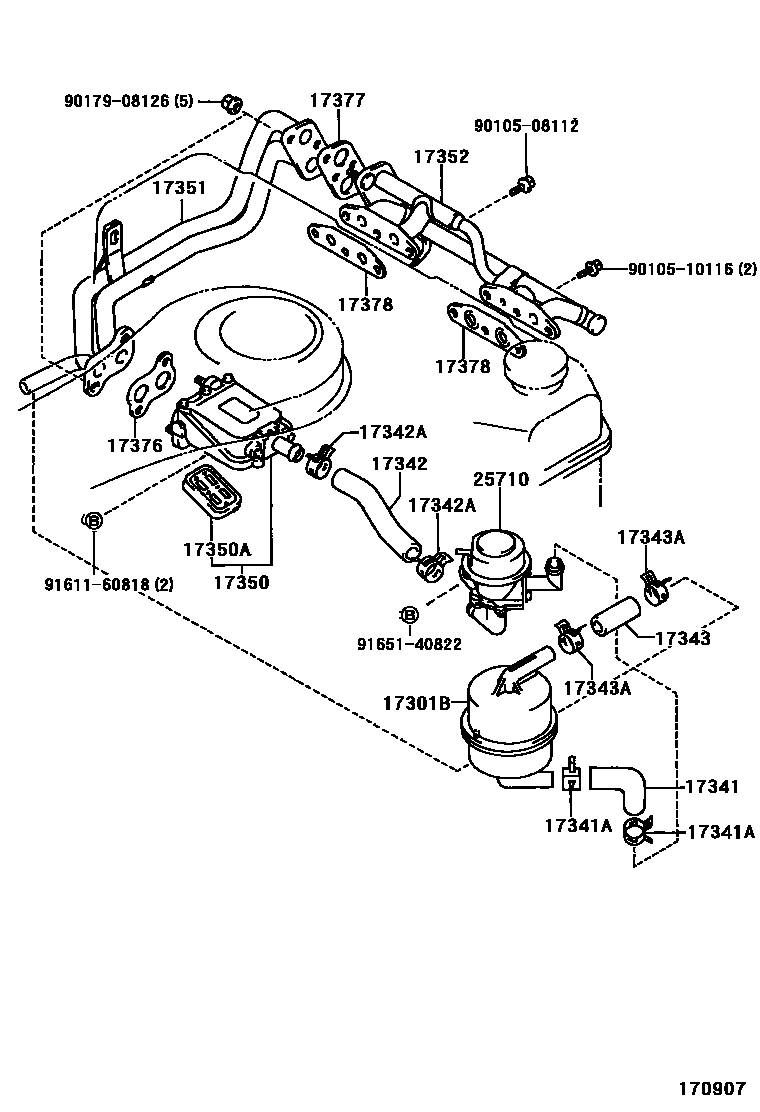

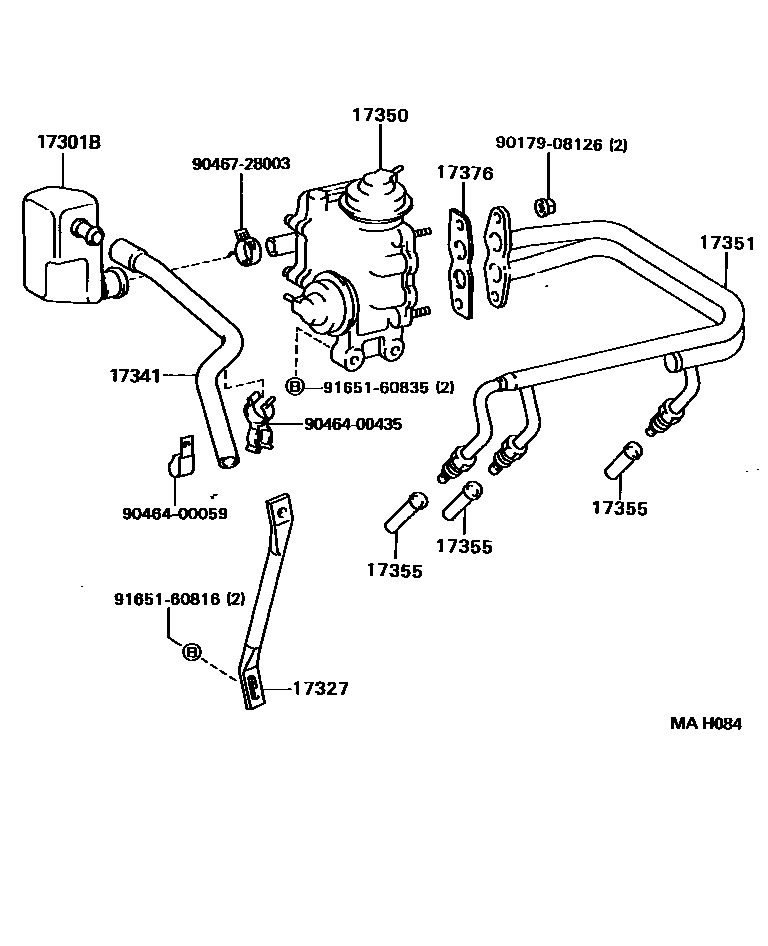

Toyota HILUX 歧管喷气系统 — Figure 1706
Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17301B | Suction muffler sub-assembly | 17301-35050 · 17301-35060 · 17301-72020 |
| 17327 | Reed valve bracket | 17327-73010 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-35150 · 17341-35170 · 17341-72090 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-26005 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-35080 · 17342-35130 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90467-26005 · 90467-28003 |
| 17343 | No. 3 hose (for air injection system) | 17343-35030 · 17343-35070 |
| 17343A | No. 3 clip or clip (for No. 3 air injection system hose) | 90467-26005 |
| 17350 | Reed valve assembly | 17350-35040 · 17350-35050 · 17350-72050 |
| 17350A | Reed valve sub-assembly | 17305-35020 · 17305-35030 |
| 17351 | jet manifold | 17306-73020 · 17351-35040 · 17351-35050 |
| 17352 | Jet manifold No. 2 | 17352-35050 · 17352-35080 |
| 17355 | jet nozzle | 17355-71010 |
| 17376 | Air tube gasket No. 1 | 17376-35030 · 17376-35040 · 17376-37010 · 17376-71011 |
| 17377 | No. 2 air pipe gasket | 17377-35020 |
| 17378 | No. 3 air tube gasket | 17378-35020 |
| 17802 | Resonator bracket sub-assembly | 17802-35011 |
| 25710 | Air switch valve assembly | 25710-35060 |
