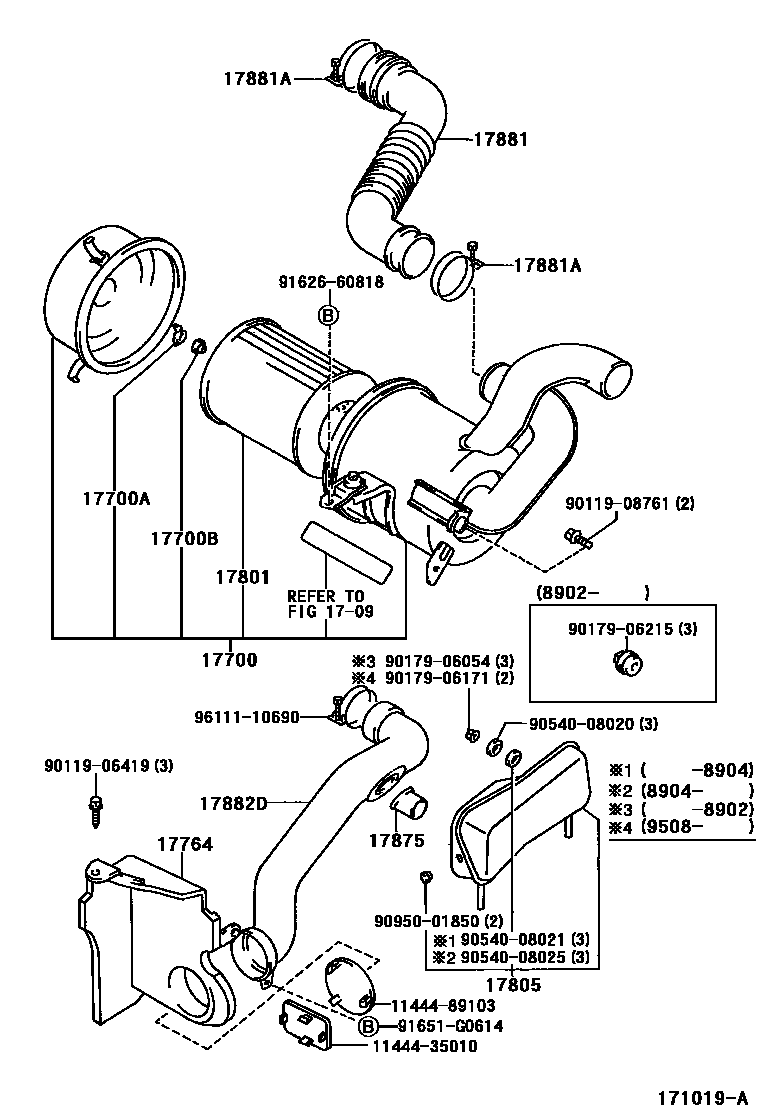

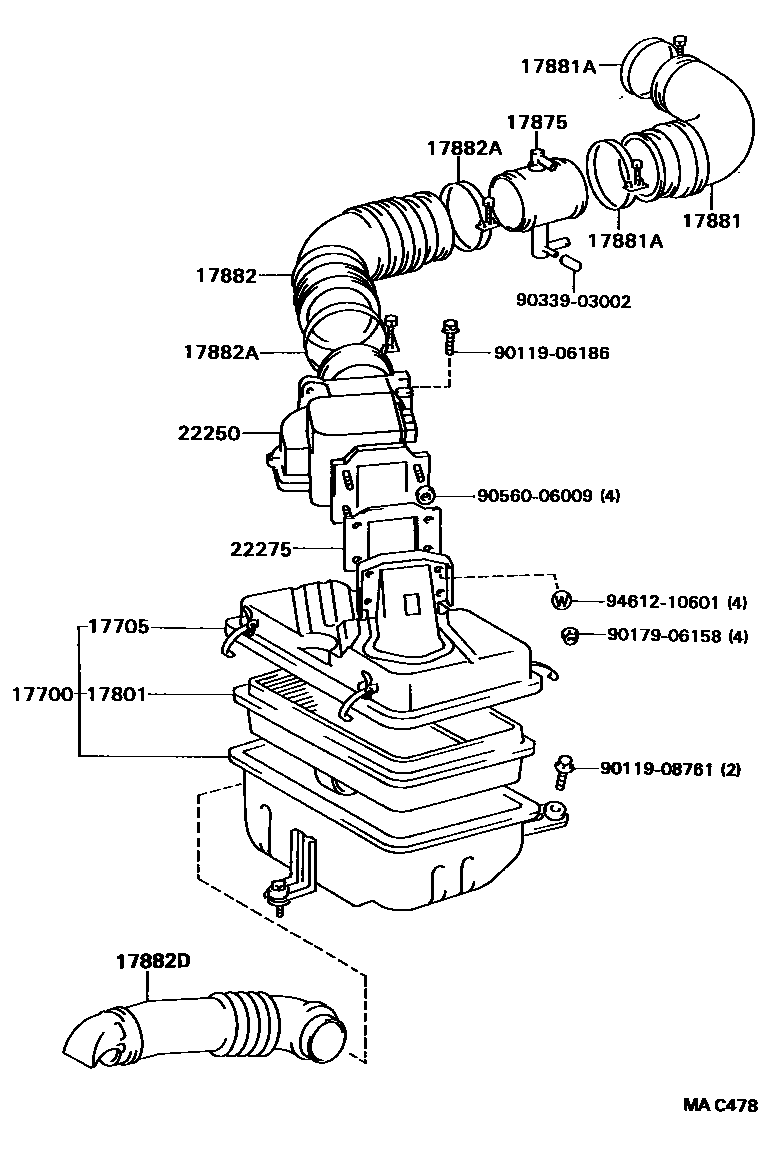

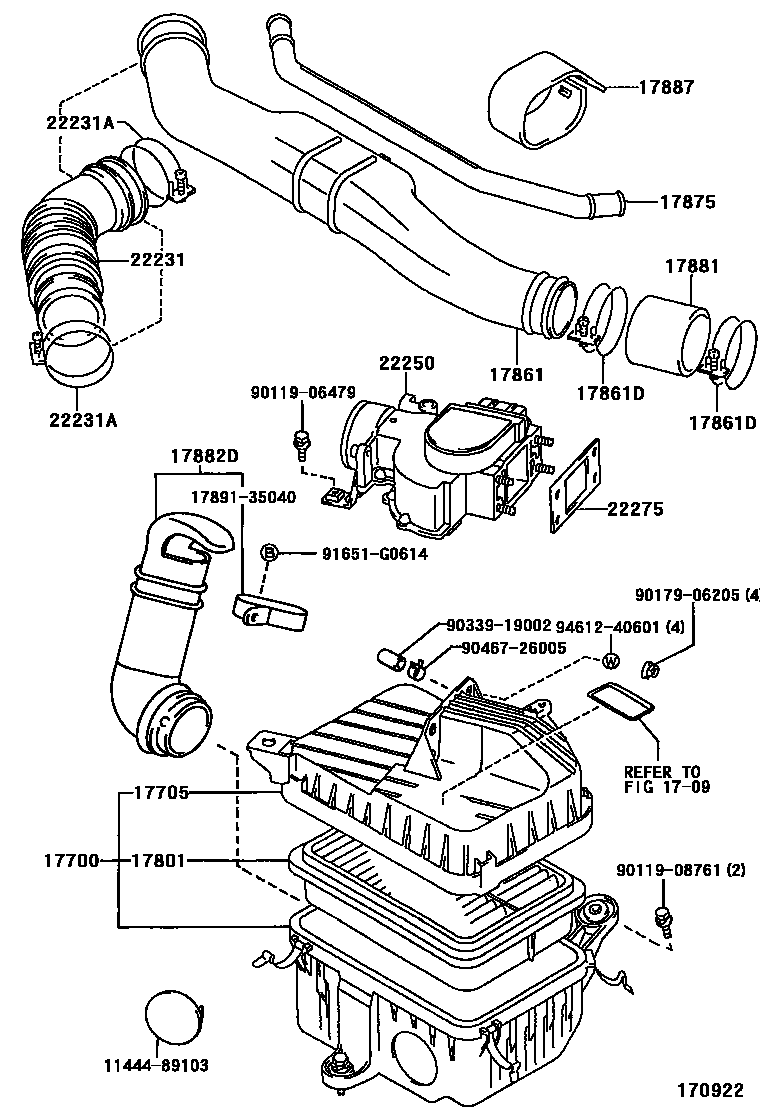

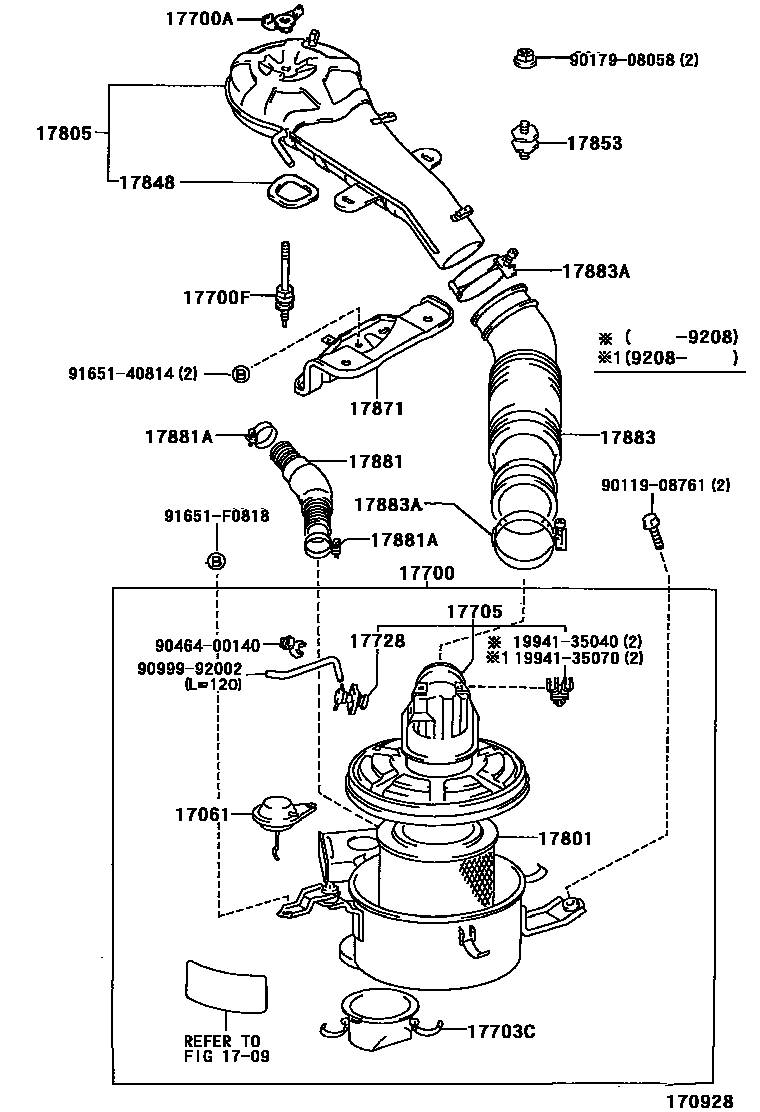

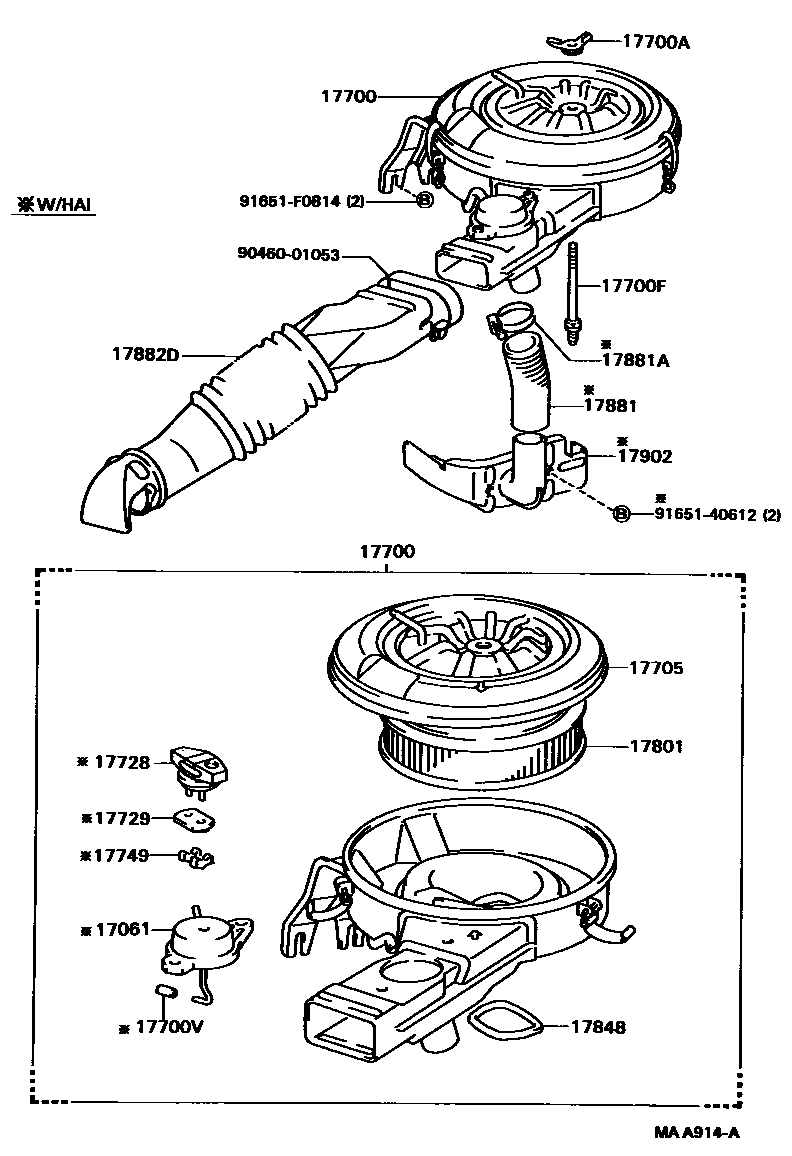

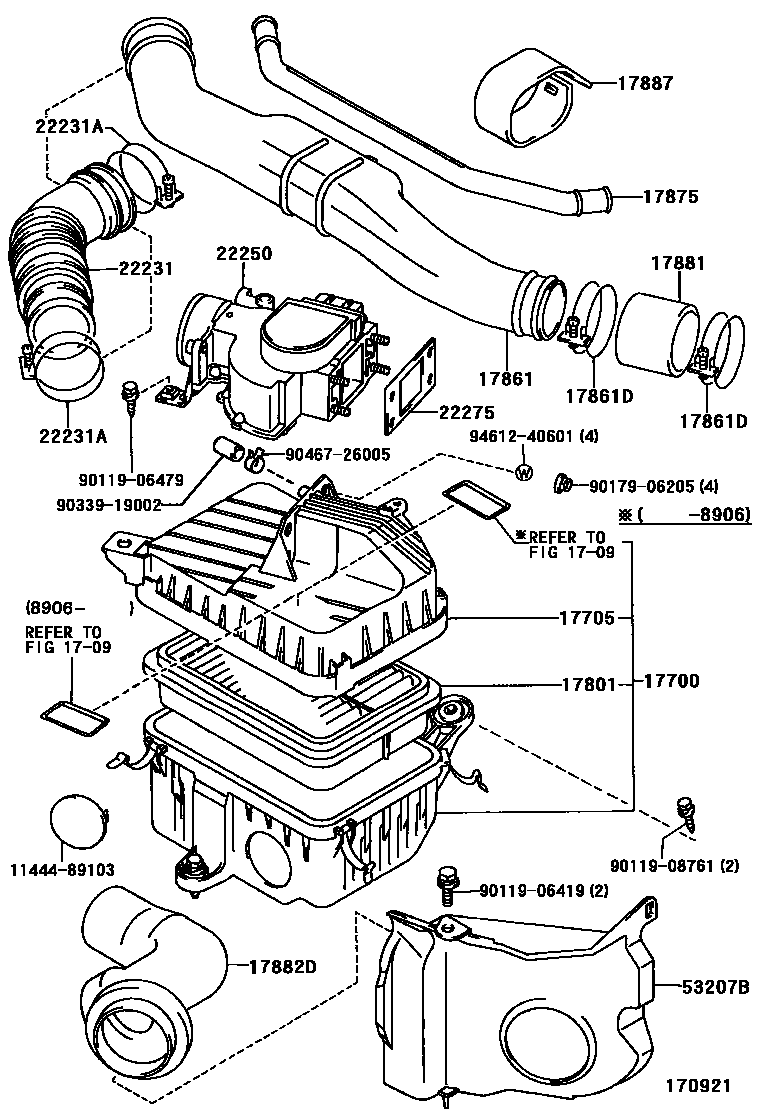

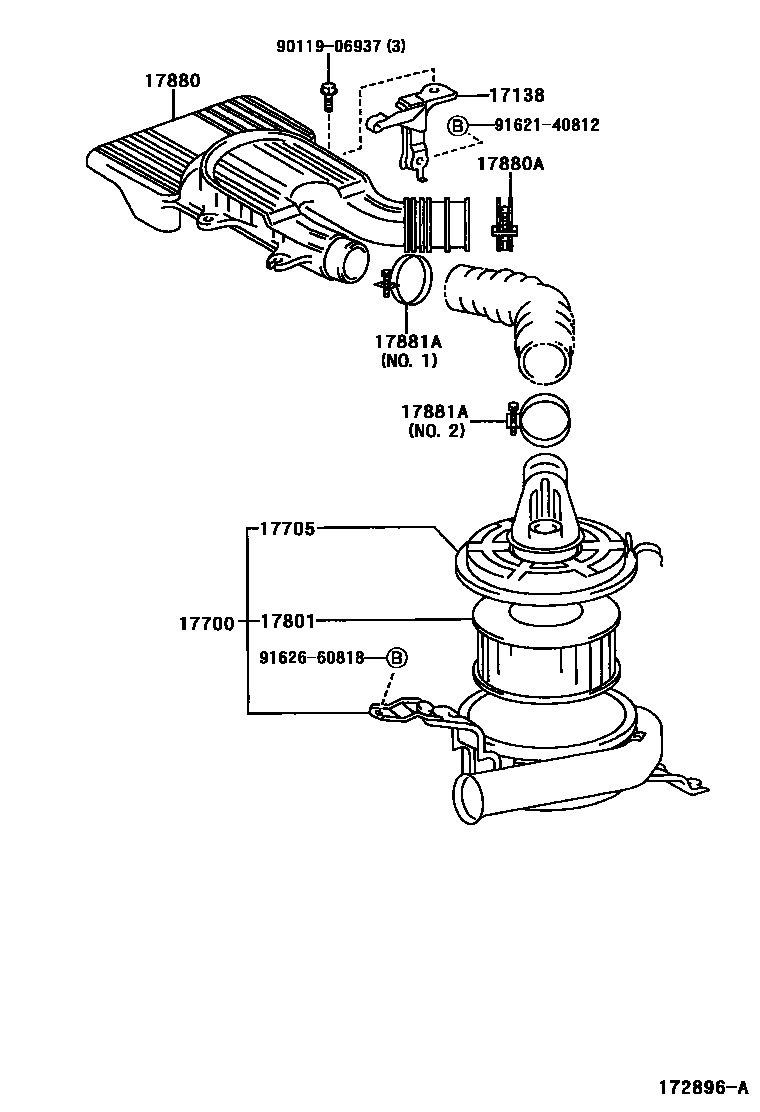

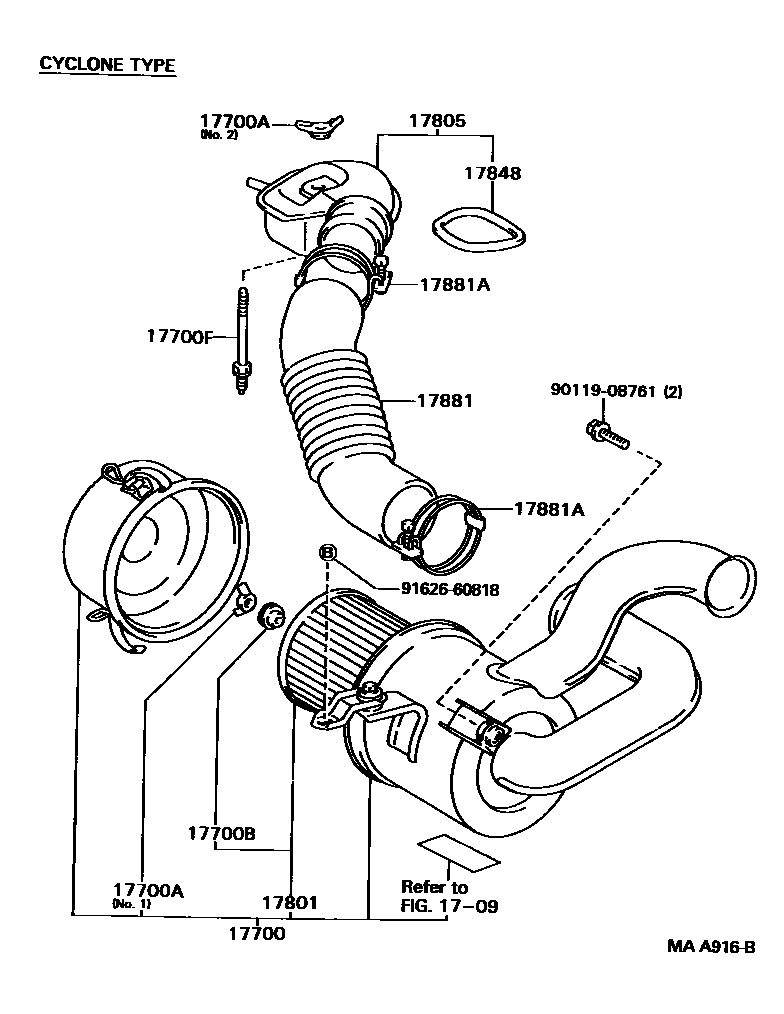

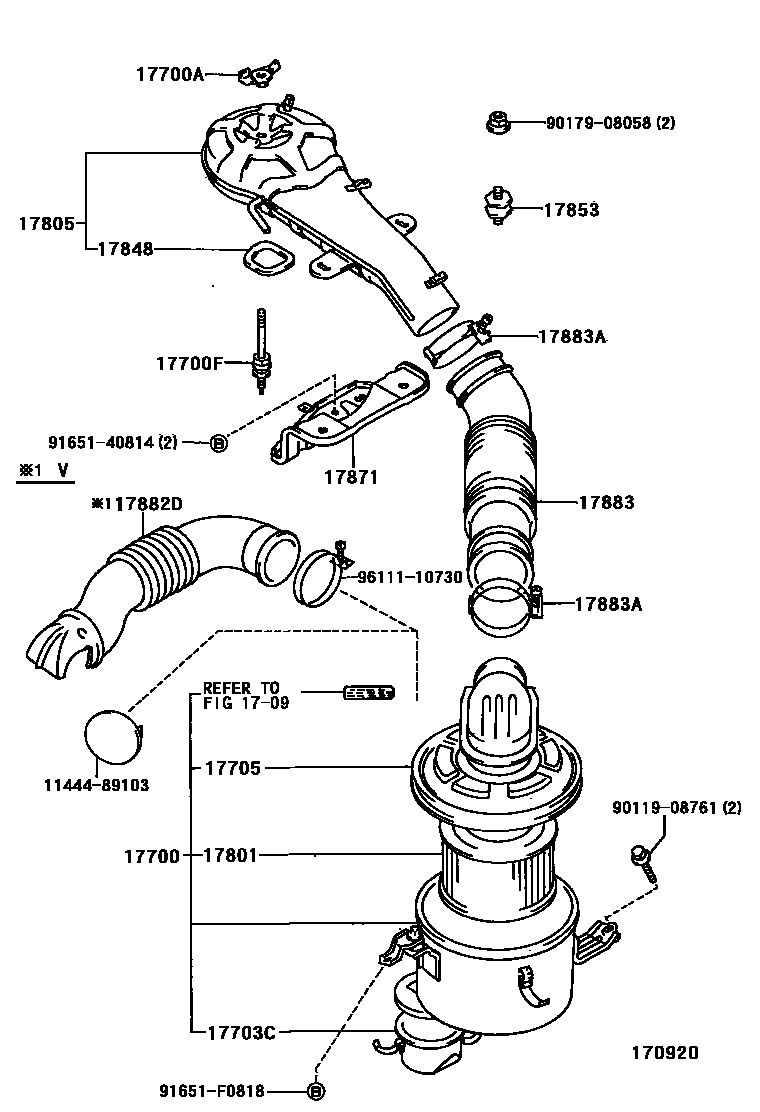

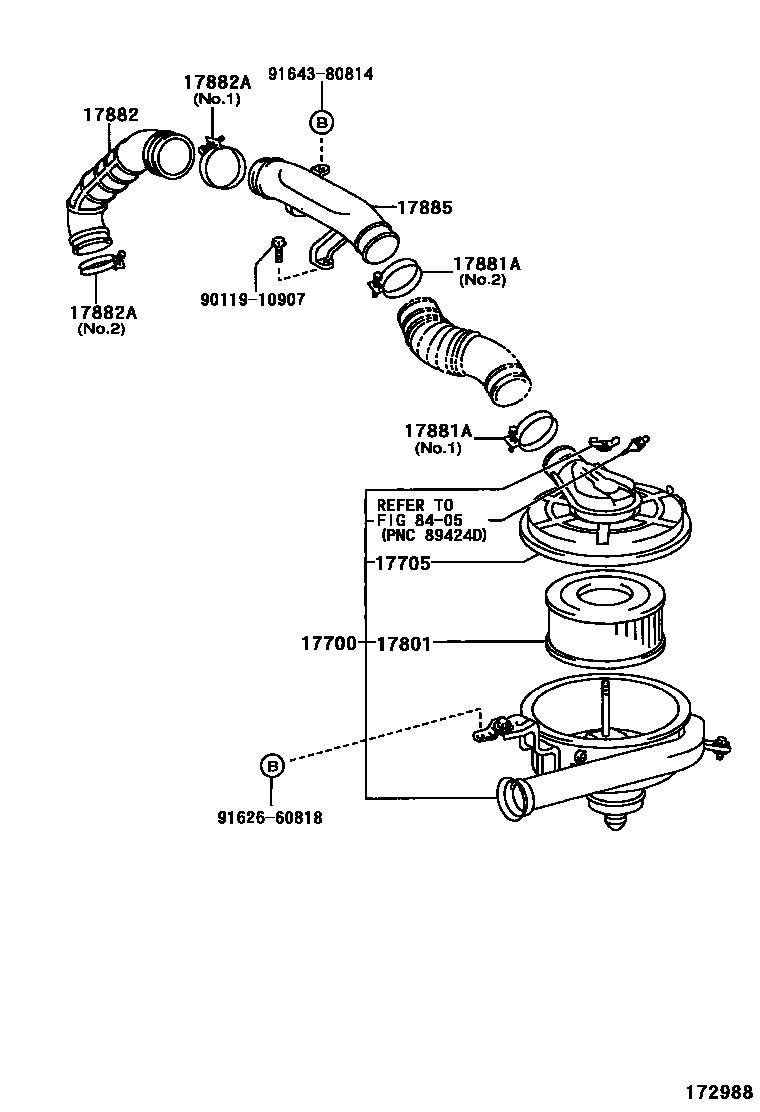

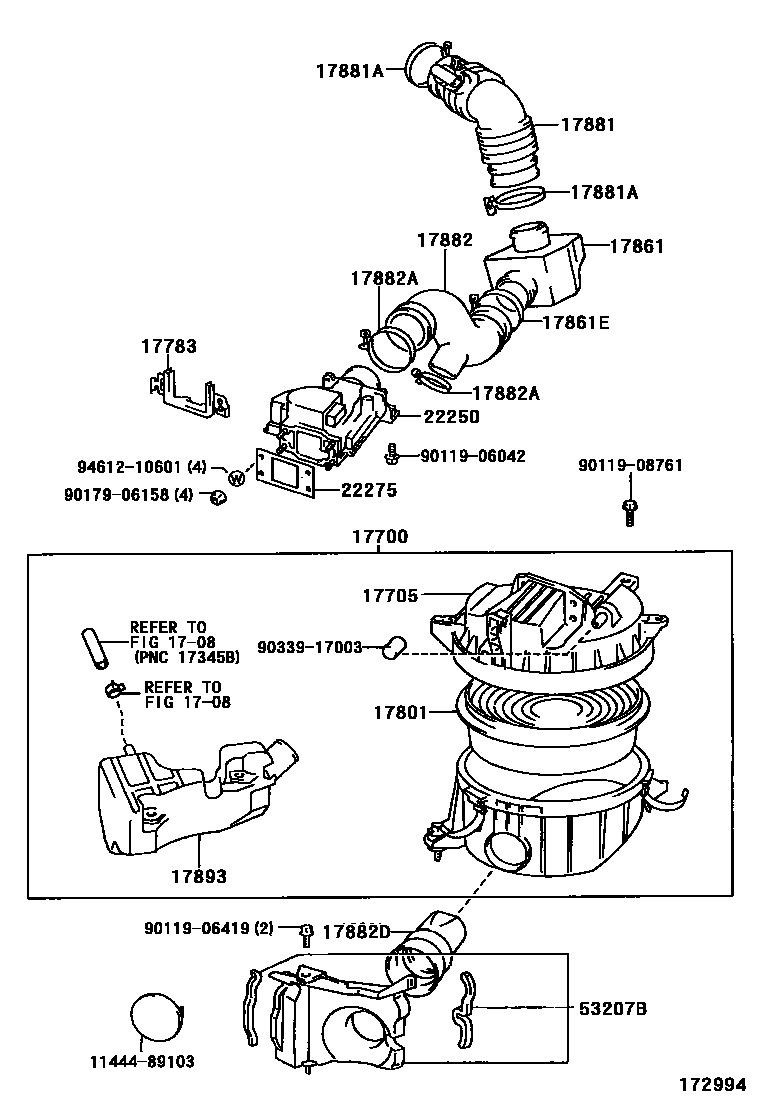

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 11 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-35020 · 17061-72010 |
| 17138 | Air intake pipe or air intake hose stay | 17138-54011 |
| 17700 | air filter assembly | 17700-35290 · 17700-35360 · 17700-35380 · 17700-35450 · 17700-35460 · 17700-35461 · 17700-35470 · 17700-54490 · 17700-54491 · 17700-5B180 · 17700-65030 · 17700-67210 · 17700-72170 · 17700-72171 · 17700-72180 · 17700-72190 · 17700-72220 · 17700-73240 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-06013 · 94271-00800 |
| 17700B | Gasket (for air cleaner) | 90210-08024 |
| 17700F | Stud bolt (for securing air filter) | 90116-06021 · 90116-06024 |
| 17700V | Bushing (for air cleaner) | 90386-03001 |
| 17703C | Dust cover sub-assembly | 17703-35010 |
| 17705 | Air filter cover sub-assembly | 17705-35140 · 17705-35160 · 17705-35170 · 17705-35200 · 17705-35210 · 17705-54470 · 17705-65010 · 17705-67180 · 17705-73080 |
| 17728 | thermostat valve | 17728-34010 · 17728-35020 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17764 | air filter duct | 53207-35010 · 53207-35060 · 53207-89112 |
| 17783 | air filter baffle | 17783-65010 |
| 17801 | Air filter element sub-assembly | 17801-34070 · 17801-35020 · 17801-35030 · 17801-54080 · 17801-67070 · 17801-70010 · 17801-70020 |
| 17805 | Intake connecting pipe sub-assembly | 17805-35021 · 17805-35060 · 17805-35070 · 17805-35080 · 17805-35160 · 17805-73030 · 17805-73100 · 17805-89108 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 |
| 17853 | Air filter bracket vibration isolation pad | 17853-35010 · 17853-38010 |
| 17861 | Intake connecting pipe | 17861-35080 · 17861-65020 |
| 17861D | Clamp (for air intake connecting pipe) | 90460-75001 · 90460-80001 |
| 17861E | hose clamp | 90460-80001 · 90460-82001 · 96111-10830 |
| 17871 | Air intake connecting pipe stay | 17871-35010 |
| 17875 | Intake connecting pipe | 17875-35010 · 17875-73020 · 17875-89111 |
| 17880 | Air cleaner hose assembly | 17880-54330 |
| 17880A | hose clamp | 96111-10710 |
| 17881 | No. 1 air cleaner hose | 17881-16210 · 17881-35080 · 17881-35120 · 17881-54410 · 17881-65011 · 17881-65020 · 17881-70010 · 17881-72060 · 17881-73030 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-82001 · 96111-10460 · 96111-10710 · 96111-10750 · 96111-10780 · 96111-10830 · 96111-10850 |
| 17882 | No. 2 air cleaner hose | 17882-65010 · 17882-67020 · 17882-70010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10710 · 96111-10730 · 96111-10800 · 96111-10880 · 96111-20620 |
| 17882D | Cold air intake hose | 17880-35040 · 17880-35050 · 17880-35070 · 17880-35071 · 17880-35120 · 17880-35130 · 17880-35150 · 17880-89102 · 17880-89113 · 17882-89107 · 17882-89109 · 17882-89114 · 17882-89116 · 17882-89120 · 17882-89121 · 17882-89127 |
| 17883 | No. 3 air cleaner hose | 17881-35070 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-78008 · 96111-10780 |
| 17885 | air cleaner tube | 17885-67011 |
| 17887 | air cleaner hose cover | 17887-35030 |
| 17893 | Intake resonator | 17893-65011 |
| 17902 | No. 1 hot air intake sub-assembly | 17895-71010 · 17895-73050 |
| 22231 | throttle body hose | 22231-35030 |
| 22231A | Clip or clip (for throttle body hose) | 96111-10800 |
| 22250 | Intake air flow meter assembly | 22250-35050 · 22250-65010 · 22250-73020 |
| 22275 | air flow meter gasket | 22275-41010 |
| 53207B | Air conditioning pipe sub-assembly | 53207-35050 · 53207-89110 · 53207-89111 |
