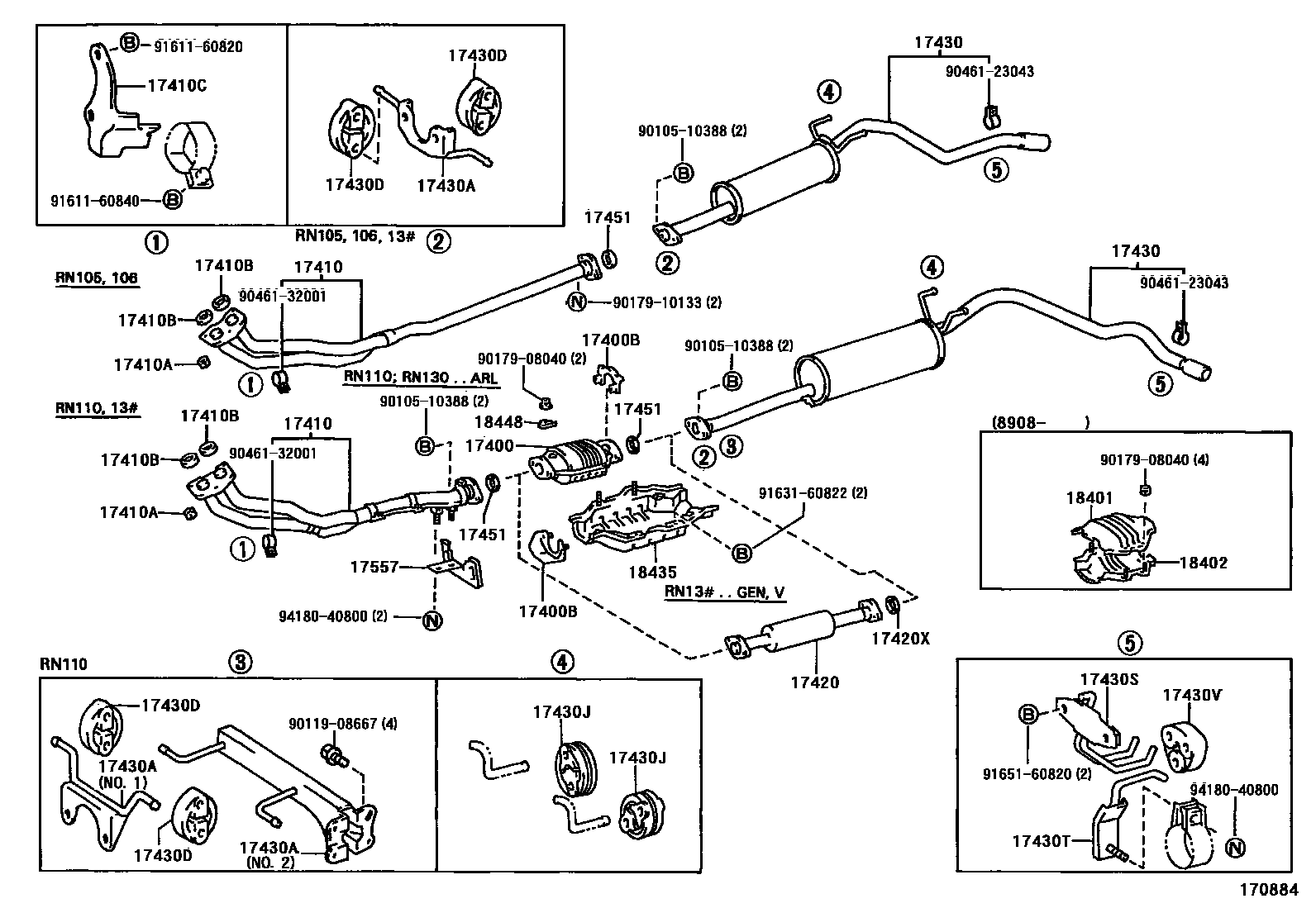

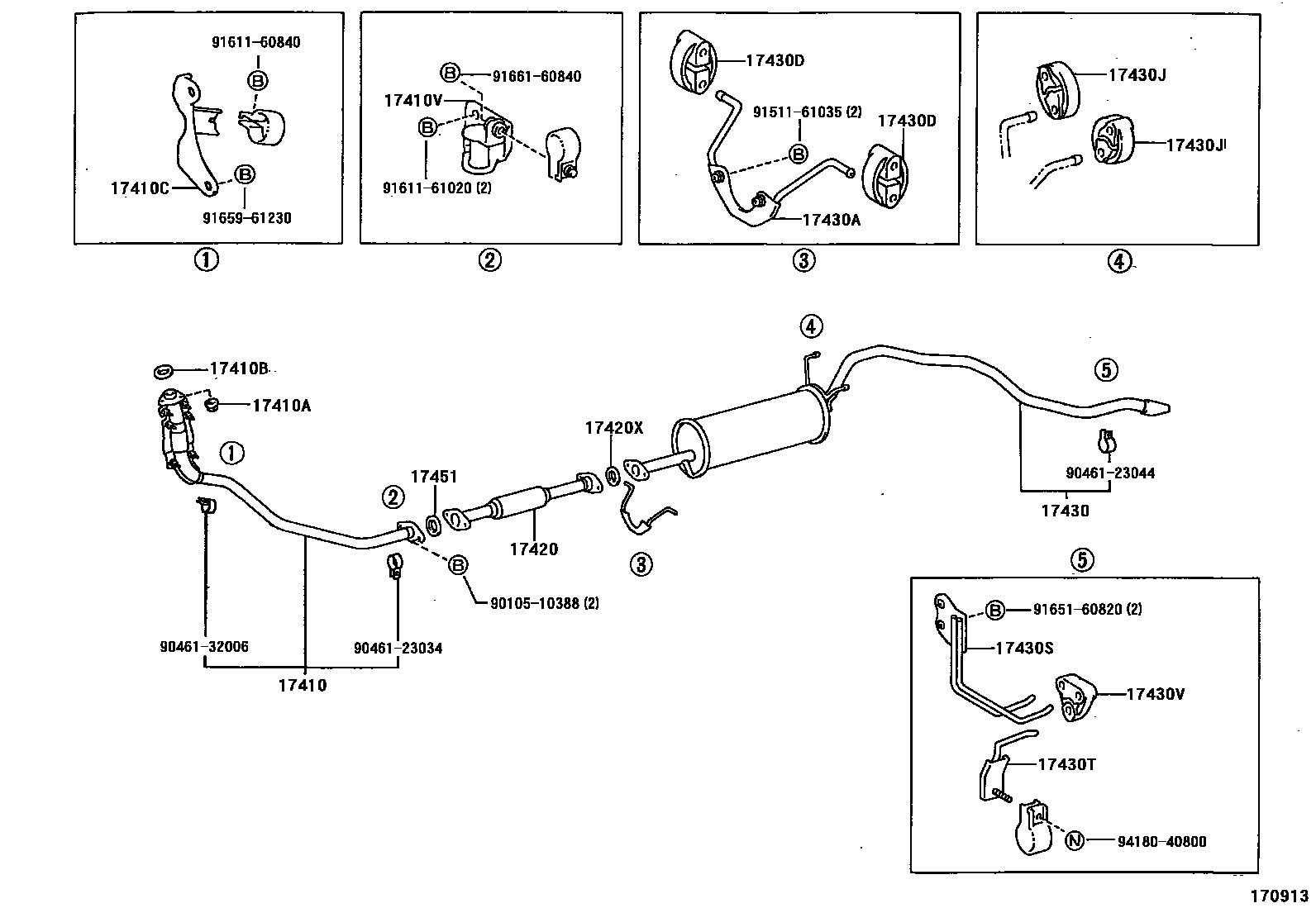

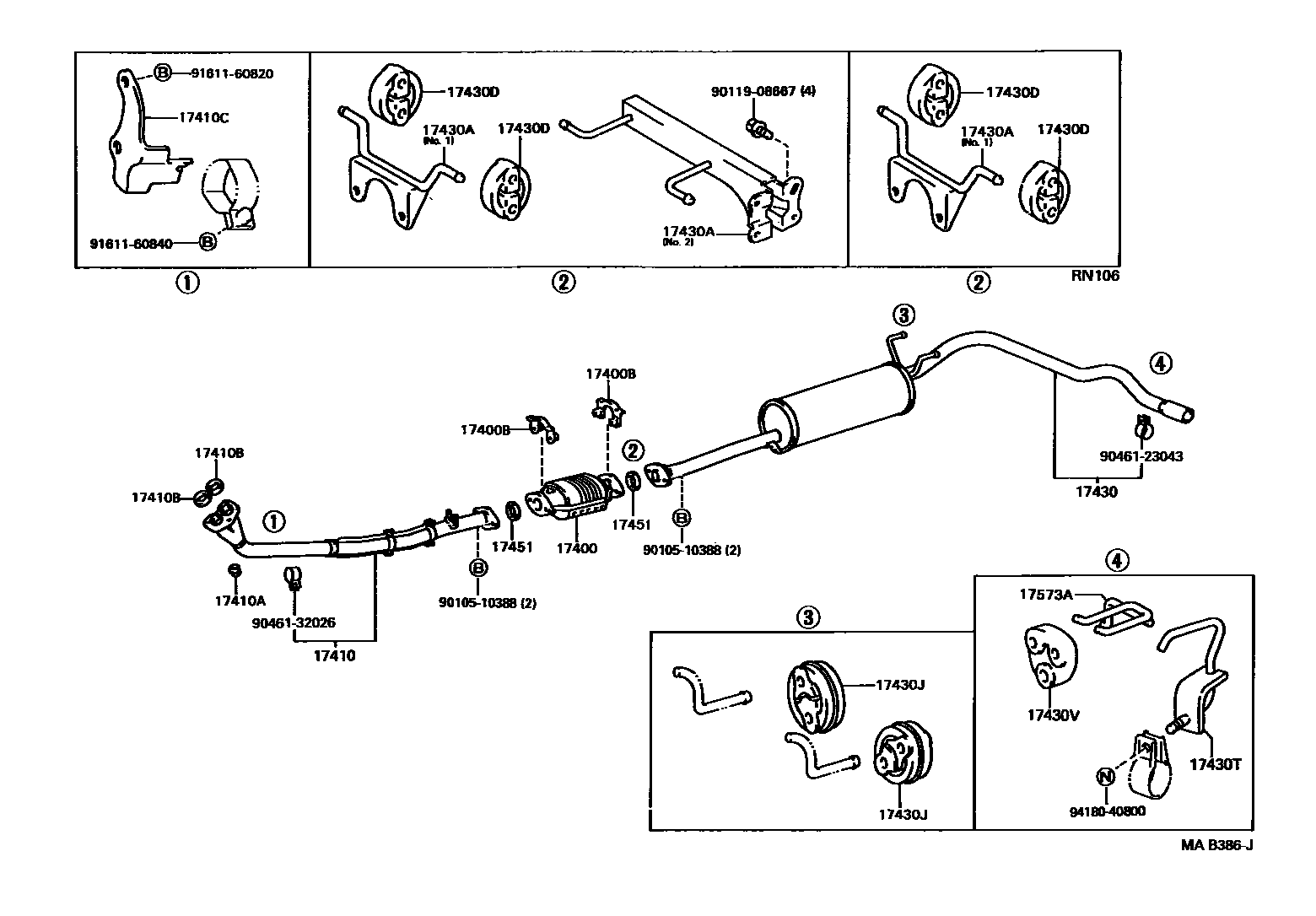

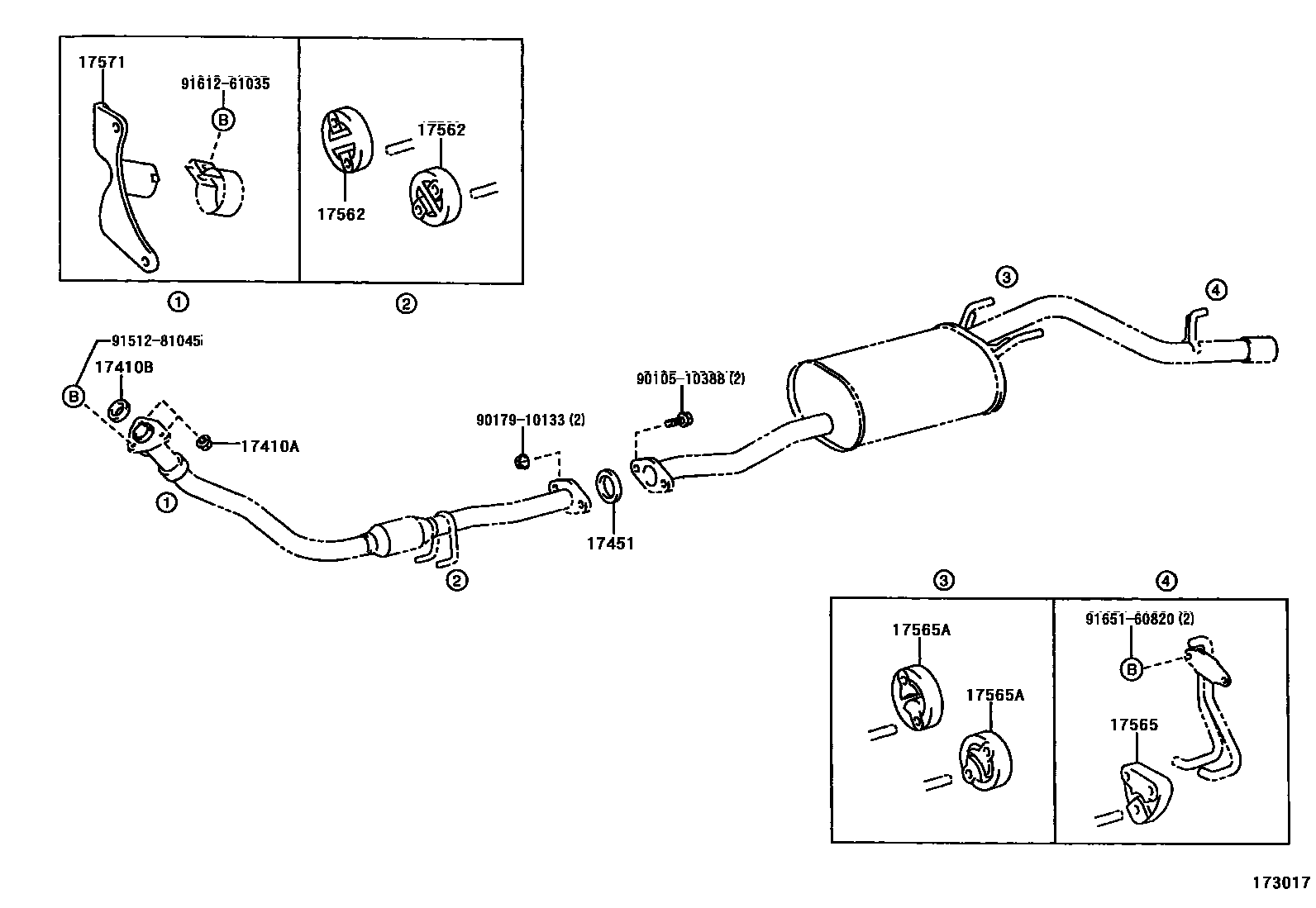

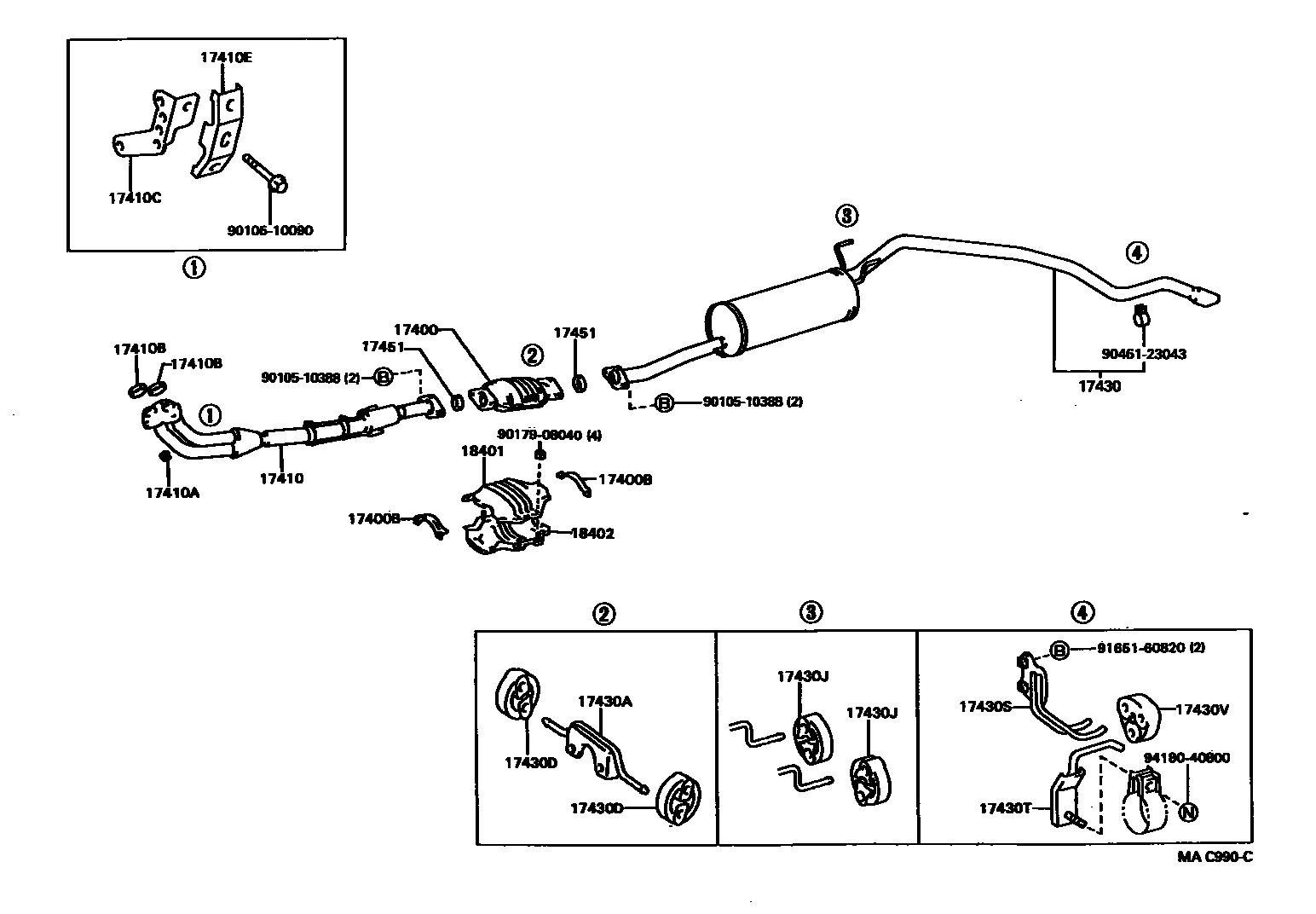

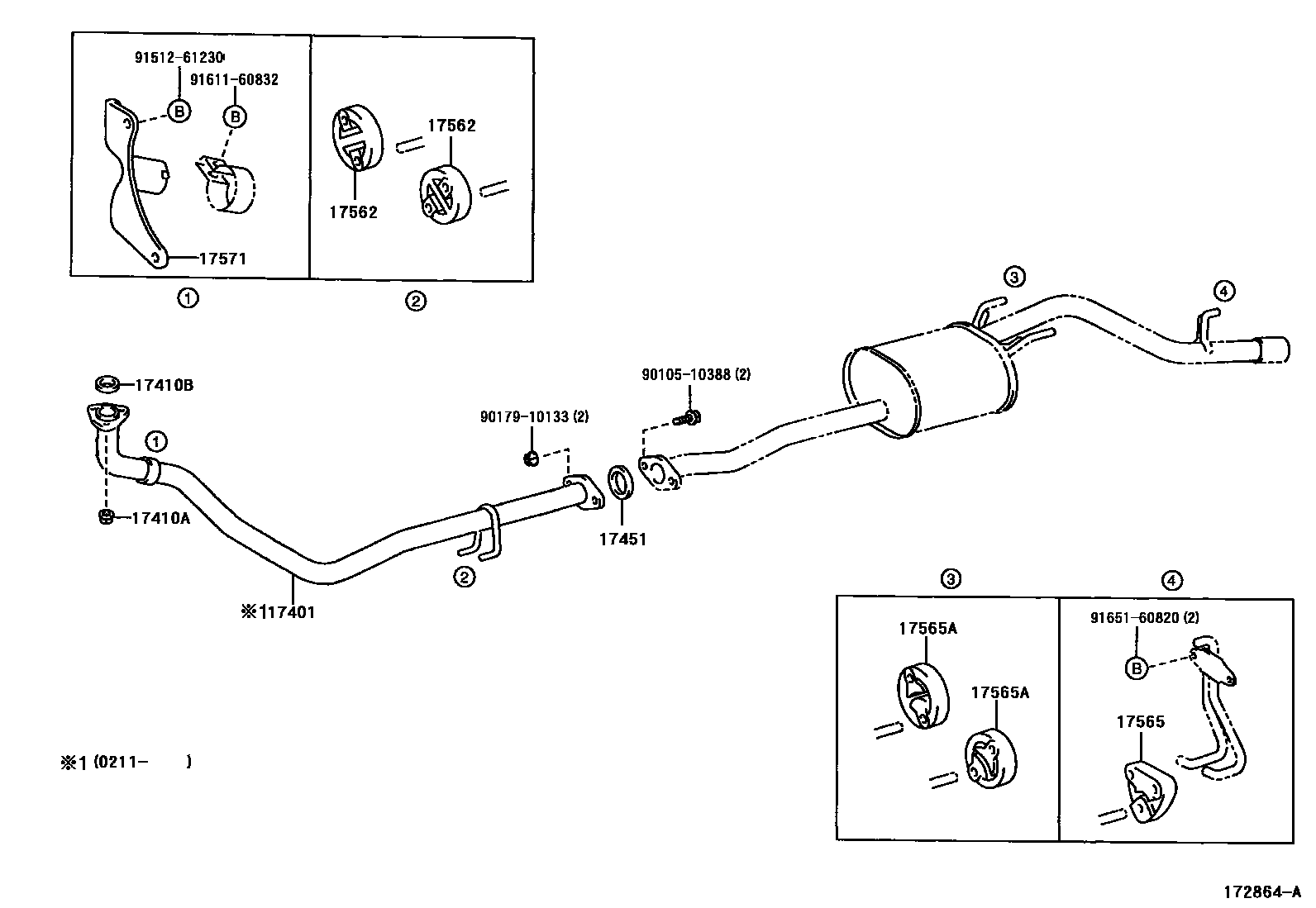

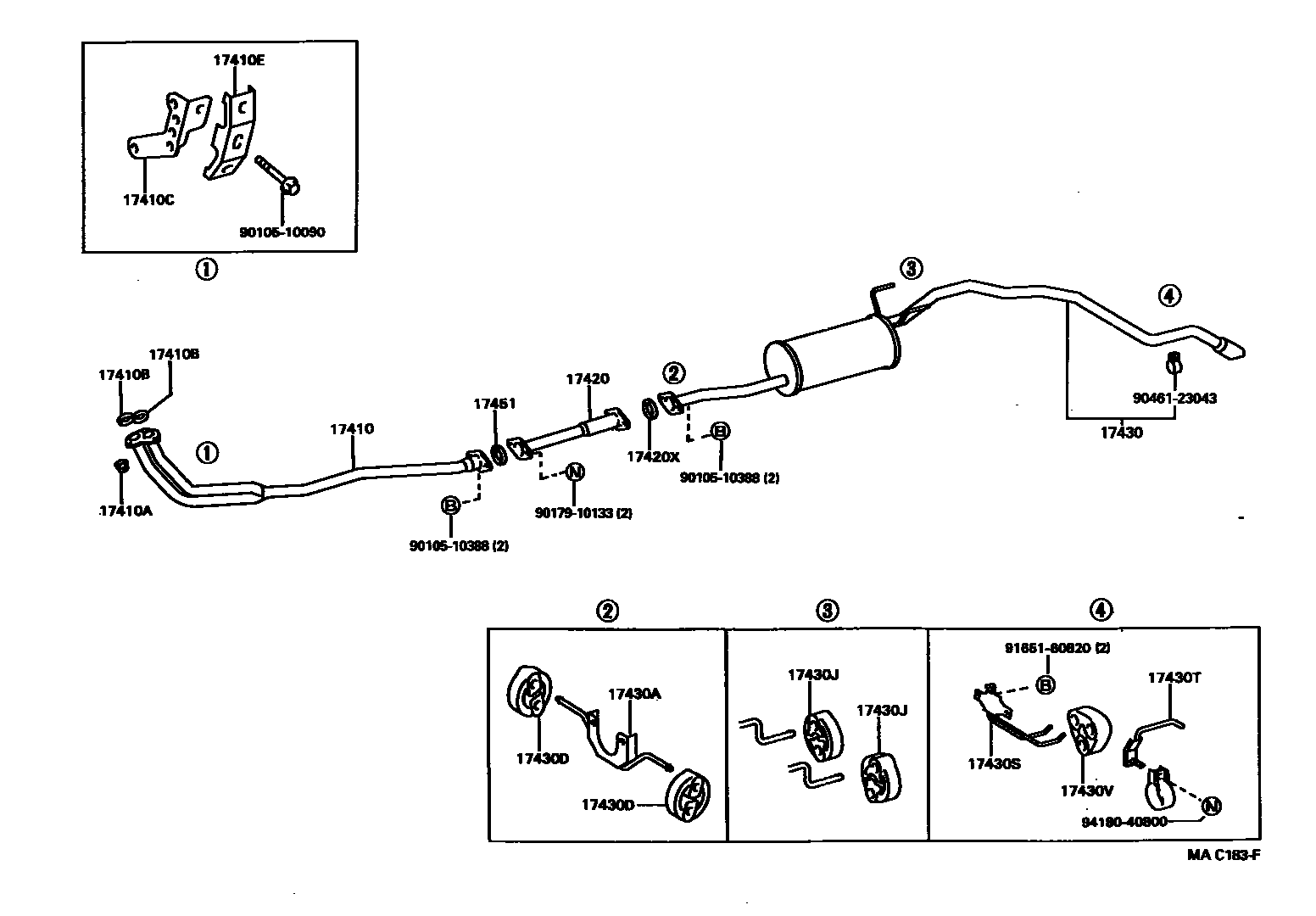

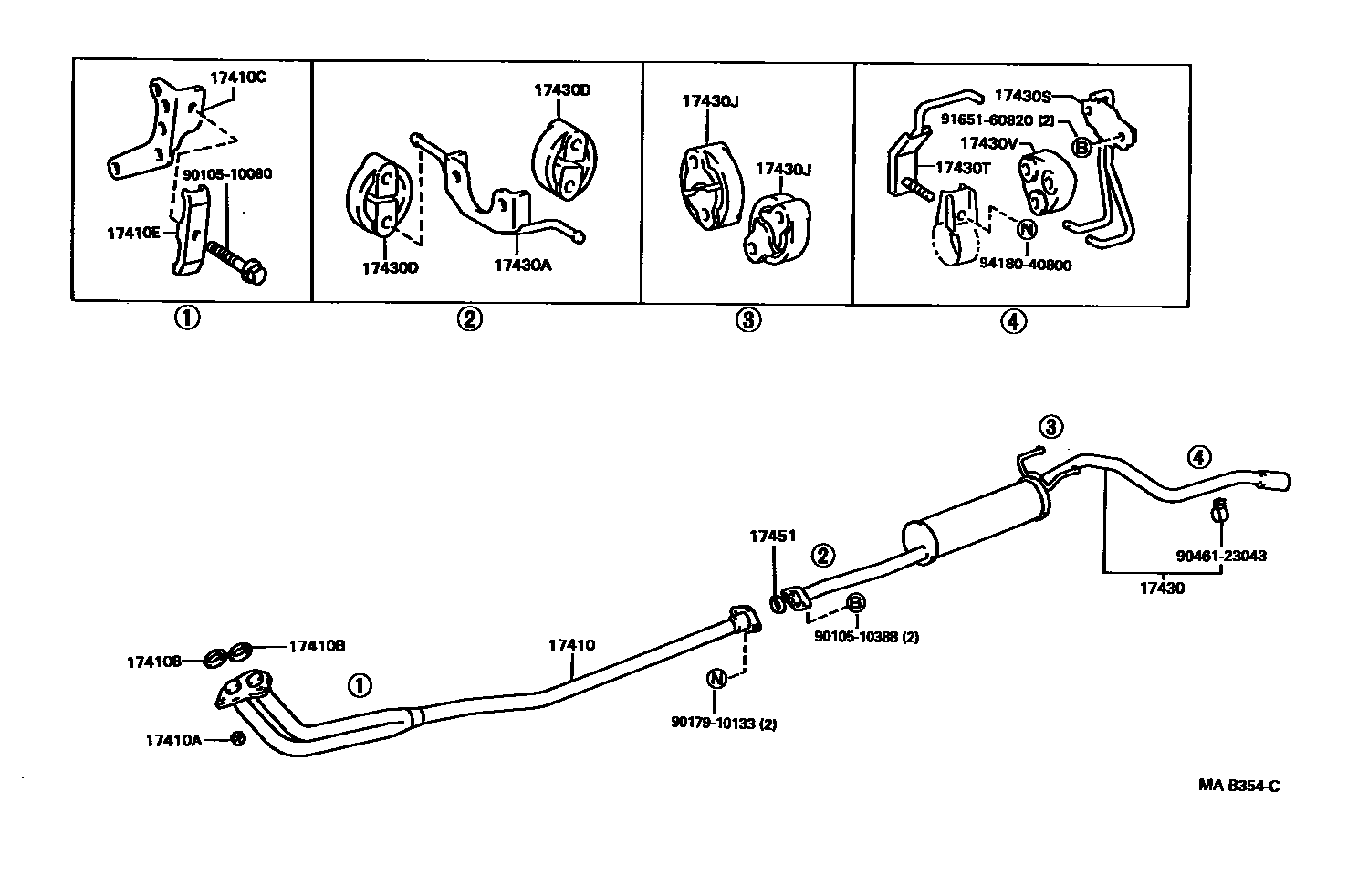

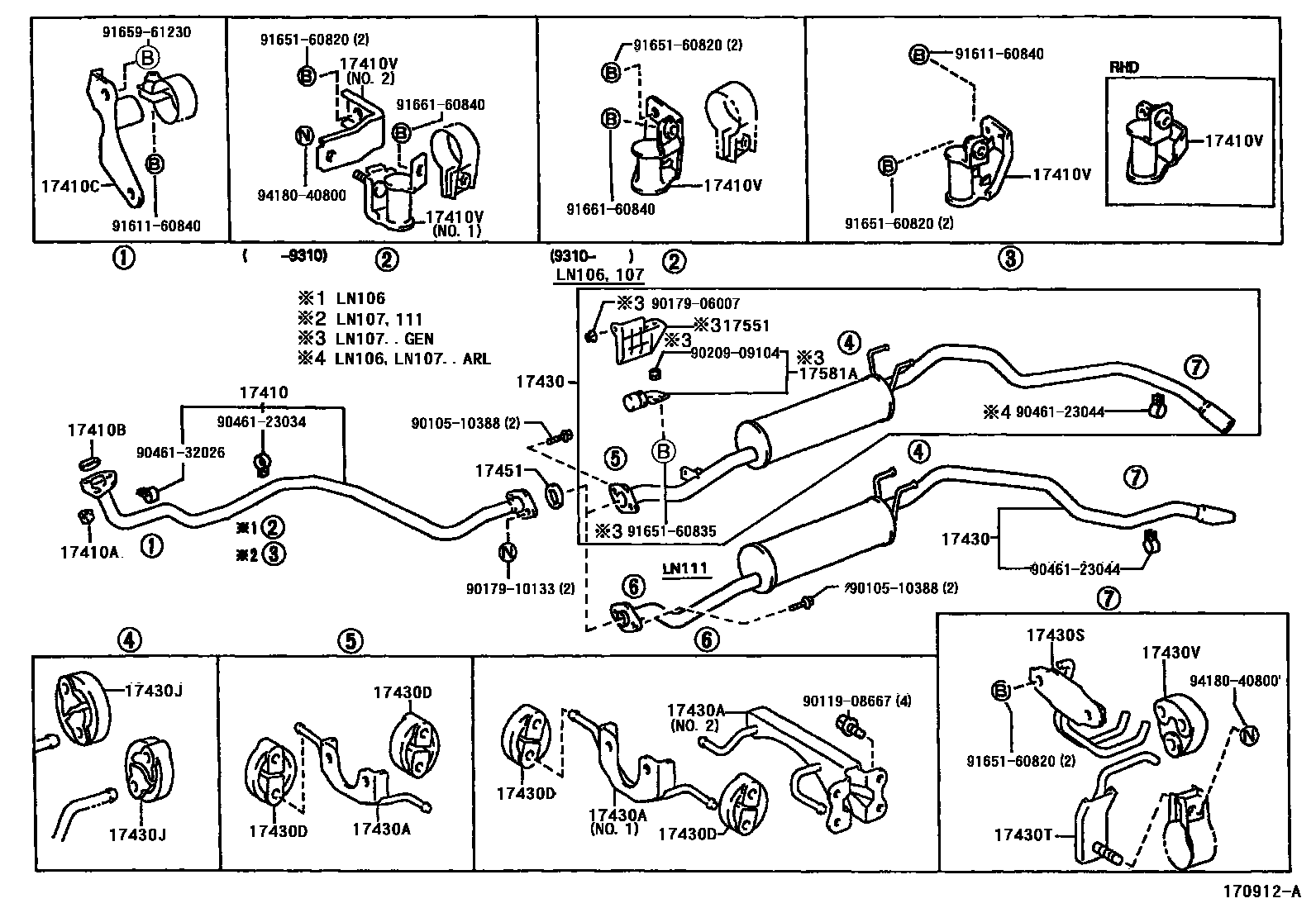

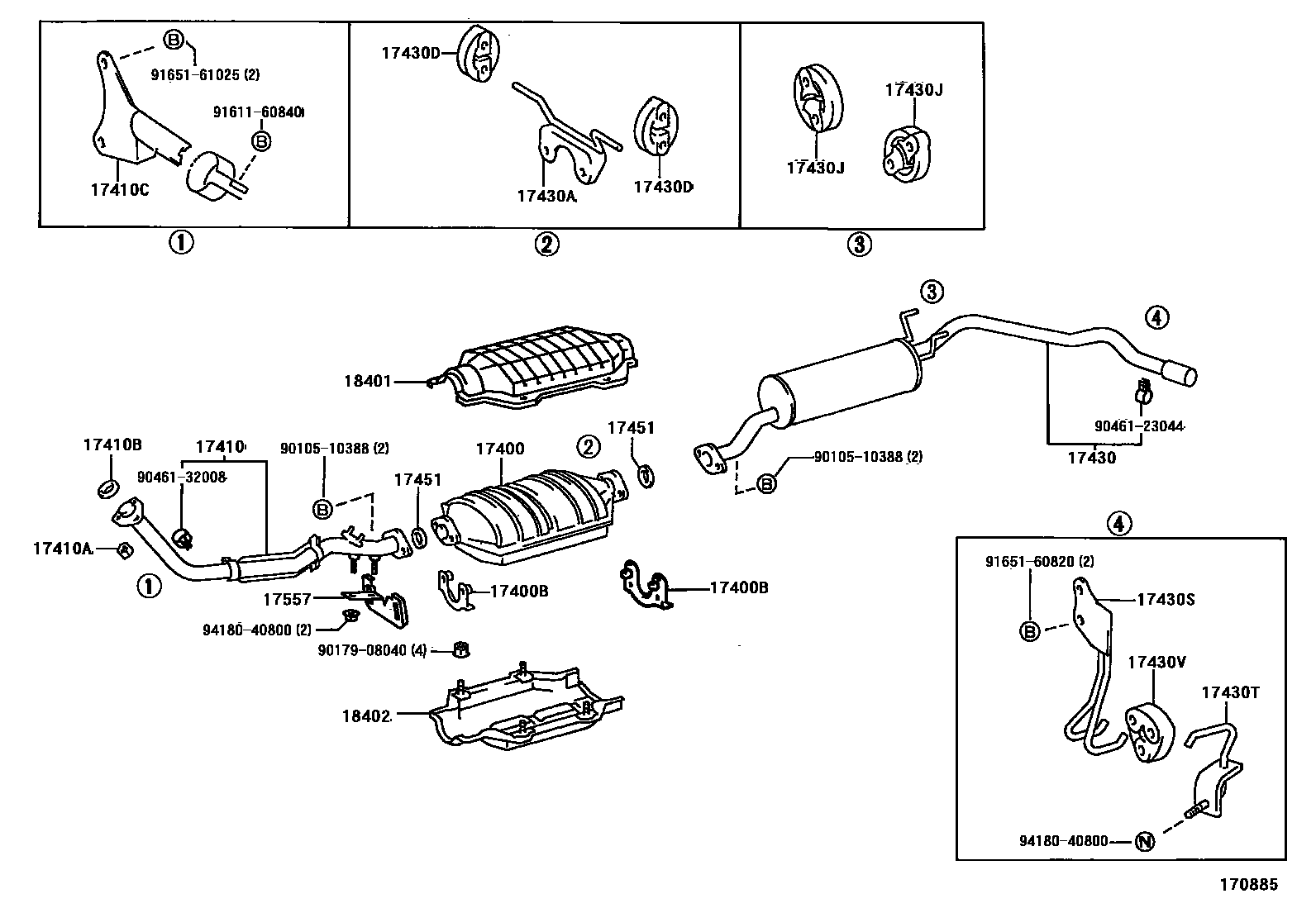

Toyota HILUX Exhaust Pipe — Figure 1702
Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 10 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-08040 · 18450-35080 · 18450-35150 · 18450-65070 · 18450-73071 |
| 17400B | exhaust pipe fixings | 17582-70020 · 18495-35030 · 18495-35031 · 18495-35040 · 18495-35041 · 18495-35050 · 18495-35051 · 18495-35060 · 18495-35061 · 18495-38020 |
| 17401 | Front exhaust pipe sub-assembly | 17401-05091 · 17401-05092 |
| 17410 | Front exhaust pipe assembly | 17410-08020 · 17410-35310 · 17410-35450 · 17410-35451 · 17410-35452 · 17410-35460 · 17410-35510 · 17410-35631 · 17410-35632 · 17410-35640 · 17410-35650 · 17410-35651 · 17410-35652 · 17410-35660 · 17410-35670 · 17410-35690 · 17410-54720 · 17410-54721 · 17410-54730 · 17410-54731 · 17410-54750 · 17410-54751 · 17410-54760 · 17410-54761 · 17410-5B030 · 17410-5B080 · 17410-5B100 · 17410-5B101 · 17410-5B130 · 17410-73420 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06038 · 90917-06041 · 90917-06064 · 90917-06066 · 90917-06067 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-08020 · 17571-35040 · 17571-35041 · 17571-35070 · 17571-54360 · 17571-65030 · 17571-73040 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04030 |
| 17410V | Front exhaust pipe bracket (for rear) | 17562-35020 · 17562-54110 · 17562-54190 · 17562-54191 · 17562-54280 · 17572-54060 |
| 17420 | Central exhaust pipe assembly | 17420-35020 · 17420-35021 · 17420-35030 · 17420-35031 · 17420-35040 |
| 17420X | Center exhaust pipe liner | 90917-06044 · 90917-06045 · 90917-06047 |
| 17430 | Exhaust tailpipe assembly | 17430-35871 · 17430-35872 · 17430-3D010 · 17430-3D011 · 17430-3D020 · 17430-3D021 · 17430-3D022 · 17430-3D023 · 17430-3D090 · 17430-3D130 · 17430-3D140 · 17430-3D150 · 17430-3D200 · 17430-3D201 · 17430-3D210 · 17430-3D211 · 17430-3D212 · 17430-3D240 · 17430-3D270 · 17430-3D290 · 17430-3D340 · 17430-5B120 · 17430-5B121 · 17430-5B130 · 17430-5B150 · 17430-5B160 · 17430-5B161 · 17430-5B420 · 17430-5B570 · 17430-5B580 · 17430-5B590 · 17430-5B800 · 17430-5B810 · 17430-5B811 · 17430-73350 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-35120 · 17503-35130 · 17504-35090 · 17564-35150 · 17564-35151 · 17564-35170 · 17564-35180 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17563-35020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 17565-35010 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17505-35040 · 17575-35060 · 17575-35090 · 17575-54020 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17585-35040 · 17585-71010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17566-35030 |
| 17451 | Exhaust pipe gasket | 90917-06025 · 90917-06041 · 90917-06044 · 90917-06045 · 90917-06046 · 90917-06047 |
| 17551 | No. 1 exhaust pipe insulation pad | 17551-62010 |
| 17557 | No. 7 exhaust pipe insulation pad | 17557-35010 · 17557-65010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-74290 |
| 17565 | No. 5 exhaust pipe lifting lug | 17566-35030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-35010 |
| 17571 | No. 1 exhaust pipe bracket | 17571-54430 · 17571-54560 |
| 17573A | No. 3 exhaust pipe bracket | 17575-35100 |
| 17581A | Exhaust pipe damper | 17581-46070 |
| 18401 | Three-way catalytic converter upper heat insulation pad sub-assembly | 18401-35010 · 18401-35020 · 18401-35030 |
| 18402 | Three-way catalytic converter lower heat insulation pad sub-assembly | 18402-35010 · 18402-35020 · 18402-35021 · 18402-35030 · 18402-35040 |
| 18435 | Three-way catalytic converter protection device | 18407-35010 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-35010 |
