Toyota HILUX Manifold — Figure 1701

Toyota HILUX EPC diagram 1701, Manifold, with 9 images and 71 PNC and OE references.

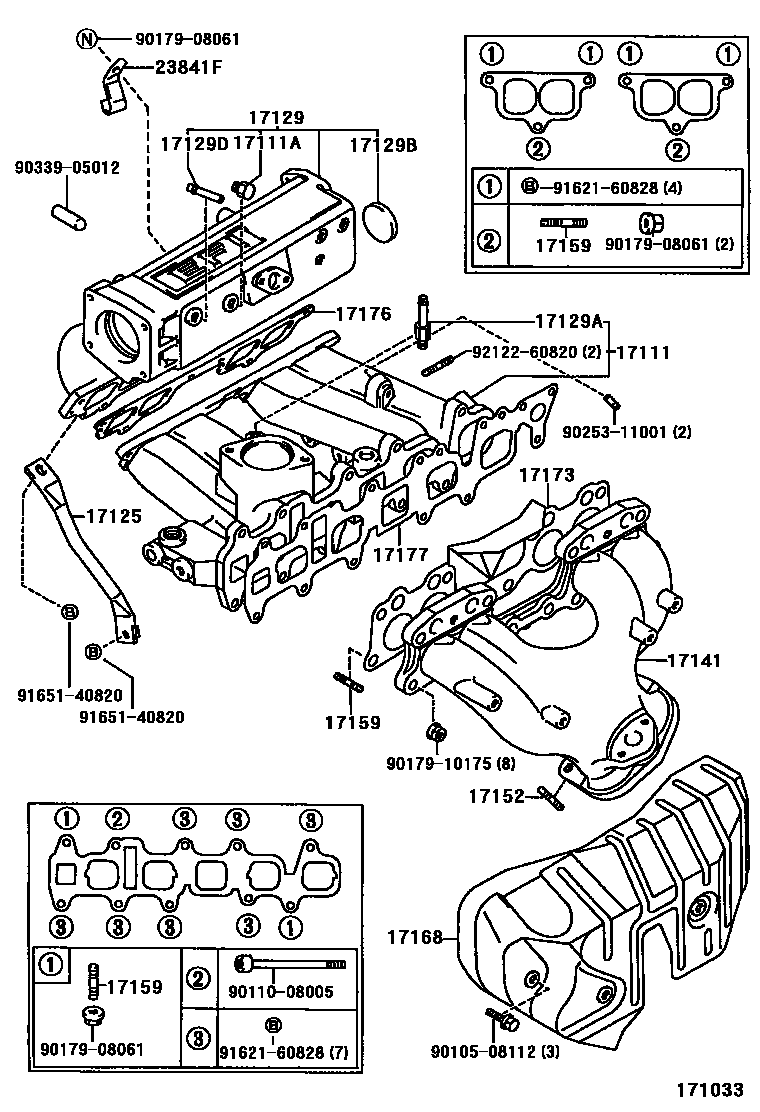

Toyota HILUX Manifold EPC diagram — 171033
Manifold — 171033 (199401 – 999999)

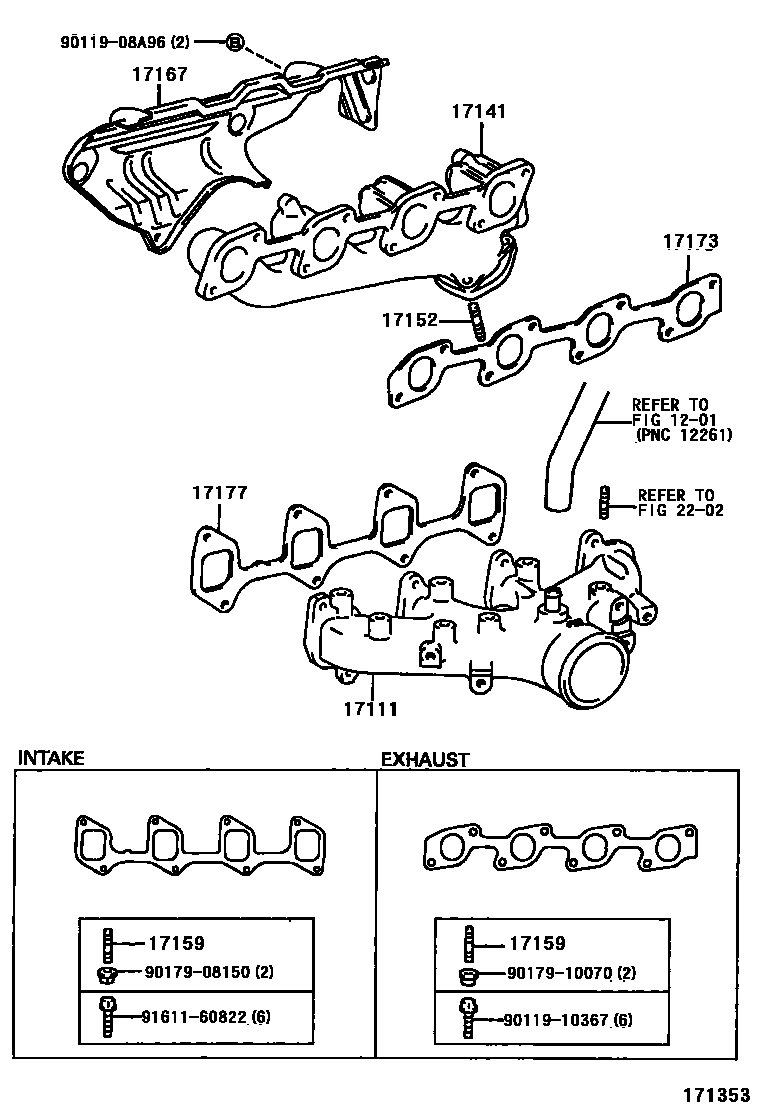

Toyota HILUX Manifold EPC diagram — 171353
Manifold — 171353 (198808 – 200106)

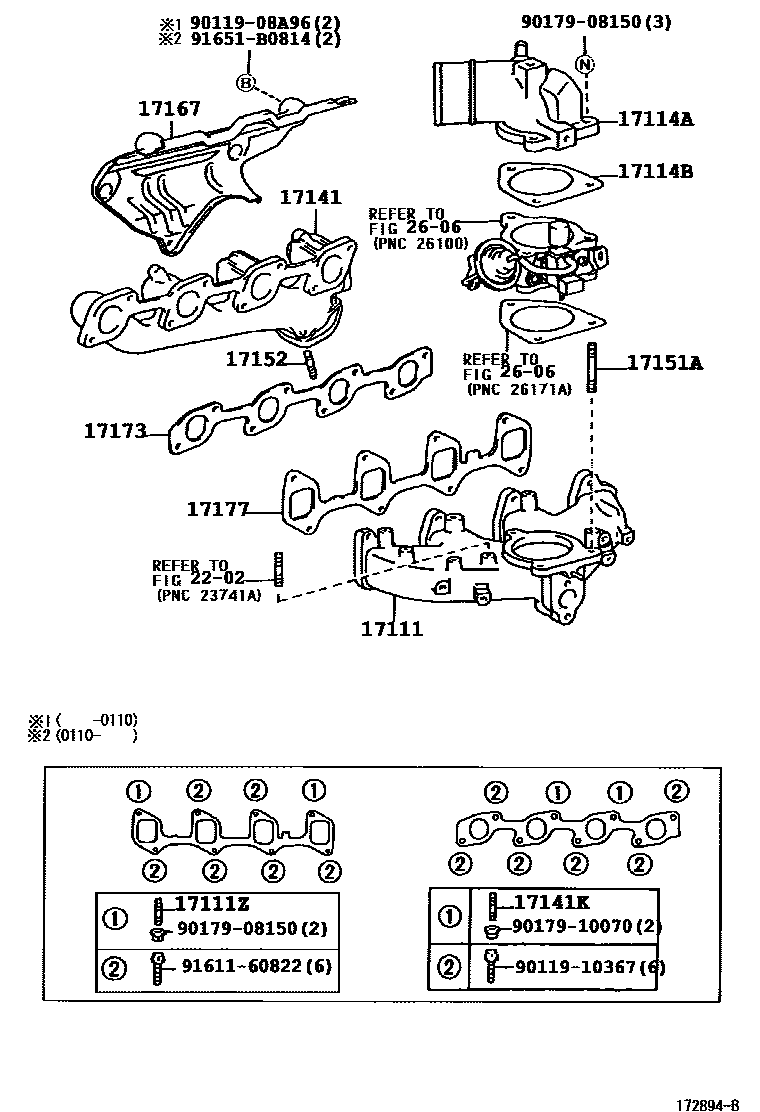

Toyota HILUX Manifold EPC diagram — 172894B
Manifold — 172894B (200106 – 999999)

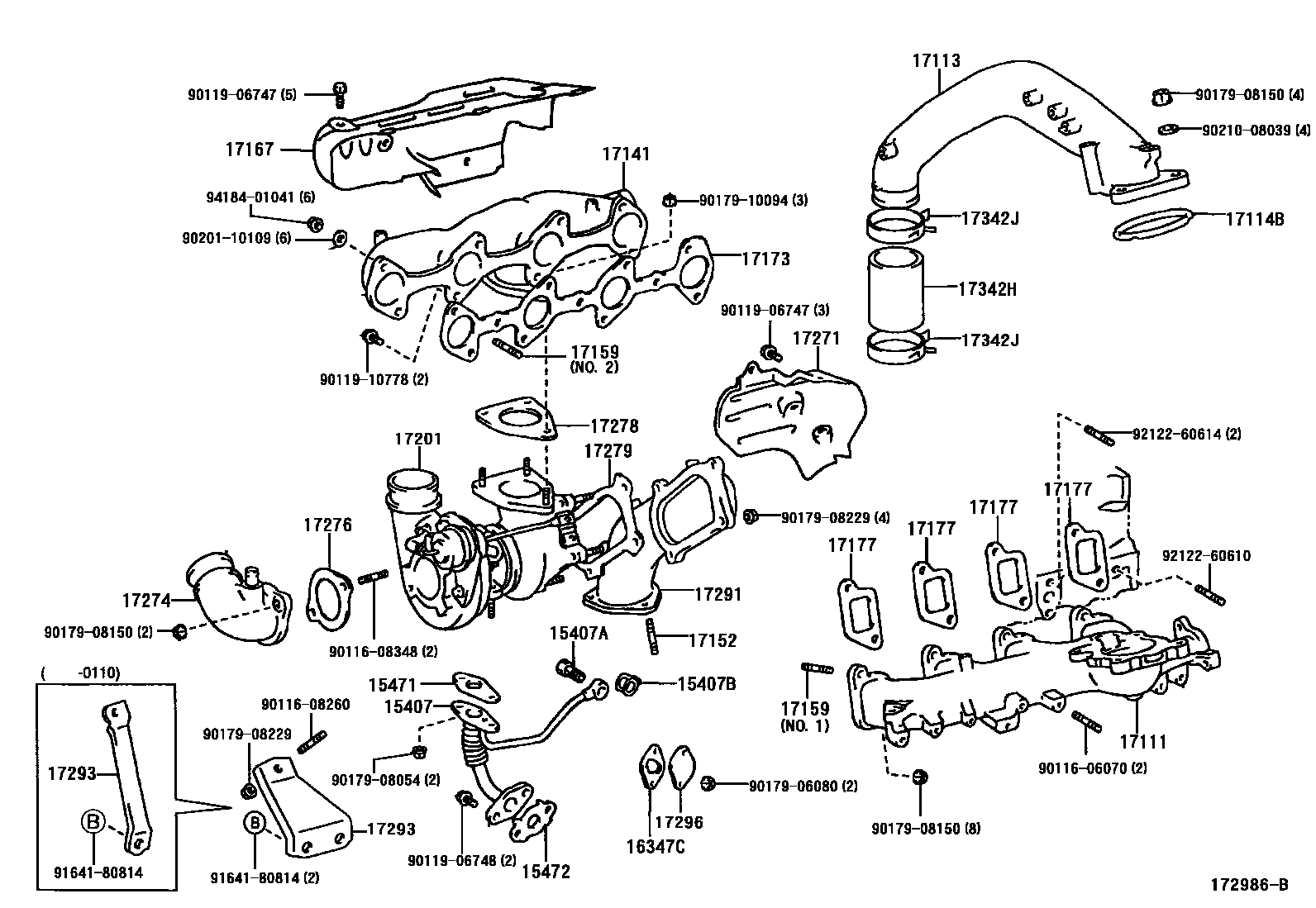

Toyota HILUX Manifold EPC diagram — 172986B
Manifold — 172986B (200108 – 999999)

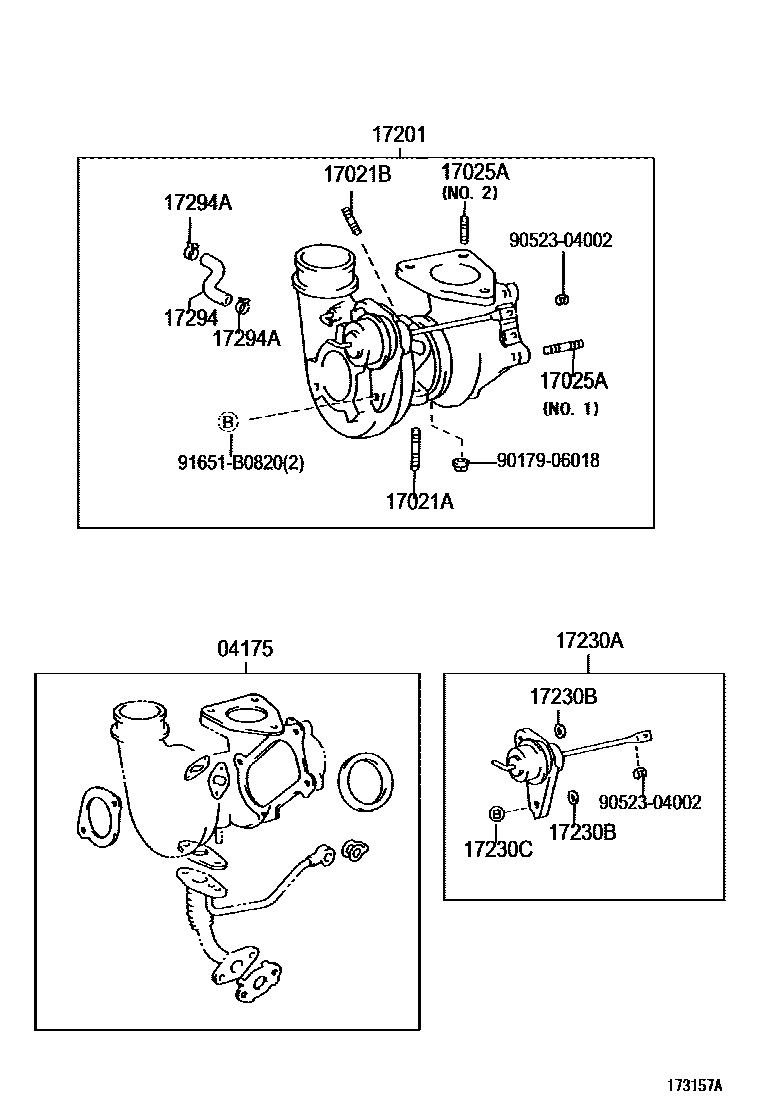

Toyota HILUX Manifold EPC diagram — 173157A
Manifold — 173157A (200108 – 999999)

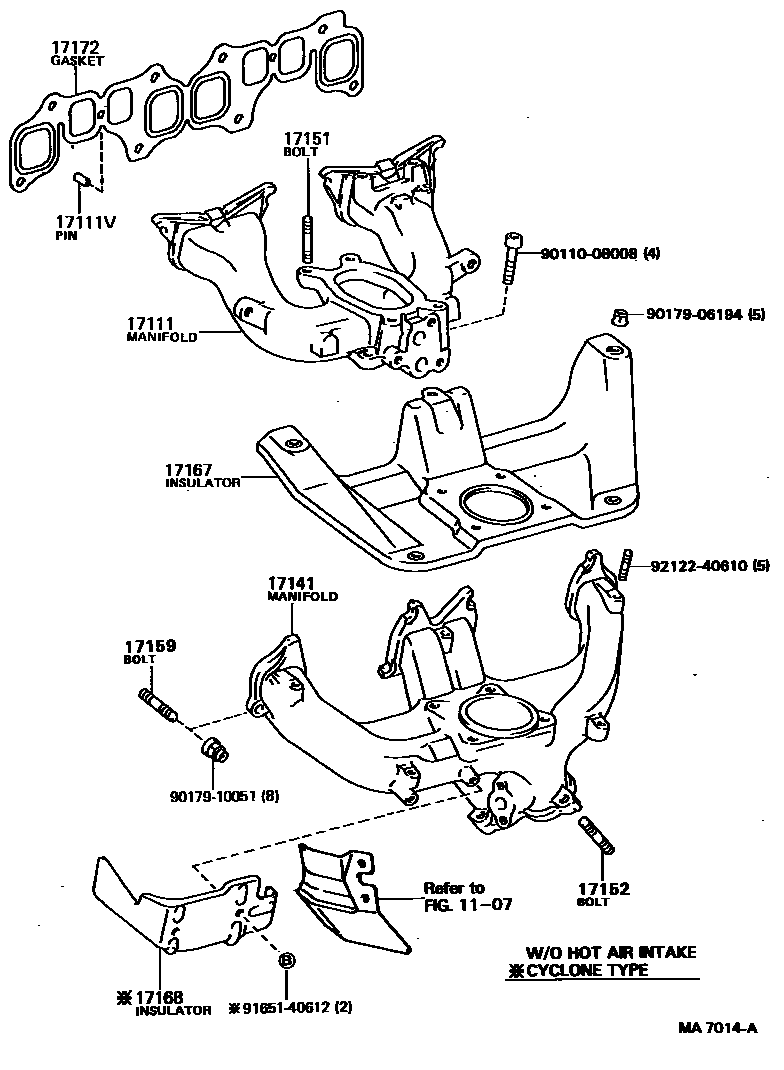

Toyota HILUX Manifold EPC diagram — MA7014A
Manifold — MA7014A (198808 – 999999)

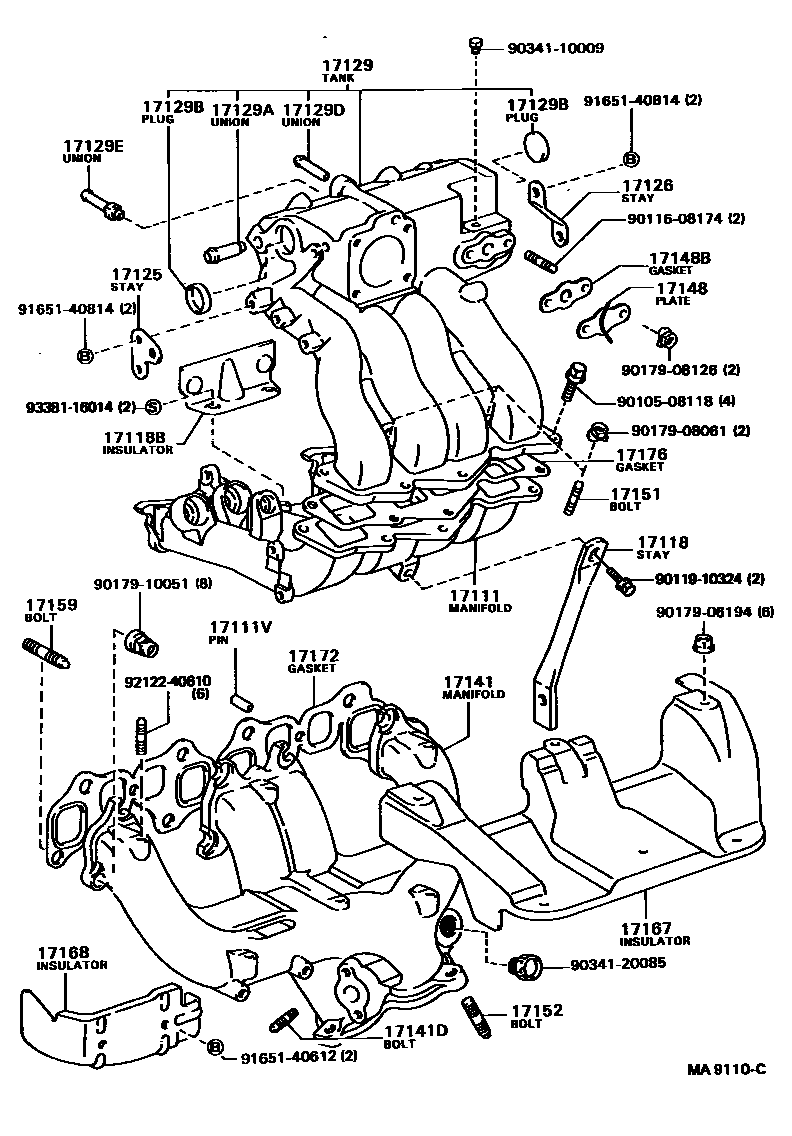

Toyota HILUX Manifold EPC diagram — MA9110C
Manifold — MA9110C (198908 – 199008)

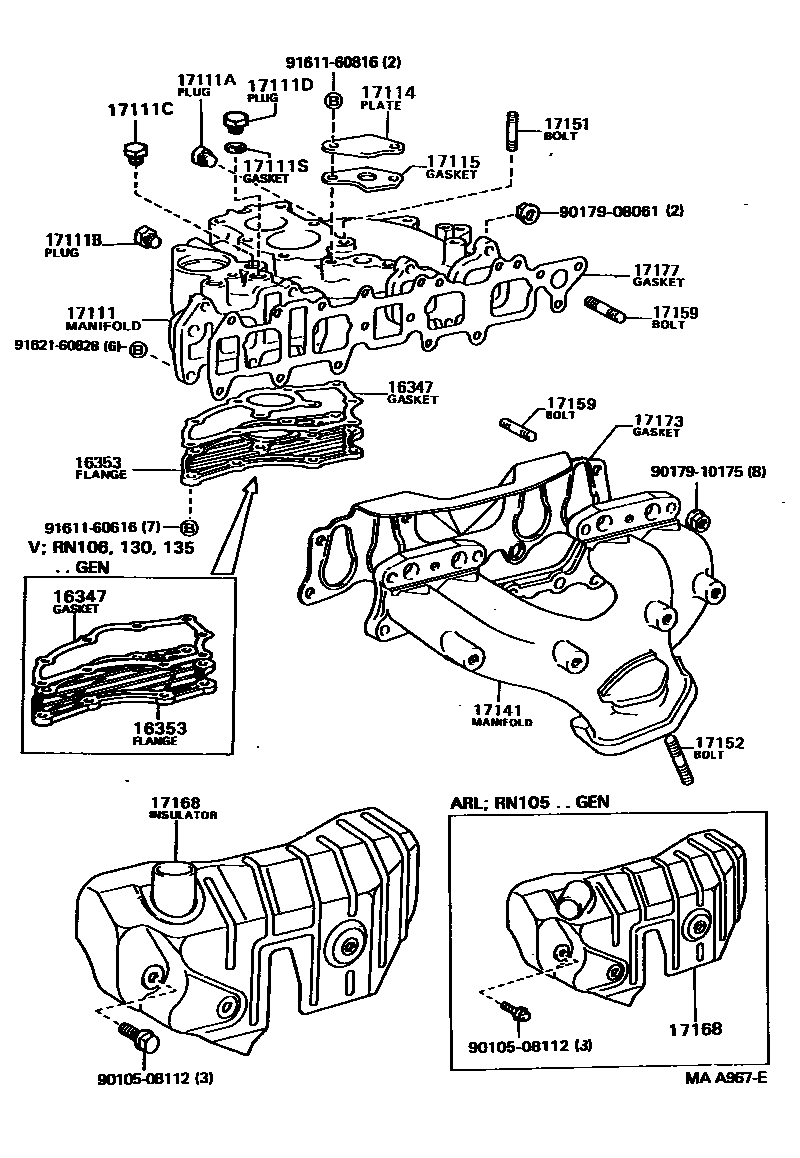

Toyota HILUX Manifold EPC diagram — MAA967E
Manifold — MAA967E (198808 – 999999)

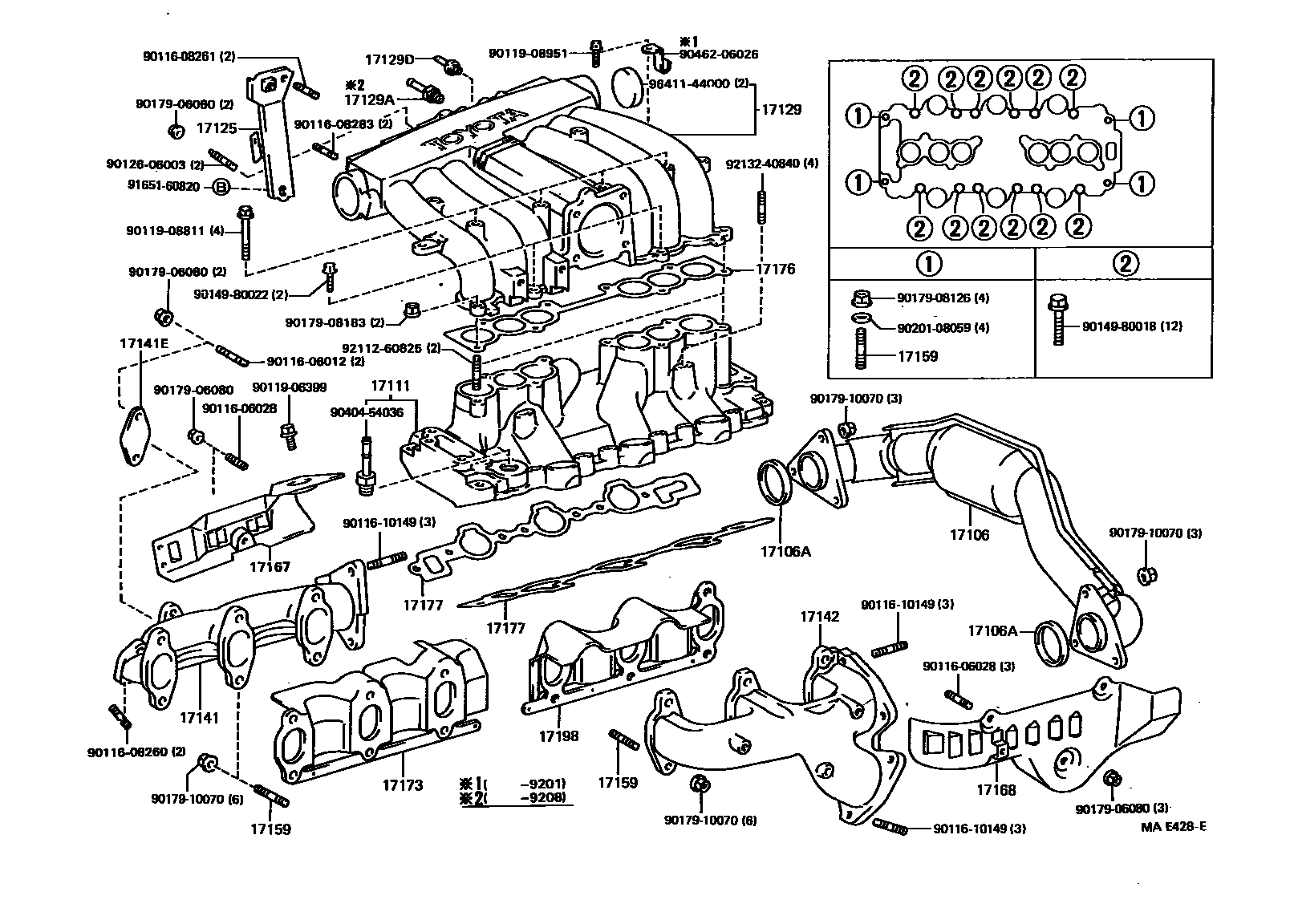

Toyota HILUX Manifold EPC diagram — MAE428E
Manifold — MAE428E (199008 – 199511)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-67011
15407Turbine oil inlet pipe sub-assembly15407-67010
15407AConnector bolt (for turbine oil inlet pipe)90401-12097
15407BGasket (for turbine oil inlet pipe)90904-30004
15471Turbine oil inlet pipe gasket15471-58010
15472No. 1 turbine oil outlet pipe gasket15472-67010
16347water bypass liner16347-35040 · 16347-35050
16347CGasket (for turbocharger water pipe)16347-67010
16353water bypass flange16353-35020 · 16353-35030
17021AStud bolts (for bearing housing)90116-08158
17021BStud bolt90116-06048
17025AStud bolts (for turbine housing)90116-10175 · 90126-08009
17106Exhaust crossover pipe assembly17106-65010
17106AExhaust pipe gasket90917-06048
17111Intake Manifold17101-35050 · 17101-54110 · 17101-67041 · 17111-35090 · 17111-35091 · 17111-35100 · 17111-35110 · 17111-54112 · 17111-54113 · 17111-65900 · 17111-71010 · 17111-71020 · 17111-73011
17111ANo. 1 screw plug90345-51006 · 90345-51025
17111BNo. 2 screw plug90345-53006 · 90345-53007
17111CNo. 3 screw plug90340-16004
17111DNo. 4 screw plug90341-12007 · 90341-12025
17111SGasket (for manifold plug)90430-12005 · 90430-12022
17111VDirect pin (for fixing the intake manifold)90250-08120
17111ZStud bolts (for intake manifold to cylinder head)90116-08220
17113intake pipe17113-67030
17114Intake manifold hole cover25617-38010
17114AIntake flange17114-54120
17114BIntake flange gasket17116-54030 · 17116-67030
17115Intake manifold hole cover gasket25628-35030 · 25628-38010
17118Manifold stays17118-73010
17118BIntake manifold heat shield17853-73012
17125No. 1 pressure tank stay17125-35030 · 17125-65012 · 17125-73010
17126No. 2 pressure tank stay17126-73010
17129Intake pressure tank17109-35040 · 17109-65013 · 17109-65014 · 17109-65020 · 17109-73020
17129AConnector No. 190404-51060 · 90404-51319 · 90405-14003
17129BScrew plug96411-43500 · 96411-44000
17129DConnector No. 290404-51070 · 90405-10010 · 90406-06001
17129EConnector No. 390404-51237
17141exhaust manifold17104-67020 · 17141-35100 · 17141-35130 · 17141-35150 · 17141-54090 · 17141-54110 · 17141-54111 · 17141-65020 · 17141-65021 · 17141-71020 · 17141-72010
17141DStuds (for oxygen sensor)90116-08128
17141EExhaust manifold plate17148-65010
17141KStud bolts (for exhaust manifold to cylinder head)90116-10141
17142No. 2 exhaust manifold housing17142-65011 · 17142-65012
17148Exhaust manifold plate (for EGR intake)25617-73010
17148BEGR air intake gasket25627-31020 · 25627-73010
17151Studs (for manifold to carburetor)90116-08051 · 92122-40835 · 92132-40825
17151AStuds (for manifold to venturi)90116-08292
17152Studs (for manifold to exhaust)90116-10058 · 90116-10087 · 90116-10088 · 90116-10146 · 90116-10148
17159Studs (for manifold to cylinder head)90116-08172 · 90116-08220 · 90116-08262 · 90116-10063 · 90116-10064 · 90116-10067 · 90116-10141 · 90116-10150 · 90126-10017 · 92122-60825 · 92122-80822 · 92132-60820
17167Exhaust manifold No. 1 heat shield17167-54070 · 17167-54090 · 17167-54120 · 17167-65020 · 17167-67040 · 17167-71020 · 17167-73011
17168Exhaust manifold No.2 insulation pad12521-72010 · 17167-35180 · 17167-35190 · 17168-65030
17172Gasket (manifold to cylinder head)17172-73010
17173Gasket (exhaust manifold to cylinder head)17173-30020 · 17173-35120 · 17173-54030 · 17173-65020 · 17173-65031
17176Gasket (intake surge tank to intake manifold)17176-35020 · 17176-65020 · 17176-73011 · 17176-73012
17177No. 1 gasket (intake manifold to cylinder head)17177-35040 · 17177-35050 · 17177-35060 · 17177-54020 · 17177-54021 · 17177-65010 · 17177-67011
17198No. 2 exhaust manifold gasket17198-65020 · 17198-65031
17201Turbocharger sub-assembly17201-67040
17230ACompensation actuator assembly with bracket17230-69145
17230BFlat Washer (for compensating actuator assembly)90201-08081 · 90201-08082 · 90201-08086 · 90201-08087
17230CBolt with washer (for compensating actuator assembly)91621-60822
17271No. 1 turbine vibration isolation pad17271-67021
17274Compressor oil inlet elbow pipe17274-67011
17276Compressor oil inlet gasket17276-67010
17278Gasket (turbo to exhaust manifold)17278-67010
17279Turbine outlet elbow gasket17279-67010
17291Turbine oil outlet elbow17291-67030
17293Turbocharger stay17293-67010 · 17293-67011
17294Actuator hose90445-12265
17294AClamp (for actuator hose)96132-51100
17296Bearing shell side plate17296-28010
17342HAir hose No. 2 (for turbocharger)17342-67030
17342JHose clip (for air intake pipe)90467-53002
23841Ffuel hose clamp23841-35040
