Toyota HILUX V-Belt — Figure 1605

Toyota HILUX EPC diagram 1605, V-Belt, with 2 images and 3 PNC and OE references.

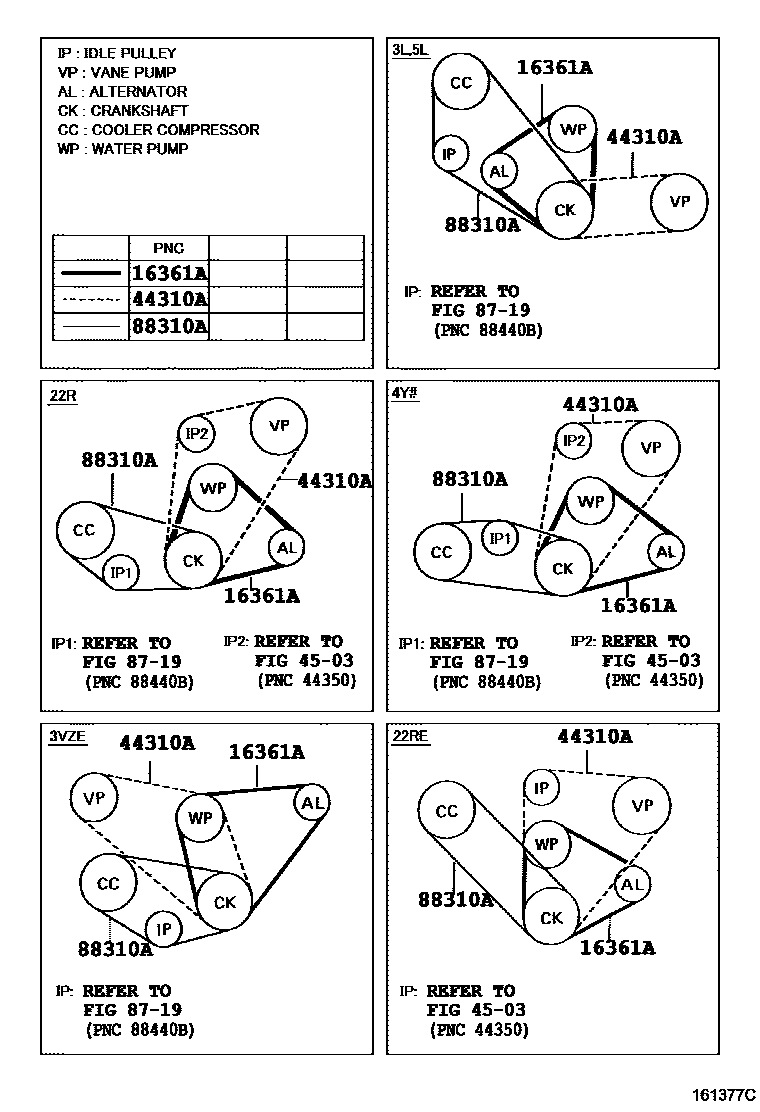

Toyota HILUX V-Belt EPC diagram — 161377C
V-Belt — 161377C (198808 – 999999)

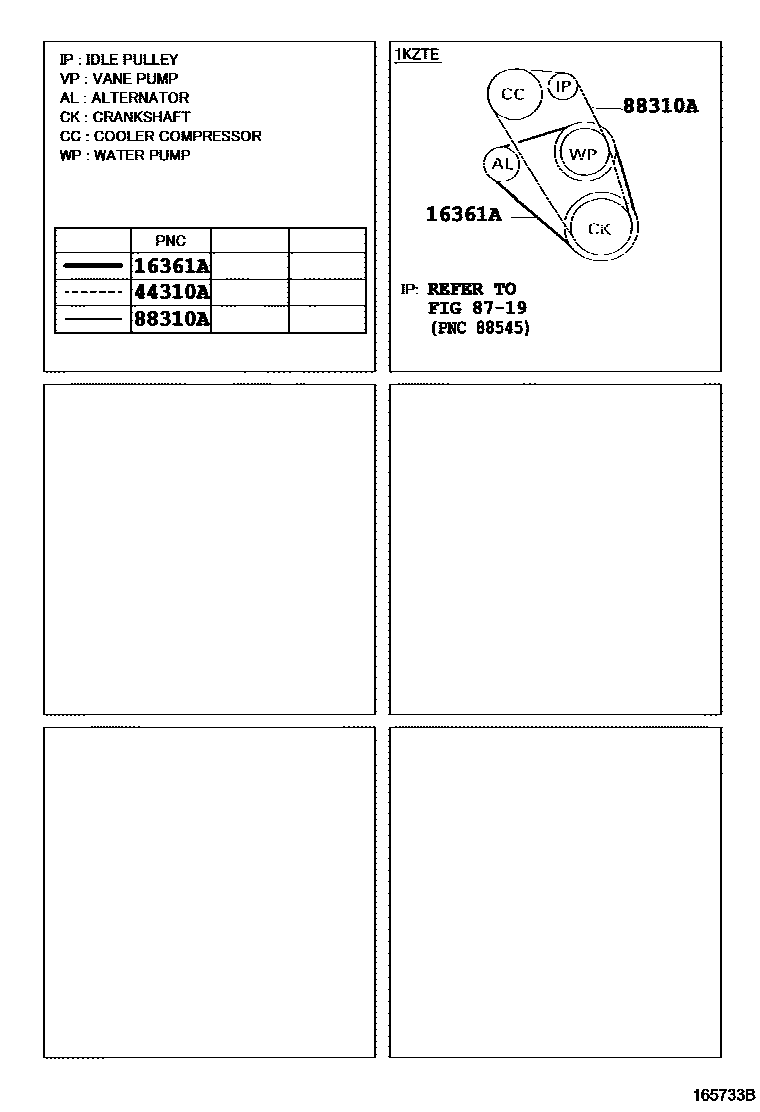

Toyota HILUX V-Belt EPC diagram — 165733B
V-Belt — 165733B (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02194 · 90916-02209 · 90916-02211 · 90916-02384 · 90916-02385 · 99331-10870 · 99364-50830 · 99364-70830 · 99364-80830 · 99365-50820 · 99365-80820
44310AV-belt (for vane pump)90916-02196 · 99332-00830 · 99332-01055 · 99332-10865 · 99332-11110 · 99332-11120 · 99332-60865
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90916-02390 · 99322-00860 · 99332-00870 · 99332-01260 · 99332-01265 · 99332-10855 · 99332-10860 · 99332-10865 · 99332-10870 · 99332-10890 · 99332-11205 · 99332-11260 · 99332-11265
