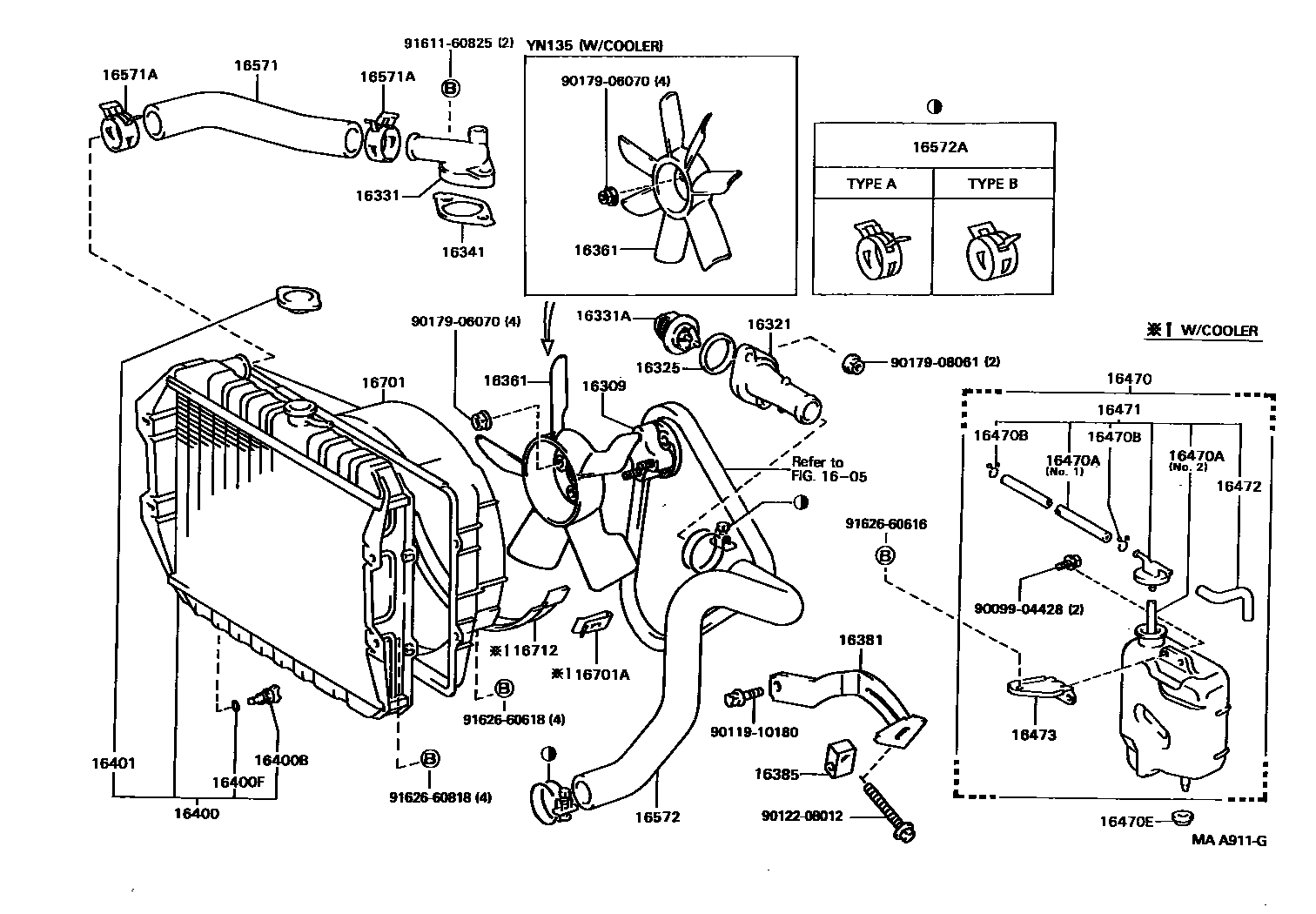

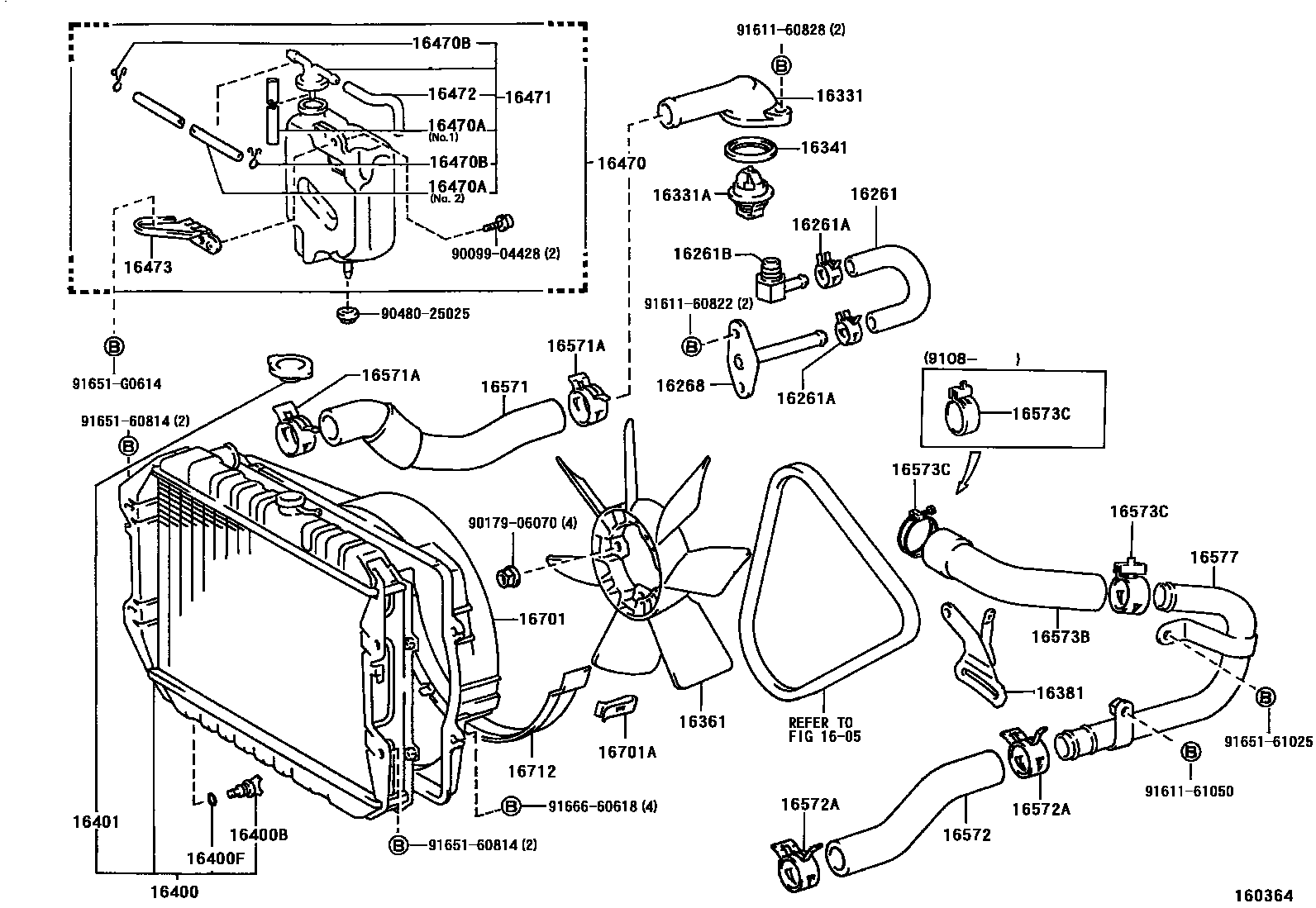

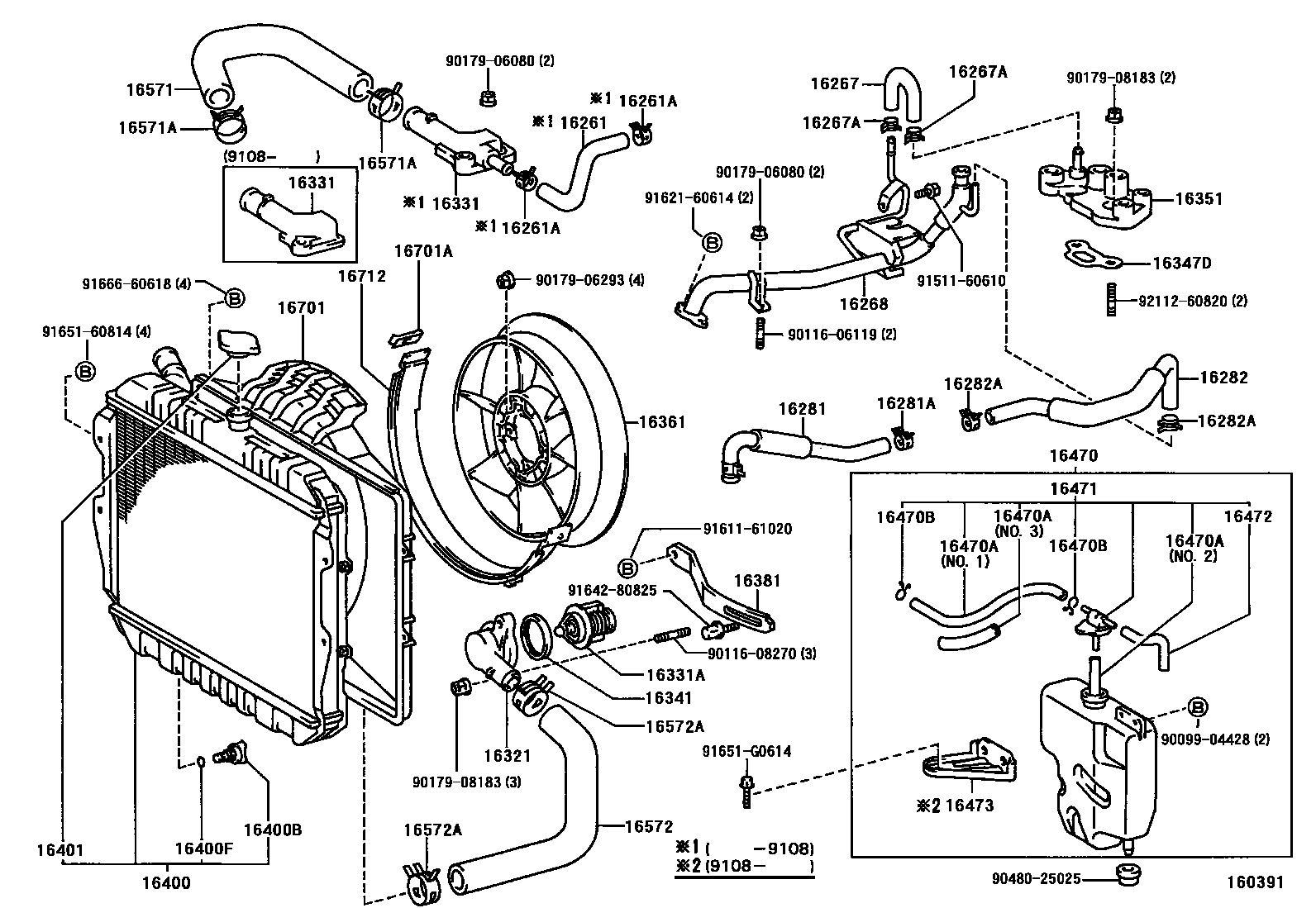

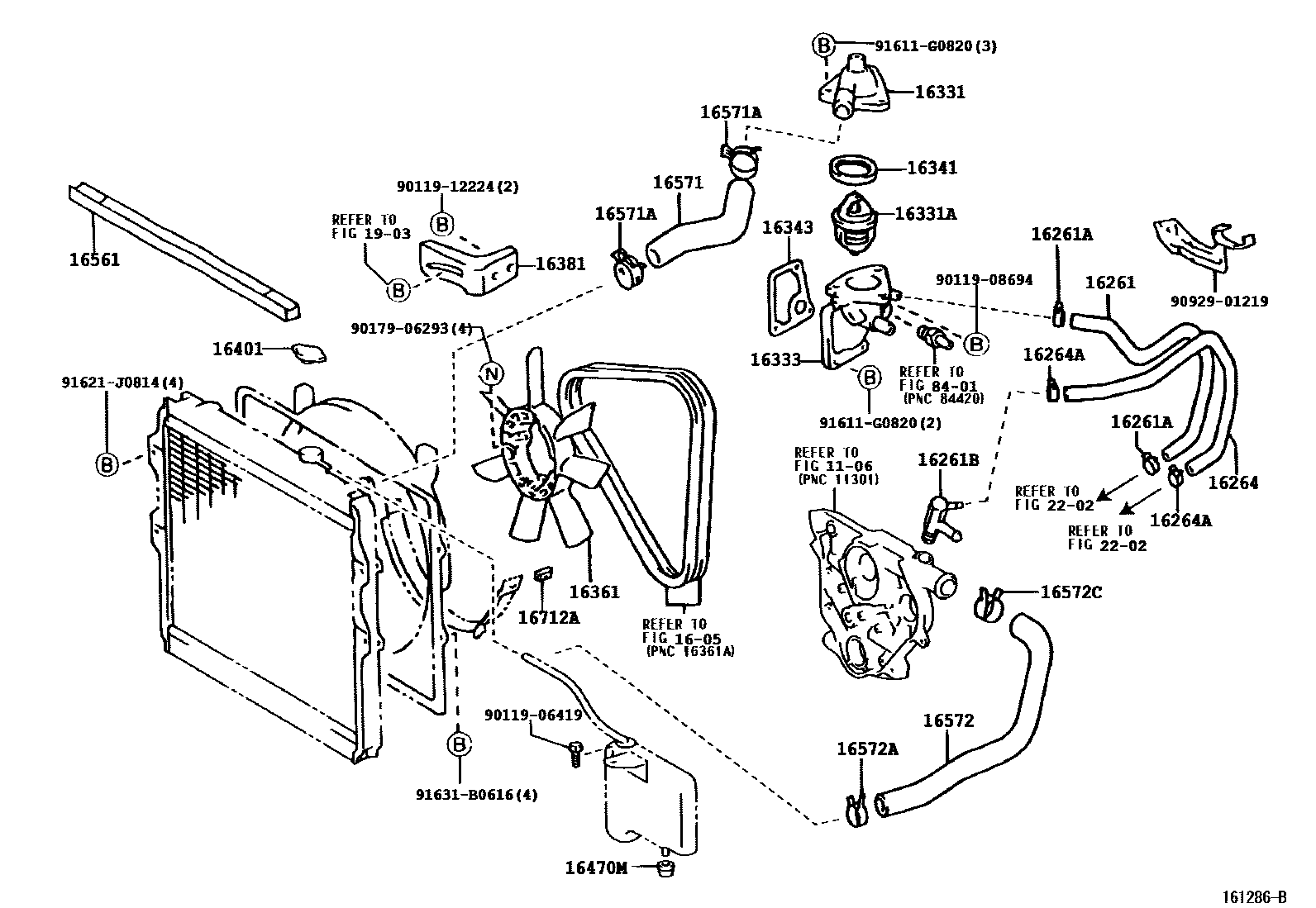

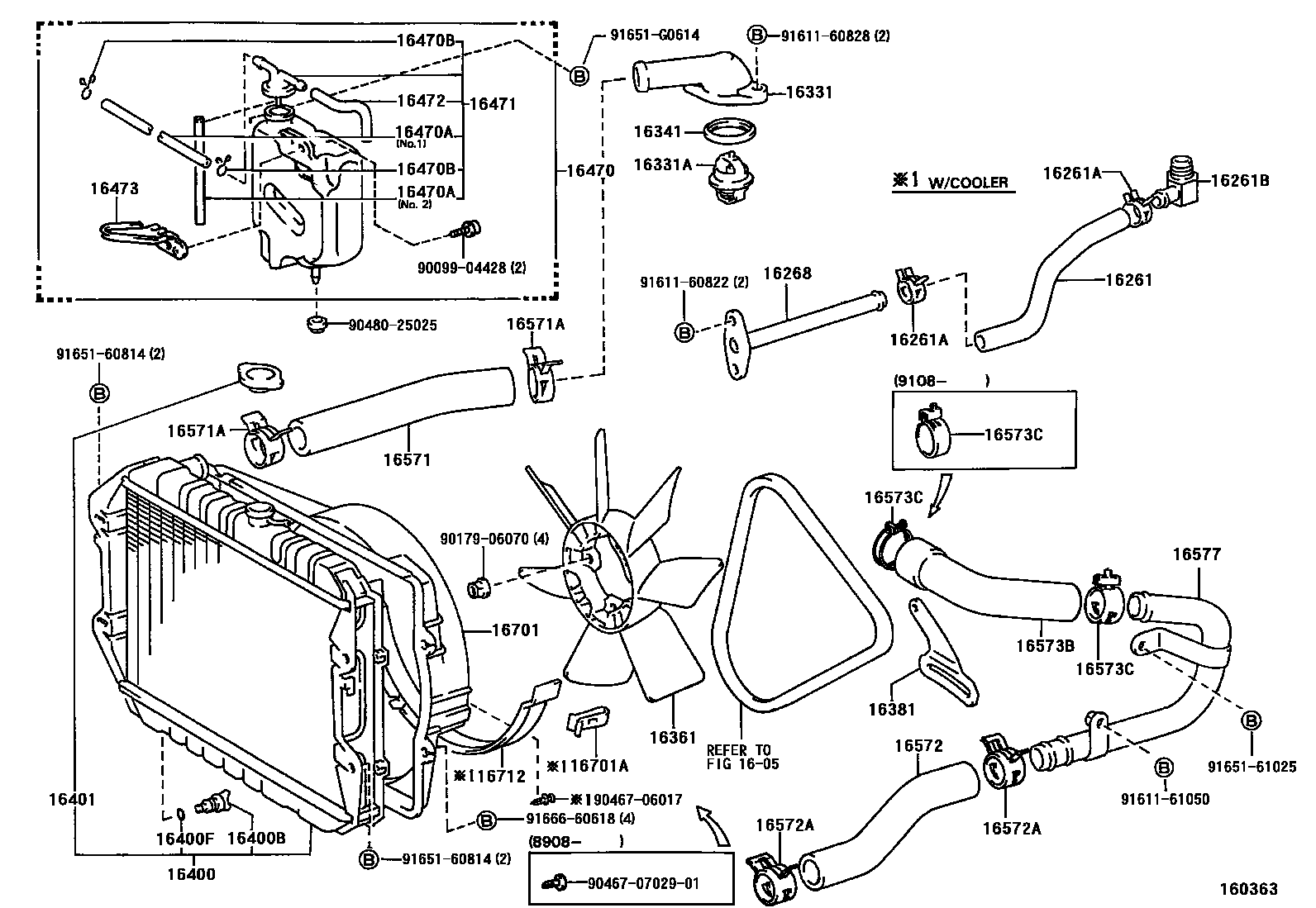

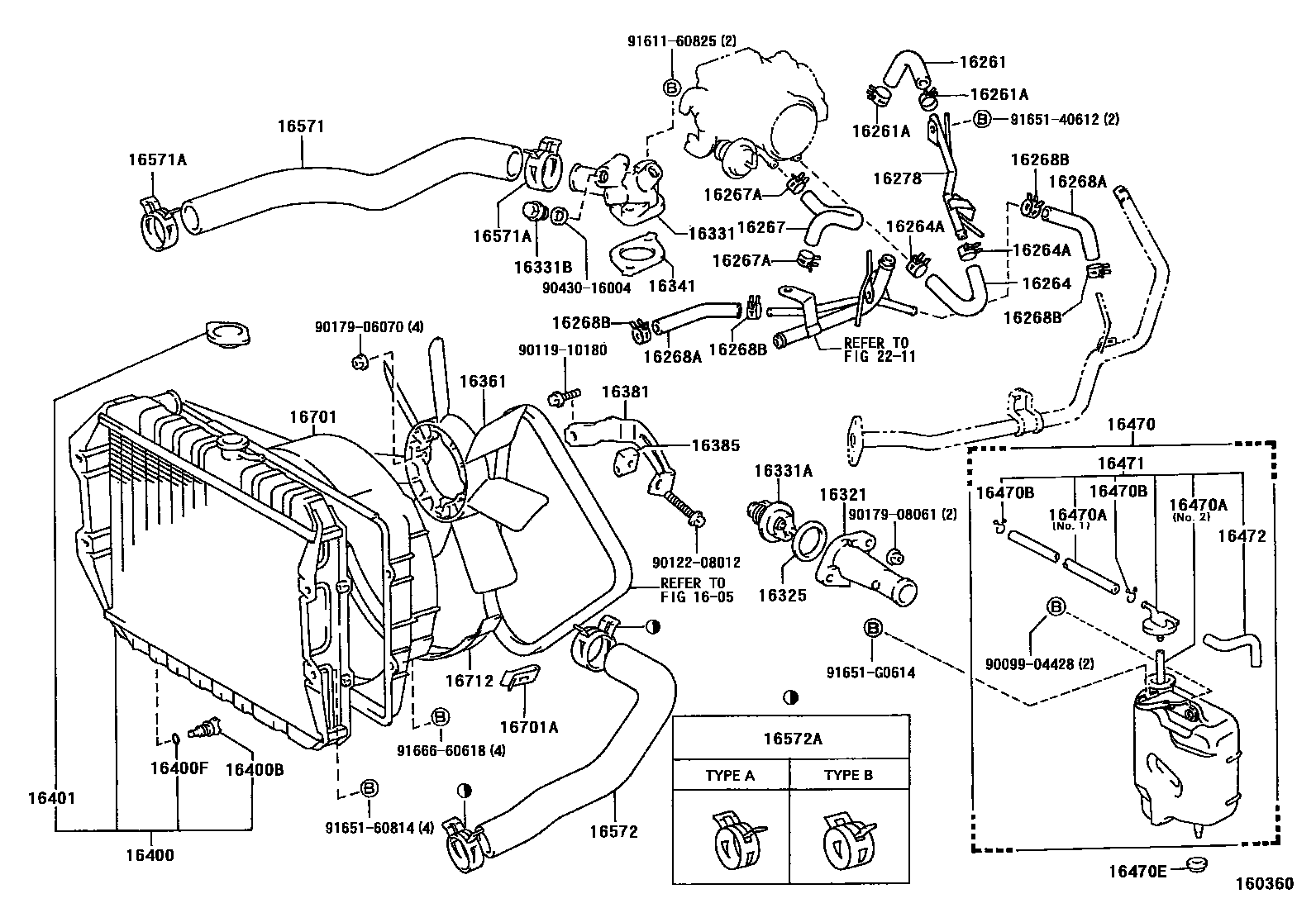

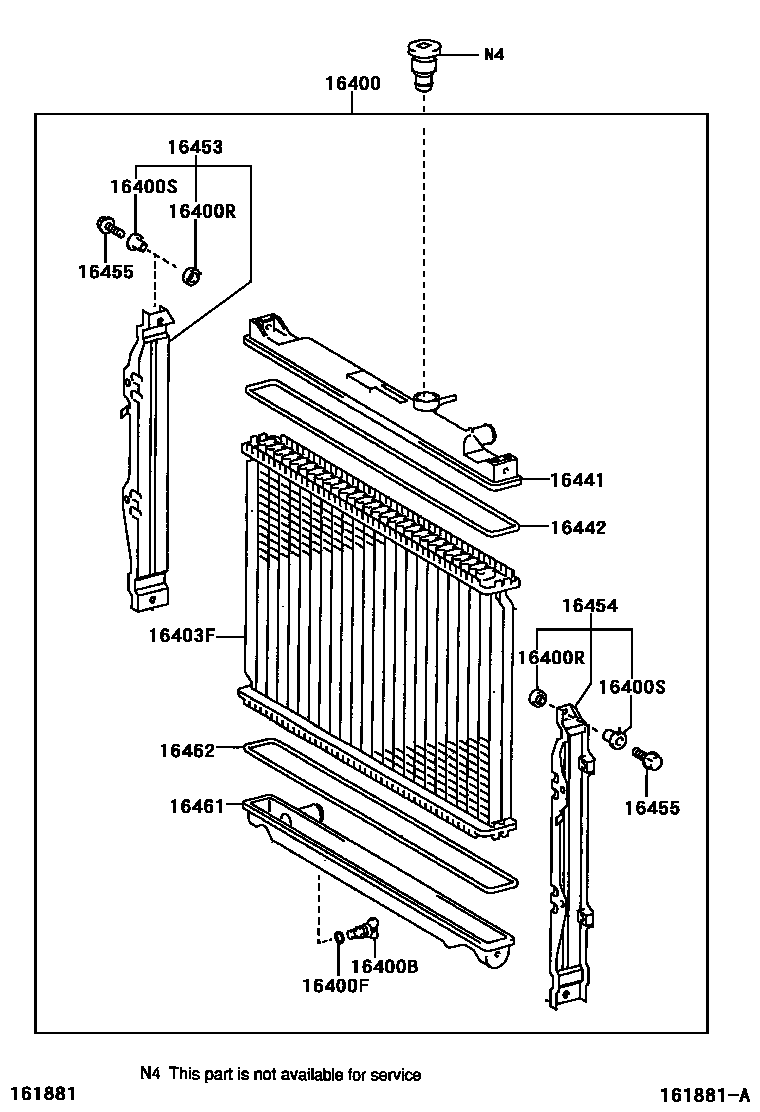

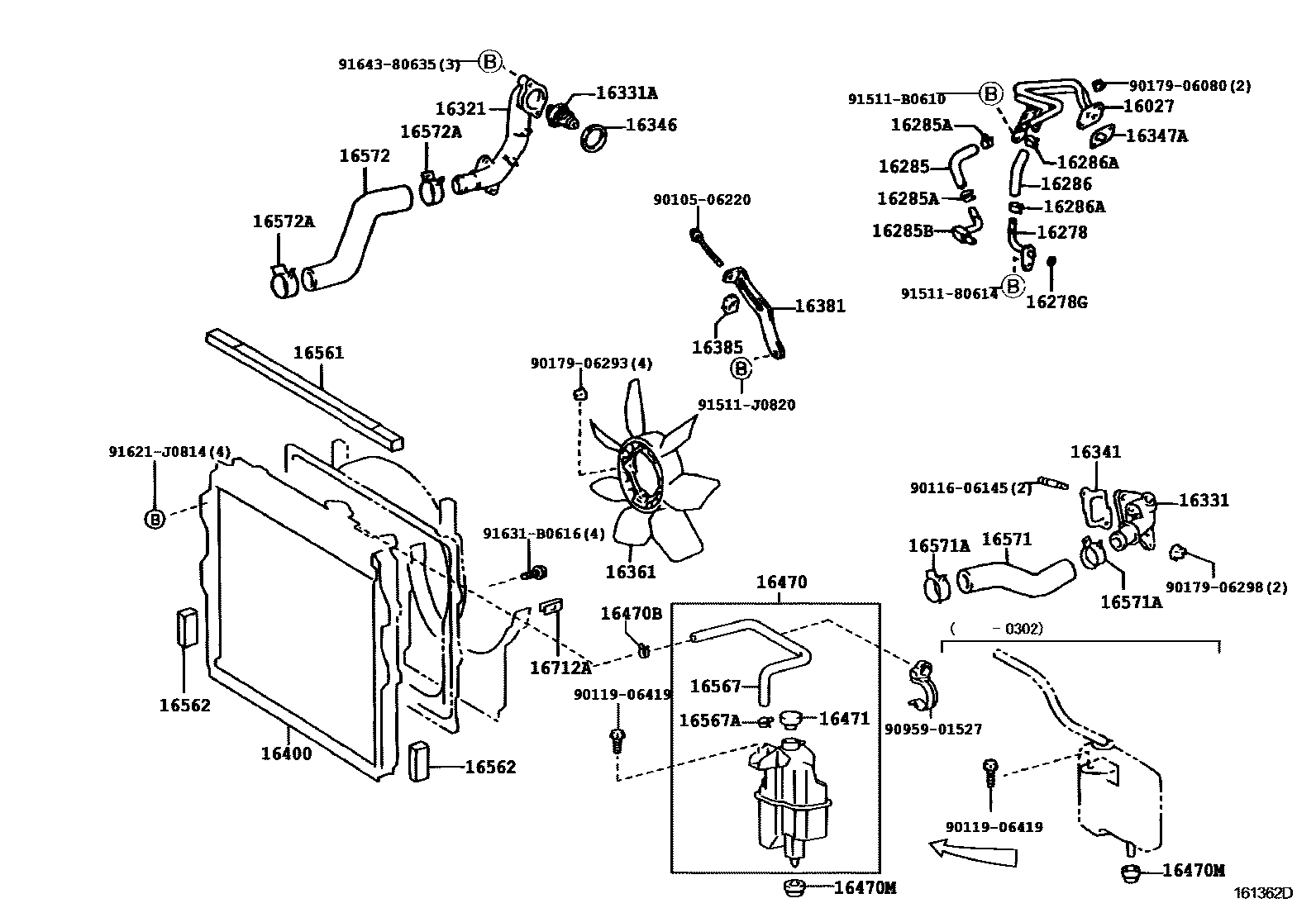

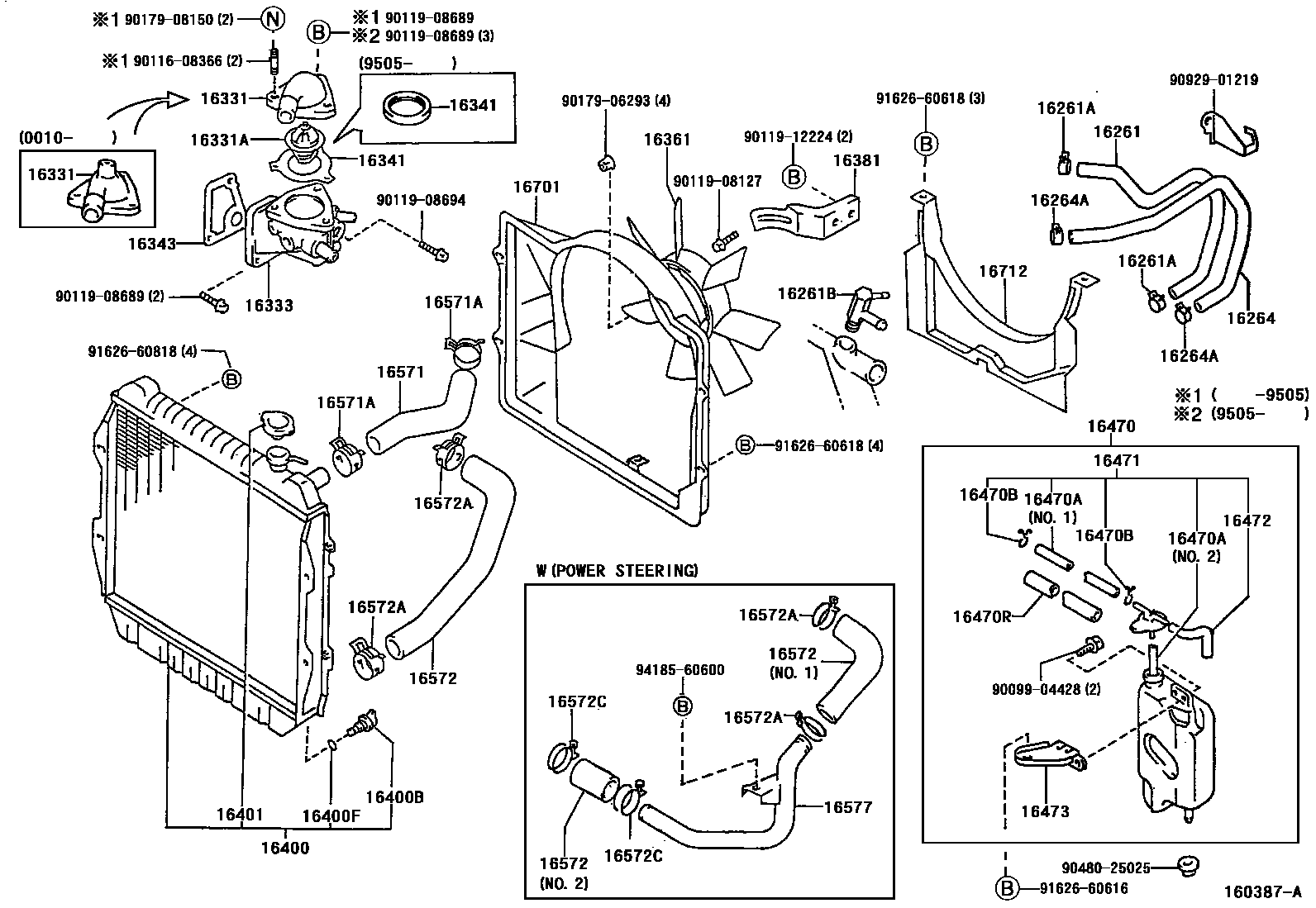

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-67011 |
| 16261 | HOSE, WATER BY-PASS | 16261-35030 · 16261-35060 · 16261-35061 · 16261-54080 · 16261-54121 · 16261-65011 · 99556-10110 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 · 90467-15022 · 90467-20005 · 90467-23003 |
| 16261B | Connector (for water bypass hose) | 90404-53040 · 90404-53070 · 90404-54037 · 90407-53007 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-54070 · 16264-54121 · 16264-73021 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 90467-15022 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-65011 · 16267-73010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-35010 · 16268-35030 · 16268-65011 |
| 16268A | Hoses (for water bypass pipes) | 99556-10110 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 90467-13001 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-67010 · 16278-73011 |
| 16278G | O-ring (for No. 2 water bypass pipe) | 96761-24010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-65010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96135-41300 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-65010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96135-41300 |
| 16285 | No. 2 turbocharger water hose | 16285-67010 |
| 16285A | Clamp (for No. 2 turbocharger water hose) | 90467-15022 |
| 16285B | Connector (for No. 2 turbocharger water hose) | 90405-10044 |
| 16286 | No. 3 turbocharger water hose | 16284-67020 |
| 16286A | Clamp (for No. 3 turbocharger water hose) | 90467-15022 |
| 16309 | Fan drive shaft sub-assembly | 16309-71010 |
| 16321 | water inlet | 16321-0K010 · 16321-65010 · 16321-65030 · 16321-67011 · 16321-71010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-35041 · 16331-35050 · 16331-35051 · 16331-54090 · 16331-54210 · 16331-65011 · 16331-65020 · 16331-67020 · 16331-71010 · 16331-73010 |
| 16331A | thermostat | 16340-54010 · 16340-54040 · 90916-03046 · 90916-03069 · 90916-03072 · 90916-03078 · 90916-03079 · 90916-03099 · 90916-03119 · 90916-03121 |
| 16331B | Screw plug (for water outlet) | 90341-16008 |
| 16333 | Water outlet shell | 16303-54040 · 16333-54113 · 16333-54121 · 16333-54122 · 16333-54123 |
| 16341 | GASKET, WATER OUTLET | 16341-05020 · 16341-35010 · 16341-54030 · 16341-54040 · 16341-65010 · 16341-67020 · 16341-71010 · 16341-71011 · 16341-73010 |
| 16343 | Outlet shell gasket | 16343-54030 · 16343-54040 |
| 16346 | thermostat gasket | 16346-67010 |
| 16347A | Gasket (for turbocharger water pipe) | 16347-67010 |
| 16347D | water bypass liner | 16258-65020 |
| 16351 | water bypass outlet | 16351-65010 · 16351-65030 · 16351-65040 · 16351-65050 |
| 16361 | Fan | 16361-38010 · 16361-44032 · 16361-54040 · 16361-54131 · 16361-65010 · 16361-65020 · 16361-67040 · 16361-73010 |
| 16381 | Fan belt adjustment lever | 16381-35010 · 16381-35021 · 16381-54060 · 16381-54061 · 16381-54120 · 16381-54121 · 16381-65010 · 16381-67020 · 16381-71010 · 16381-73011 |
| 16385 | Fan belt adjustment slider | 16385-67010 · 16385-71010 |
| 16400 | Radiator assembly | 16400-35350 · 16400-35370 · 16400-35520 · 16400-54630 · 16400-54640 · 16400-5B500 · 16400-5B510 · 16400-65041 · 16400-65061 · 16400-65100 · 16400-65120 · 16400-73200 · 16400-73380 · 16410-67190 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90910-09054 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 96711-19007 |
| 16400R | Bushing (for radiator) | 16444-75180 |
| 16400S | Collar (for radiator) | 16445-75180 |
| 16401 | Radiator cover sub-assembly | 16401-05140 · 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-67250 |
| 16441 | Radiator water tank | 16441-67250 |
| 16442 | O-ring (for radiator tank) | 16442-5B580 |
| 16453 | Radiator side panel | 16453-67250 |
| 16454 | Radiator side panel | 16454-67250 |
| 16455 | Radiator side support plate bolts | 91651-B0820 |
| 16461 | Radiator lower tank | 16461-67190 |
| 16462 | O-ring (for radiator lower tank) | 16442-5B580 |
| 16470 | Radiator reservoir assembly | 16470-35100 · 16470-35110 · 16470-54120 · 16470-54250 · 16470-65010 · 16470-65020 · 16470-67040 · 16470-67050 · 16470-72030 |
| 16470A | Hoses or tubes (for radiator reservoir) | 85338-70070 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 · 96135-51300 |
| 16470E | Radiator reservoir hose gasket | 90480-25025 |
| 16470M | gasket | 90480-25025 |
| 16470R | No. 2 hose (for radiator reservoir) | 16483-55020 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-53010 · 16405-35010 · 16405-35040 · 16405-54180 · 16405-71010 |
| 16472 | Breather hose | 85338-71030 |
| 16473 | Bracket (for radiator reservoir) | 16473-35100 · 16473-35110 · 16473-54240 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-54030 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-67010 |
| 16567 | Hoses (for radiator reservoir) | 16567-67010 |
| 16567A | Clamp (for radiator reservoir hose) | 96135-51300 |
| 16571 | Radiator water inlet hose | 16571-35070 · 16571-35180 · 16571-54270 · 16571-54590 · 16571-65011 · 16571-67120 · 16571-71030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-41008 · 90467-37003 · 90467-37005 · 90467-41002 |
| 16572 | Radiator outlet hose | 16572-35060 · 16572-35100 · 16572-35120 · 16572-35140 · 16572-35160 · 16572-54260 · 16572-54270 · 16572-54690 · 16572-65010 · 16572-67120 · 16572-71031 · 16573-54080 · 16573-54081 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-41008 · 90467-37001 · 90467-37002 · 90467-37003 · 90467-37005 · 90467-38001 · 90467-41001 · 90467-41002 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90466-41008 · 90467-37002 · 90467-37005 |
| 16573B | Radiator hose No. 3 | 16573-35030 · 16573-38020 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-37002 · 90467-38001 · 90467-41006 · 96111-10490 |
| 16577 | Radiator pipe No. 7 | 16577-35030 · 16577-35070 · 16577-54120 · 16577-54121 |
| 16701 | Fan cover sub-assembly | 16711-35020 · 16711-35030 · 16711-35060 · 16711-35061 · 16711-54290 · 16711-65031 · 16711-71030 · 16711-73060 |
| 16701A | Clip (for fan cover) | 90468-06013 |
| 16712 | No. 2 fan cover | 16712-35010 · 16712-35011 · 16712-54050 · 16712-54200 · 16712-65010 |
| 16712A | clip | 90468-06092 |
