Toyota HILUX Water Pump — Figure 1601

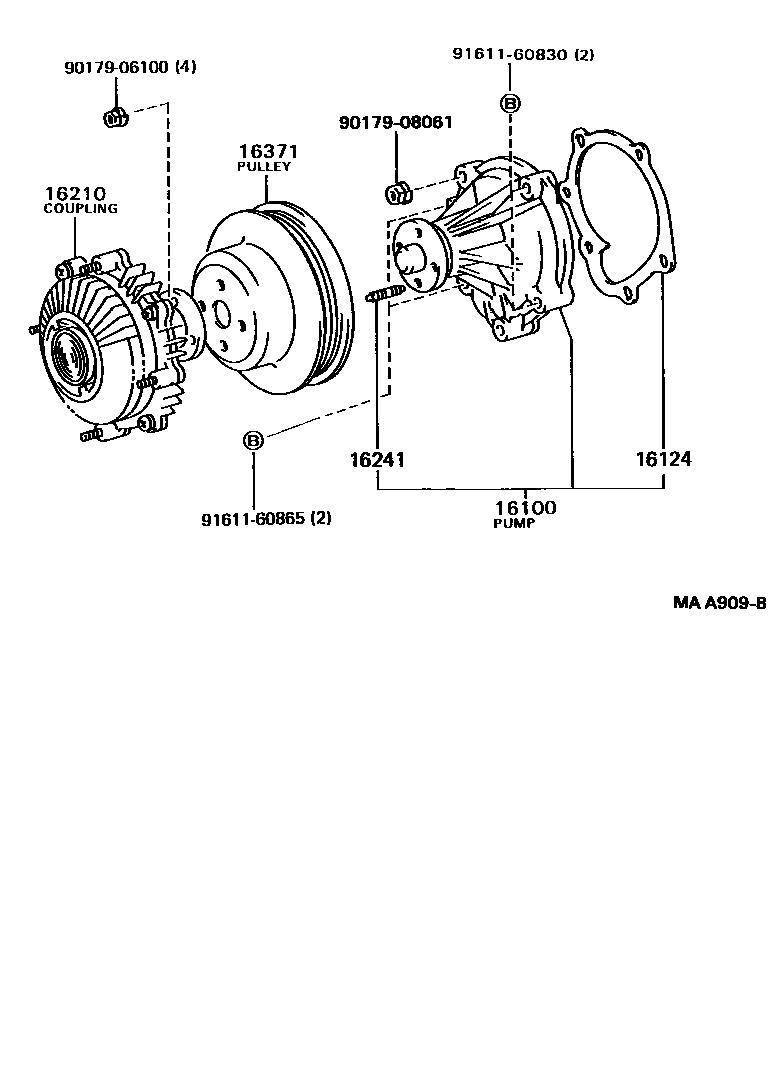

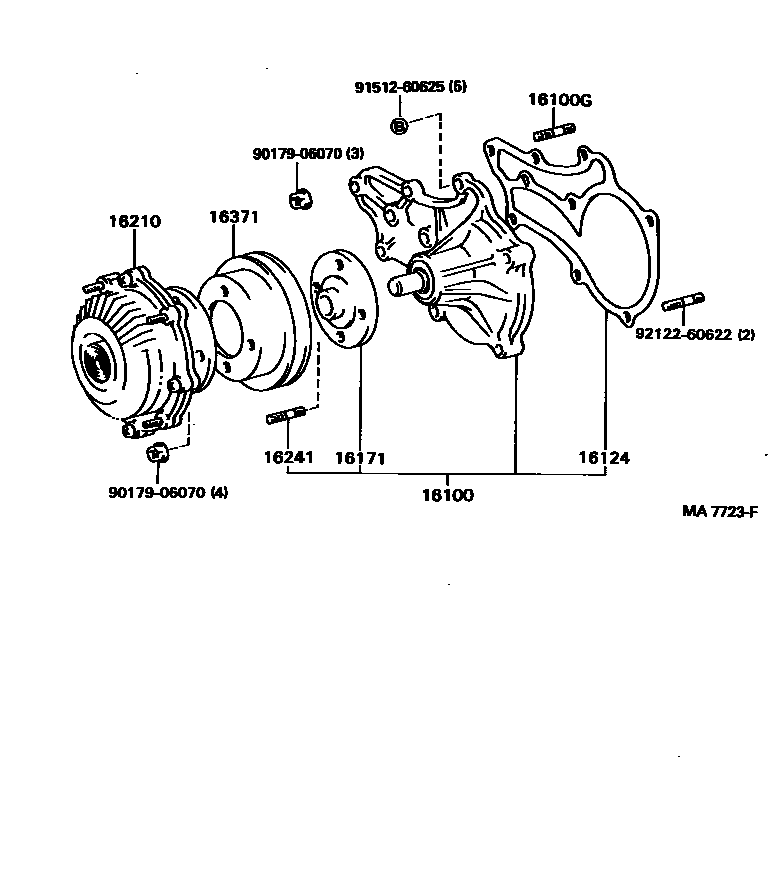

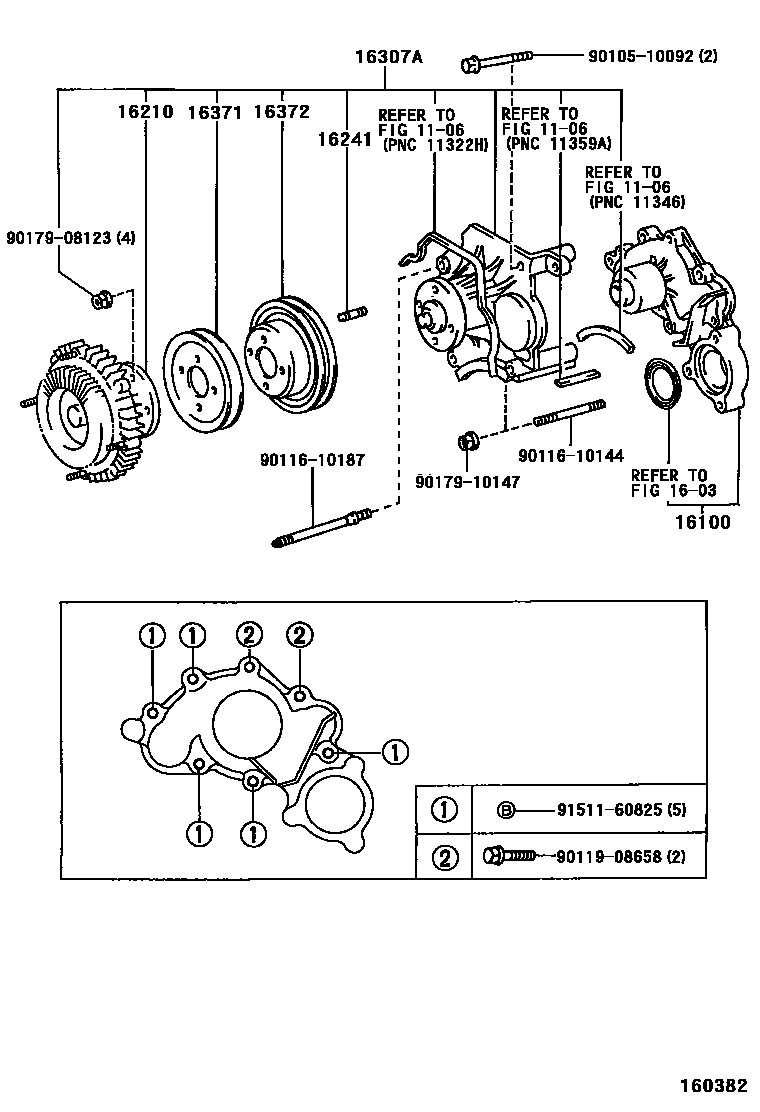

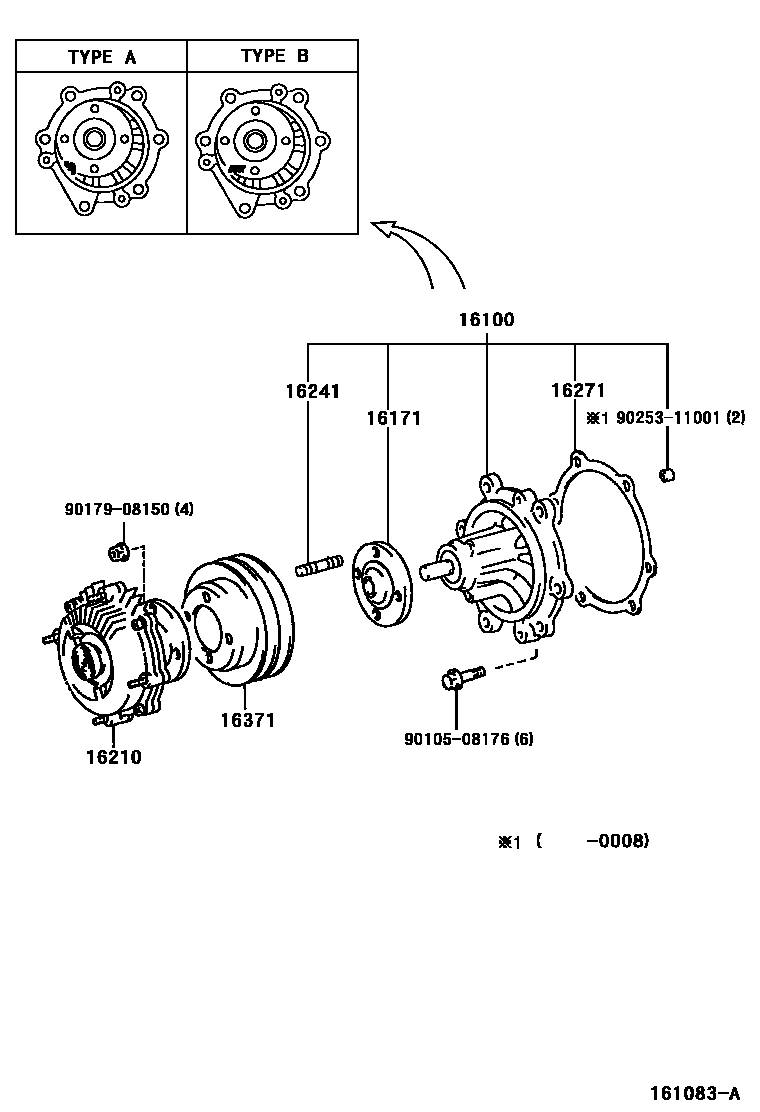

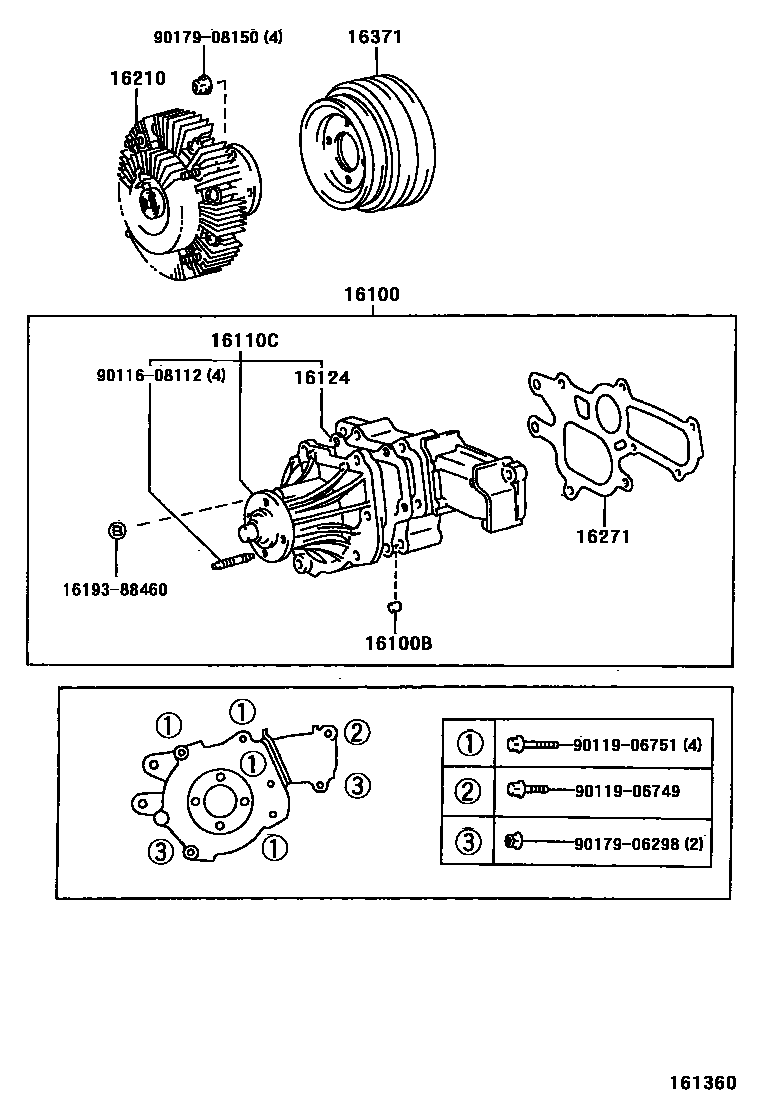

Toyota HILUX EPC diagram 1601, Water Pump, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09092 · 16100-09102 · 16100-39346 · 16100-59155 · 16100-59255 · 16100-59257 · 16100-69225 · 16100-69345 · 16100-69356 · 16100-79036 · 16100-79037 |
| 16100B | Ring pin (for water pump assembly) | 16159-70040 |
| 16100G | Studs (for water pump assembly) | 16193-38030 |
| 16110C | Water pump assembly without cover | 16110-69045 |
| 16124 | water pump cover gasket | 16124-35010 · 16124-67010 · 16124-71010 · 16124-71011 |
| 16171 | water pump pulley seat | 16171-35010 · 16171-41170 · 16171-75020 |
| 16210 | Hydraulic coupler assembly | 16210-38060 · 16210-54150 · 16210-54250 · 16210-62010 · 16210-65020 · 16210-65030 · 16210-67050 · 16210-73010 |
| 16241 | Stud bolts (for water pump coupling) | 16193-71010 · 16198-43040 · 16198-70010 · 16241-28020 · 92122-40816 · 92122-60818 |
| 16271 | water pump gasket | 16271-54020 · 16271-54030 · 16271-67020 |
| 16307A | Fan bracket sub-assembly | 16307-65020 · 16307-65030 · 16307-65040 · 16307-65050 |
| 16371 | fan pulley | 16173-35020 · 16371-05010 · 16371-54030 · 16371-65010 · 16371-67020 · 16371-71010 · 16371-73011 |
| 16372 | No. 2 fan pulley | 16372-65010 |
