Toyota HILUX Crankshaft & Piston — Figure 1301

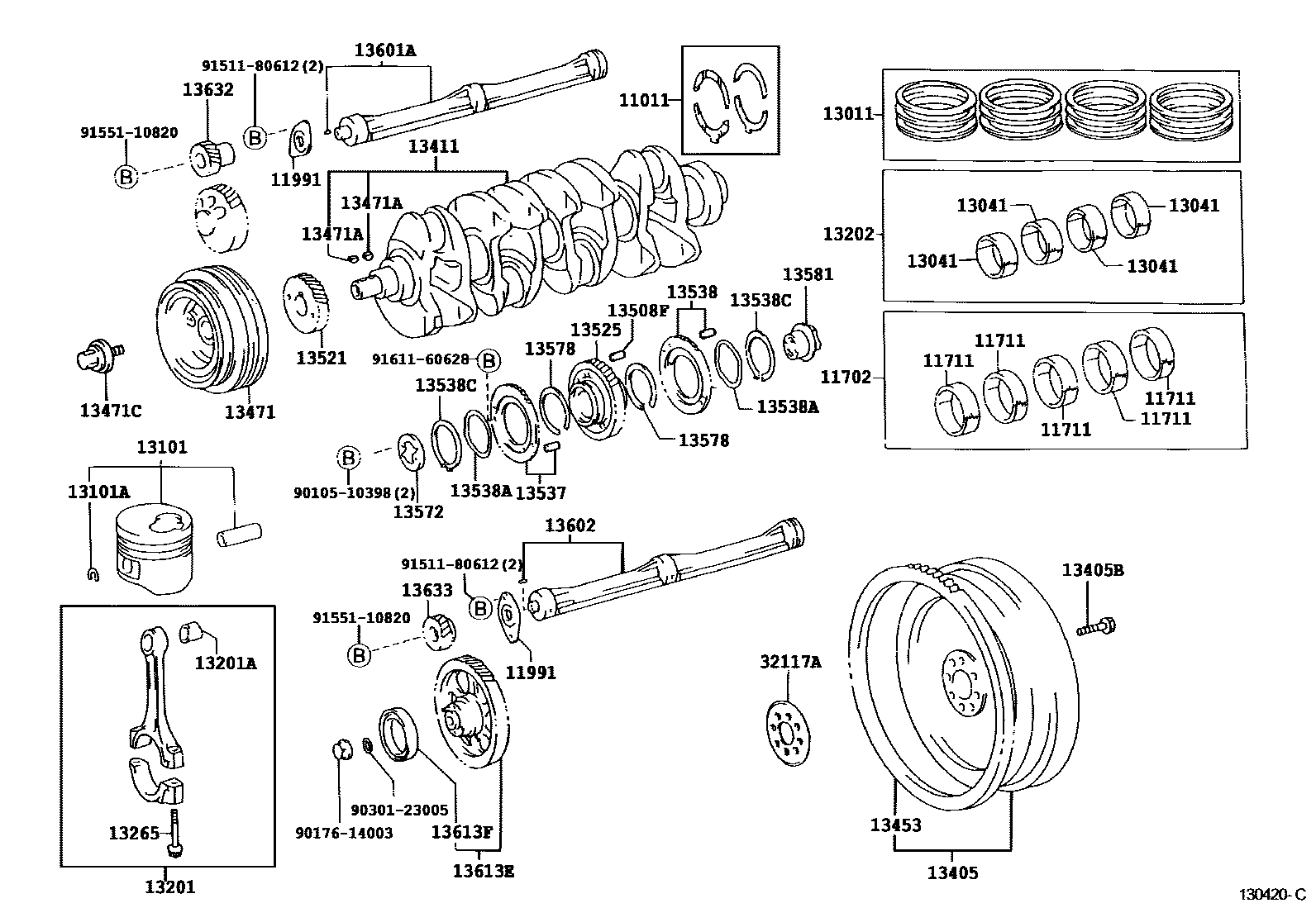

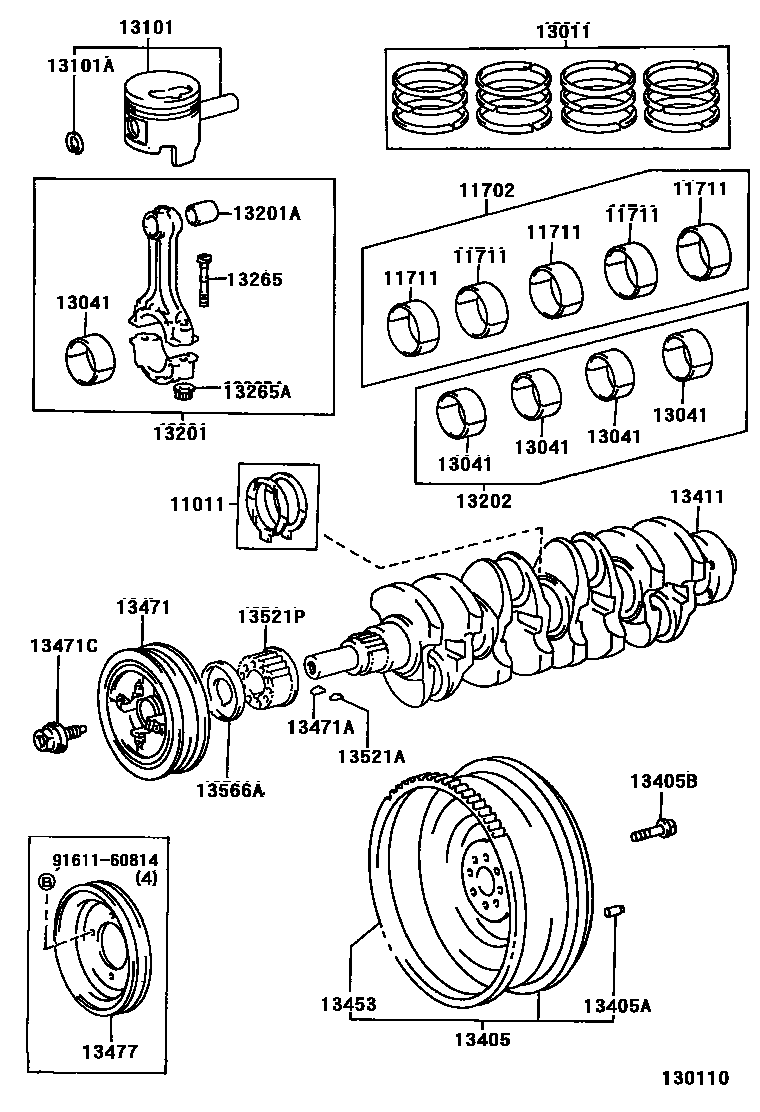

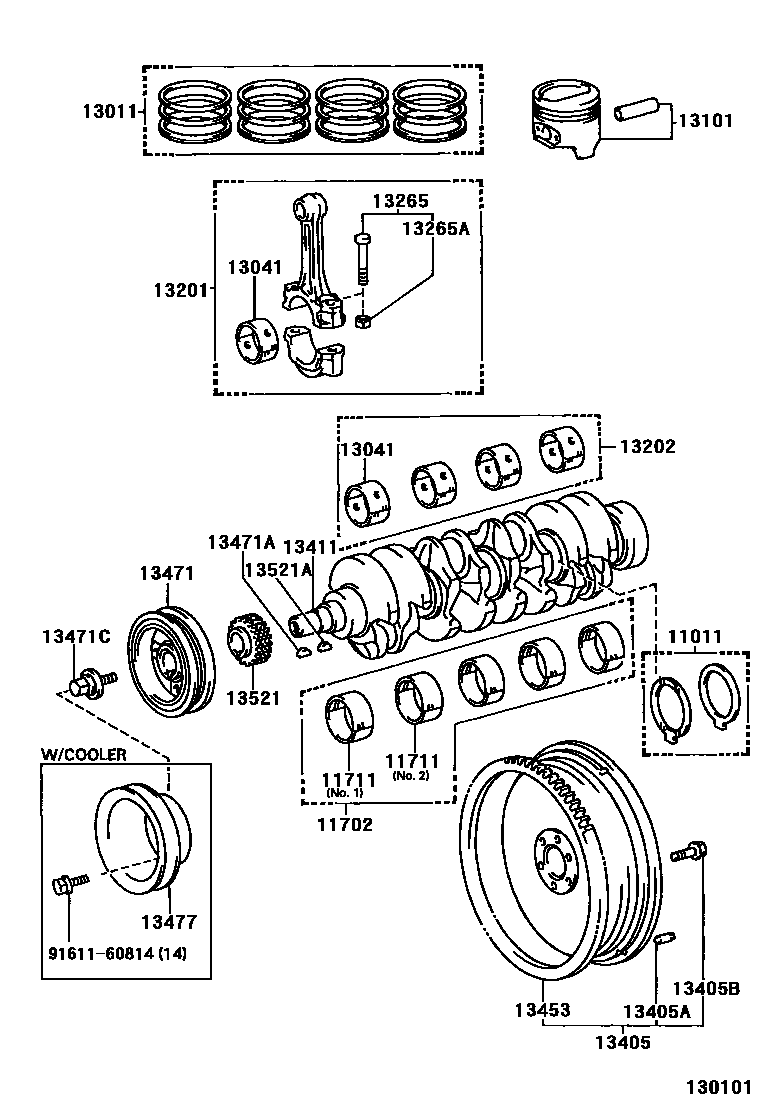

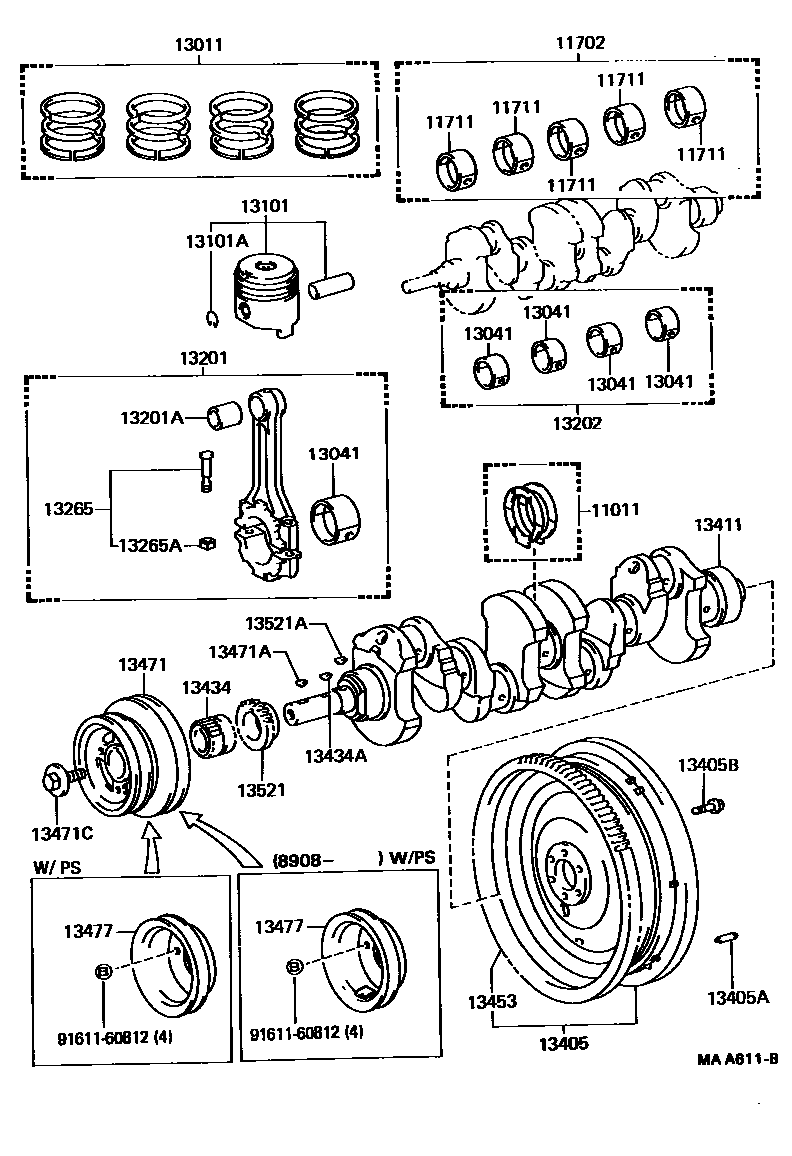

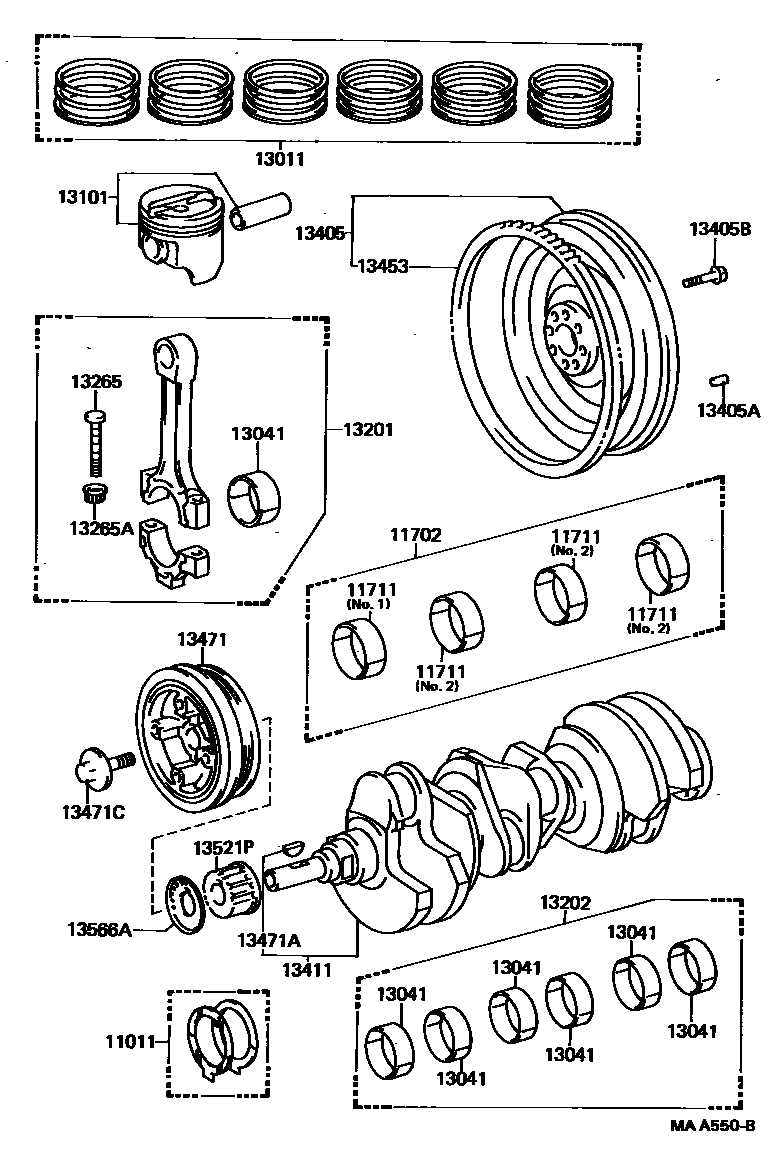

Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 5 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-25010 · 11011-30010 · 11011-35020 · 11011-54020 · 11011-62010 · 11011-67020 · 11012-30010 · 11012-35030 · 11012-54020 · 11012-67020 · 11013-30010 · 11013-35030 · 11013-54020 · 11013-67020 |
| 11702 | crankshaft bearing assembly | 11704-30020 · 11704-35040 · 11704-54061 · 11704-54080 · 11704-65010 · 11704-65011 · 11704-65013 · 11704-67021 · 11704-71020 · 11704-71030 · 11705-30020 · 11705-54061 · 11705-54080 · 11705-65010 · 11705-65011 · 11705-65013 · 11705-67021 |
| 11991 | Balance shaft thrust washer | 11991-67010 |
| 13011 | Piston ring assembly | 13011-35052 · 13011-35071 · 13011-54120 · 13011-54130 · 13011-65021 · 13011-67030 · 13011-73021 · 13011-73031 · 13011-73032 · 13013-35052 · 13013-35071 · 13013-54120 · 13013-54130 · 13013-65021 · 13013-67030 · 13013-73021 · 13013-73031 · 13013-73032 · 13014-67030 · 13015-35052 · 13015-35071 · 13015-67030 |
| 13101 | Piston sub-assembly with pin | 13103-35042 · 13103-54100 · 13103-54101 · 13103-54120 · 13103-65030 · 13103-65040 · 13103-67050 · 13103-73031 · 13104-67050 · 13105-35042 · 13105-67050 · 13303-65030 · 13303-65040 |
| 13101A | Bore snap ring (for piston pin) | 90520-37014 · 90521-25105 · 90521-31001 |
| 13201 | Connecting rod sub-assembly | 13201-39015 · 13201-59105 · 13201-59106 · 13201-67021 · 13201-69105 · 13201-79045 |
| 13201A | Bushing (for connecting rod small end) | 90999-73072 · 90999-73115 · 90999-73136 |
| 13202 | Connecting rod bearing assembly | 13204-30020 · 13204-35040 · 13204-54041 · 13204-65020 · 13204-67031 · 13204-71011 · 13205-30020 · 13205-54041 · 13205-65020 · 13205-67031 |
| 13265 | Connecting rod bolts | 13265-29025 · 13265-39025 · 13265-54020 · 13265-54021 · 13265-65010 · 13265-67021 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90170-09001 · 90170-10198 · 90179-08118 · 90179-10123 |
| 13405 | Flywheel sub-assembly | 13405-05070 · 13405-35021 · 13405-35030 · 13405-54070 · 13405-54080 · 13405-65010 · 13405-67070 · 13405-79065 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 · 90105-10207 · 90105-12109 · 90105-13010 · 90913-01011 |
| 13411 | crankshaft | 13401-30010 · 13401-54060 · 13401-54061 · 13401-54100 · 13411-38010 · 13411-65900 · 13411-73010 |
| 13434 | Oil pump active spline | 13434-35010 |
| 13434A | Key (for oil pump active spline) | 90280-05005 · 90280-05010 |
| 13453 | flywheel ring gear | 13453-05010 · 13453-20010 · 13453-54010 · 13453-65010 · 13453-67030 |
| 13471 | crankshaft pulley | 13408-54070 · 13408-54080 · 13408-54090 · 13408-65011 · 13408-67020 · 13408-71010 · 13408-73010 · 13470-35020 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 90280-05010 · 95161-20519 · 95161-20622 · 95161-30516 · 95161-30622 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-14004 · 90105-14013 · 90105-14069 · 90105-16031 · 90119-14005 · 90119-14031 · 90119-18003 · 90901-19028 |
| 13477 | No. 2 crankshaft pulley | 13477-38010 · 88451-20110 · 88451-35030 · 88451-35040 |
| 13508F | Direct sales (for idler pulley) | 90250-05027 |
| 13521 | Crankshaft timing gear or sprocket | 13521-33010 · 13521-35010 · 13521-67020 · 13521-75010 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 90280-05010 · 95161-20622 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-54030 · 13521-65011 |
| 13525 | No. 1 idler pulley | 13508-67011 |
| 13537 | No.1 auxiliary idler pulley | 13537-67900 |
| 13538 | No. 2 auxiliary idler pulley | 13538-67900 |
| 13538A | Wave washer | 90206-69001 |
| 13538C | Shaft snap ring | 90520-58002 |
| 13566A | timing belt guide | 13566-05010 · 13566-54040 · 13567-62010 |
| 13572 | Idler thrust plate | 13572-67041 |
| 13578 | Idler spring | 13578-67010 |
| 13581 | No. 1 idler shaft | 13581-67041 |
| 13601A | No. 1 balance shaft sub-assembly | 13601-67020 |
| 13602 | No. 2 balance shaft sub-assembly | 13602-67020 |
| 13613E | Driving gear | 13613-67902 |
| 13613F | Radial ball bearing | 90363-60004 |
| 13632 | No. 1 balance shaft driven gear | 13632-67010 |
| 13633 | No. 2 balance shaft driven gear | 13633-67010 |
| 32117A | Flywheel plate spacer | 32117-60050 |
