Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 8 images and 10 PNC and OE references.

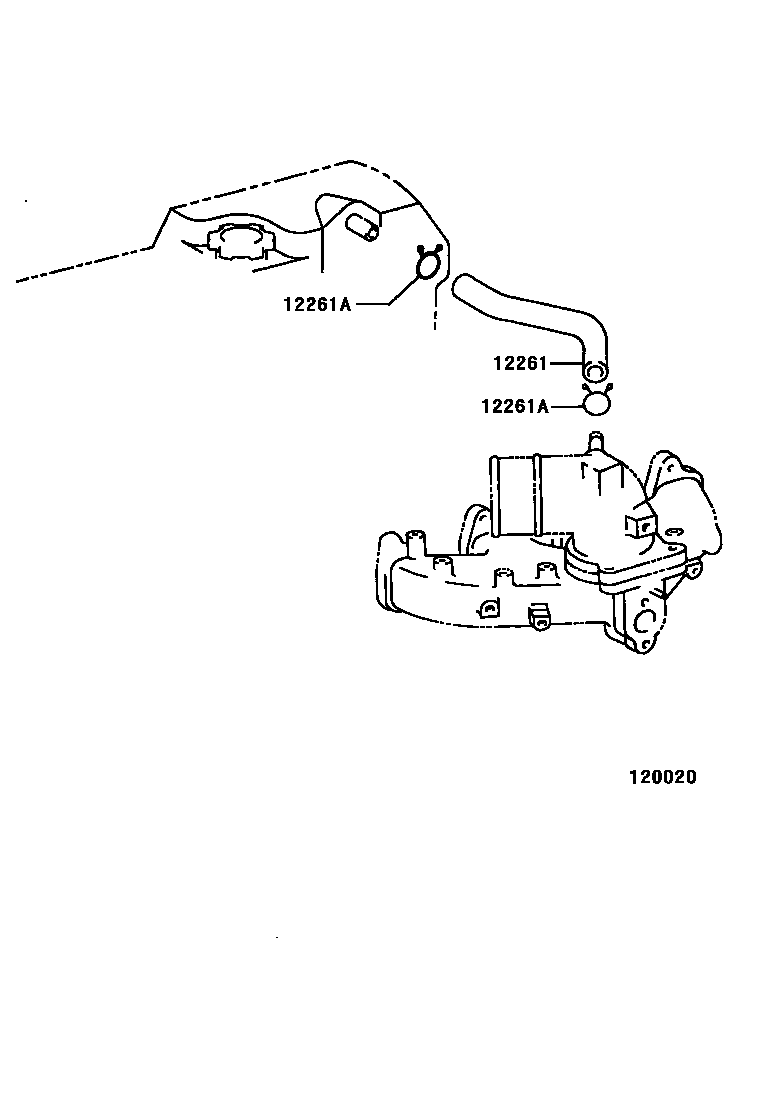

Toyota HILUX Ventilation Hose EPC diagram — 120020
Ventilation Hose — 120020 (200106 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 120208
Ventilation Hose — 120208 (200108 – 999999)

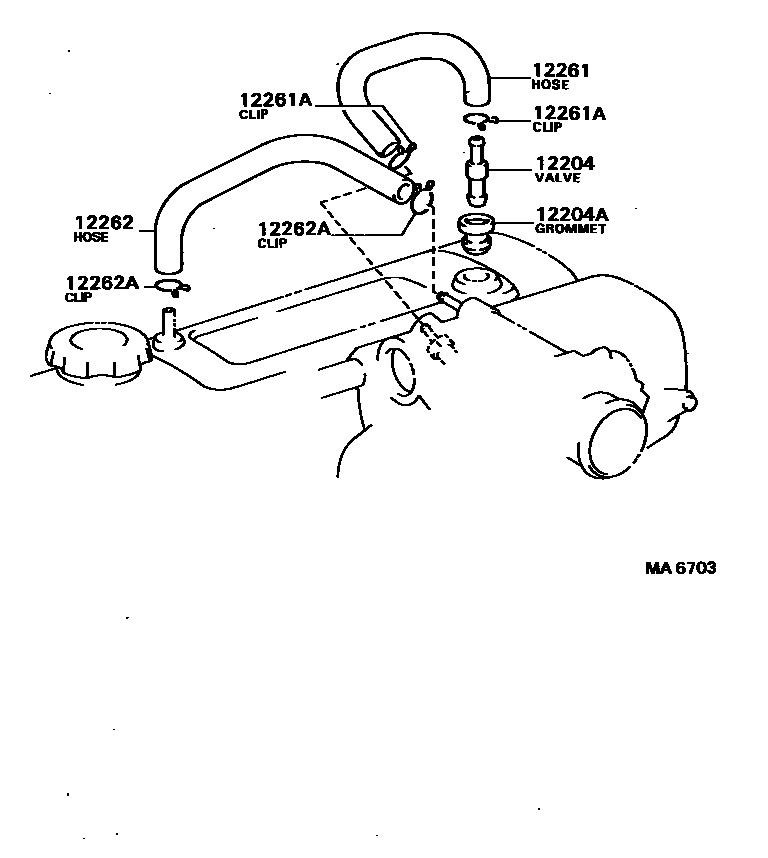

Toyota HILUX Ventilation Hose EPC diagram — MA6703
Ventilation Hose — MA6703 (198908 – 199008)

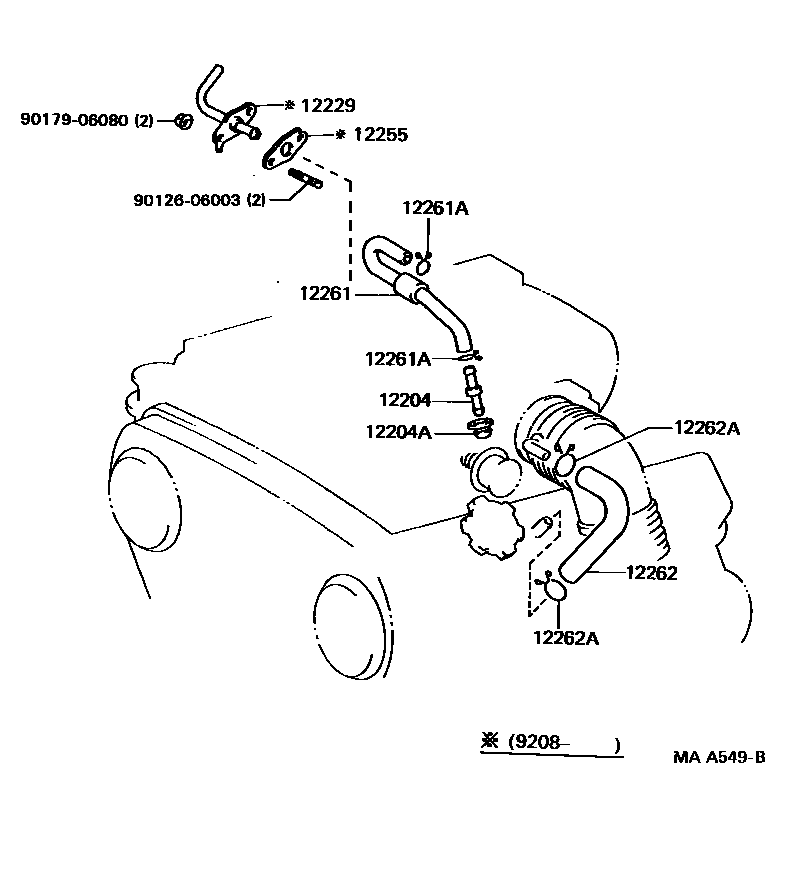

Toyota HILUX Ventilation Hose EPC diagram — MAA549B
Ventilation Hose — MAA549B (199008 – 199511)
Toyota HILUX Ventilation Hose EPC diagram — MAA905
Ventilation Hose — MAA905 (198808 – 999999)

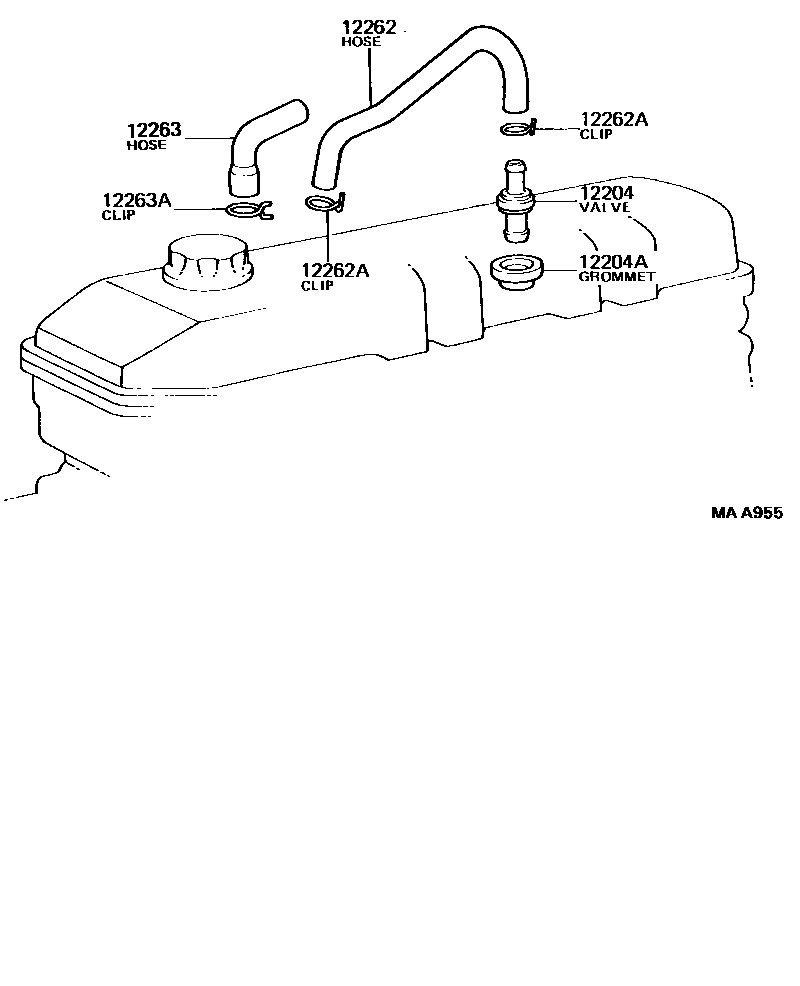

Toyota HILUX Ventilation Hose EPC diagram — MAA955
Ventilation Hose — MAA955 (198808 – 999999)

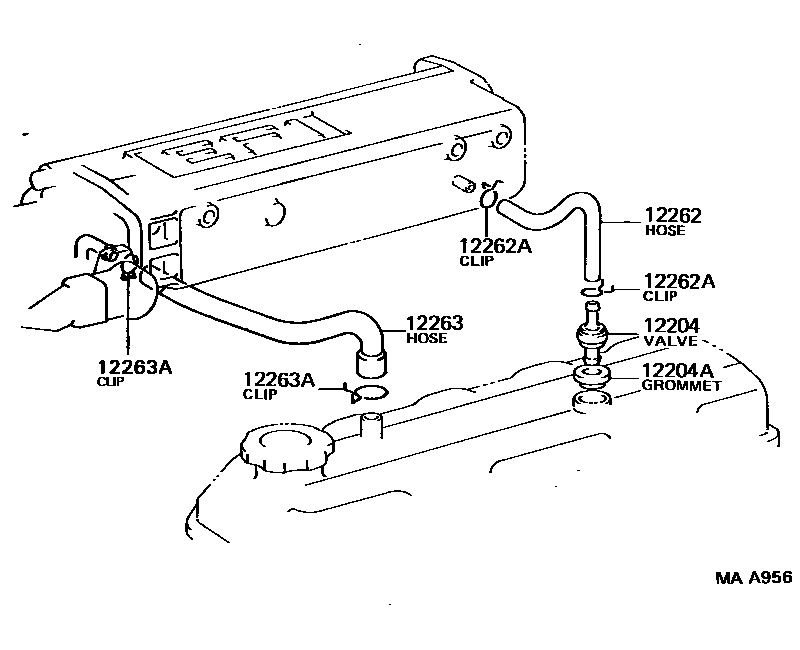

Toyota HILUX Ventilation Hose EPC diagram — MAA956
Ventilation Hose — MAA956 (199401 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — MAH821
Ventilation Hose — MAH821 (198808 – 200106)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15022 · 12204-35010 · 12204-35030 · 12204-35040 · 12204-65010
12204AGasket (for ventilation system)90480-18001 · 90480-18008 · 90480-18180
12229ventilation duct12229-65010 · 12229-67011
12255Ventilation padding12255-65010
12261Ventilation Hose12261-54080 · 12261-54100 · 12261-65010 · 12261-67010 · 12261-72030 · 12261-73021
12261AClip or clip (for vent hose)90467-14017 · 90467-15006 · 90467-18003 · 90467-22010
12262Ventilation hose No. 212261-35011 · 12261-35020 · 12262-65011 · 12262-67010 · 12262-71010 · 12262-71020 · 12262-73010
12262AClamp (for vent hose No. 2)90467-15006 · 90467-19122
12263No. 3 ventilation hose12262-35040 · 12262-35060
12263AClip (for ventilation hose)90467-15006 · 90467-19003
