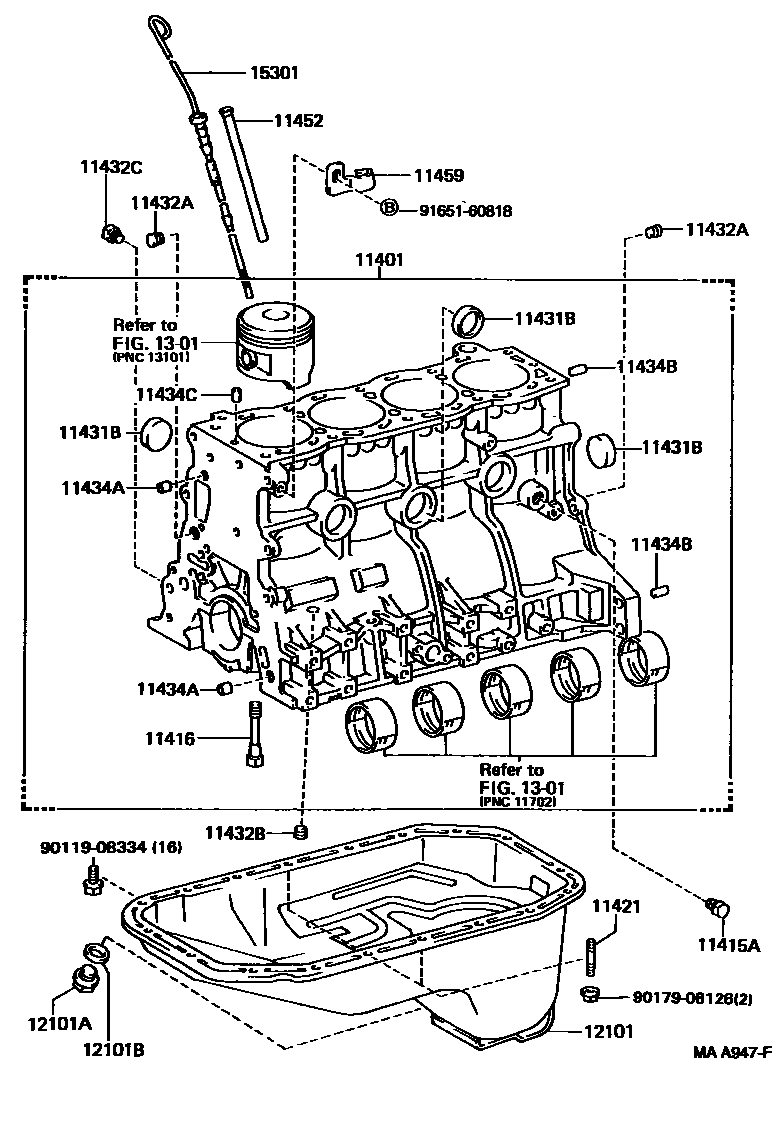

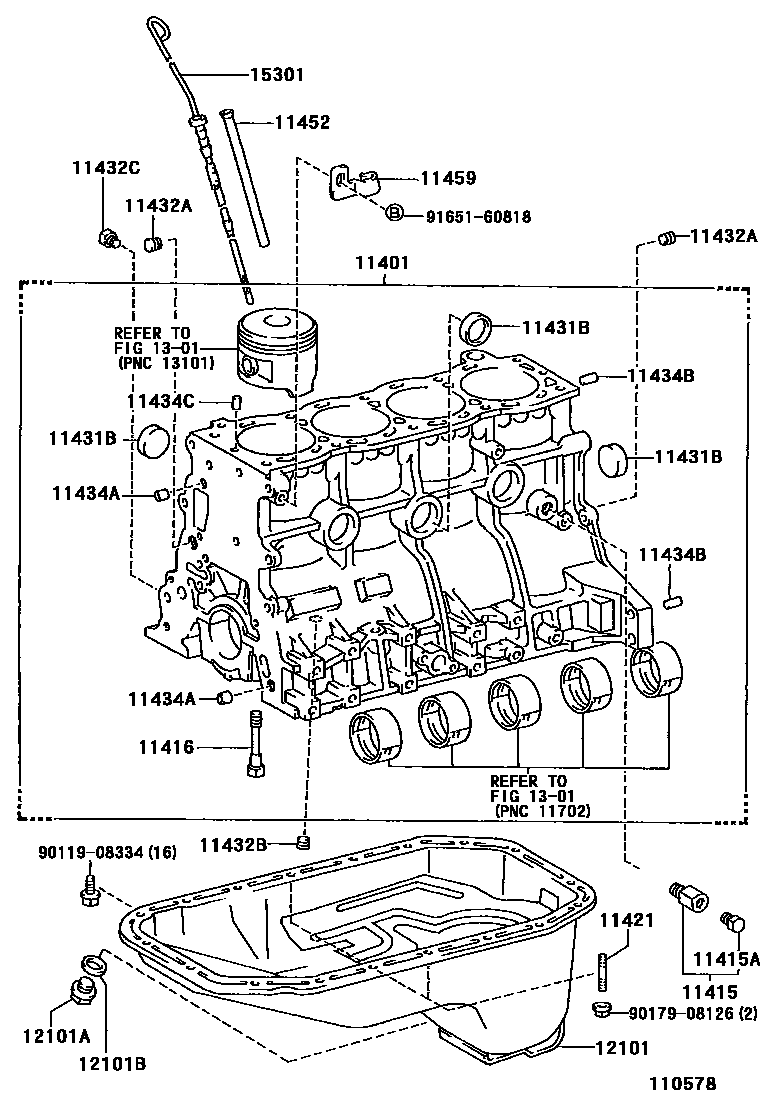

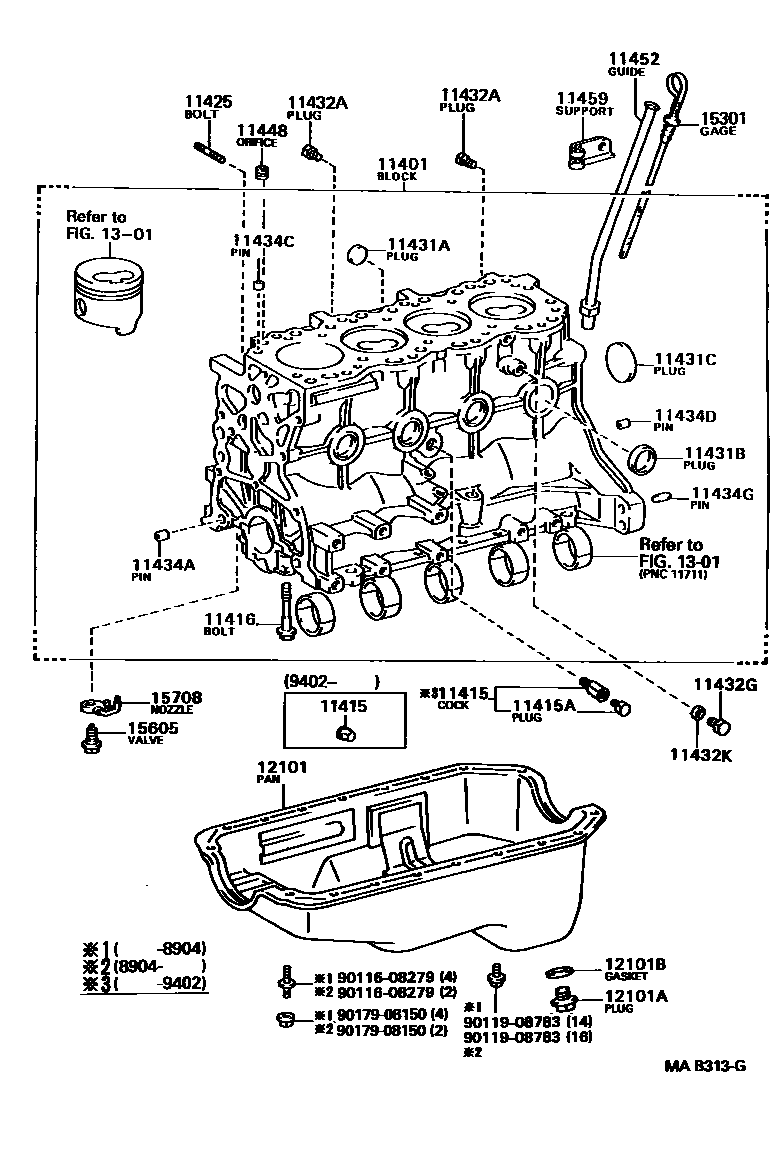

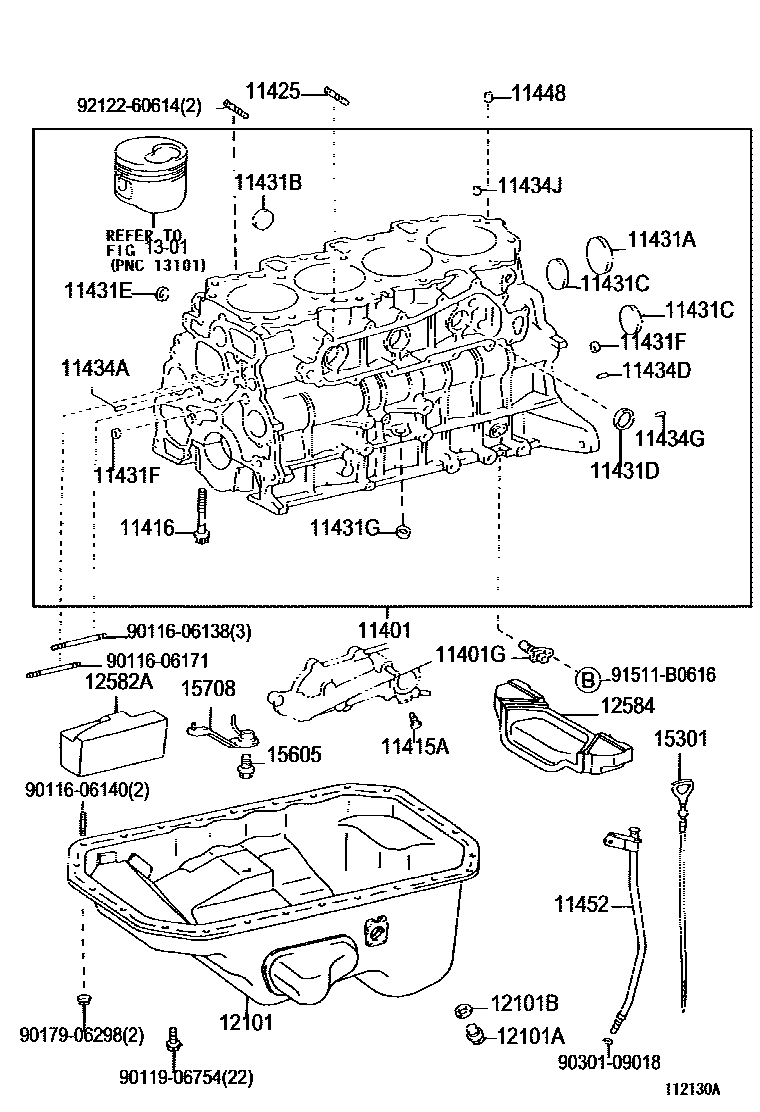

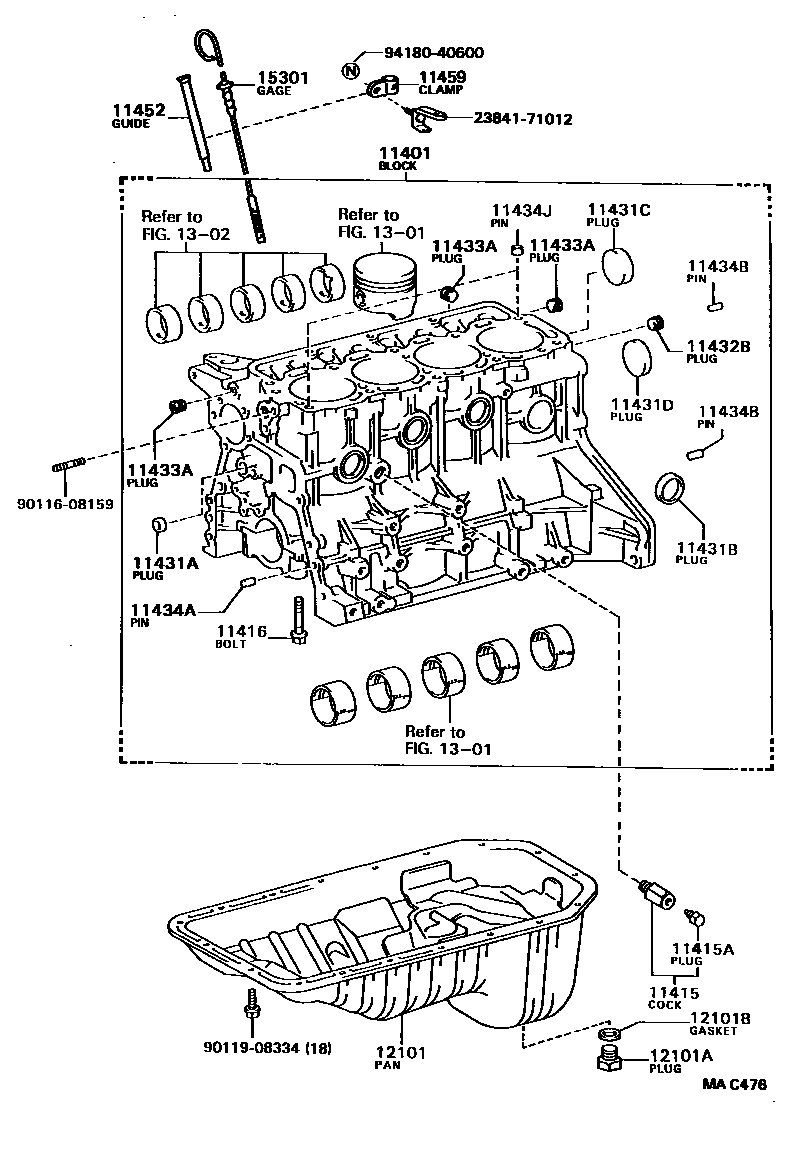

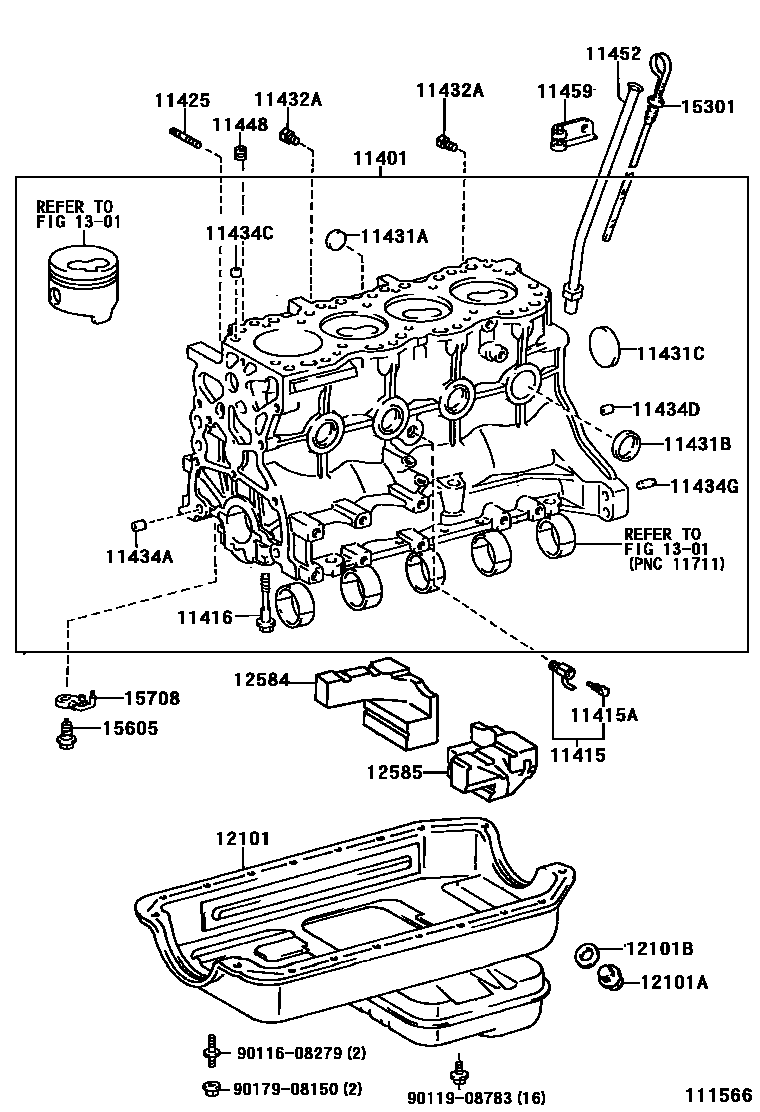

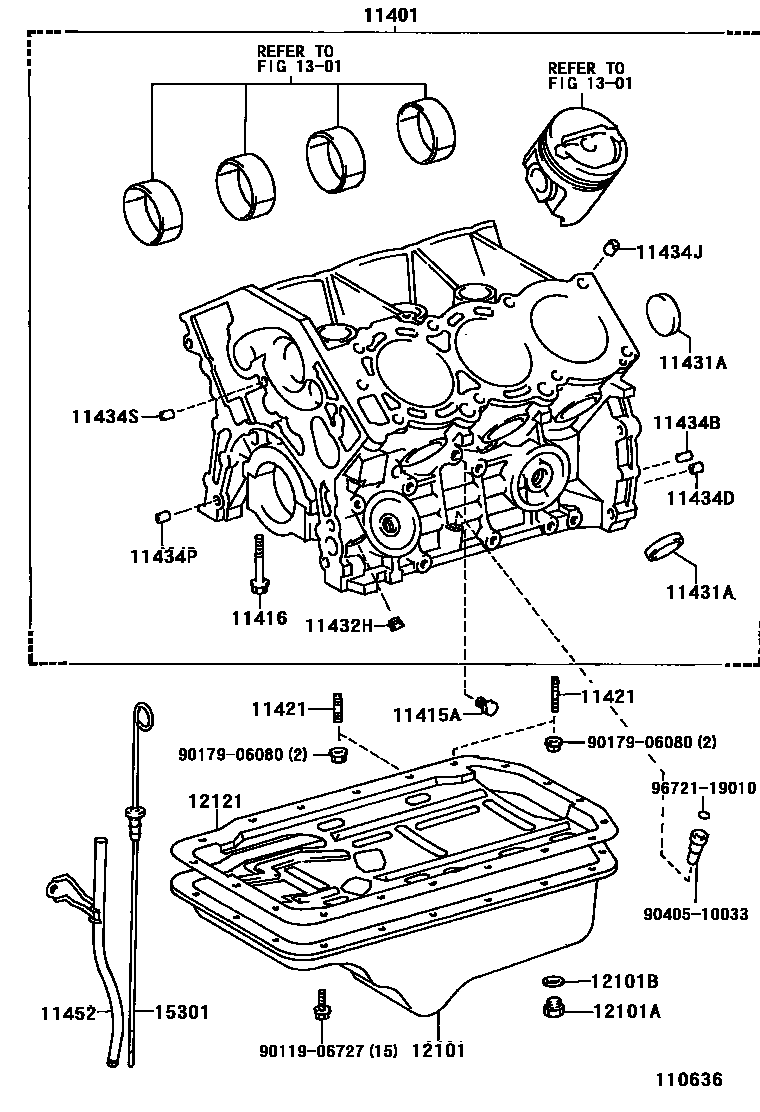

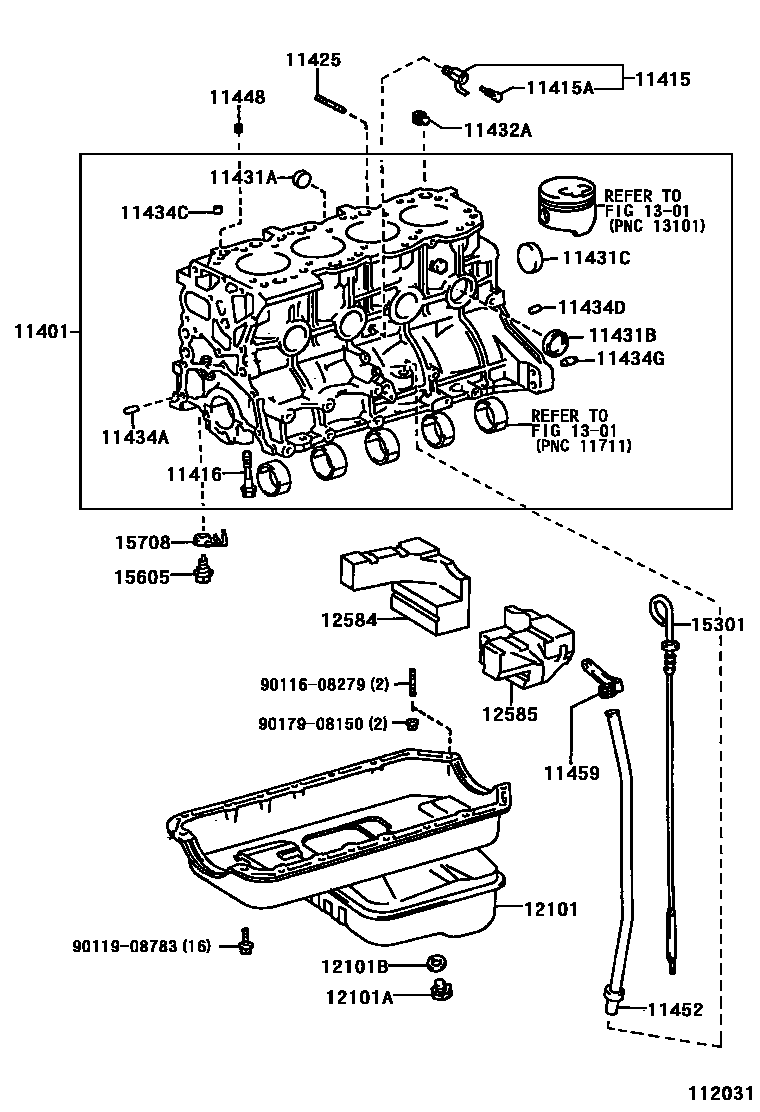

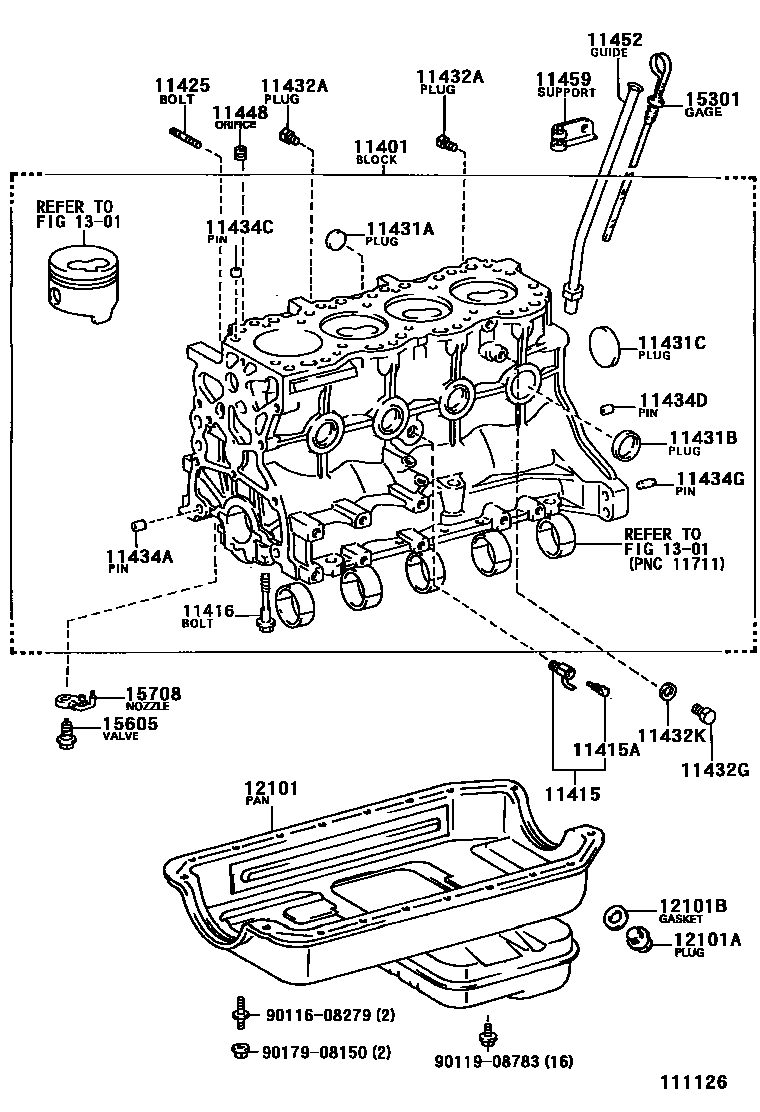

Toyota HILUX Cylinder Block — Figure 1105
Toyota HILUX EPC diagram 1105, Cylinder Block, with 9 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-39447 · 11401-59365 · 11401-59505 · 11401-59645 · 11401-69336 · 11401-69525 · 11401-69837 · 11401-69838 · 11401-69839 · 11401-79206 · 11401-80737 |
| 11401G | crankshaft position sensor | 90919-05005 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90345-53030 · 90910-09110 · 96431-53828 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-53007 · 90345-53030 · 90910-09087 · 96431-23814 · 96432-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02032 · 90910-02042 · 90910-02061 · 90910-02072 · 90910-02113 |
| 11421 | Stud bolts (for oil pan) | 90116-06014 · 90116-06119 · 92122-40814 |
| 11425 | Studs (for oil filter) | 90116-06171 · 90116-08157 · 92112-60825 · 92112-80825 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-35005 · 96411-01800 · 96411-42500 · 96411-43500 · 96411-64500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43500 · 96411-44000 · 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-45000 · 96411-64000 |
| 11431D | No. 4 sealing plug (for cylinder block) | 90331-35004 · 96411-45000 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-62000 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-61800 |
| 11431G | sealing plug | 90331-14006 |
| 11432A | No. 1 headed tapered thread plug | 90344-53002 · 90344-53008 · 90344-53011 · 90345-51006 |
| 11432B | No. 2 headed tapered thread plug | 90344-52003 · 90344-53011 |
| 11432C | No. 3 headed tapered thread plug | 90345-51006 |
| 11432G | No. 5 headed straight thread plug | 90341-12006 · 90341-12007 |
| 11432H | No. 5 headed tapered thread plug | 90344-53015 |
| 11432K | Headed straight thread plug liner | 90430-12221 |
| 11433A | No. 1 straight screw plug | 90072-34402 · 90344-51005 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 · 90253-11001 · 90253-11021 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-08120 · 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-15005 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06015 · 90250-06068 · 90253-11001 · 90253-11021 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-10192 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15016 · 90253-16001 |
| 11434P | Direct sales (for oil pump components) | 90253-11021 |
| 11434S | Ring pin (for water pump assembly) | 90253-11021 |
| 11448 | Cylinder block oil orifice | 11448-54020 · 11448-67010 |
| 11452 | Engine oil level gauge guide | 11452-05030 · 11452-35010 · 11452-40010 · 11452-54080 · 11452-54090 · 11452-65011 · 11452-67020 · 11452-71020 |
| 11459 | Oil level gauge guide bracket | 11459-35010 · 11459-71011 · 90929-01203 · 90929-01204 |
| 12101 | Oil pan sub-assembly | 12101-35040 · 12101-54120 · 12101-54122 · 12101-54132 · 12101-54202 · 12101-54310 · 12101-65010 · 12101-65011 · 12101-67080 · 12101-73012 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 · 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12019 · 90430-12020 · 90430-12021 · 90430-12027 · 90430-12031 · 90430-18013 · 90430-18026 |
| 12121 | No. 1 oil pan baffle | 12121-65010 |
| 12582A | No. 2 cylinder block vibration isolation pad | 12582-67010 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-54070 · 12584-67020 |
| 12585 | No. 5 cylinder block vibration isolation pad | 12585-54070 |
| 15301 | Engine oil level scoring assembly | 15301-35020 · 15301-54070 · 15301-54080 · 15301-65010 · 15301-67020 · 15301-71020 · 15301-72010 |
| 15605 | Oil check valve sub-assembly | 15605-54010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-30010 · 15708-30011 · 15708-54030 · 15708-54060 |
