Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 22 images and 2 PNC and OE references.

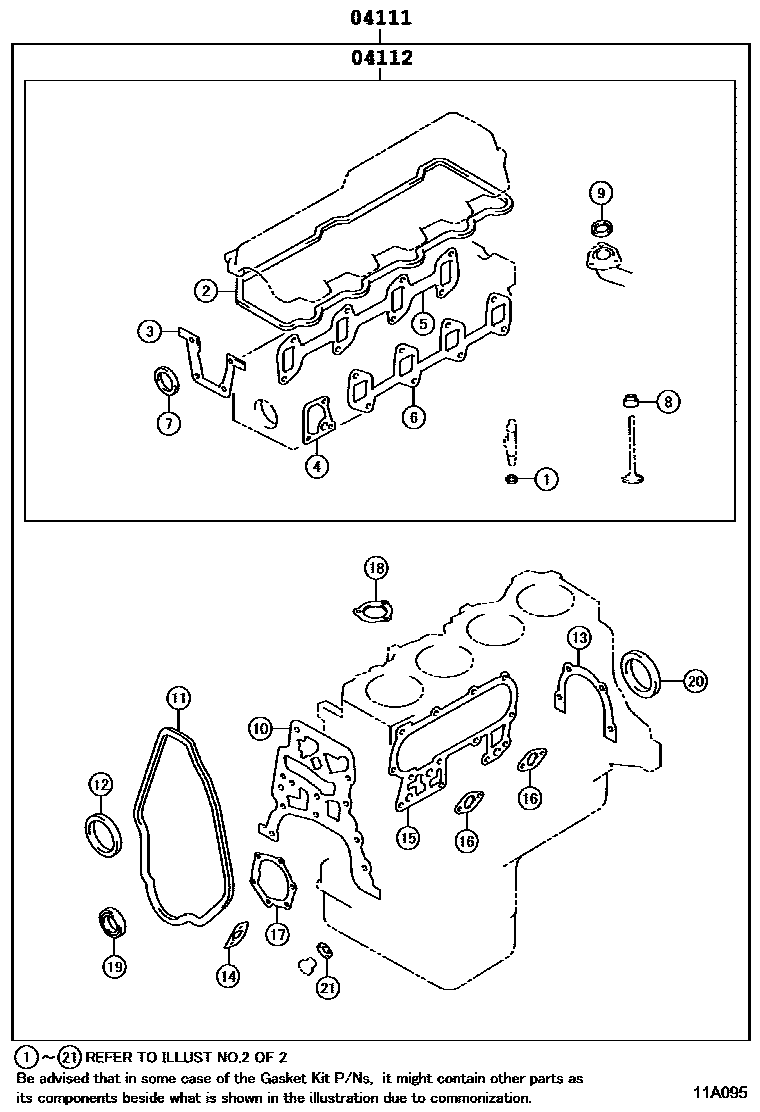

Engine Overhaul Gasket Kit — 11A095 (198808 – 199108)

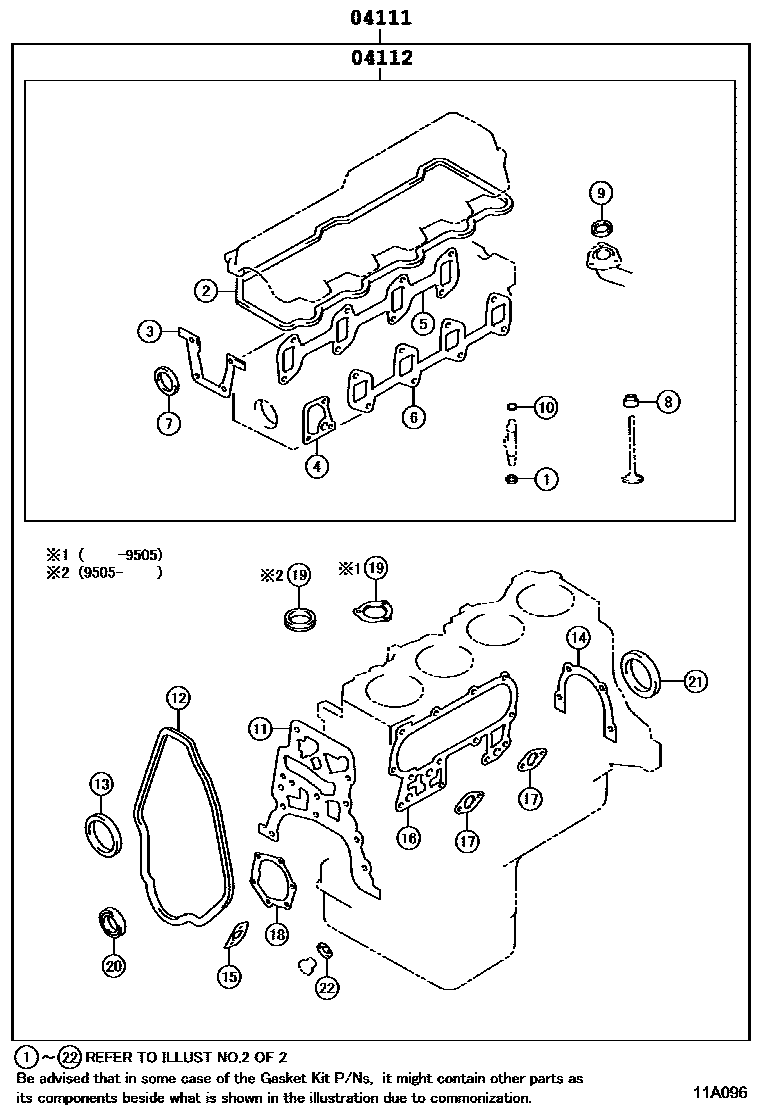

Engine Overhaul Gasket Kit — 11A096 (199108 – 999999)

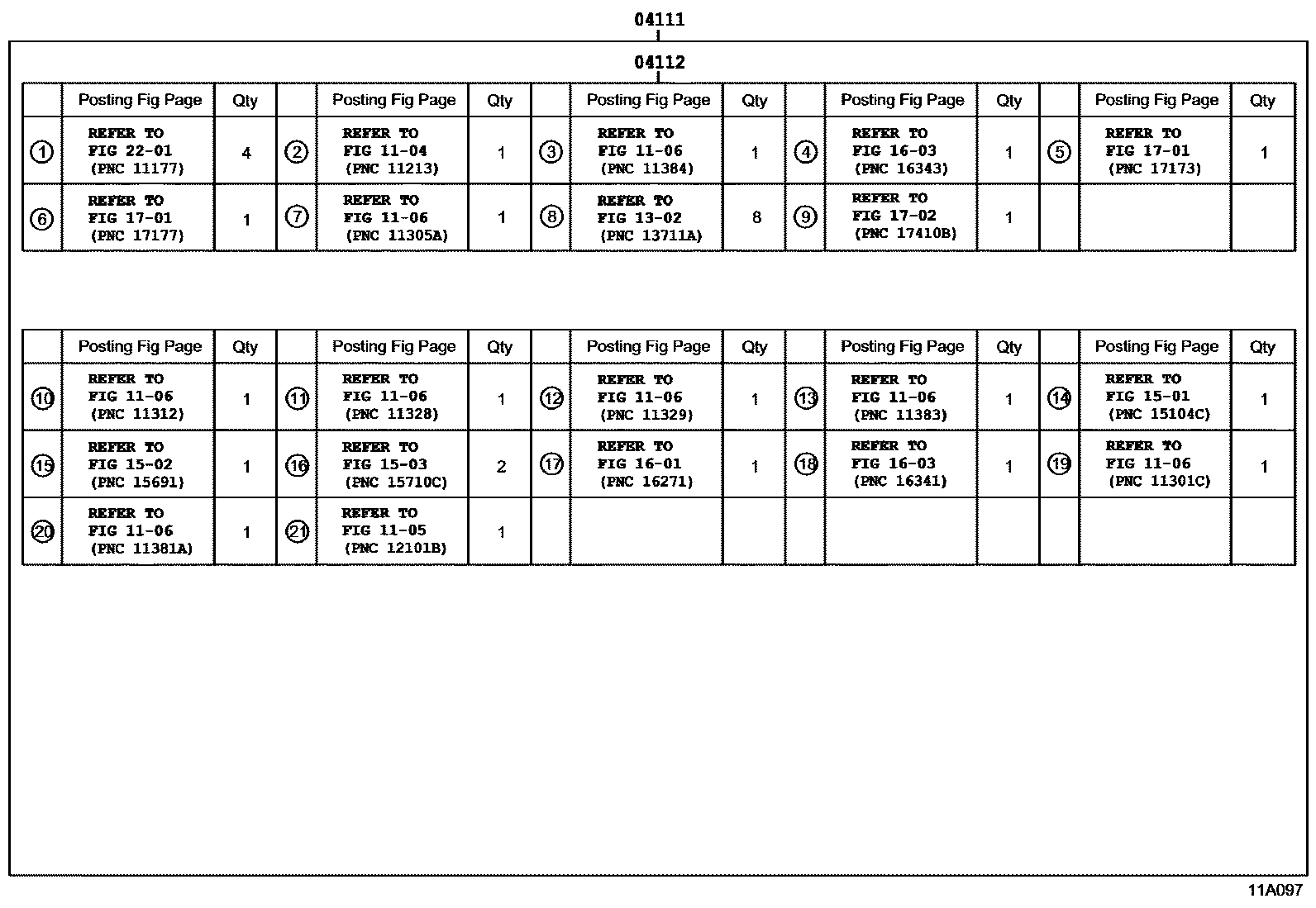

Engine Overhaul Gasket Kit — 11A097 (198808 – 199108)

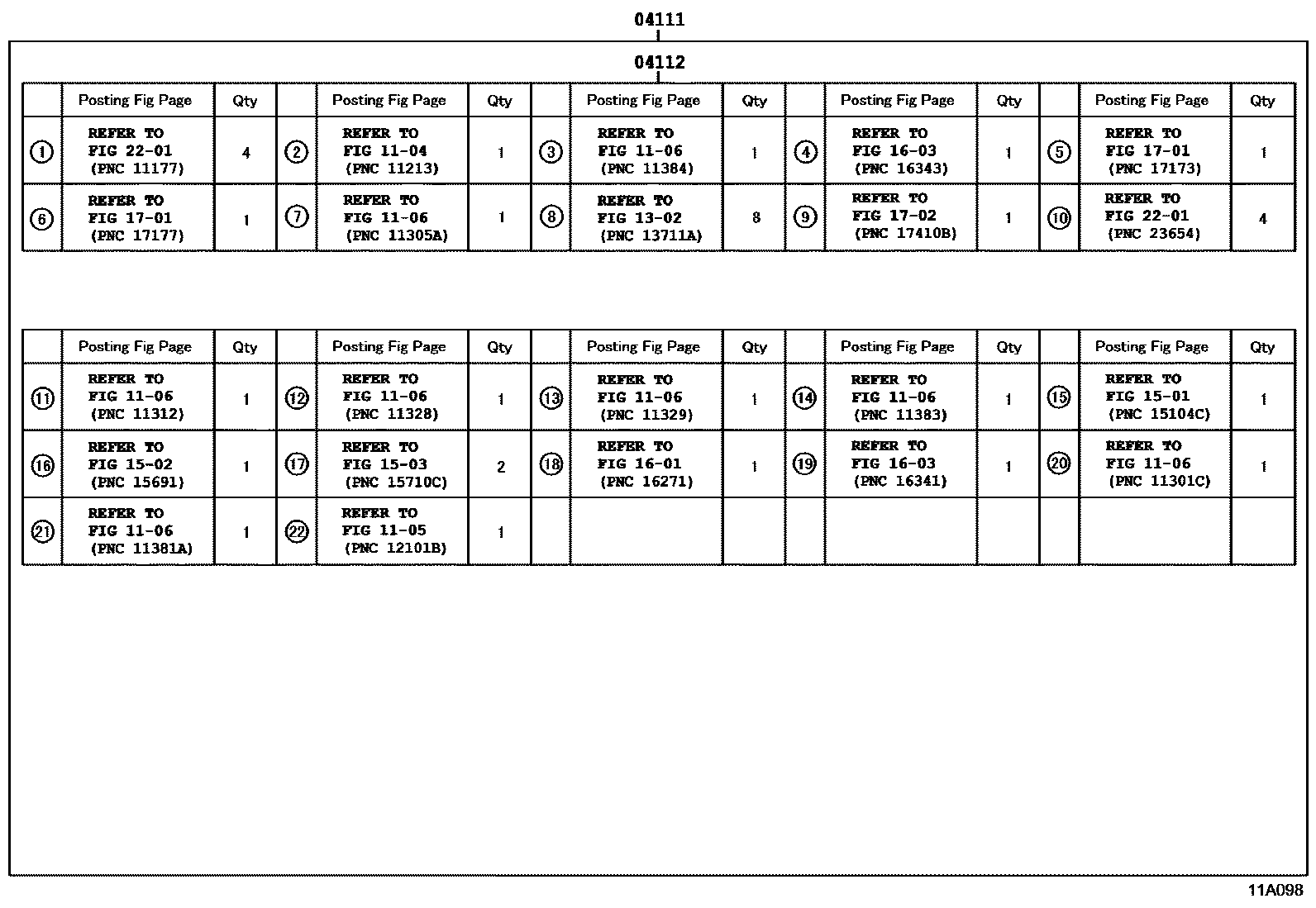

Engine Overhaul Gasket Kit — 11A098 (199108 – 999999)

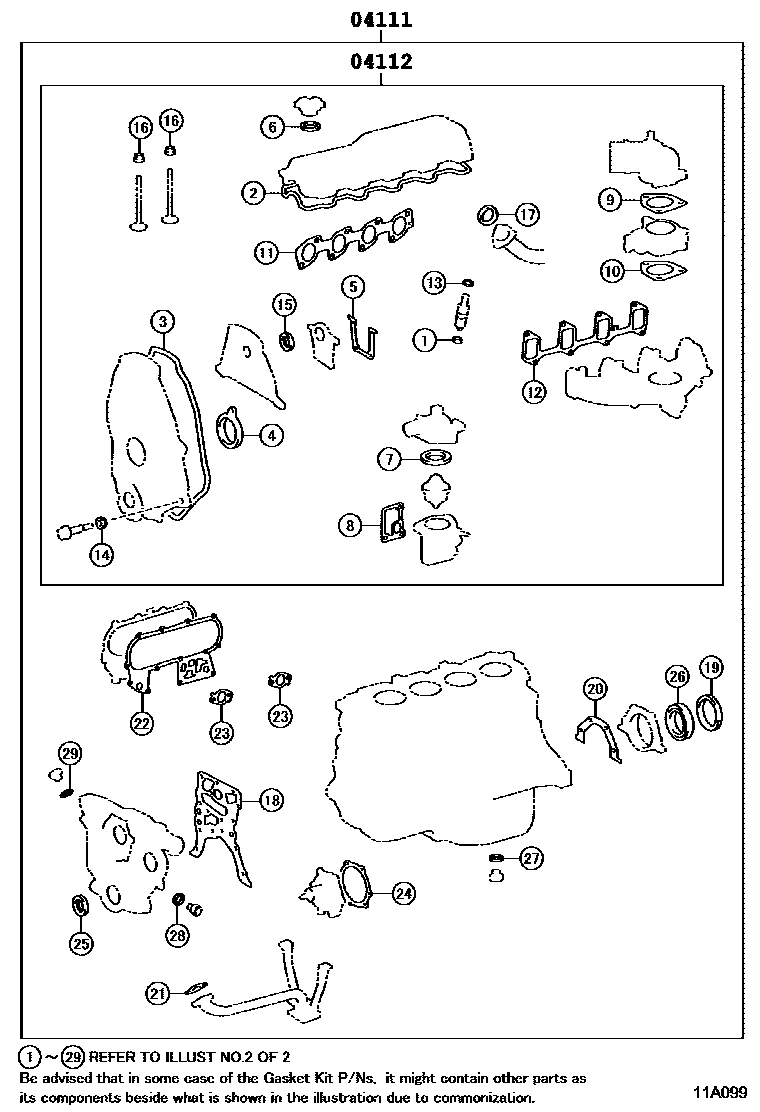

Engine Overhaul Gasket Kit — 11A099 (200106 – 999999)

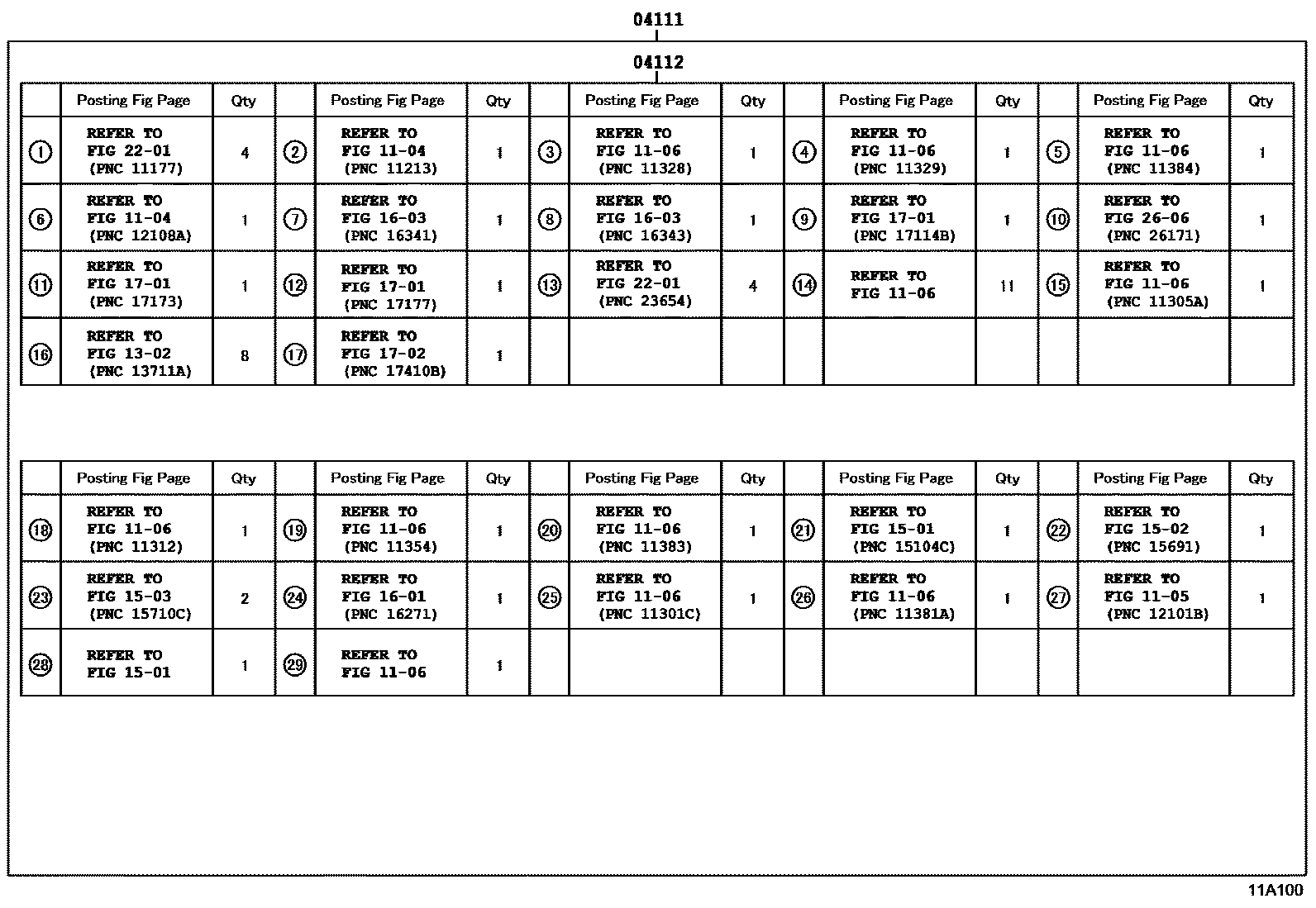

Engine Overhaul Gasket Kit — 11A100 (200106 – 999999)

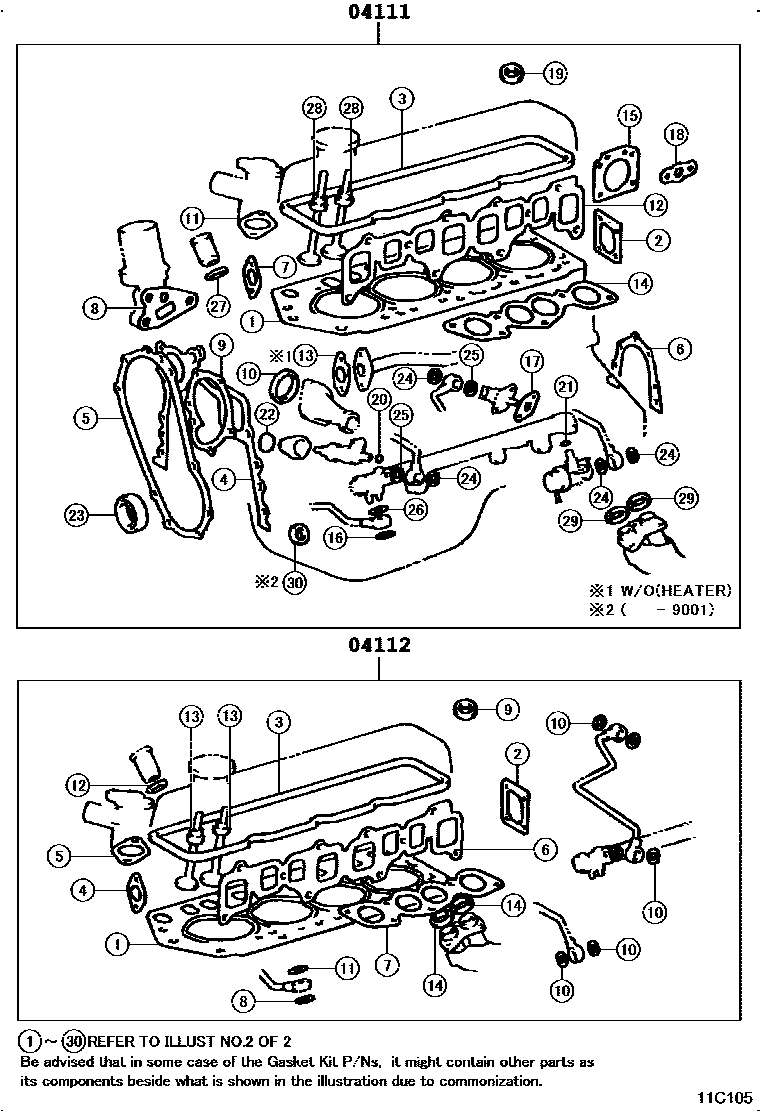

Engine Overhaul Gasket Kit — 11C105 (198908 – 199008)

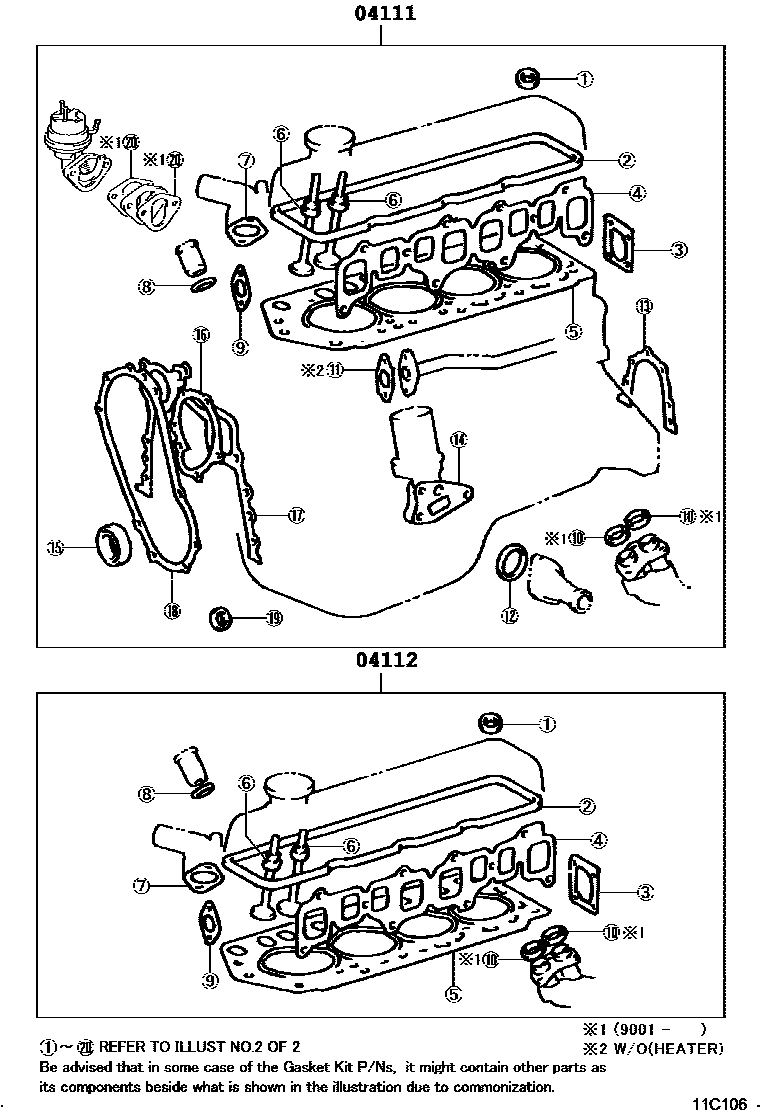

Engine Overhaul Gasket Kit — 11C106 (198808 – 199106)

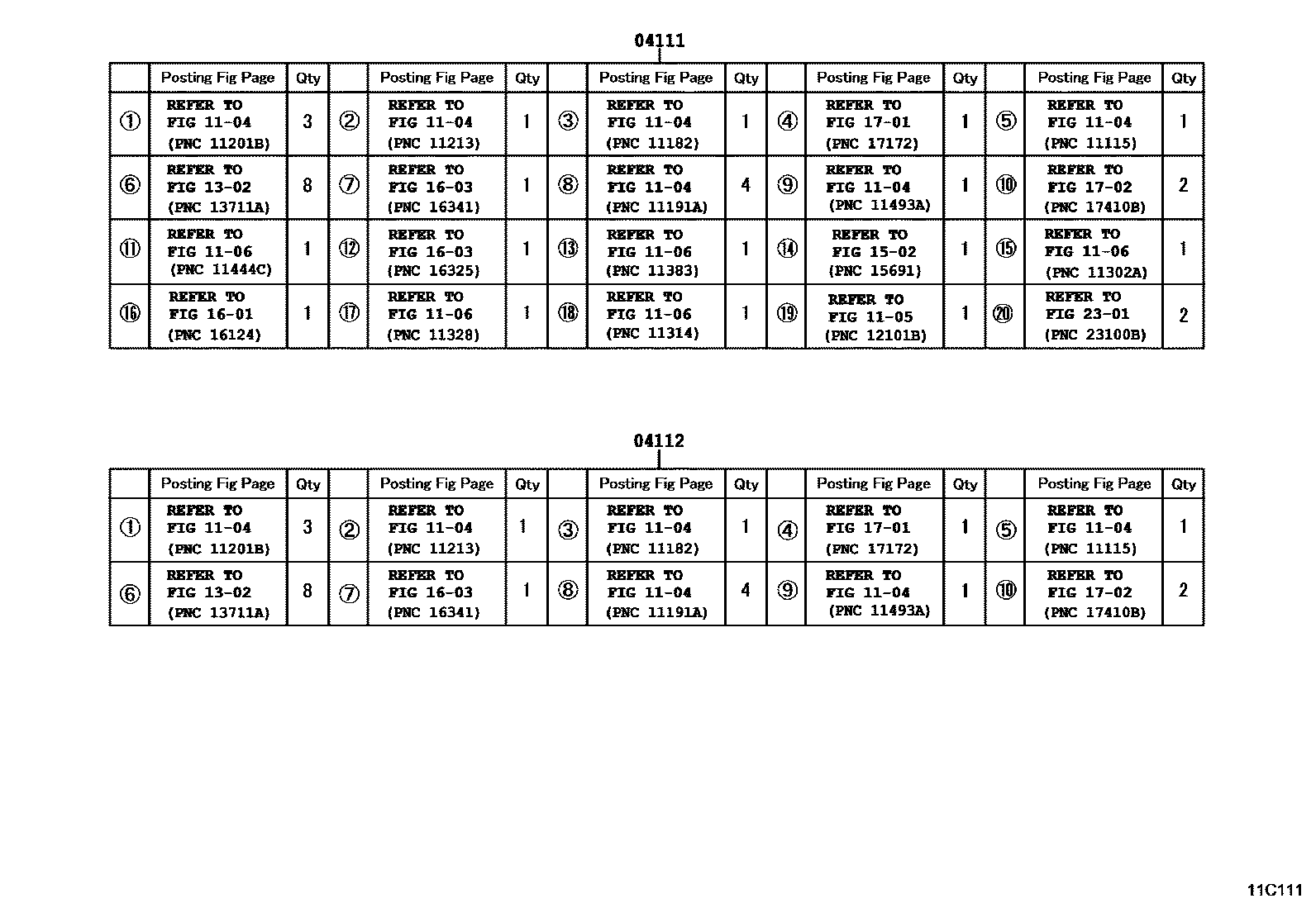

Engine Overhaul Gasket Kit — 11C111 (198808 – 199106)

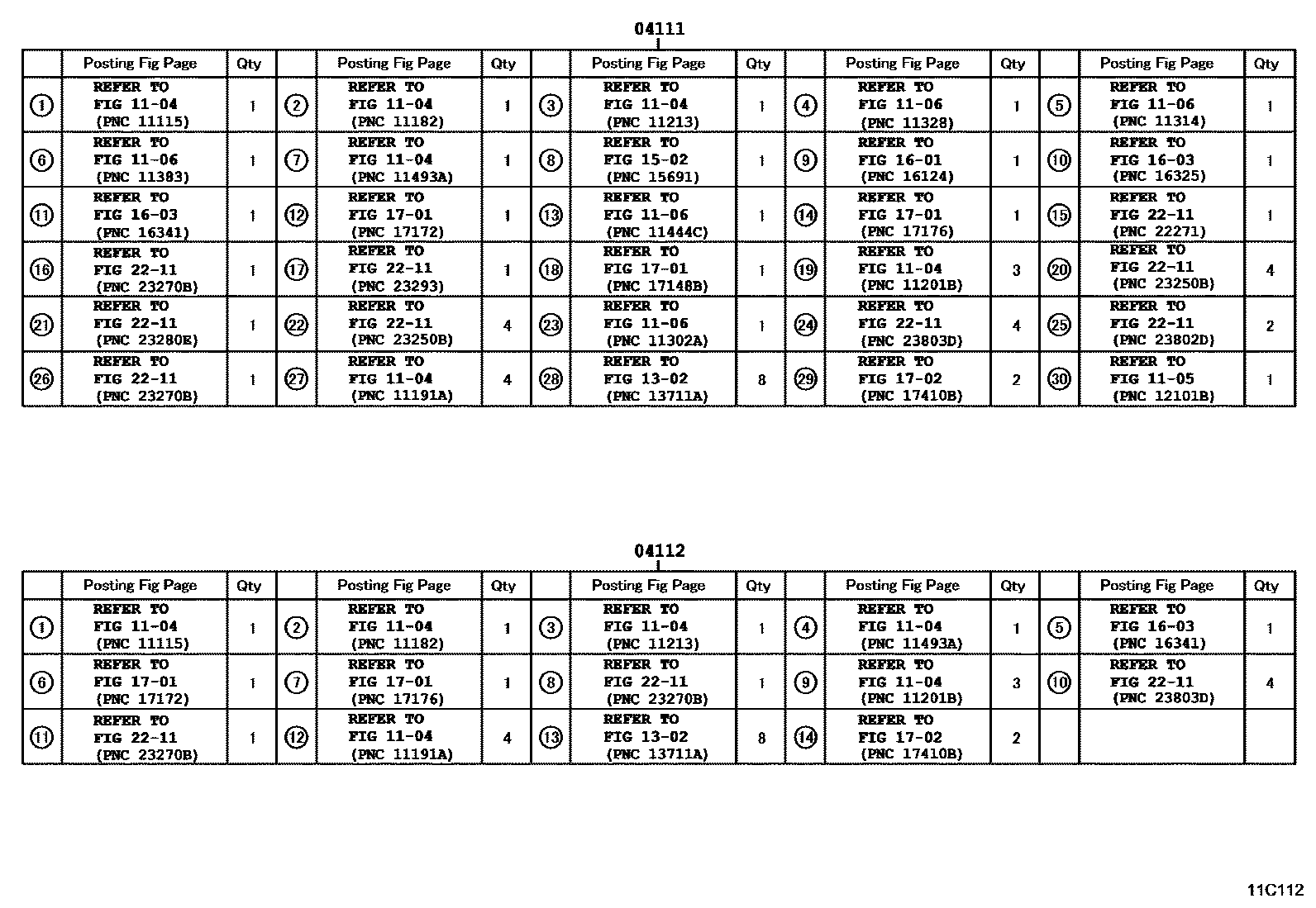

Engine Overhaul Gasket Kit — 11C112 (198908 – 199008)

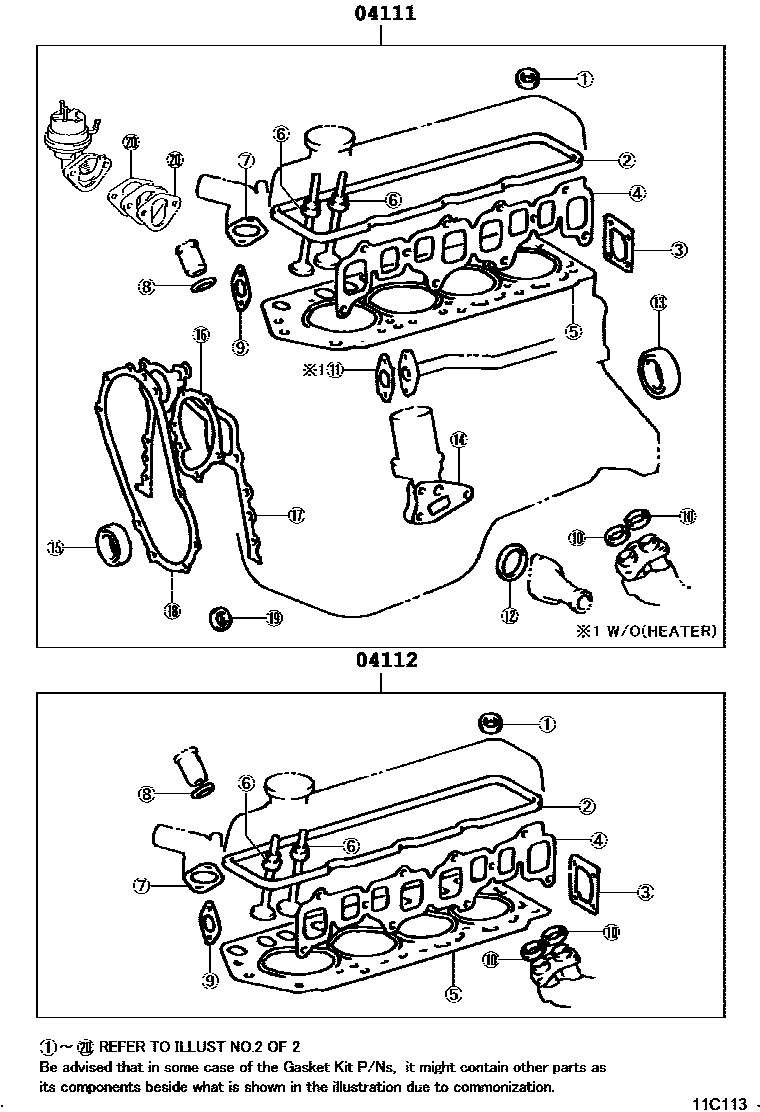

Engine Overhaul Gasket Kit — 11C113 (199106 – 199708)

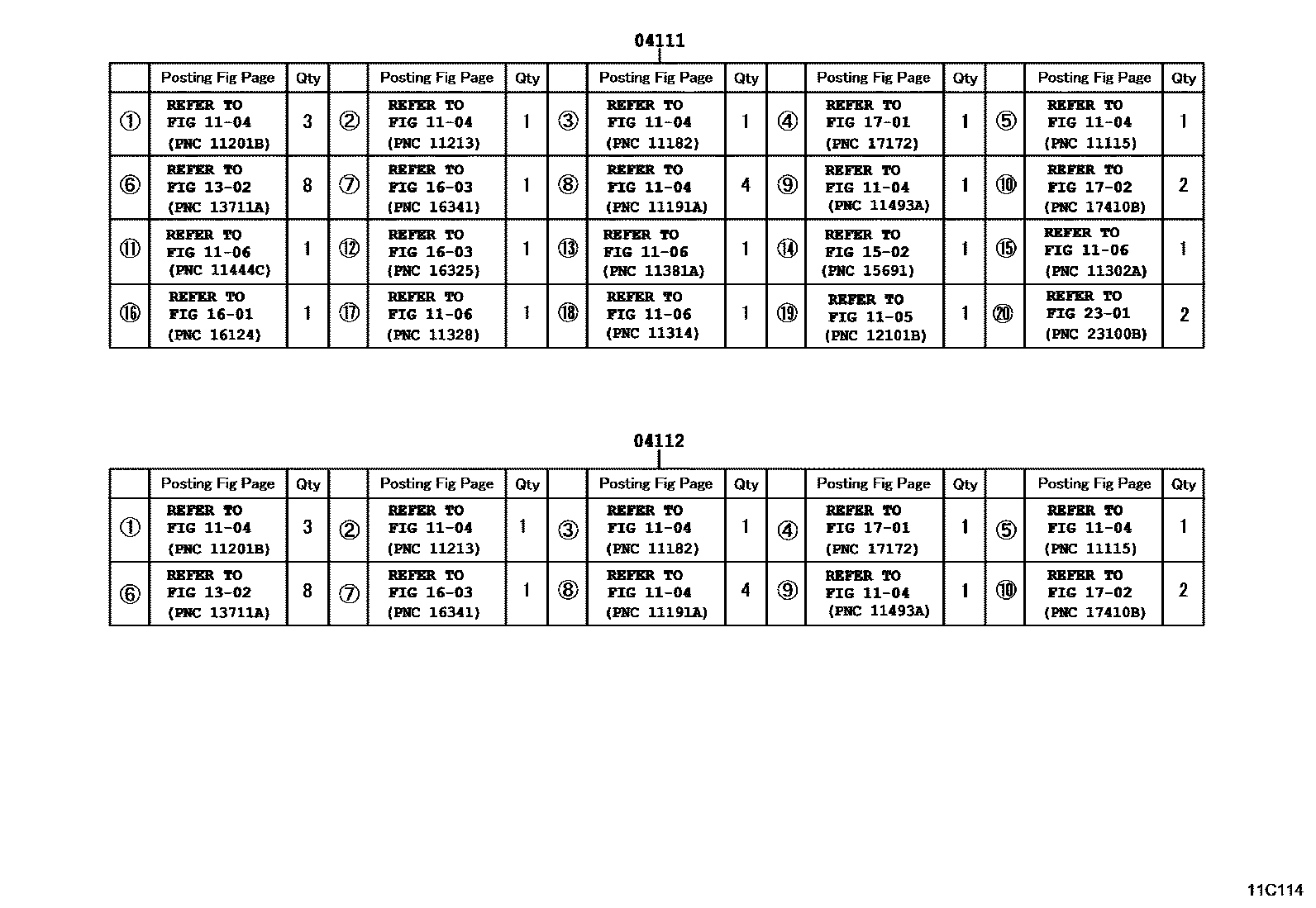

Engine Overhaul Gasket Kit — 11C114 (199106 – 199708)

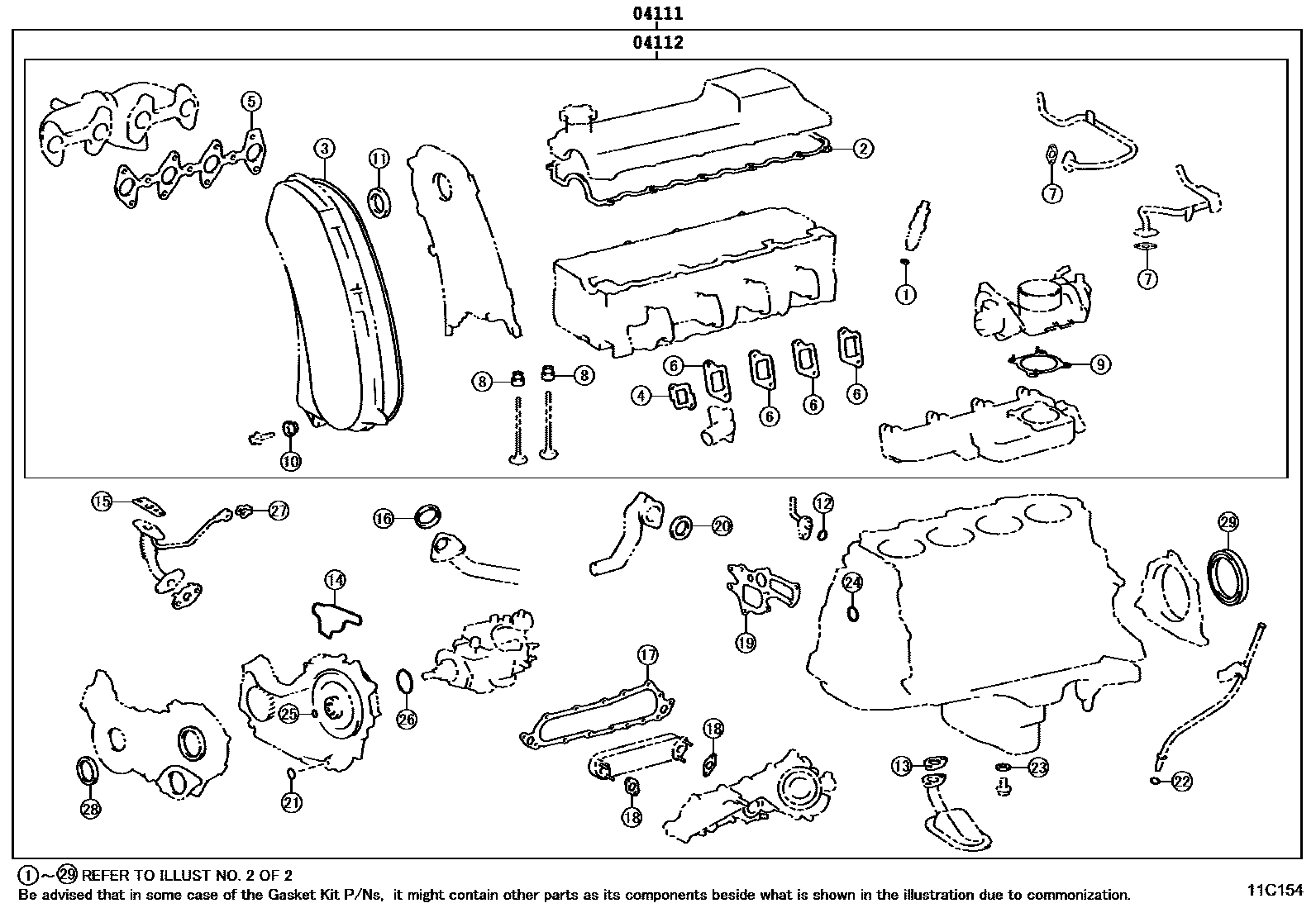

Engine Overhaul Gasket Kit — 11C154 (200108 – 200401)

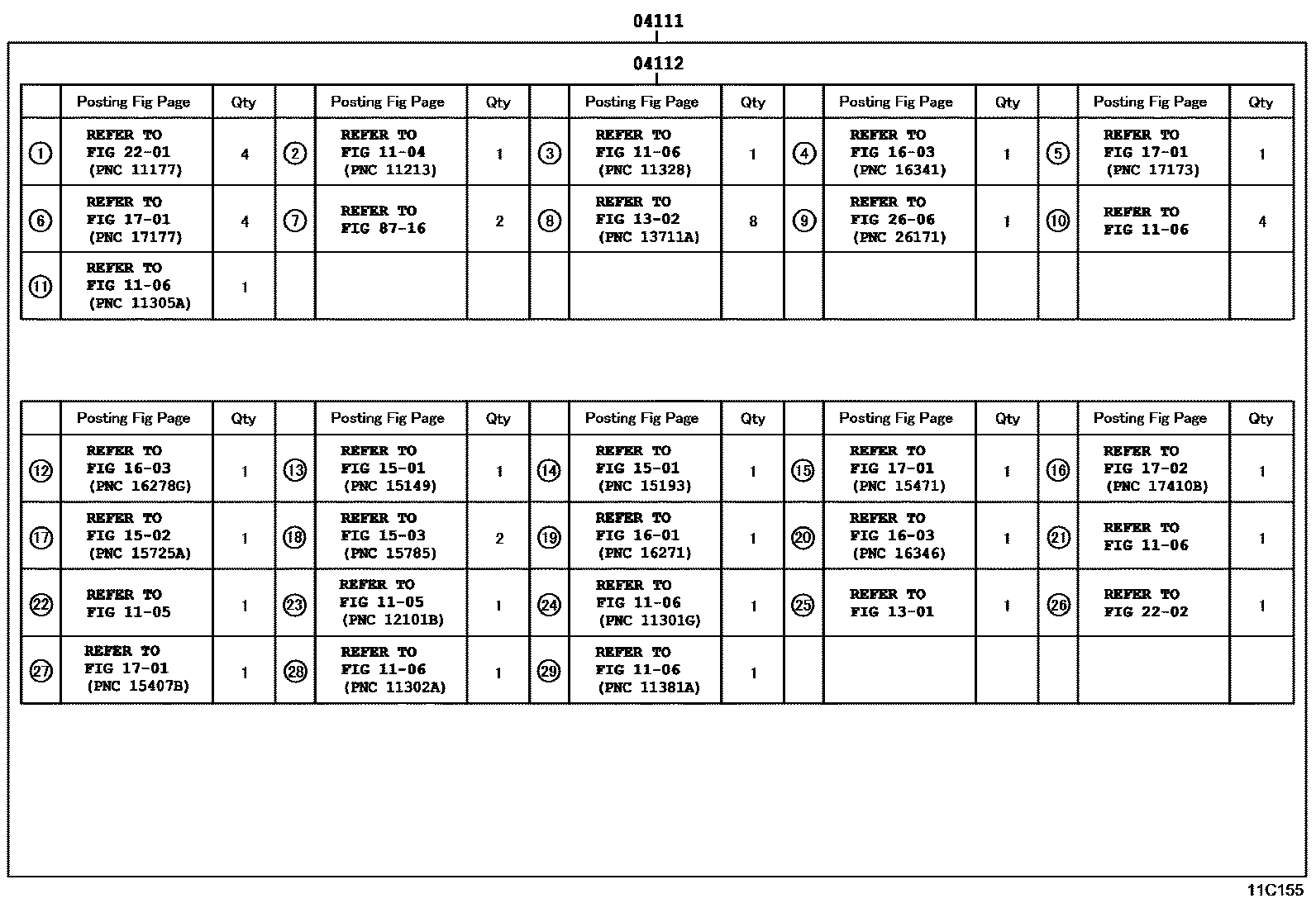

Engine Overhaul Gasket Kit — 11C155 (200108 – 200401)

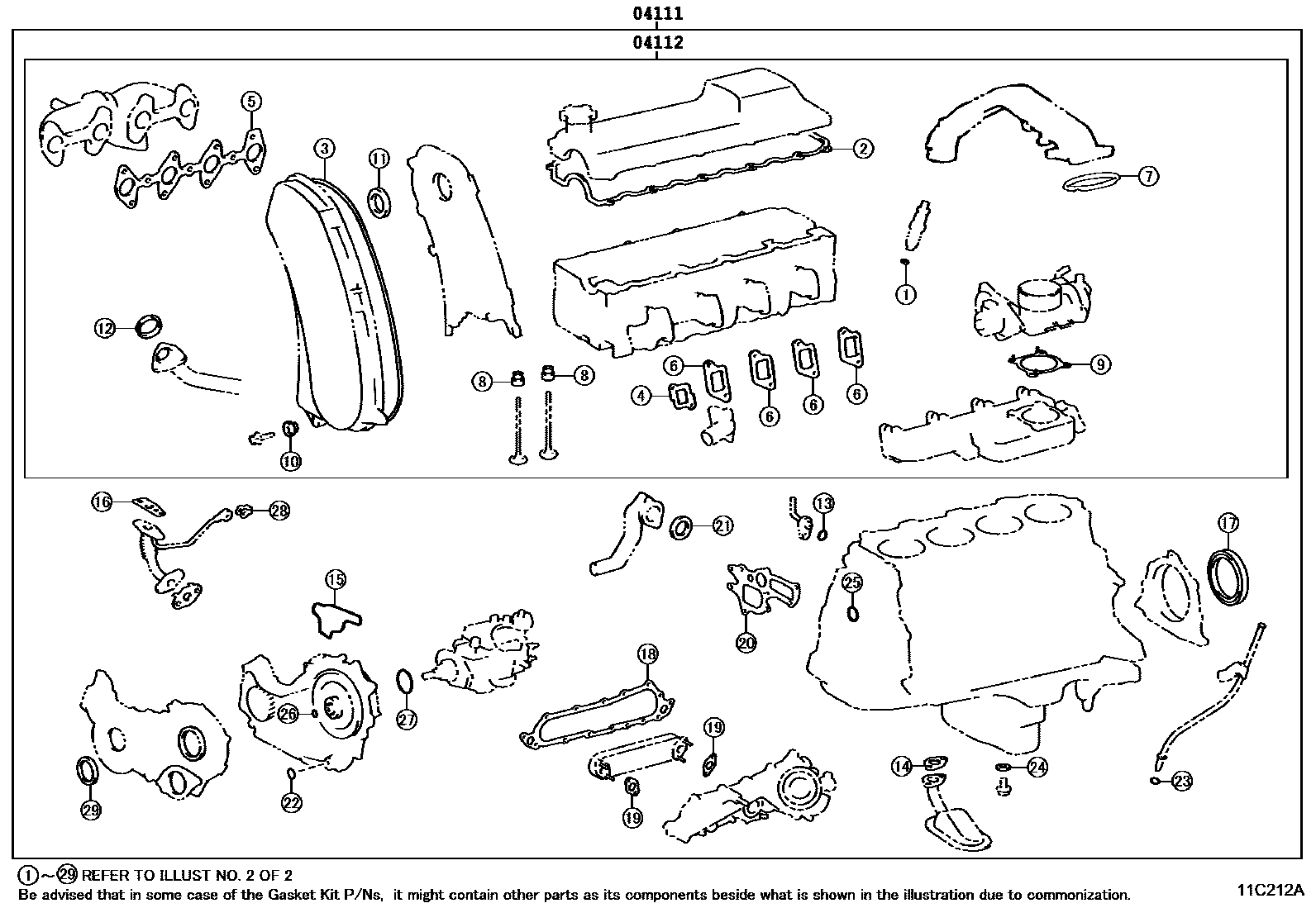

Engine Overhaul Gasket Kit — 11C212A (200401 – 999999)

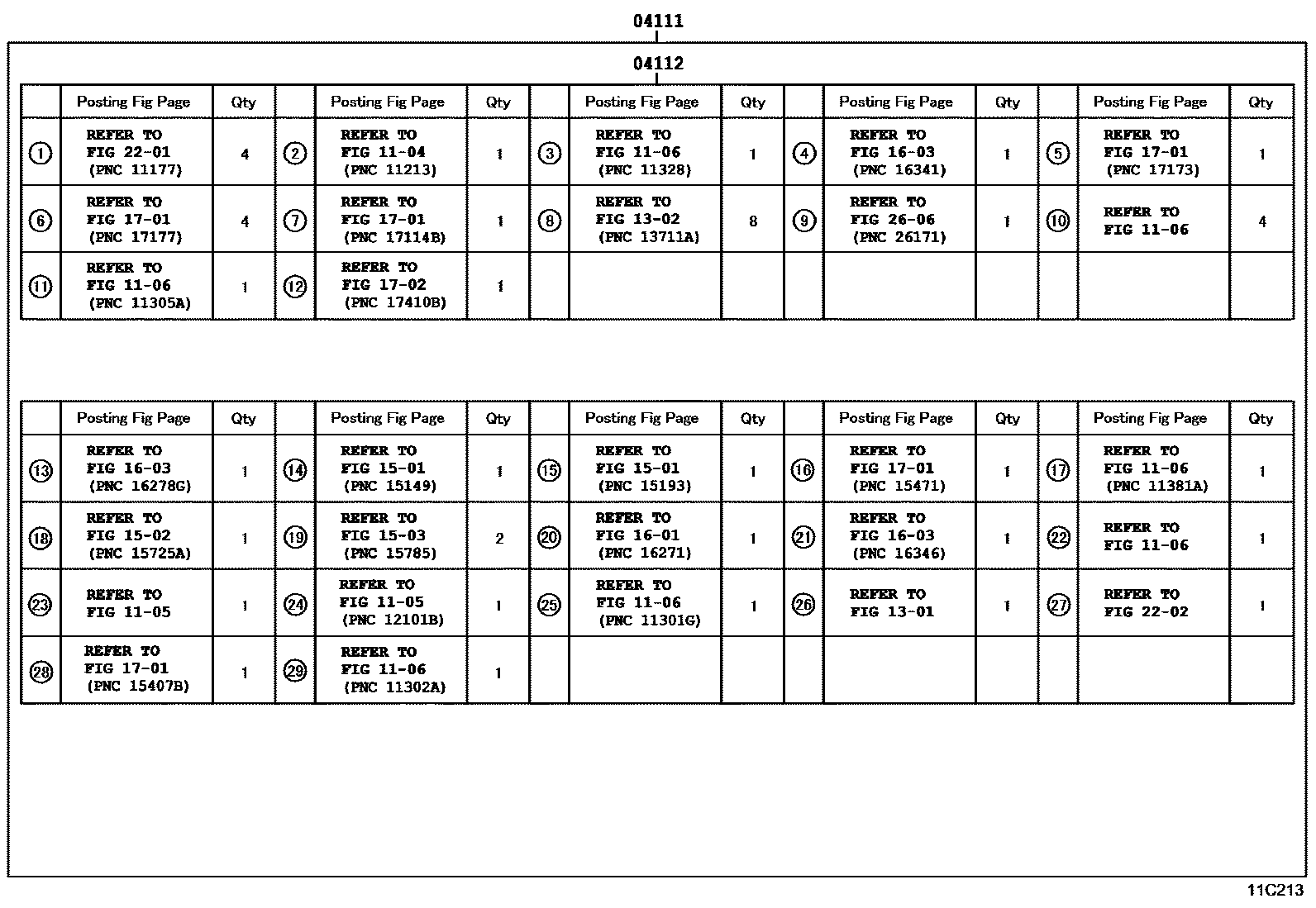

Engine Overhaul Gasket Kit — 11C213 (200401 – 999999)

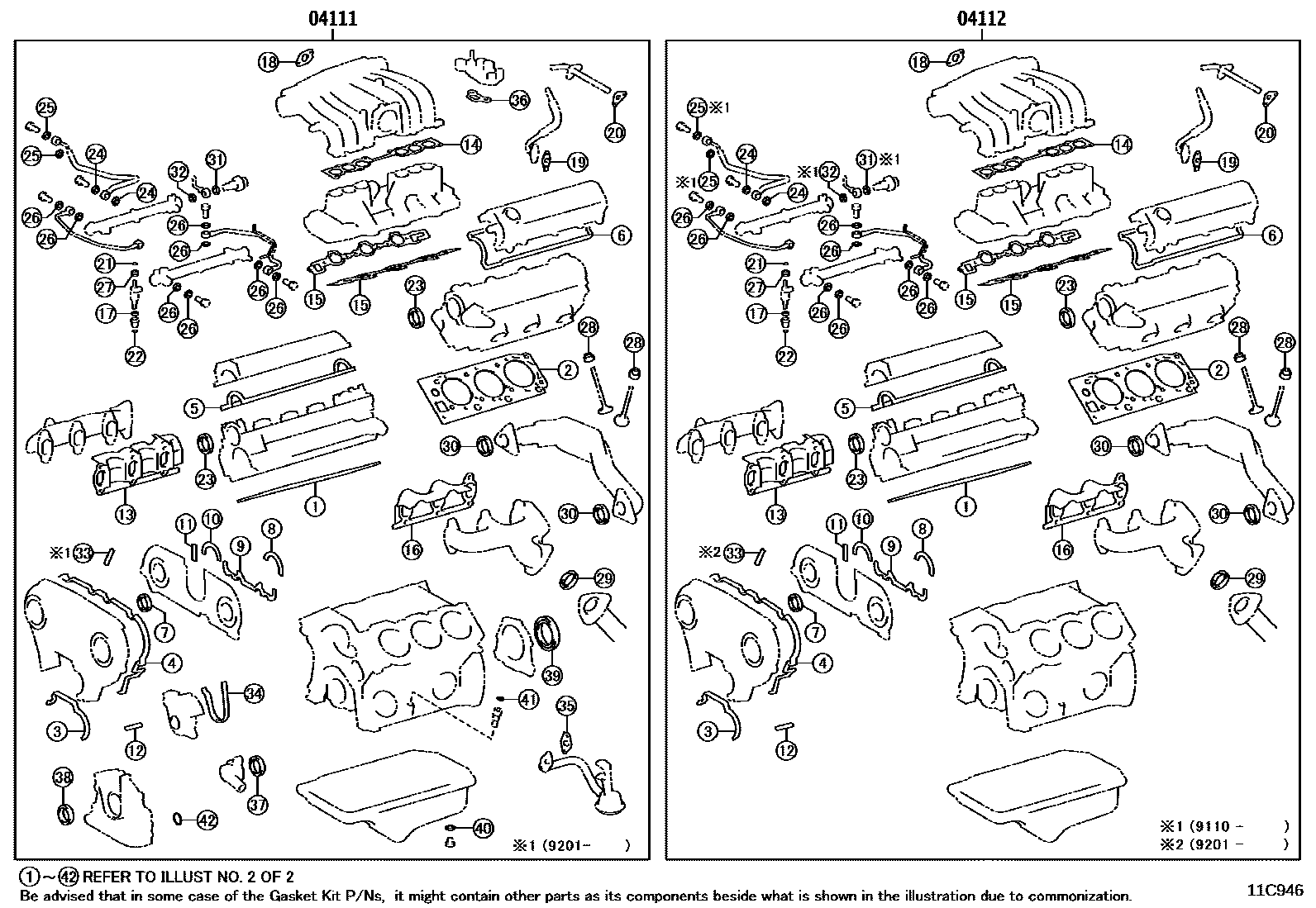

Engine Overhaul Gasket Kit — 11C946 (199008 – 199511)

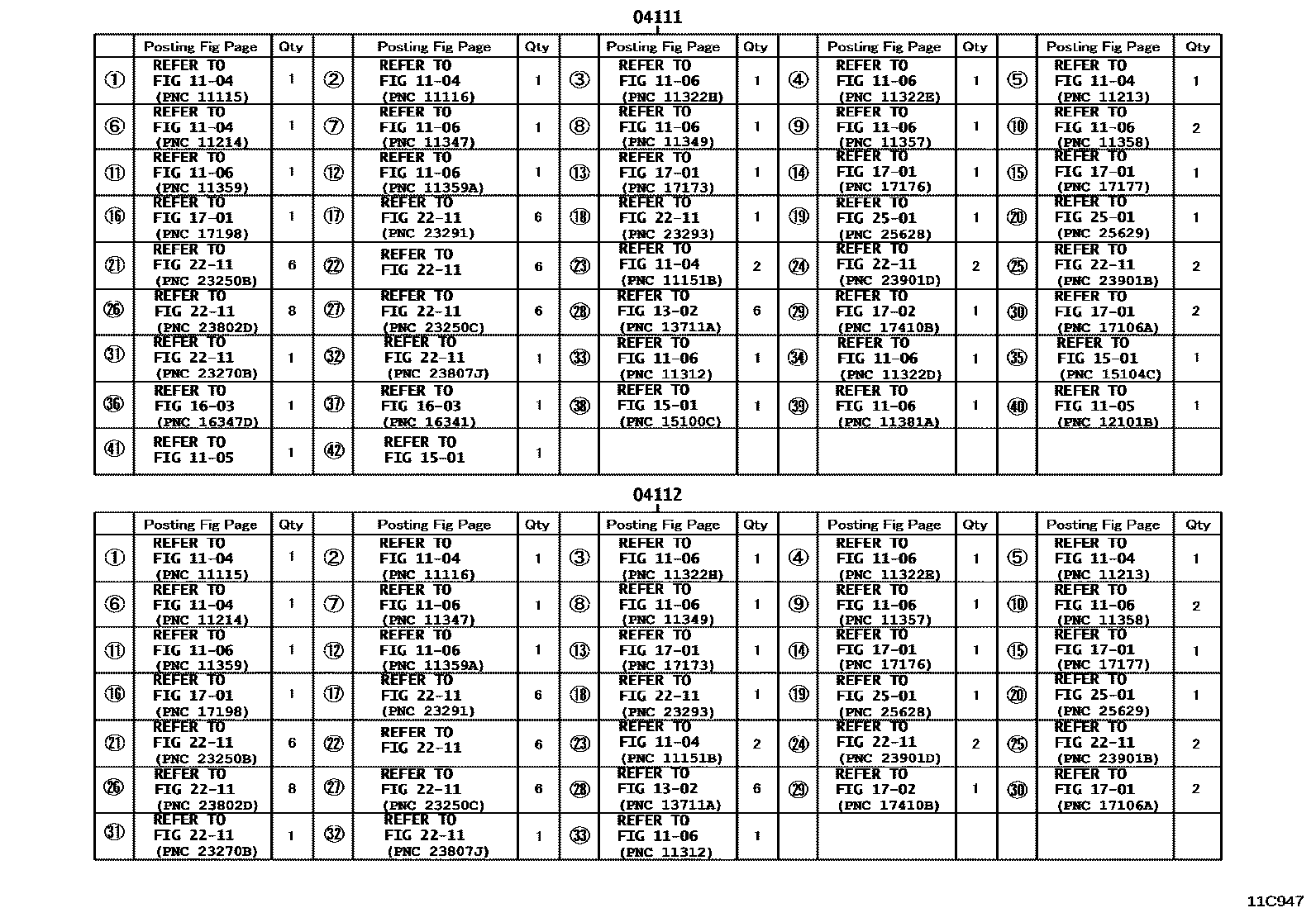

Engine Overhaul Gasket Kit — 11C947 (199008 – 199511)

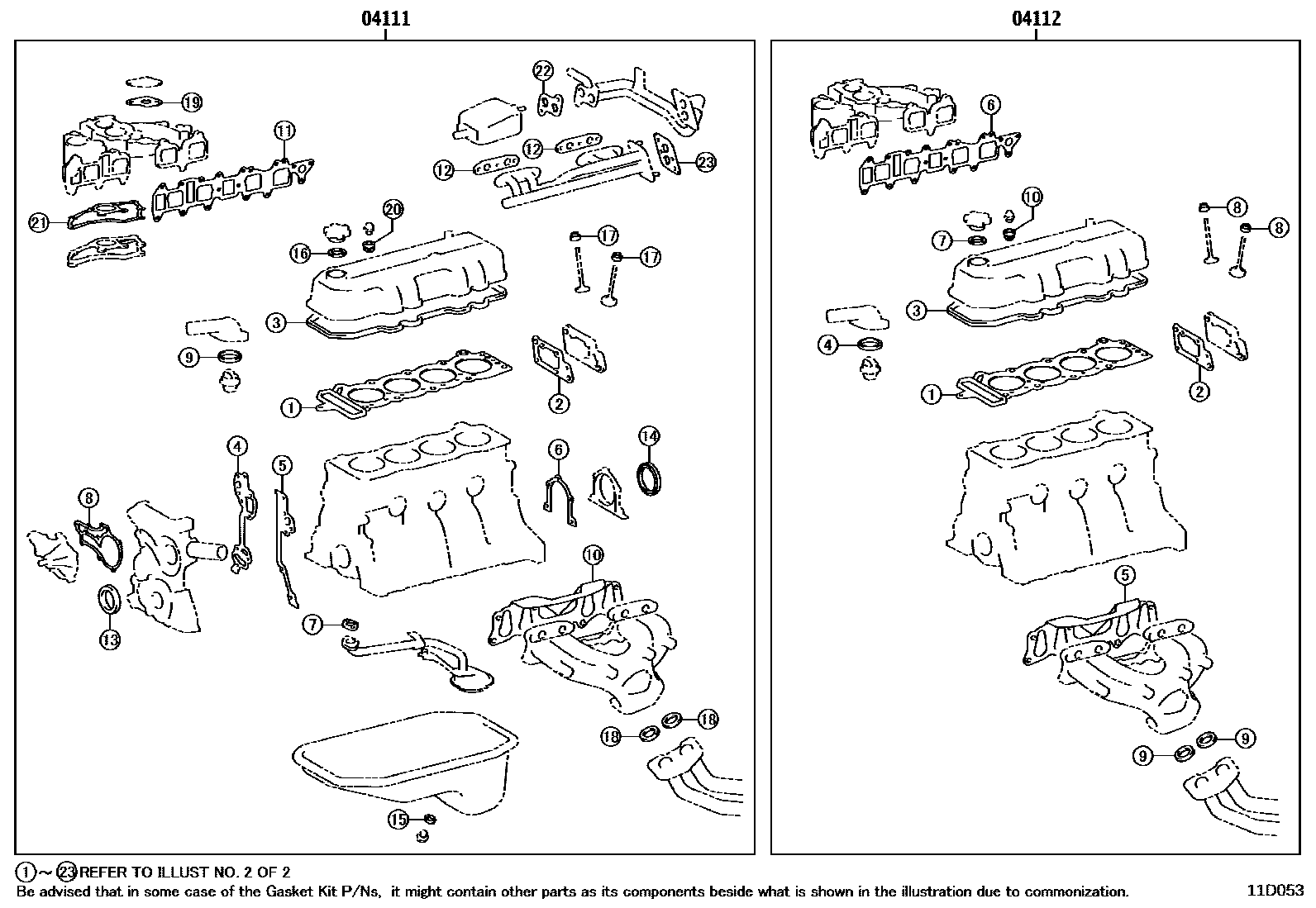

Engine Overhaul Gasket Kit — 11D053 (198808 – 999999)

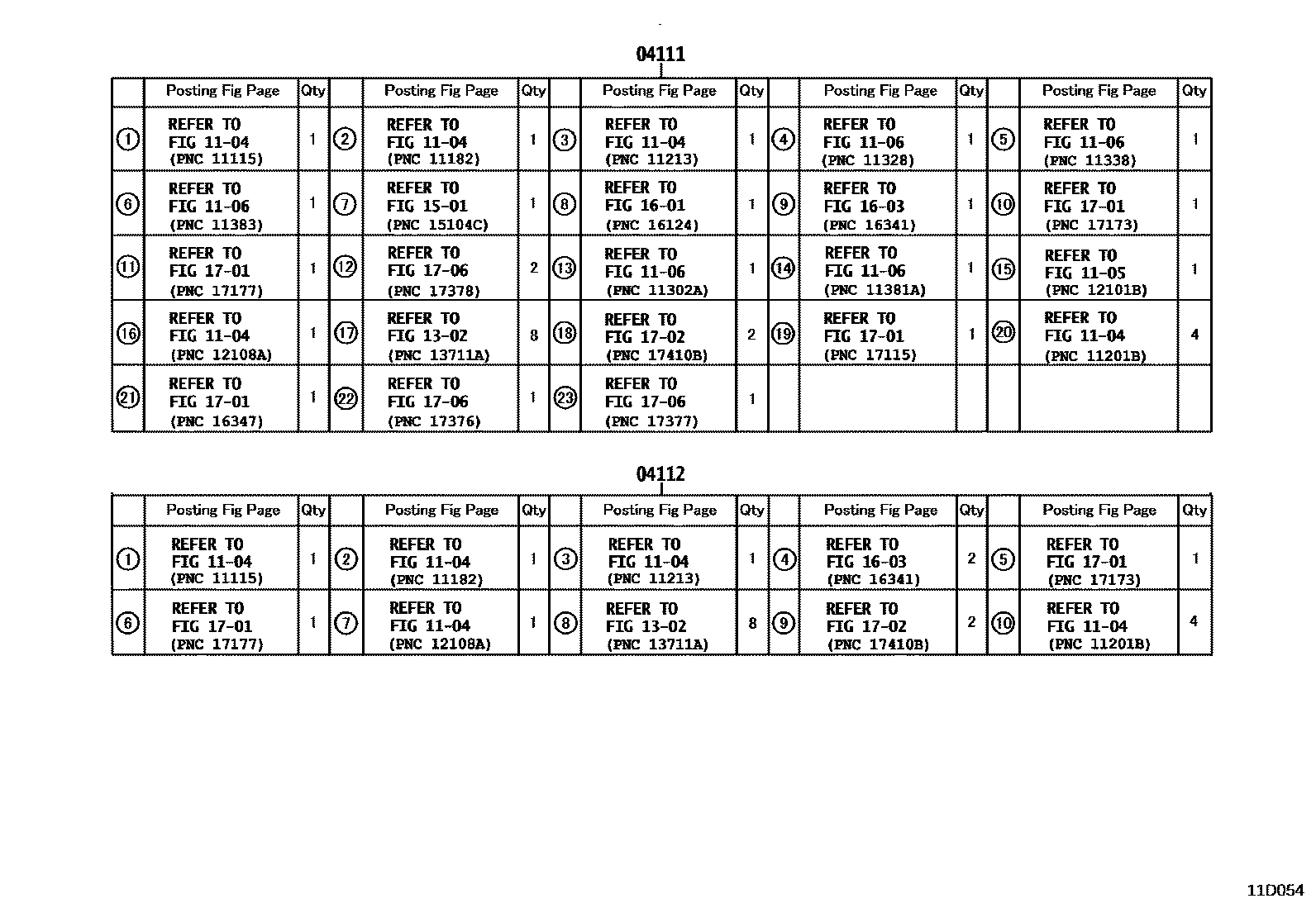

Engine Overhaul Gasket Kit — 11D054 (198808 – 999999)

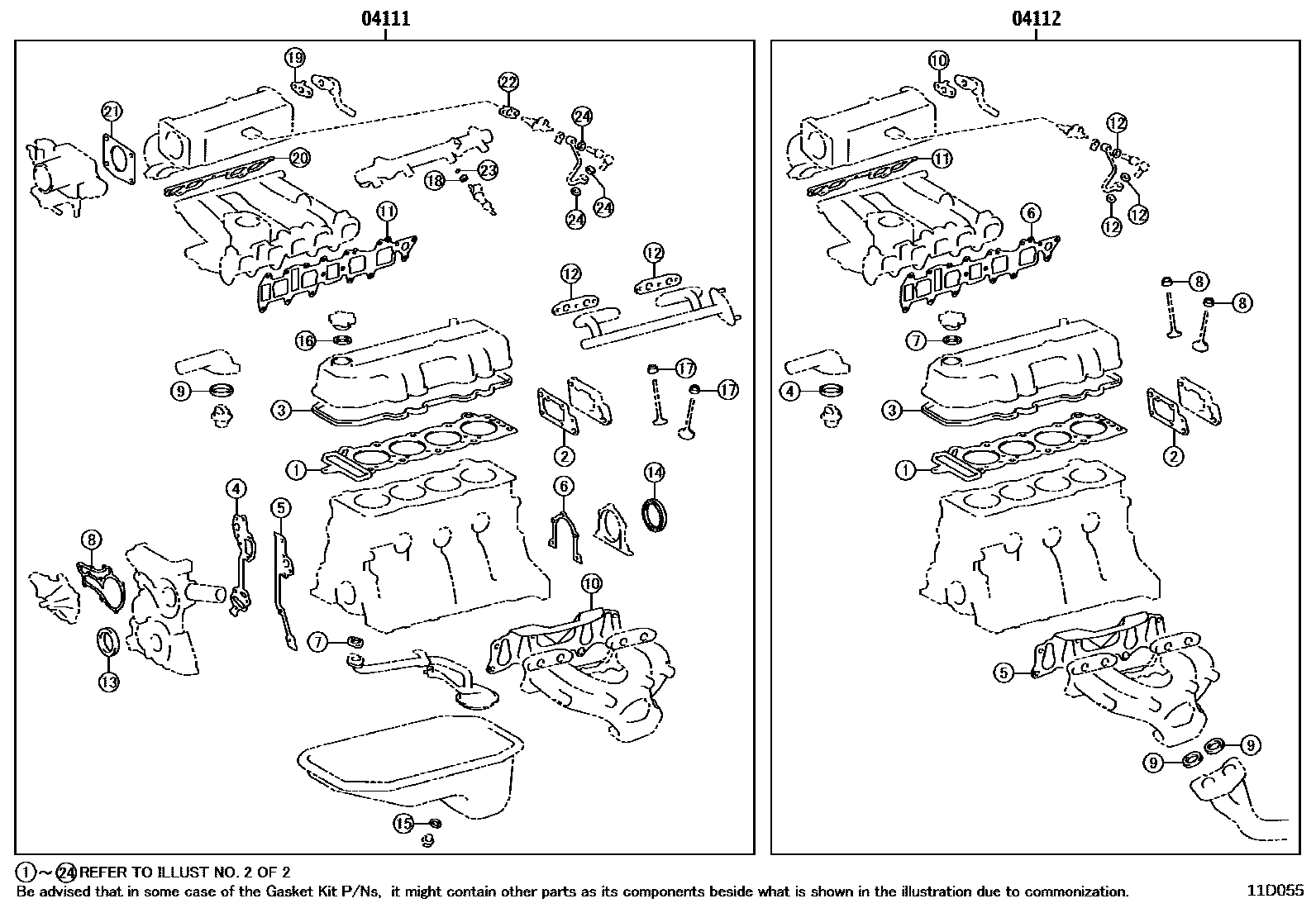

Engine Overhaul Gasket Kit — 11D055 (199401 – 999999)

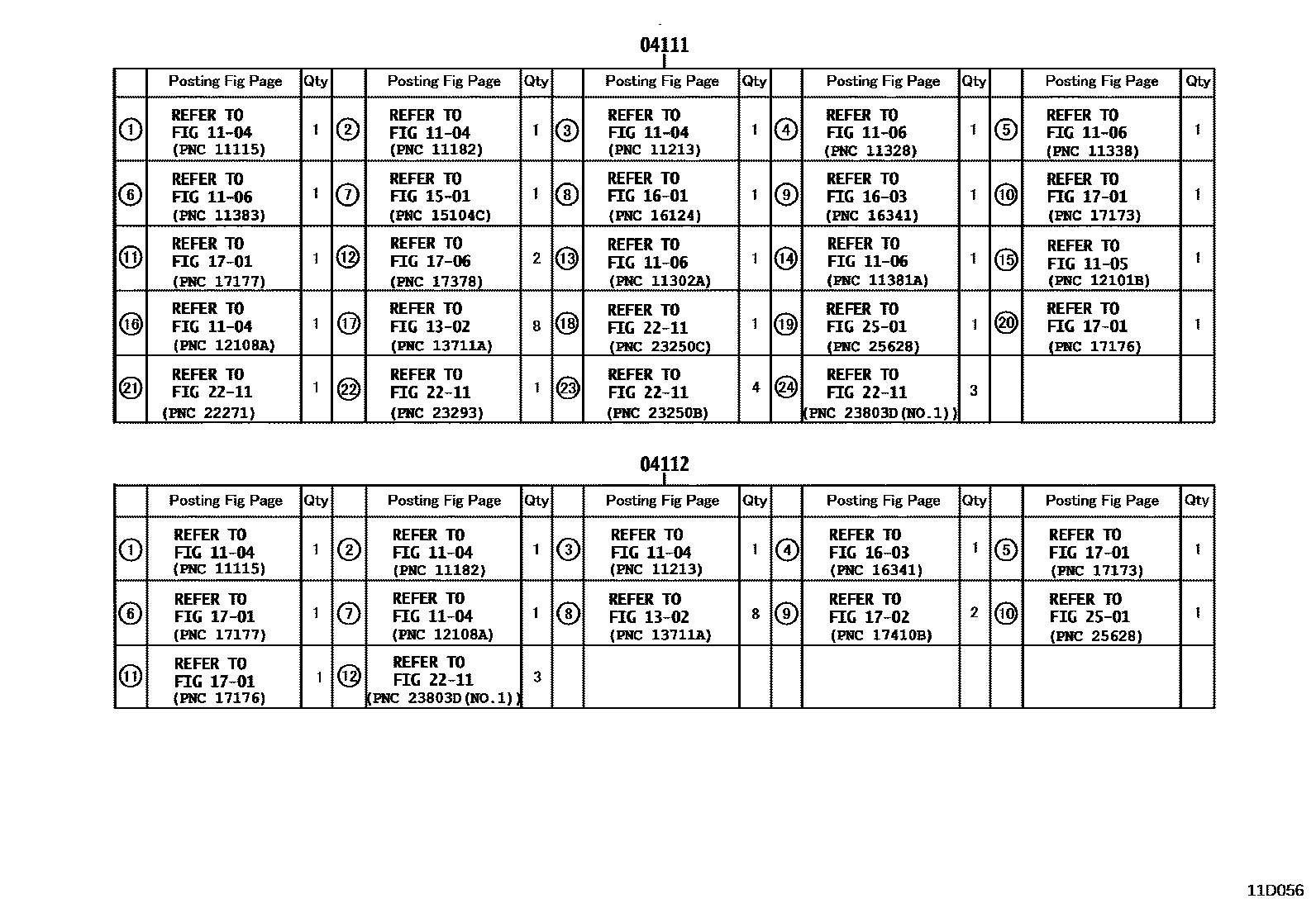

Engine Overhaul Gasket Kit — 11D056 (199401 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-35330 · 04111-35340 · 04111-35341 · 04111-35342 · 04111-35350 · 04111-35351 · 04111-35352 · 04111-35360 · 04111-35390 · 04111-35400 · 04111-35410 · 04111-54090 · 04111-54091 · 04111-54092 · 04111-54093 · 04111-54094 · 04111-54095 · 04111-54340 · 04111-54470 · 04111-65011 · 04111-65012 · 04111-65013 · 04111-65014 · 04111-65015 · 04111-65016 · 04111-67041 · 04111-67080 · 04111-73034 · 04111-73035 · 04111-73042 · 04111-73043 · 04111-73044 |
| 04112 | Engine valve grinding pad assembly | 04112-35310 · 04112-35320 · 04112-35321 · 04112-35322 · 04112-35330 · 04112-35360 · 04112-35370 · 04112-54070 · 04112-54071 · 04112-54072 · 04112-54073 · 04112-54080 · 04112-54280 · 04112-54410 · 04112-65011 · 04112-65012 · 04112-65013 · 04112-65014 · 04112-65015 · 04112-65016 · 04112-67041 · 04112-67080 · 04112-73033 · 04112-73034 · 04112-73041 · 04112-73042 · 04112-73043 |
