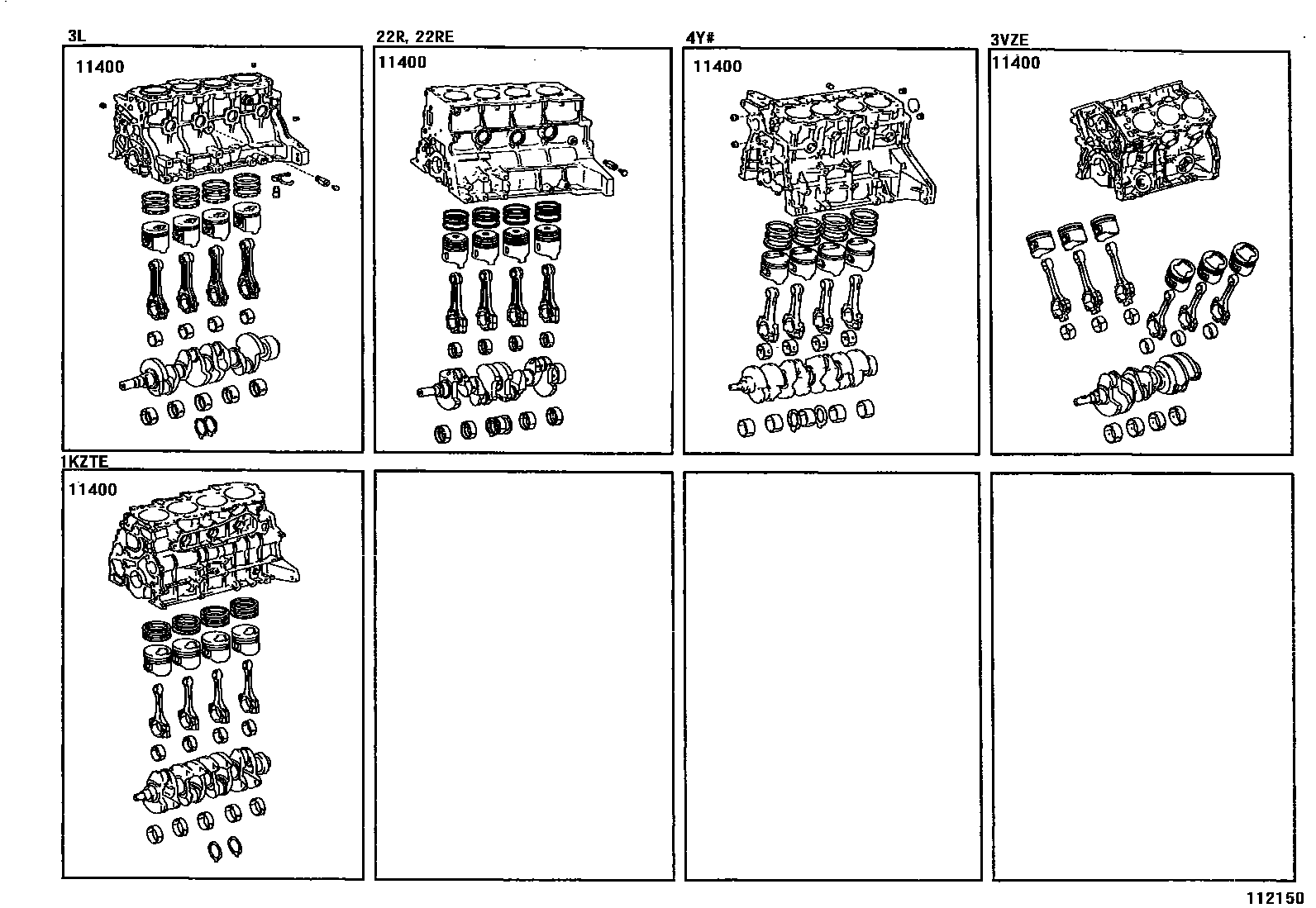

Toyota HILUX Short Block Assembly — Figure 1102
Toyota HILUX EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11400 | Short Block Assembly | 11400-35043 · 11400-35053 · 11400-54120 · 11400-54160 · 11400-65020 · 11400-65030 · 11400-67051 · 11400-73050 · 11400-73060 |
