Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

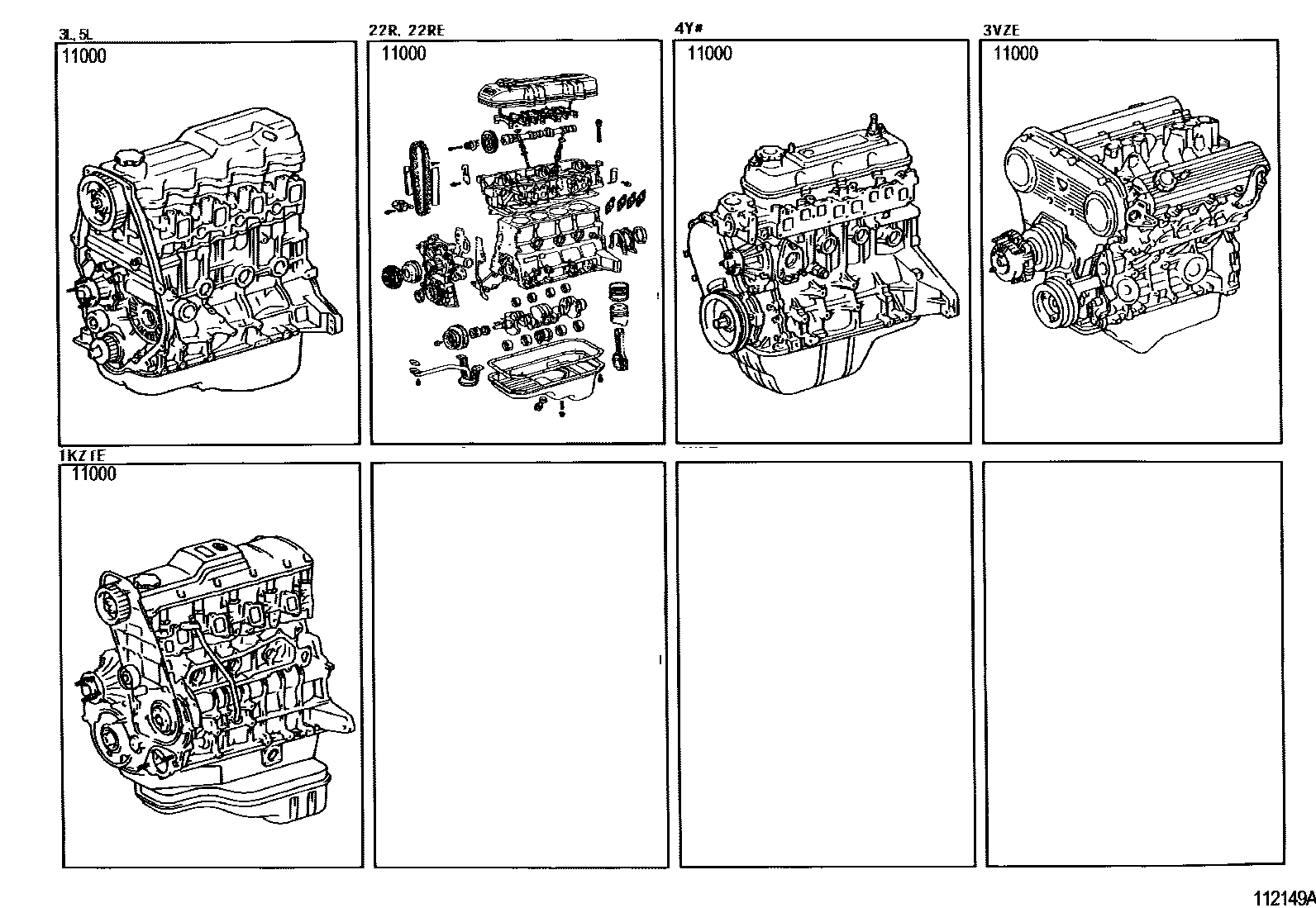

Toyota HILUX Partial Engine Assembly EPC diagram — 112149A
Partial Engine Assembly — 112149A (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-35560 · 19000-35570 · 19000-35580 · 19000-35660 · 19000-35661 · 19000-35680 · 19000-54750 · 19000-54760 · 19000-5B430 · 19000-65051 · 19000-65052 · 19000-65080 · 19000-65081 · 19000-67171 · 19000-67300 · 19000-73440 · 19000-73441 · 19000-73442 · 19000-73630 · 19000-73870 · 19000-73871
