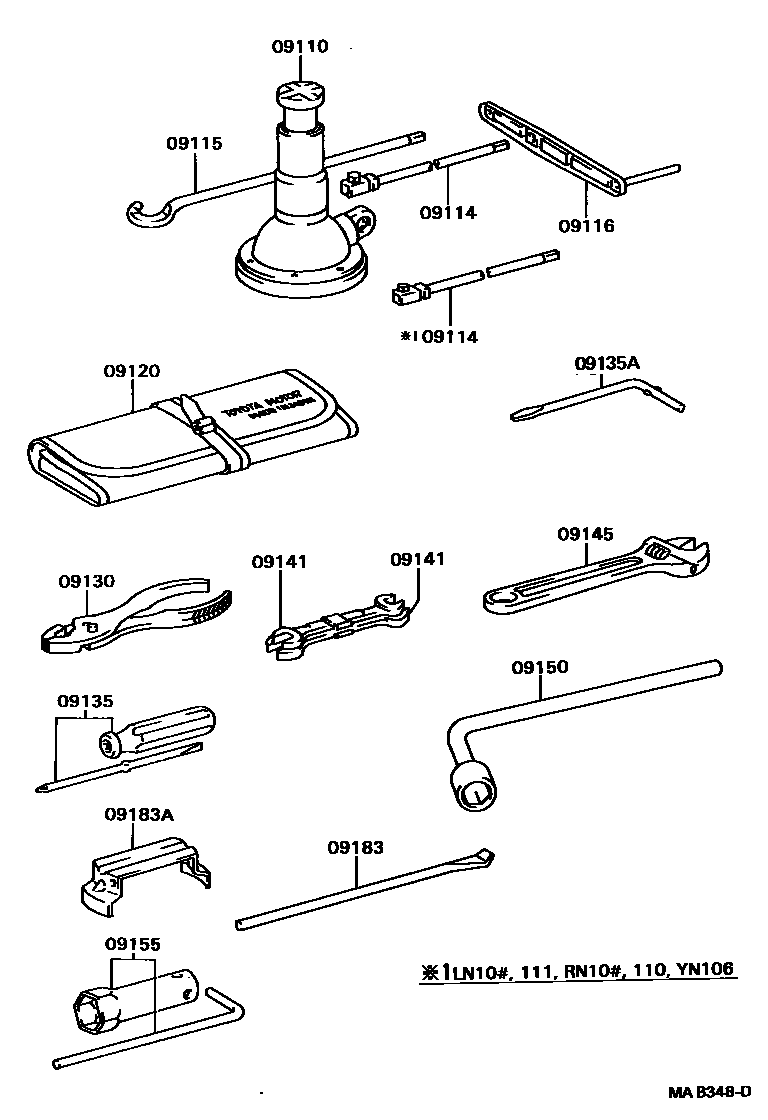

Toyota HILUX Standard Tools — Figure 0901
Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09110-35170 · 09110-35171 · 09110-35210 · 09110-89101 · 09111-89101 · 09111-89103 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-28010 · 09114-60050 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-35070 · 09115-35080 · 09115-60030 |
| 09116 | Jack Handle Rod | 09116-35041 |
| 09120 | Tool Bag | 09120-35060 · 09120-35100 · 09120-35110 · 09120-35120 · 09120-89101 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 90080-99005 · 99915-10700 |
| 09135A | screwdriver tip | 09135-00012 |
| 09141 | Wrench | 90080-99006 · 90080-99007 · 99914-10810 · 99914-11012 · 99914-11214 · 99914-11417 |
| 09145 | adjustable wrench | 99911-11200 |
| 09150 | Wheel Nut Wrench Case | 09150-35060 · 09150-60020 |
| 09155 | Spark Plug Wrench | 09155-00140 · 09155-26010 · 09155-41010 |
| 09183 | Wheel Cap Remover | 09183-00030 |
| 09183A | Wheel cover removal and assembly tools | 09183-35010 · 09183-60010 |
