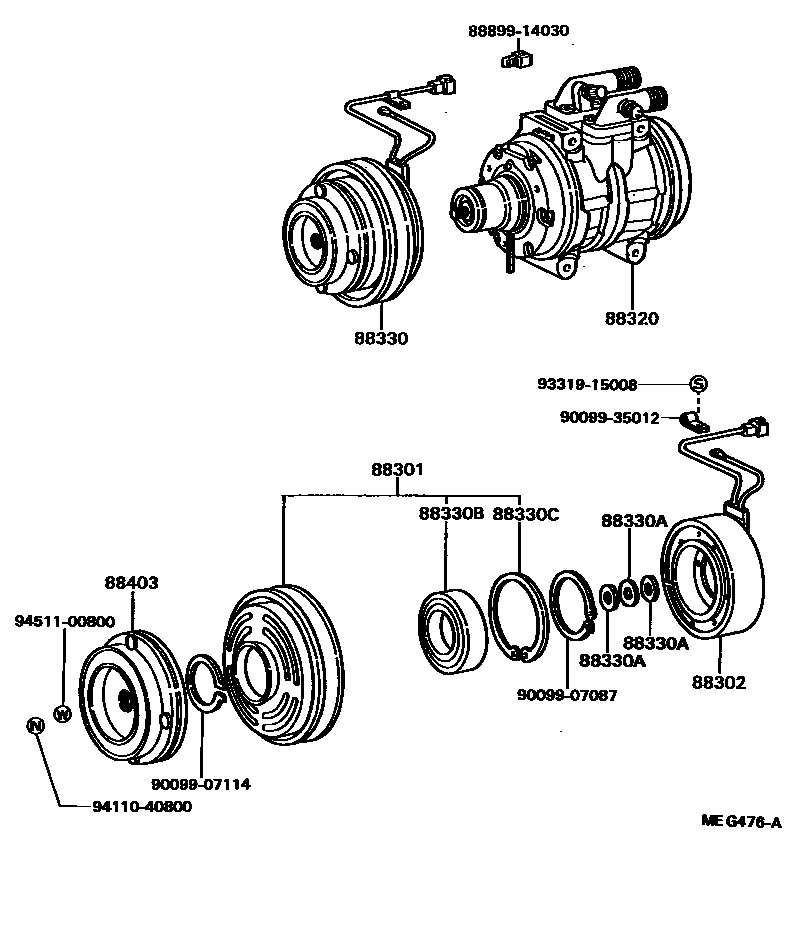

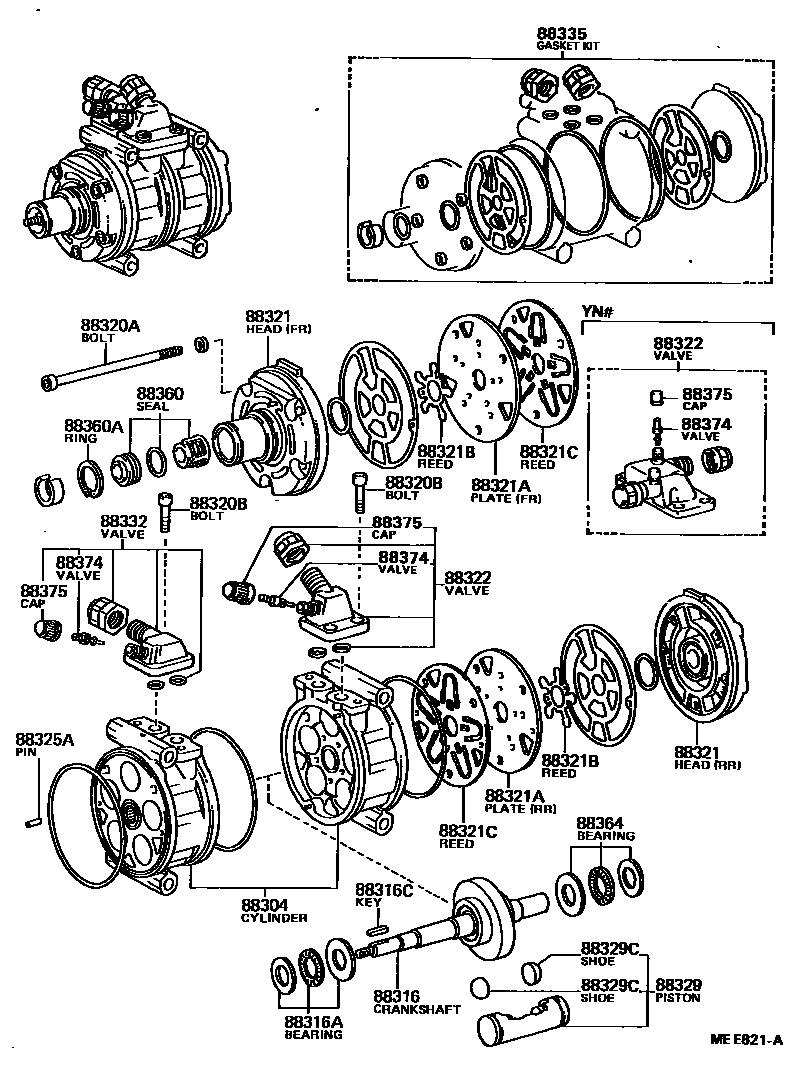

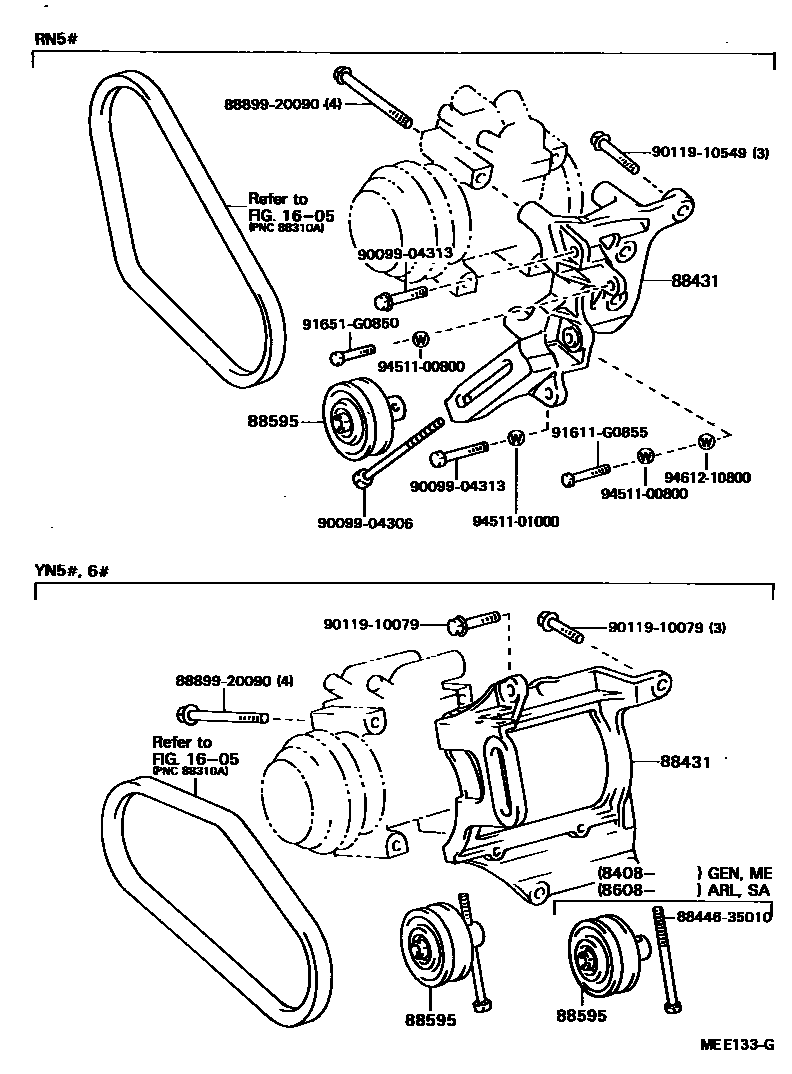

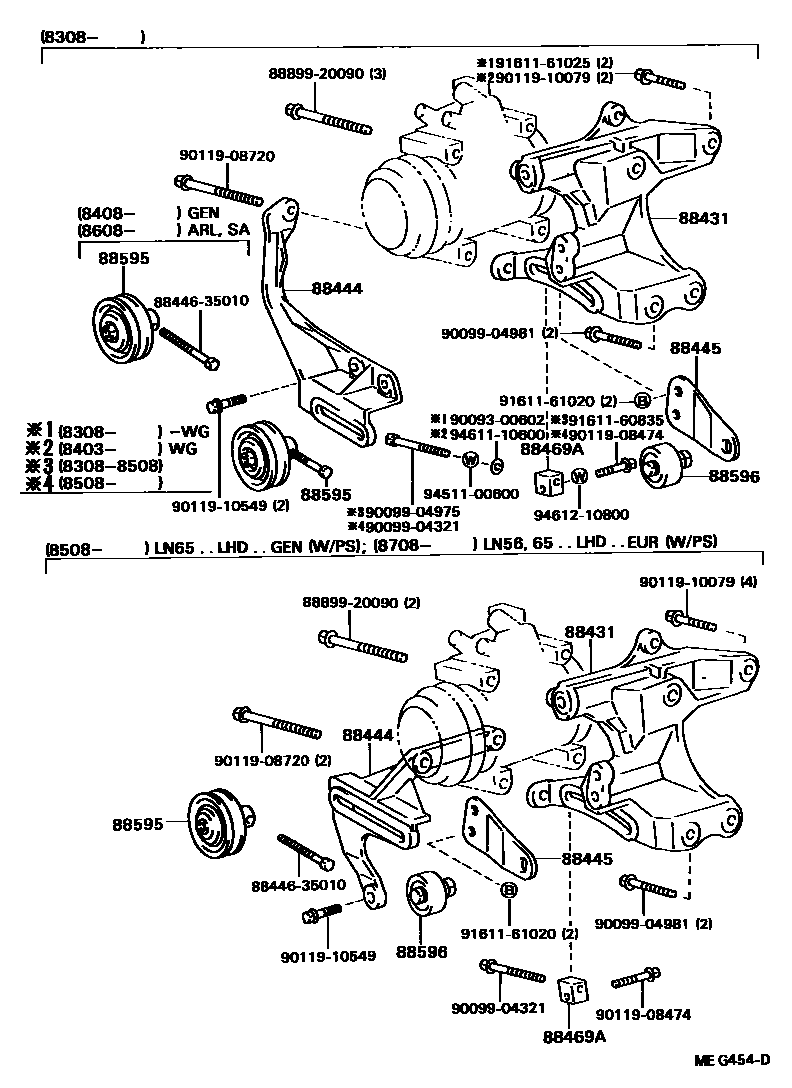

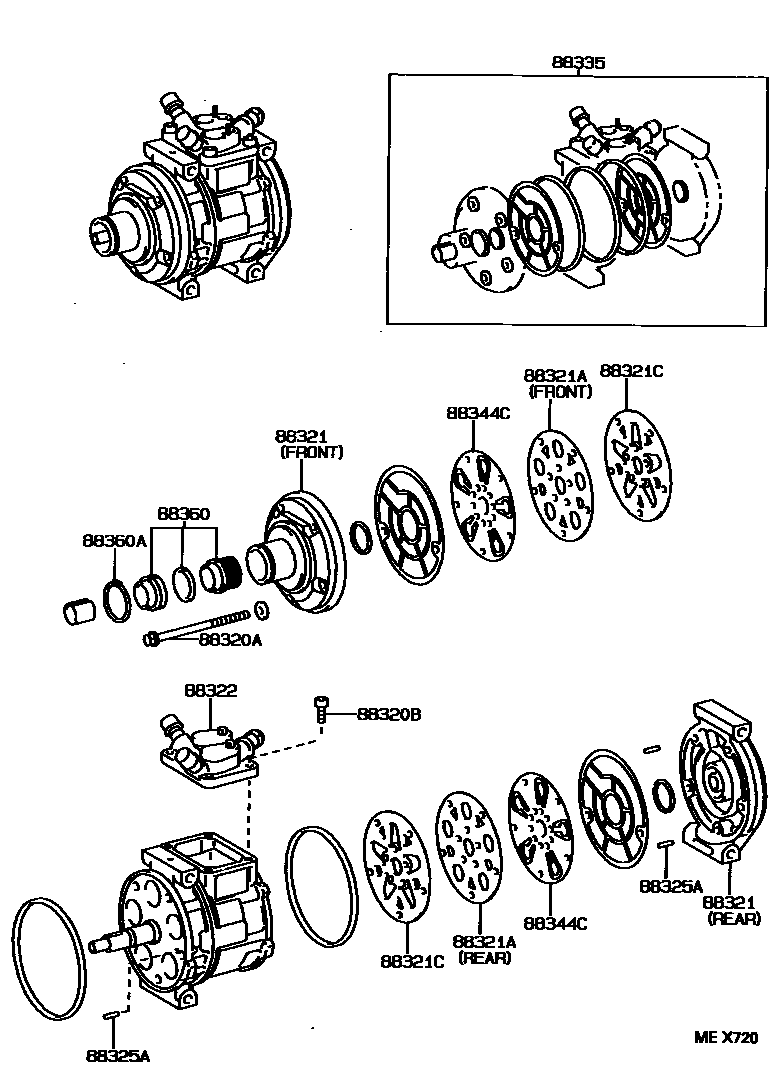

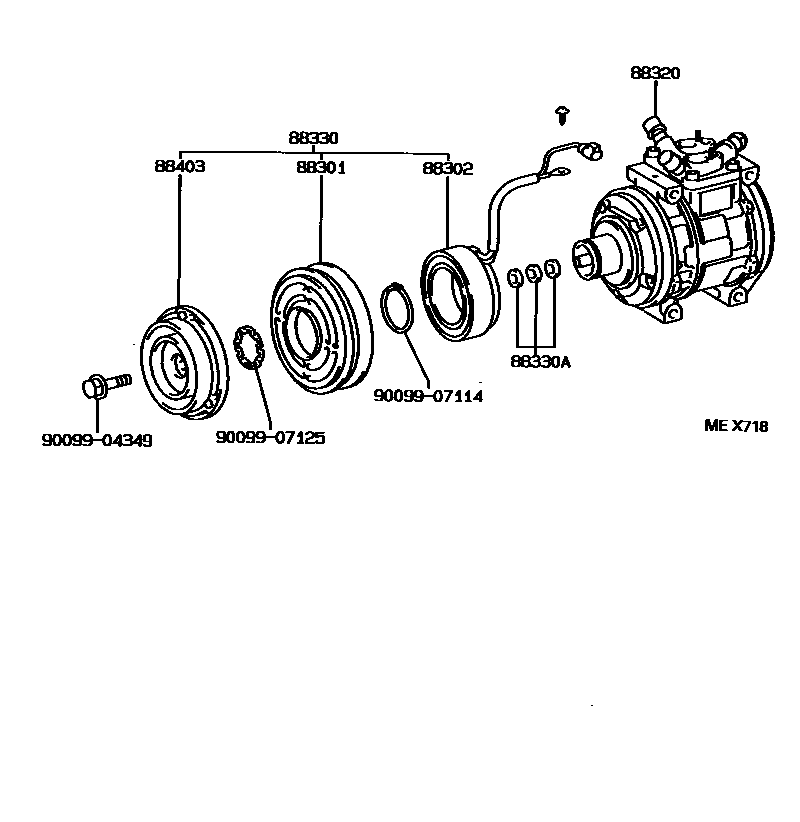

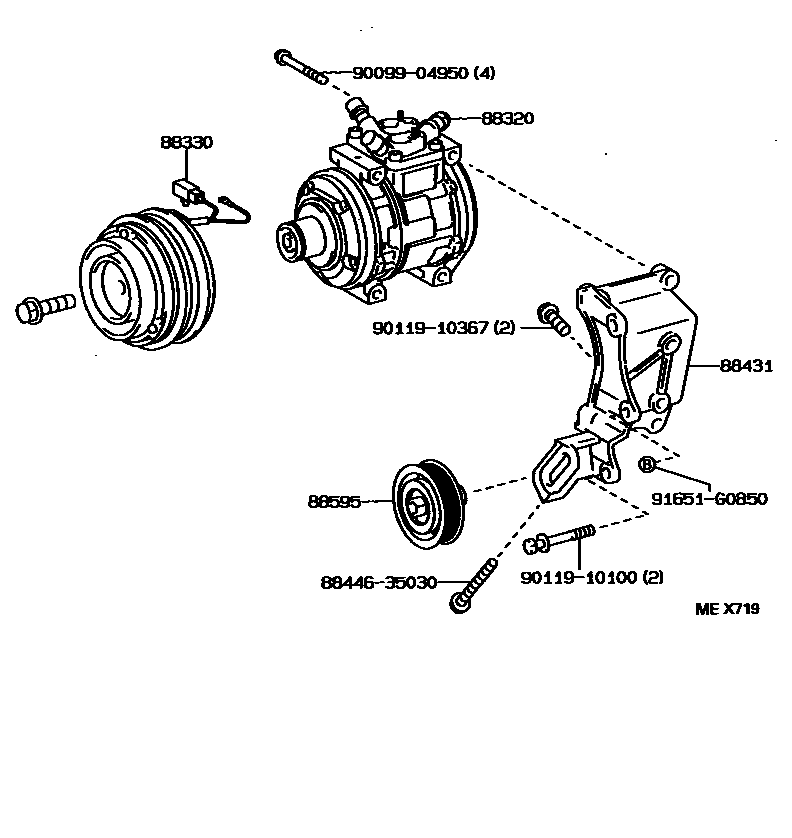

Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719
Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-22030 · 88412-35030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14050 · 88411-14060 · 88411-22310 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-14021 · 88304-14041 |
| 88316 | Cooler compressor crankshaft | 88316-14011 · 88316-14021 |
| 88316A | Compressor crankshaft front bearing | 88366-14010 |
| 88316C | Compressor crankshaft key | 90099-13012 |
| 88320 | Cooler Compressor Assembly | 88320-35110 · 88320-35120 · 88320-35130 · 88320-35140 · 88320-35180 · 88320-35190 · 88320-60620 |
| 88320A | Through bolt | 90099-04370 · 90099-04958 · 90099-04968 |
| 88320B | Service valve bolts | 90099-04309 · 90099-04905 · 90099-04924 |
| 88321 | Cooler compressor cylinder head | 88321-14011 · 88321-32010 · 88322-14011 · 88322-32040 |
| 88321A | Valve sub-assembly | 88341-14010 · 88341-22010 · 88342-14010 · 88342-22010 |
| 88321B | Valve reed sub-assembly | 88344-14011 |
| 88321C | suction valve reed | 88343-14011 · 88343-14020 |
| 88322 | Cooler compressor suction service valve | 88371-24020 · 88371-35020 · 88371-35040 · 88371-60350 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12050 · 88301-14020 |
| 88329C | piston shoe | 88313-14010 |
| 88330 | Magnetic Clutch Assembly | 88410-14150 · 88410-22080 · 88410-60140 · 88410-60310 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 · 90099-01108 · 90099-01350 · 90099-01351 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 · 90099-10135 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07094 · 90099-07114 |
| 88332 | Cooler compressor discharge service valve | 88372-14130 · 88372-26060 · 88372-35050 |
| 88335 | Overhaul gasket assembly | 04881-10010 · 88335-2B010 |
| 88344C | Discharge valve reed | 88344-22010 |
| 88360 | Cooler compressor shaft seal assembly | 88360-2B010 · 88360-40010 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88364 | Compressor crankshaft rear bearing | 88366-14010 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30270 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 · 88403-14040 · 88403-30290 |
| 88431 | Compressor No. 1 mounting bracket | 88431-26170 · 88431-26180 · 88431-28050 · 88431-30490 · 88431-35090 · 88431-35100 · 88431-35150 |
| 88444 | Idler gear bracket | 88444-26060 · 88444-35040 |
| 88445 | Idler gear bracket | 88444-26070 |
| 88469A | Adjustment collar | 88469-30280 |
| 88595 | Cooler compressor idler pulley | 88440-25010 · 88440-28050 · 88440-35010 · 88440-35020 · 88440-35030 |
| 88596 | No. 2 idler gear assembly | 88440-26070 |
