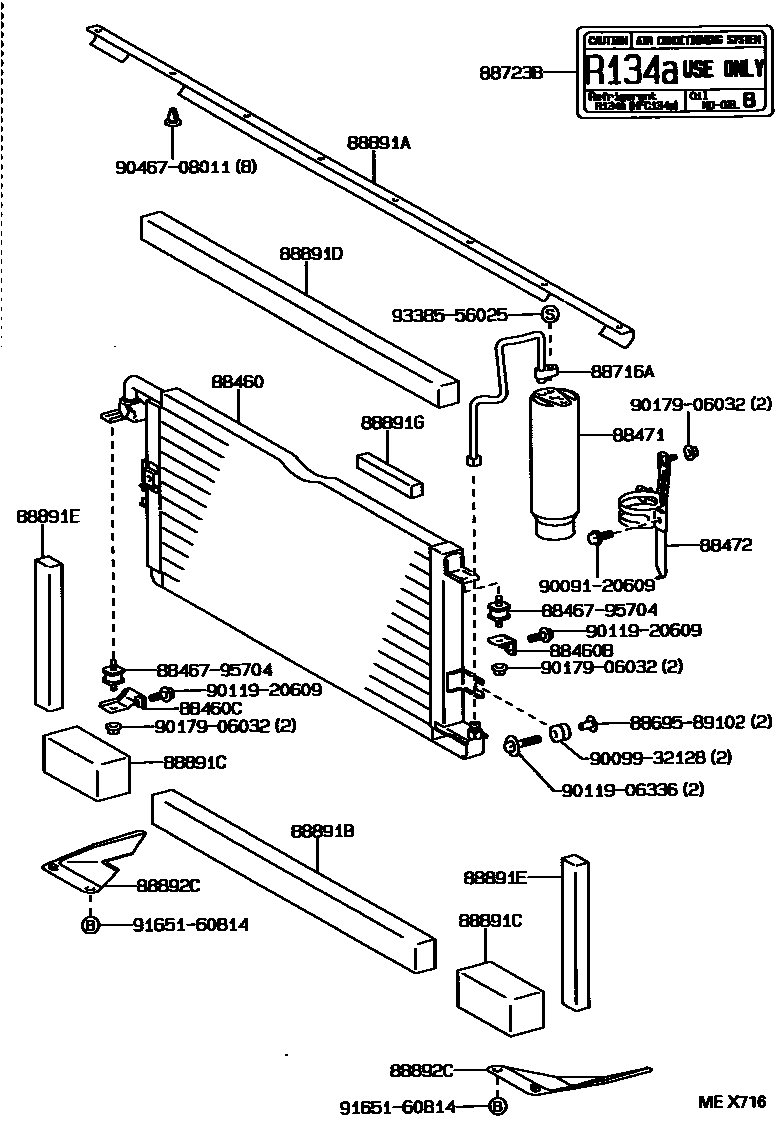

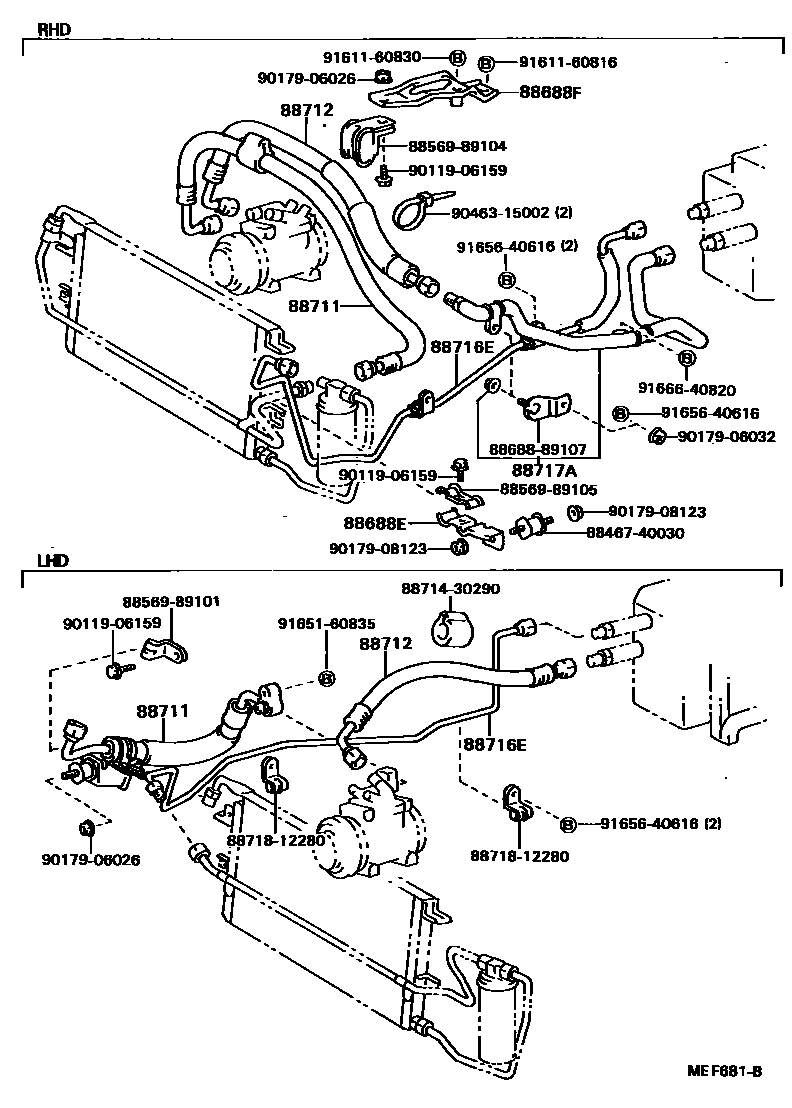

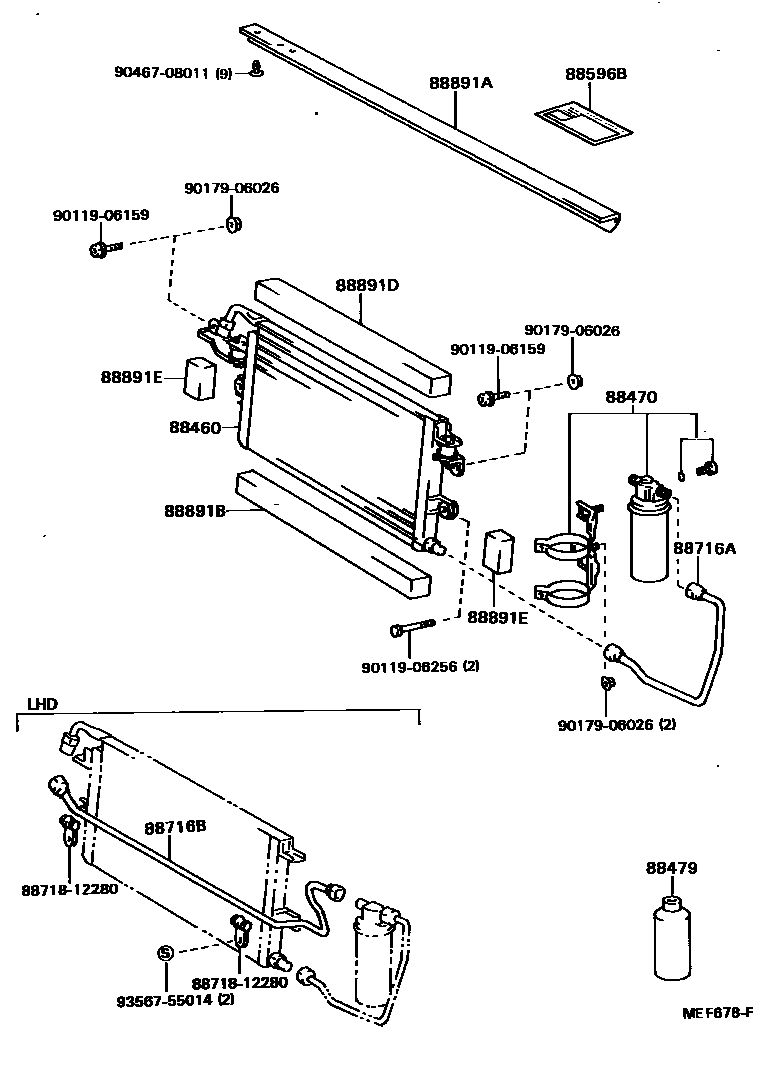

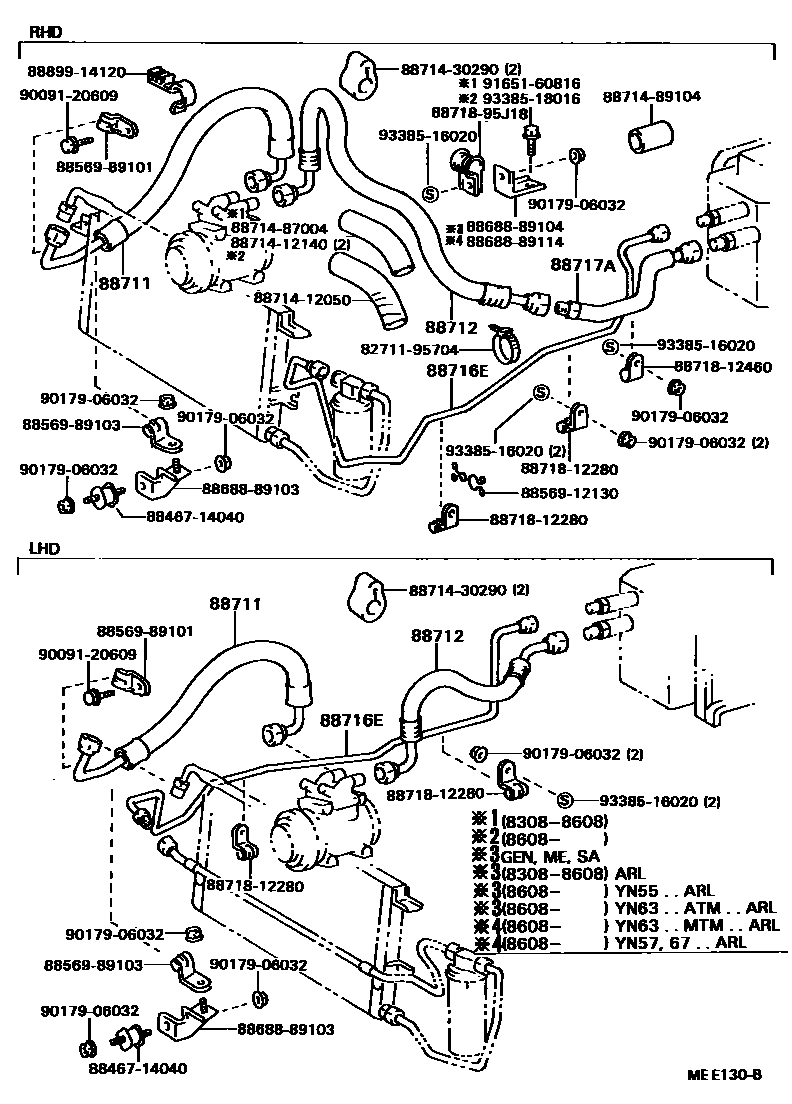

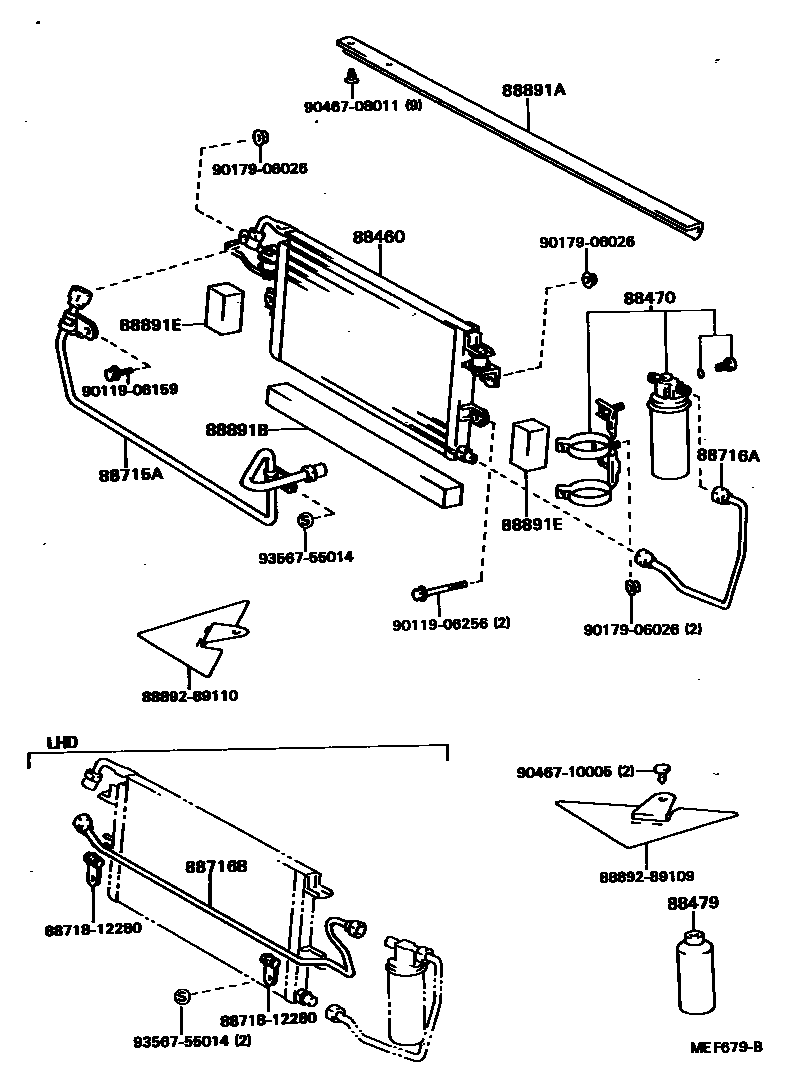

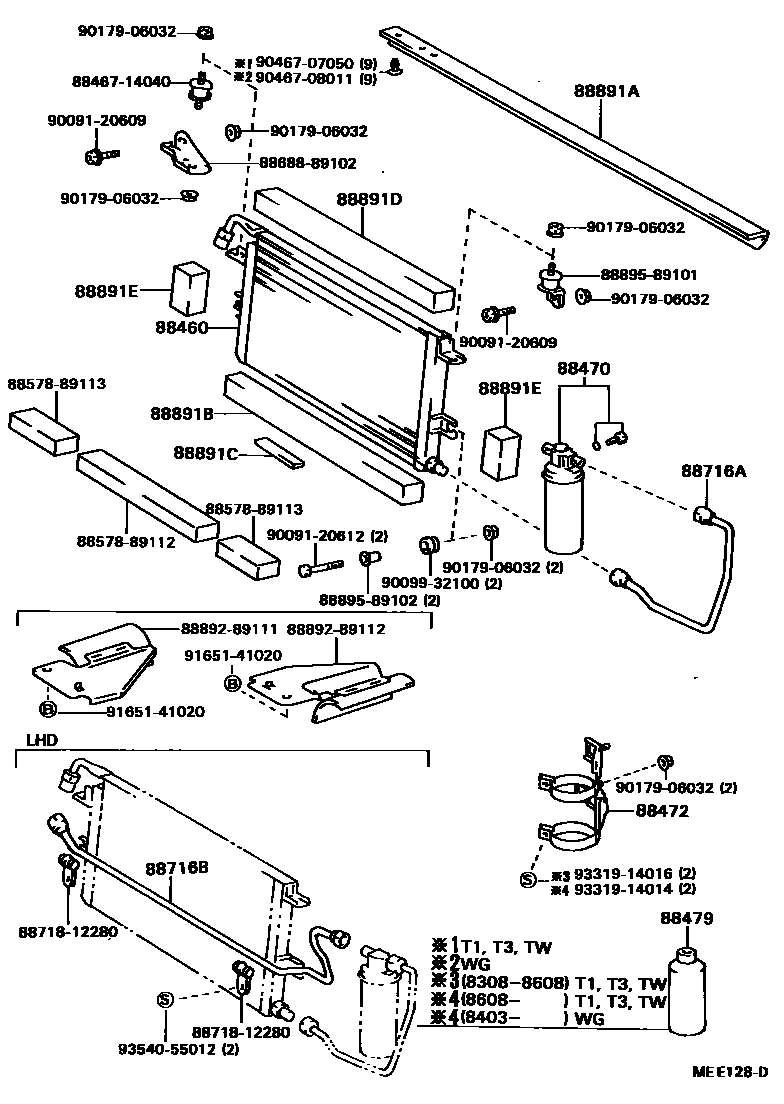

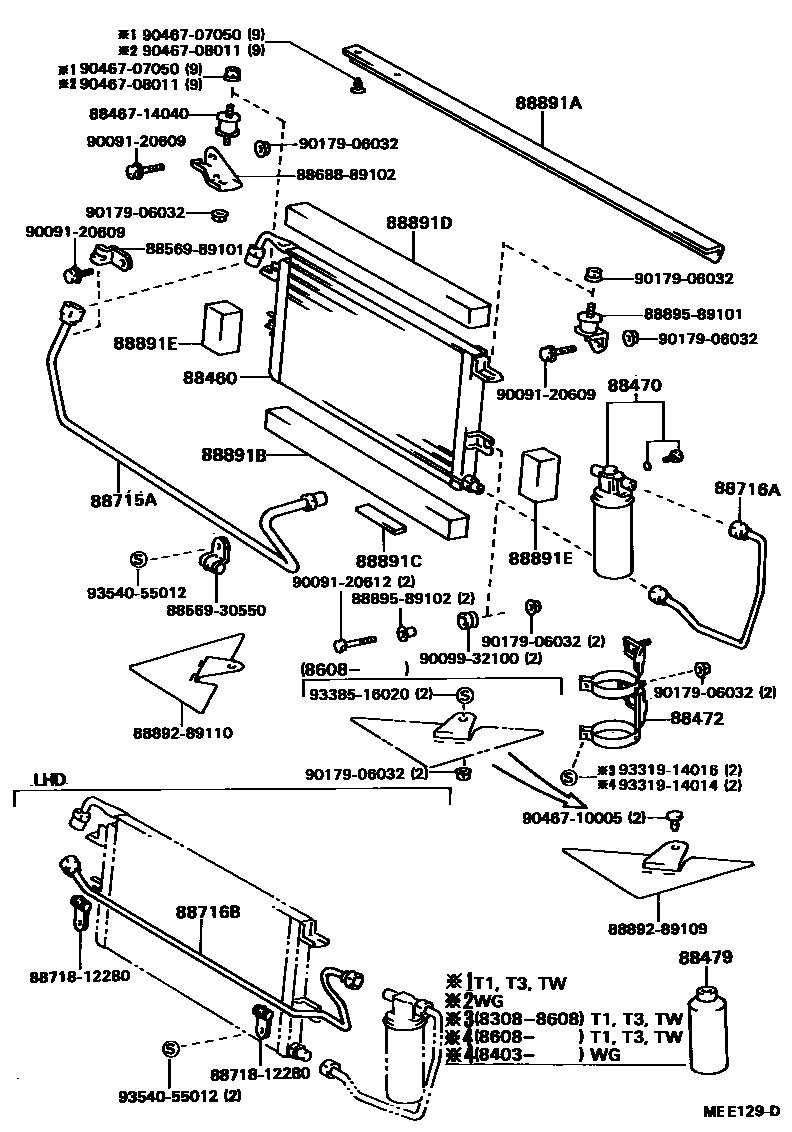

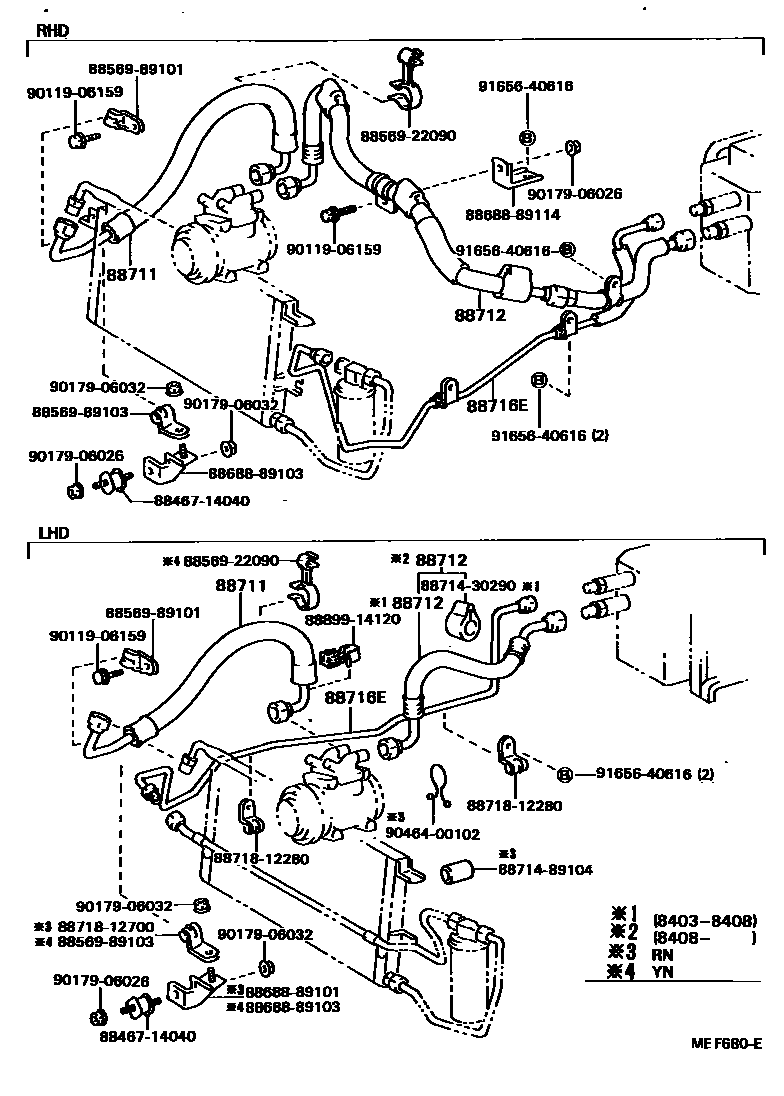

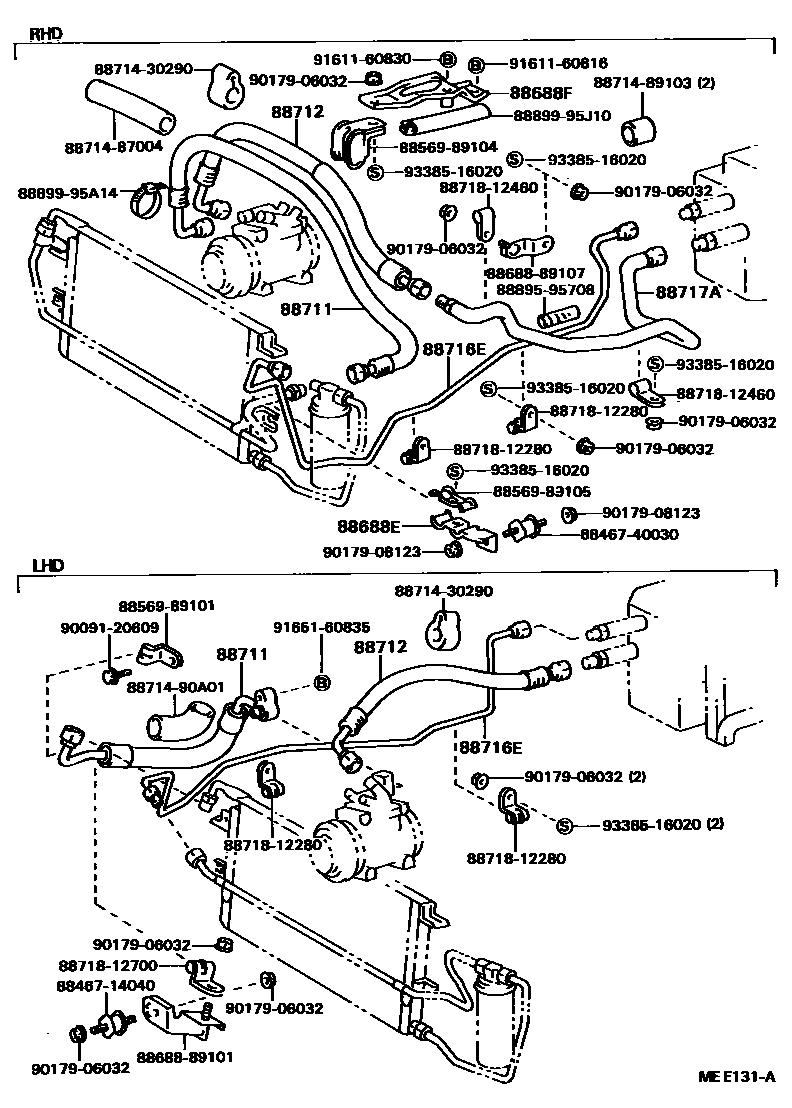

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 10 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-35130 · 88460-89109 · 88460-89110 · 88460-89111 · 88460-89112 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-89120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-89121 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12050 · 88470-89101 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 |
| 88472 | No. 1 liquid storage tank bracket | 88472-89109 · 88472-89110 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88596B | No. 1 warning nameplate | 88596-12010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-89106 · 88688-89110 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-89105 · 88688-89111 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35340 · 88711-89116 · 88711-89117 · 88711-89118 · 88711-89131 · 88720-89103 · 88720-89104 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-35350 · 88712-89119 · 88712-89120 · 88712-89121 · 88712-89122 · 88712-89124 · 88712-89127 · 88712-89130 · 88712-89131 · 88712-89132 · 88712-89134 · 88720-89105 · 88720-89106 · 88720-89107 · 88720-89115 |
| 88715A | Cooler refrigerant discharge pipe A | 88710-89105 · 88715-89103 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-35230 · 88716-89132 · 88716-89138 · 88716-89152 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-35300 · 88716-89133 · 88716-89139 · 88716-89147 |
| 88716E | Cooler refrigerant liquid pipe E | 88710-89104 · 88716-35290 · 88716-89135 · 88716-89136 · 88716-89141 · 88716-89142 · 88716-89148 · 88716-89150 · 88716-89153 |
| 88717A | Cooler refrigerant suction pipe A | 88710-89106 · 88717-35090 · 88717-89108 · 88717-89109 |
| 88717B | Cooler refrigerant suction pipe B | 88717-35080 |
| 88723B | Cooler maintenance warning label | 88723-20040 |
| 88891A | Seal A (for cooler) | 53381-89103 · 53381-89104 |
| 88891B | Seal B (for cooler) | 88578-89101 · 88578-89108 · 88578-89109 · 88578-89110 · 88578-89127 |
| 88891C | Seal C (for cooler) | 88578-89103 · 88578-89107 |
| 88891D | Seal D (for cooler) | 88578-89101 · 88578-89118 · 88893-89114 |
| 88891E | Seal E (for cooler) | 88578-89103 · 88578-89111 · 88578-89112 · 88578-89123 |
| 88891G | Seal G (for cooler) | 88578-89107 |
| 88892C | Condenser plate No. 1 | 88892-89114 · 88892-89115 |
