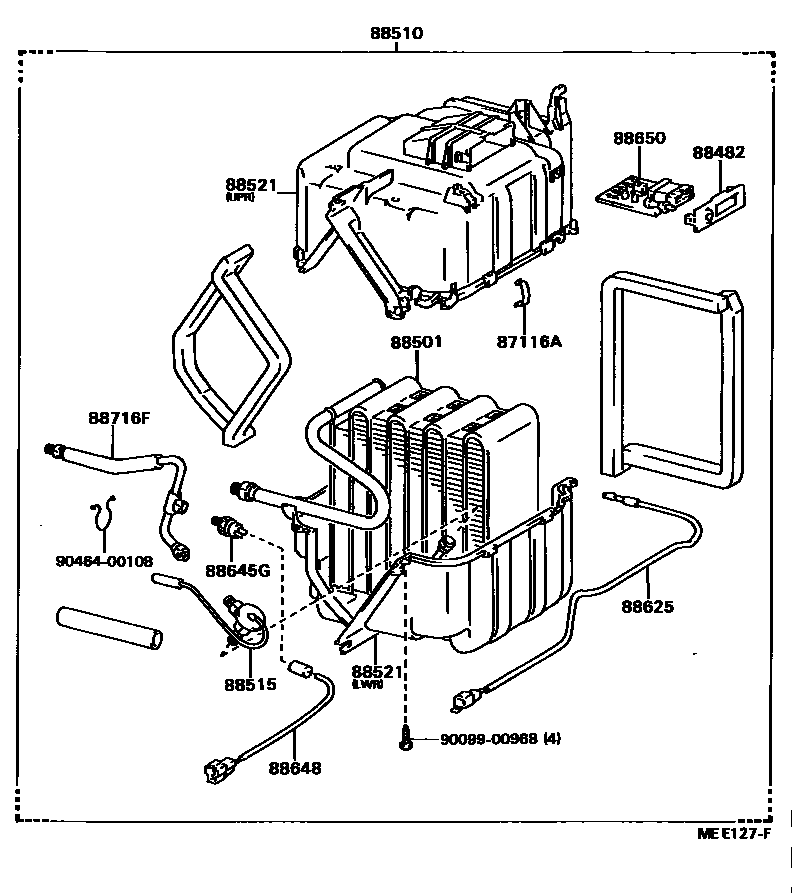

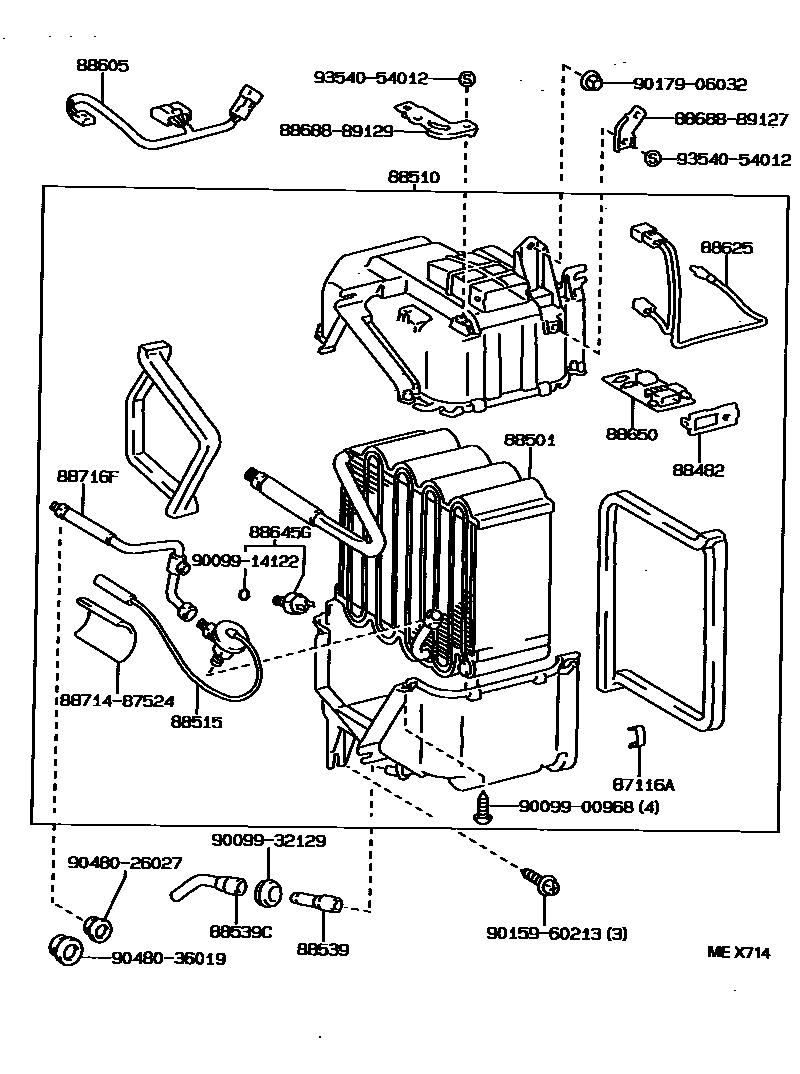

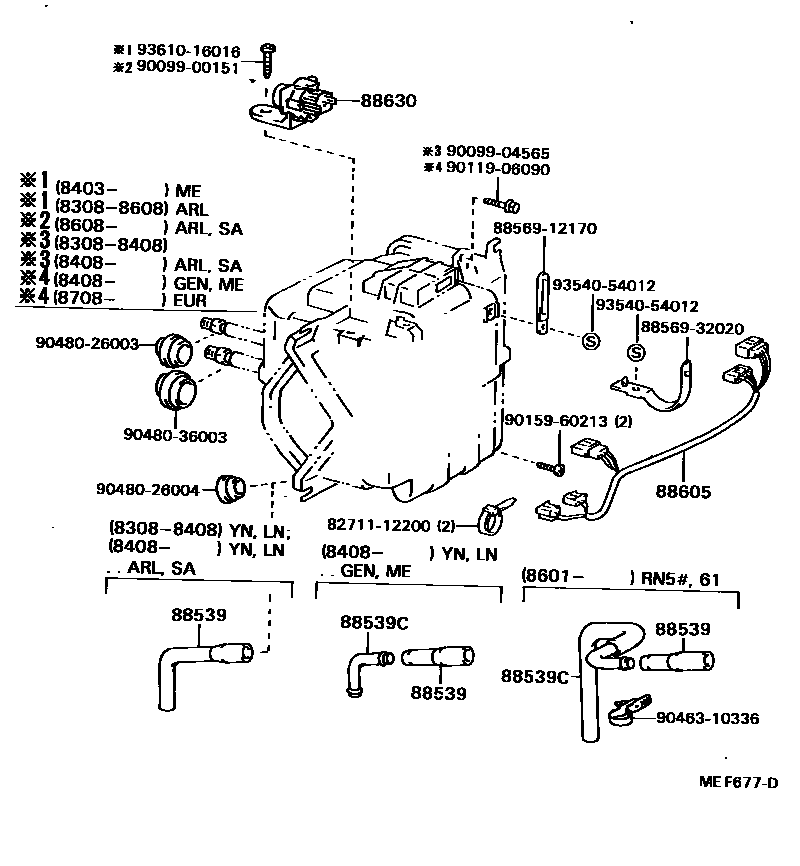

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 88482 | cooler cover | 88482-60010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-35030 · 88501-89106 · 88501-89107 · 88501-89109 · 88501-89110 |
| 88510 | Cooler device assembly | 88510-35470 · 88510-89115 · 88510-89116 · 88510-89117 · 88510-89118 · 88510-89128 · 88510-89130 · 88510-89131 · 88510-89133 · 88510-89138 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 · 88515-34010 |
| 88521 | Cooler unit housing | 88521-89102 · 88521-89103 · 88521-89104 · 88521-89105 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-89105 · 88539-89106 · 88539-89108 · 88539-89113 |
| 88539C | No. 2 cooler unit drain hose | 88539-89107 · 88539-89111 · 88894-89109 · 88894-89110 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-89123 · 88605-89124 · 88605-89125 · 88605-89131 · 88605-89145 · 88605-89147 · 88605-89151 |
| 88625 | Cooler No. 1 Thermistor | 88625-34010 · 88625-89101 |
| 88630 | Cooler relay assembly | 88630-60020 |
| 88645G | pressure switch | 88645-10020 · 88645-12020 · 88645-34010 |
| 88648 | No. 1 cooler wiring harness | 88648-89118 |
| 88650 | Cooler stabilized amplifier assembly | 88650-16010 · 88650-20100 · 88650-89101 · 88650-89103 · 88650-89105 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-35220 · 88716-89146 · 88716-89149 |
