Toyota HILUX 后视镜 — Figure 8701
Toyota HILUX EPC diagram 8701, 后视镜, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

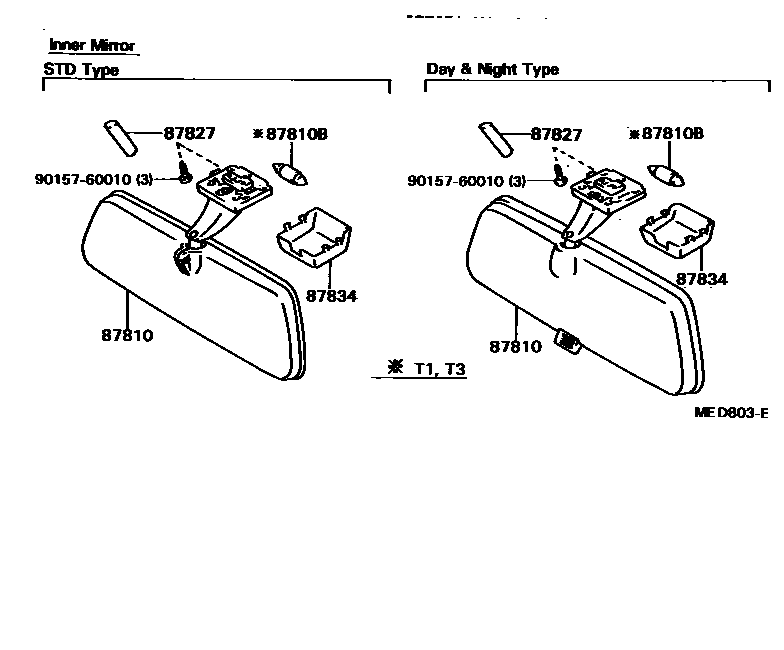

| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87827 | Interior rearview mirror shock absorber | 87828-89101 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-89102 |

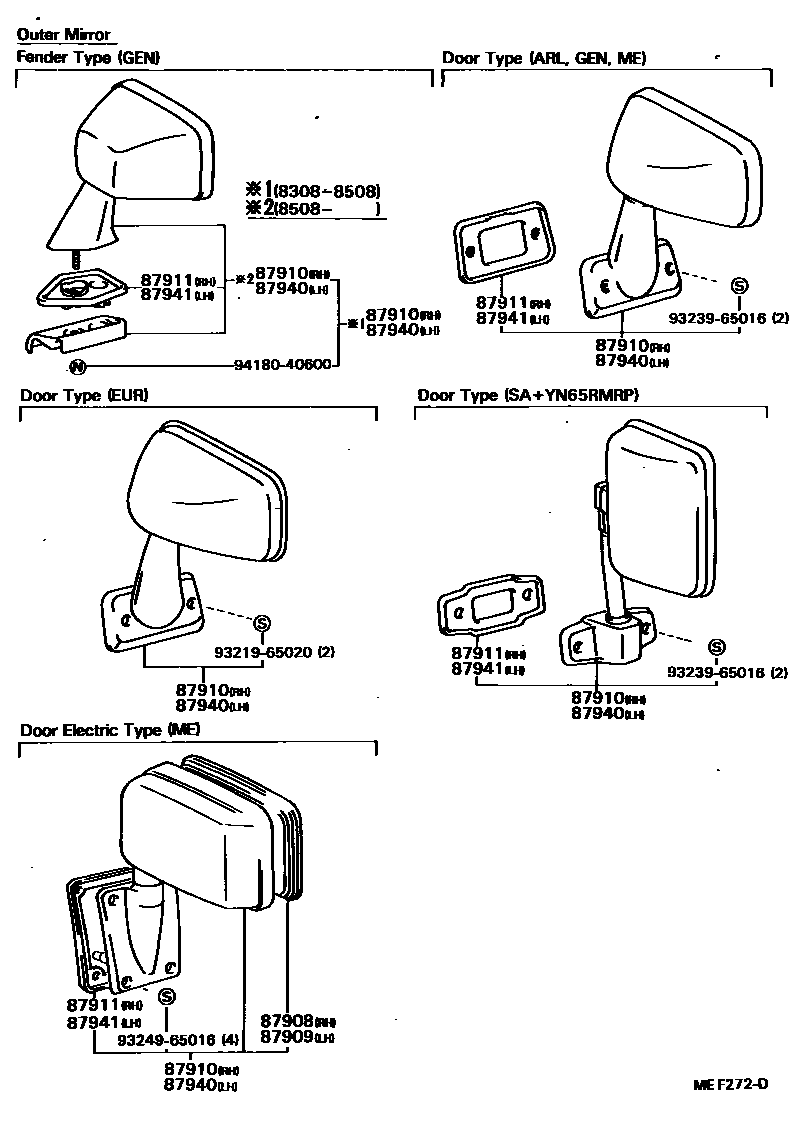

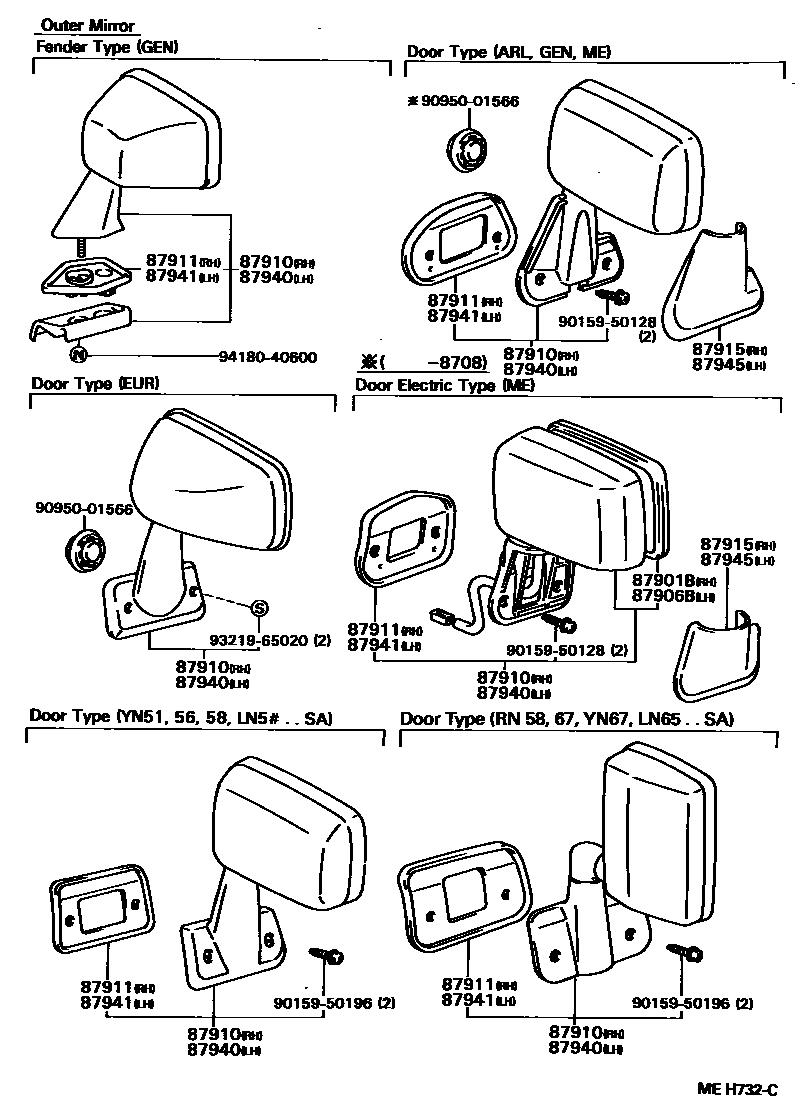

| 87901B | Right exterior rearview mirror sub-assembly | 87931-89133 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-89136 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-89101 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-89101 |
| 87910 | Right exterior rearview mirror assembly | 87910-39345 · 87910-80095 · 87910-80096 · 87910-80108 · 87910-89116 · 87910-89123 · 87910-89124 · 87910-89125 · 87910-89129 · 87910-89130 · 87910-89131 · 87910-89132 · 87910-89133 · 87910-89135 · 87910-89136 · 87910-89137 |
| 87911 | Right exterior mirror pad | 87911-89105 · 87911-89107 · 87911-89109 · 87911-89110 · 87911-89111 · 87911-89112 · 87926-89101 · 87926-89102 |
| 87915 | Right exterior rearview mirror cover | 87915-89102 · 87915-89103 · 87915-89104 |
| 87940 | Left exterior rearview mirror assembly | 87940-39295 · 87940-80095 · 87940-80096 · 87940-80108 · 87940-89119 · 87940-89126 · 87940-89127 · 87940-89128 · 87940-89132 · 87940-89133 · 87940-89134 · 87940-89135 · 87940-89136 · 87940-89138 |
| 87941 | Left exterior mirror pad | 87911-89107 · 87926-89101 · 87926-89102 · 87941-89103 · 87941-89105 · 87941-89106 · 87941-89108 · 87941-89109 |
| 87945 | Left exterior rearview mirror cap | 87945-89101 · 87945-89102 · 87945-89104 |
