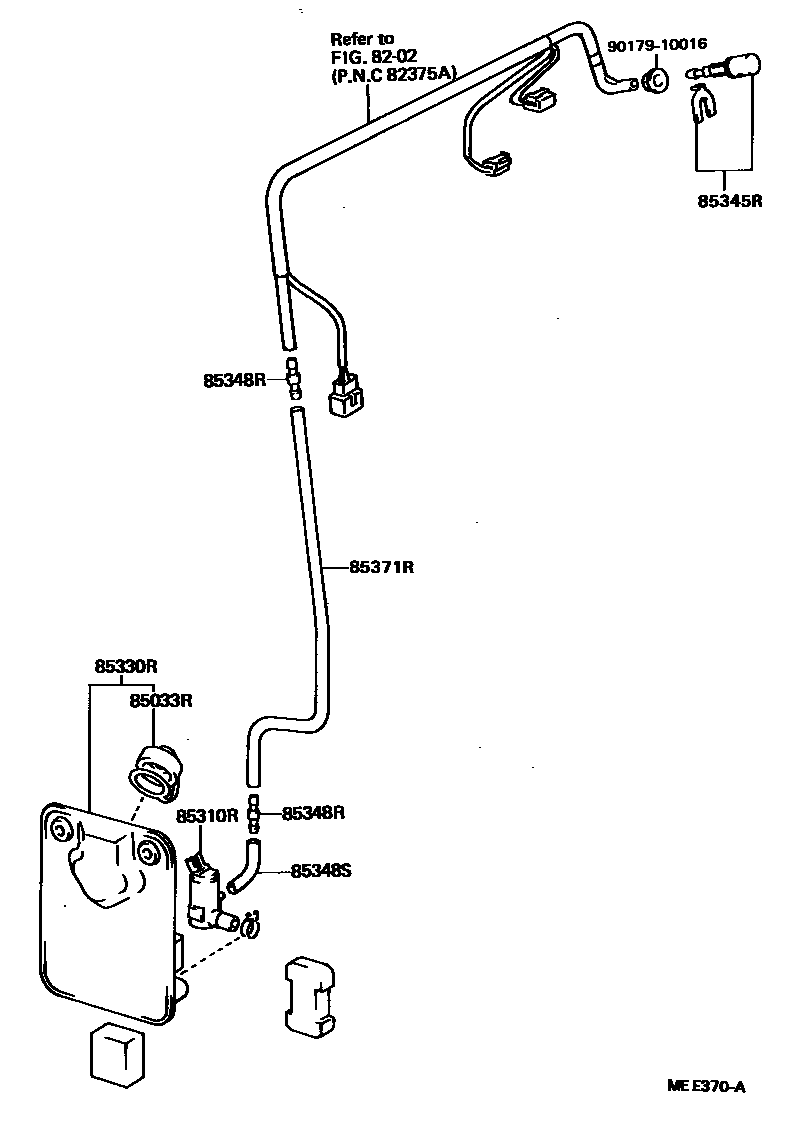

Toyota HILUX 后清洗器 — Figure 8504
Toyota HILUX EPC diagram 8504, 后清洗器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033R | Rear washer cover assembly | 85332-20070 · 85332-89132 |
| 85310R | Rear washer motor assembly | 85310-22080 |
| 85330R | Rear cleaning fluid tank assembly | 85331-89125 · 85331-89132 |
| 85345R | Rear washer nozzle | 85035-89108 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-14481 |
