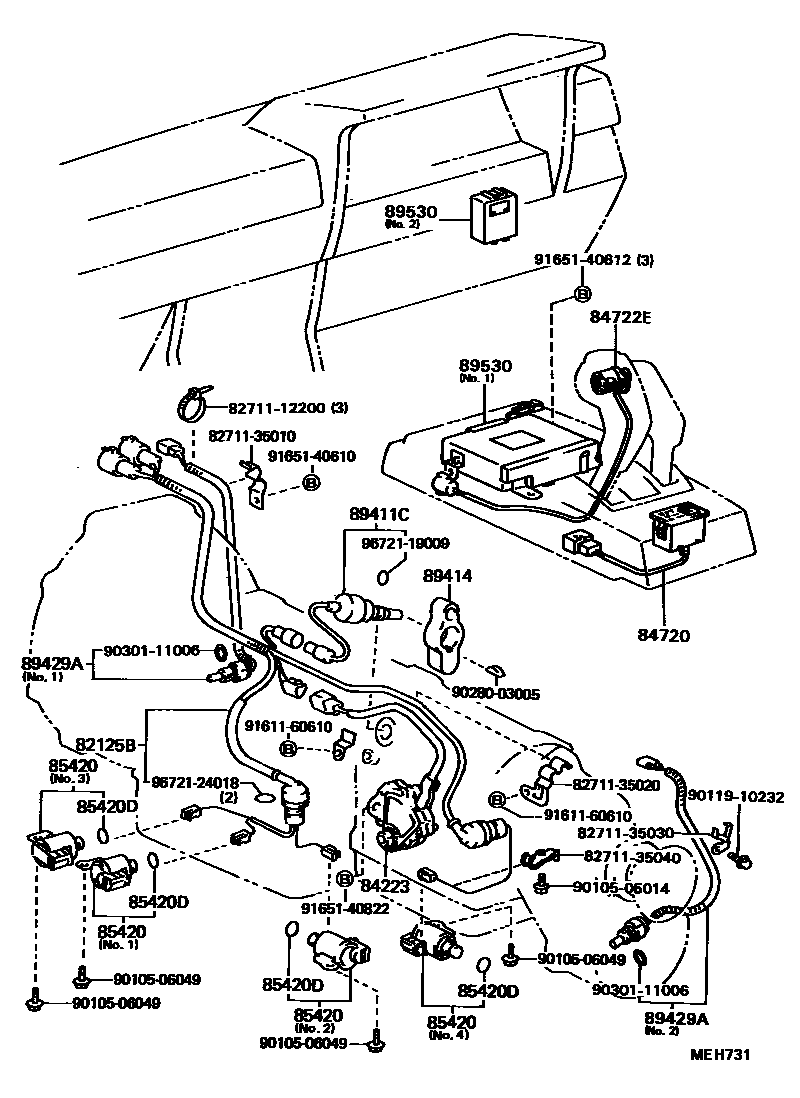

Toyota HILUX 电子控制变速器 — Figure 8412
Toyota HILUX EPC diagram 8412, 电子控制变速器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125B | Transmission wiring harness | 82125-35030 |
| 84223 | transfer case position switch | 84223-35010 |
| 84720 | Mode selection switch assembly | 84720-35020 |
| 85420 | Transmission solenoid valve assembly | 85420-12020 · 85420-22070 · 85420-22080 · 85420-30110 · 85420-30120 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 89411C | Speed sensor | 89411-35010 |
| 89414 | sensor rotor | 89414-35010 |
| 89429A | temperature sensor | 89429-35021 · 89429-35030 |
| 89530 | Transmission control ECU assembly | 89530-35120 · 89530-35180 |
