Toyota HILUX 巡航控制(自动行驶) — Figure 8408

Toyota HILUX EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 9 PNC and OE references.

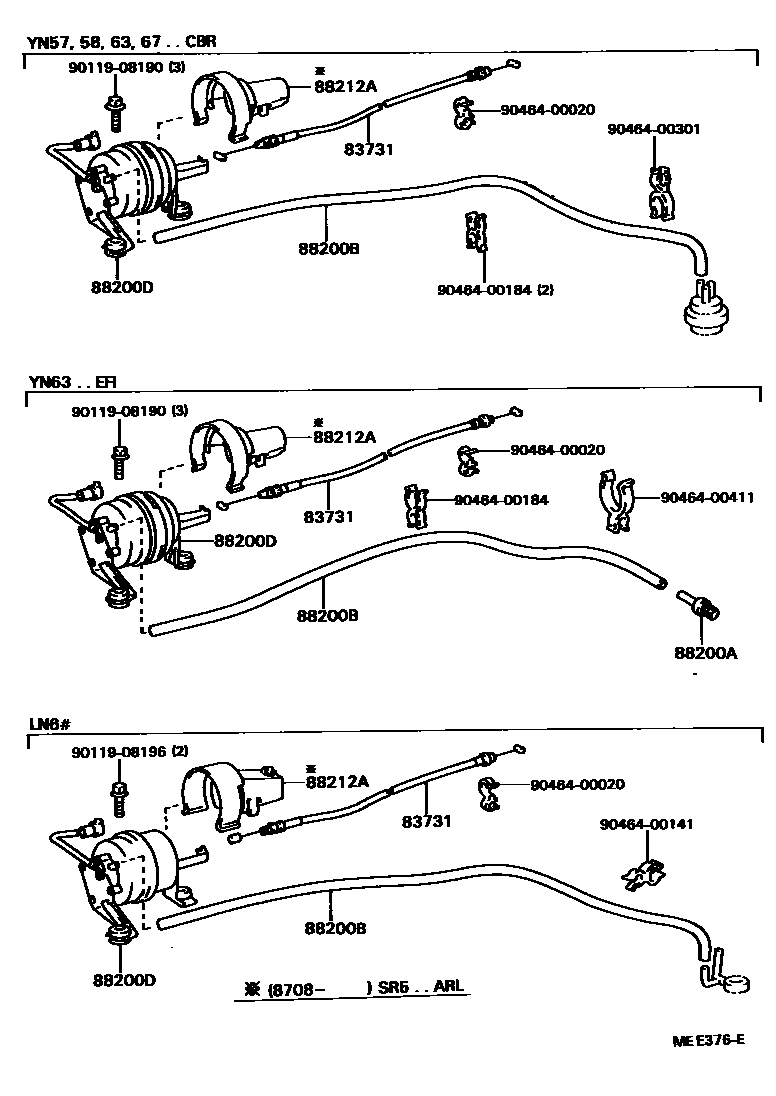

Toyota HILUX 巡航控制(自动行驶) EPC diagram — MEE376E
巡航控制(自动行驶) — MEE376E (198403 – 999999)

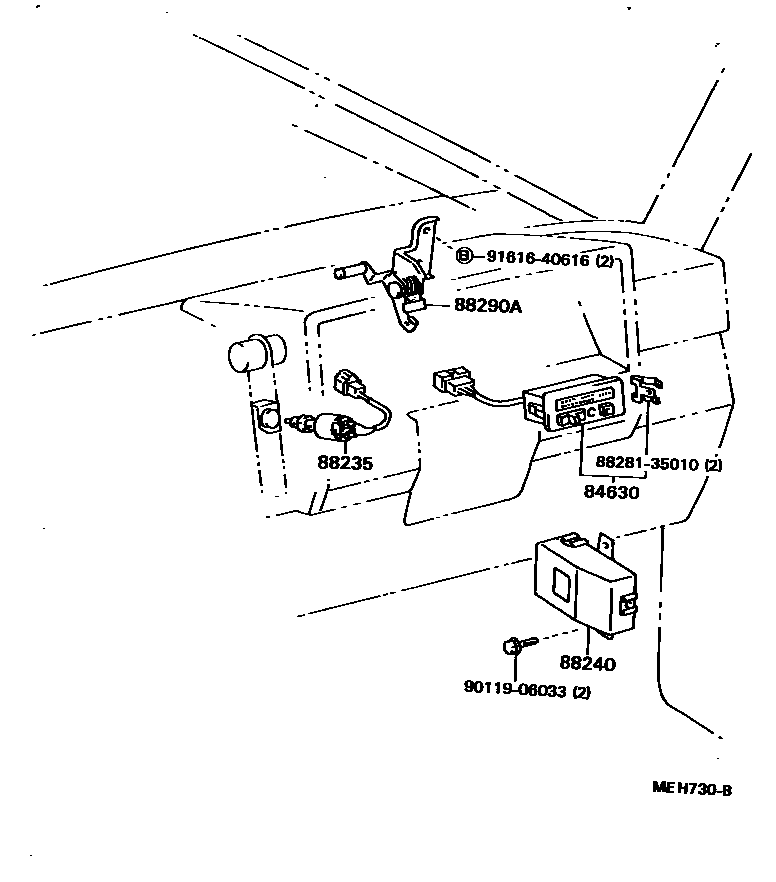

Toyota HILUX 巡航控制(自动行驶) EPC diagram — MEH730B
巡航控制(自动行驶) — MEH730B (198403 – 999999)

PNC and OE references

PNCPart nameOE numbers
83731cruise control cable83731-35020 · 83731-35021 · 83731-35070 · 83731-35100 · 83731-35120 · 83731-35130
84630Cruise control main switch assembly84630-35011 · 88230-12010 · 88230-35020
88200Acruise control vacuum fitting or tube90404-51010
88200Bcruise control vacuum hose90999-92004 · 95411-19995
88200DCruise control actuator assembly88200-35040 · 88200-35041 · 88200-35080 · 88200-35110 · 88200-35130 · 88200-35131 · 88200-35140 · 88200-35141
88212Acruise control actuator cover88212-12070 · 88212-35070
88235Cruise control (automatic driving) release switch assembly88280-35010
88240Cruise control ECU assembly88240-35020 · 88240-35040 · 88240-35100 · 88240-35110
88290ACruise control right angle lever assembly88290-89103
