Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

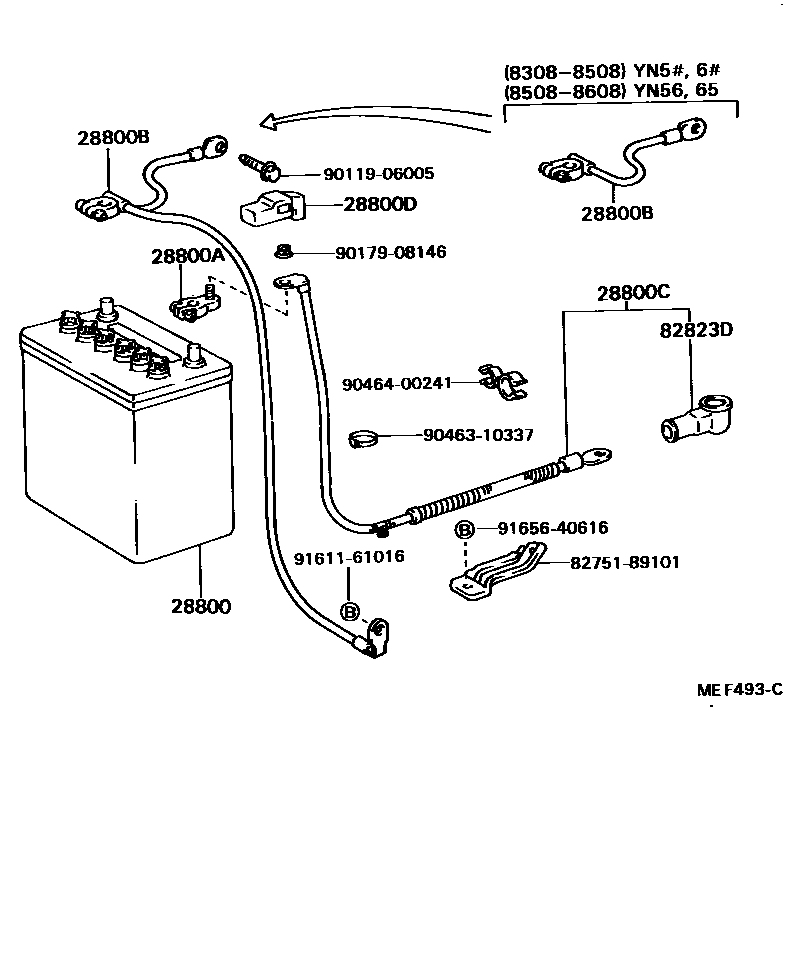

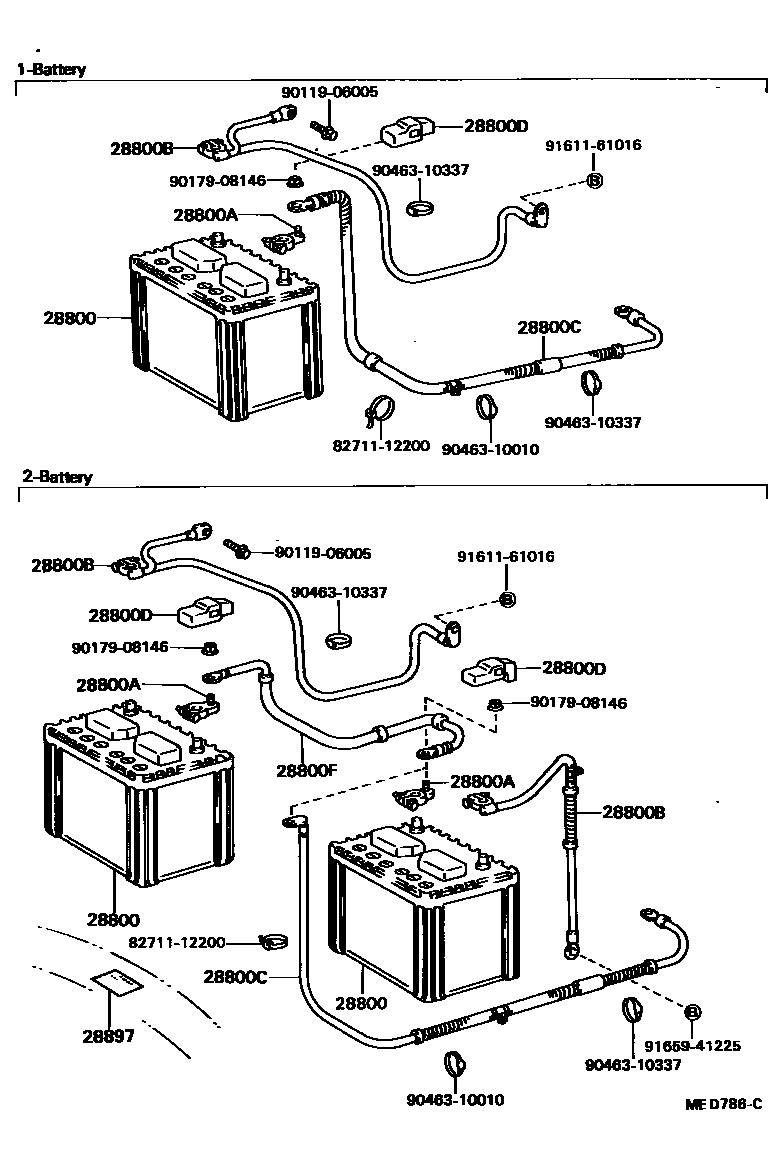

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-14010 · 28800-15010 · 28800-24030 · 28800-30082 · 28800-33071 · 28800-54040 · 28800-54140 · 28800-54170 |
| 28800A | battery positive terminal | 90982-05004 · 90982-05028 · 90982-05030 |
| 28800B | Cable between battery and ground | 90982-02259 · 90982-02260 · 90982-02261 · 90982-02262 · 90982-02267 · 90982-02270 · 90982-02271 · 90982-02272 |
| 28800C | Cable between battery and starter (for battery to main switch) | 90982-01426 · 90982-01427 · 90982-01428 · 90982-01429 |
| 28800D | Connector cover (for battery terminals) | 82821-12150 · 82821-24010 |
| 28800F | Cables between batteries | 90982-03025 |
| 28897 | Battery warning nameplate | 28897-54030 |
| 82823D | Terminal cover | 82823-14070 |
