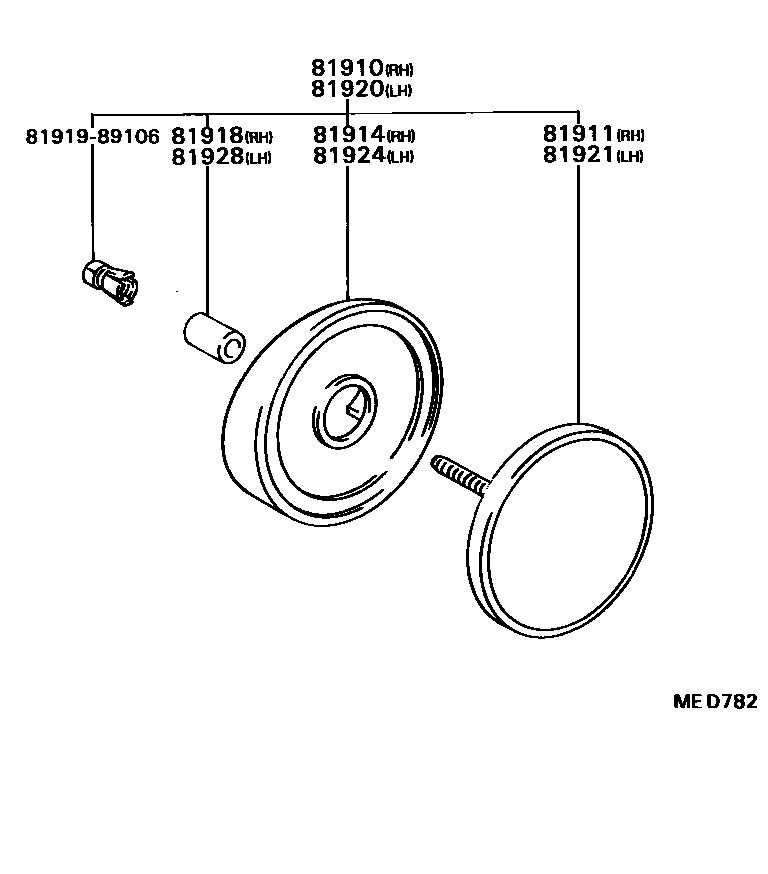

Toyota HILUX reflector — Figure 8115
Toyota HILUX EPC diagram 8115, reflector, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81910 | Right reflector assembly | 81910-39085 · 81910-89106 |
| 81911 | Right rear reflector lamp cover | 81911-89106 |
| 81914 | Right reflector body gasket | 81914-89106 |
| 81918 | Right reflector spacer | 81918-89106 |
| 81920 | Left reflector assembly | 81910-39085 · 81910-89107 |
| 81921 | Left rear reflector lampshade | 81911-89106 |
| 81924 | Left reflector body gasket | 81914-89107 |
| 81928 | Left reflector spacer | 81918-89106 |
