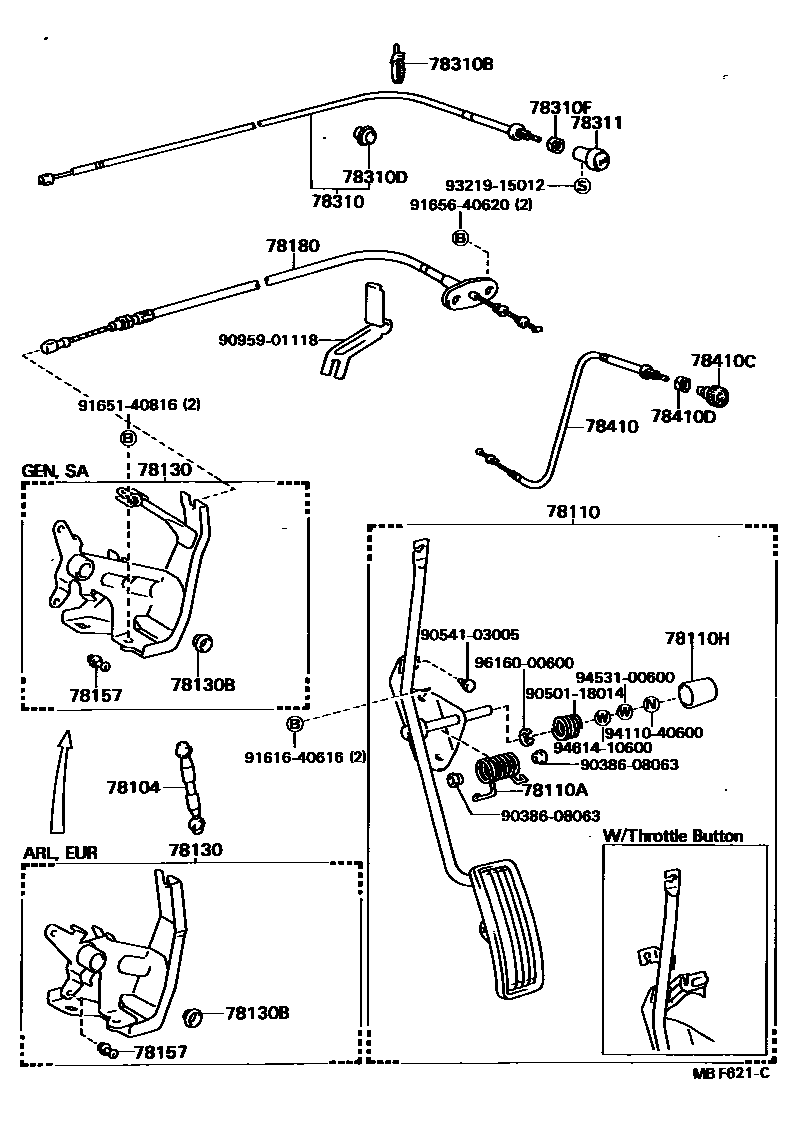

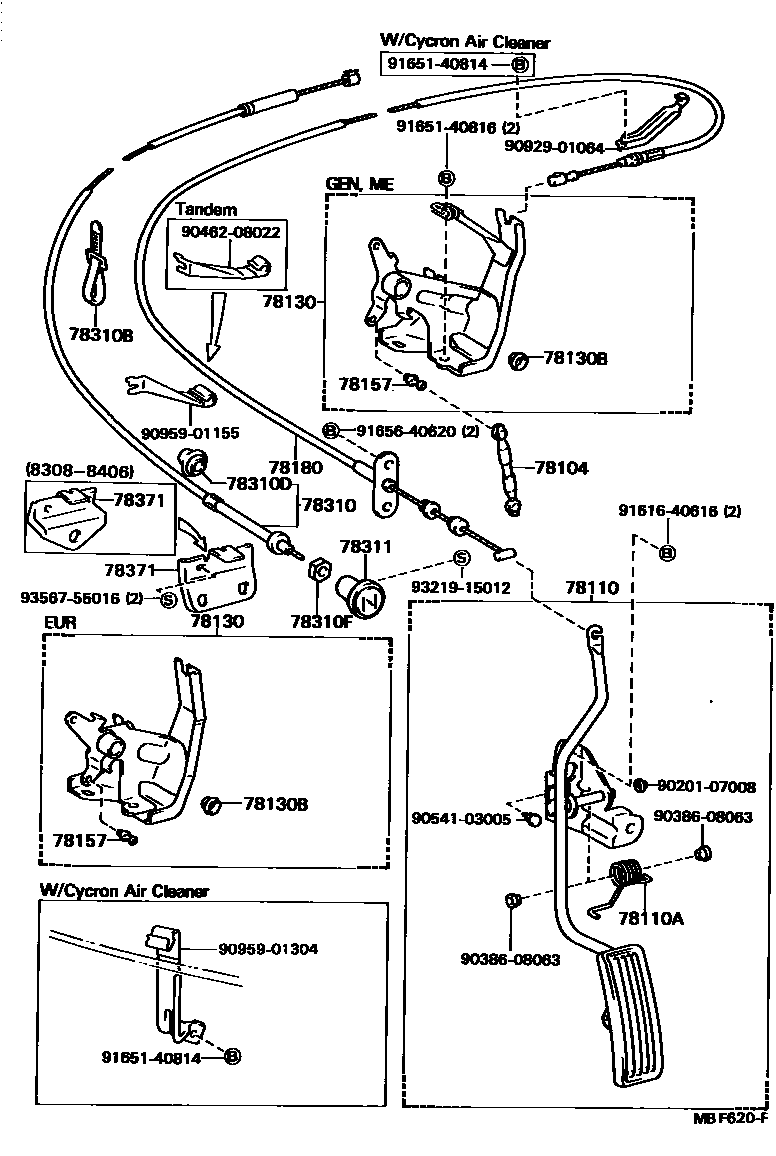

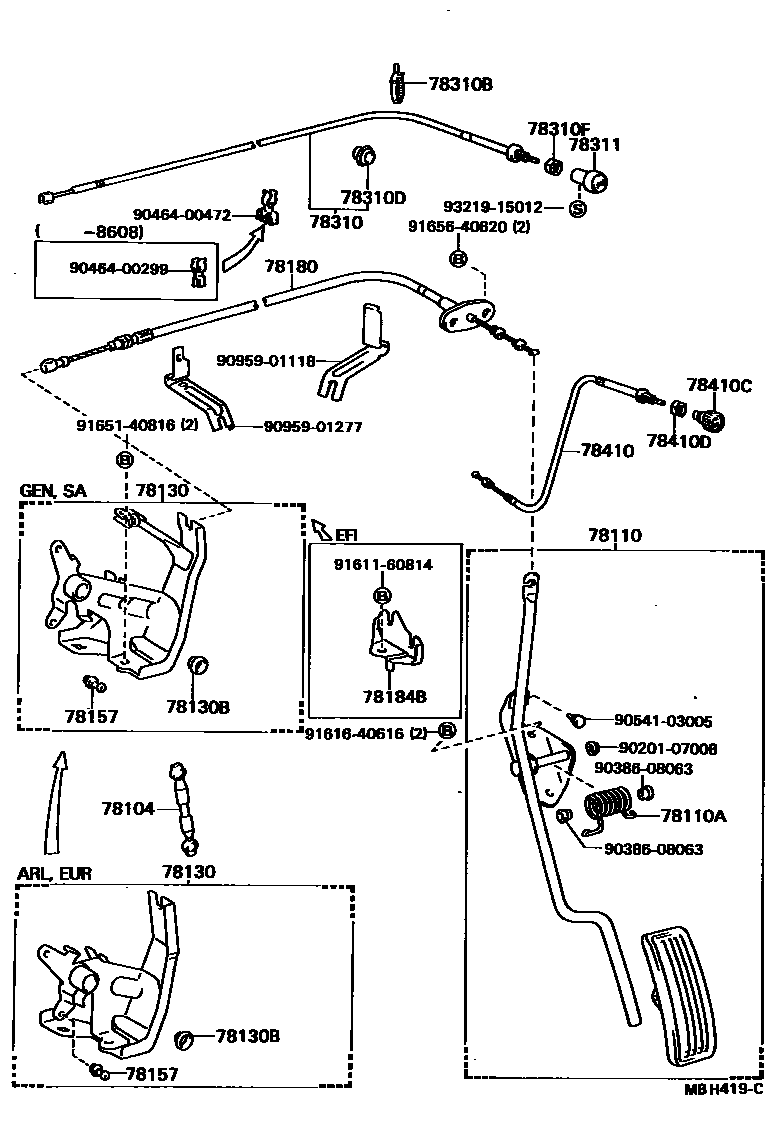

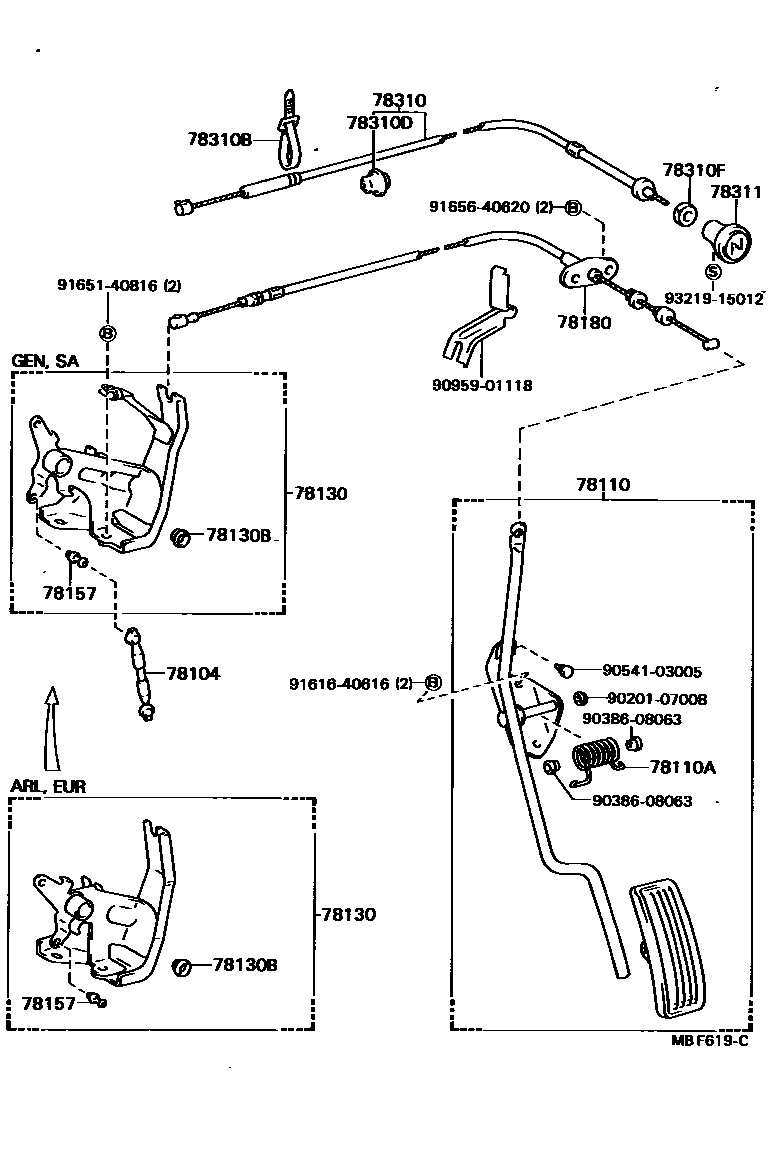

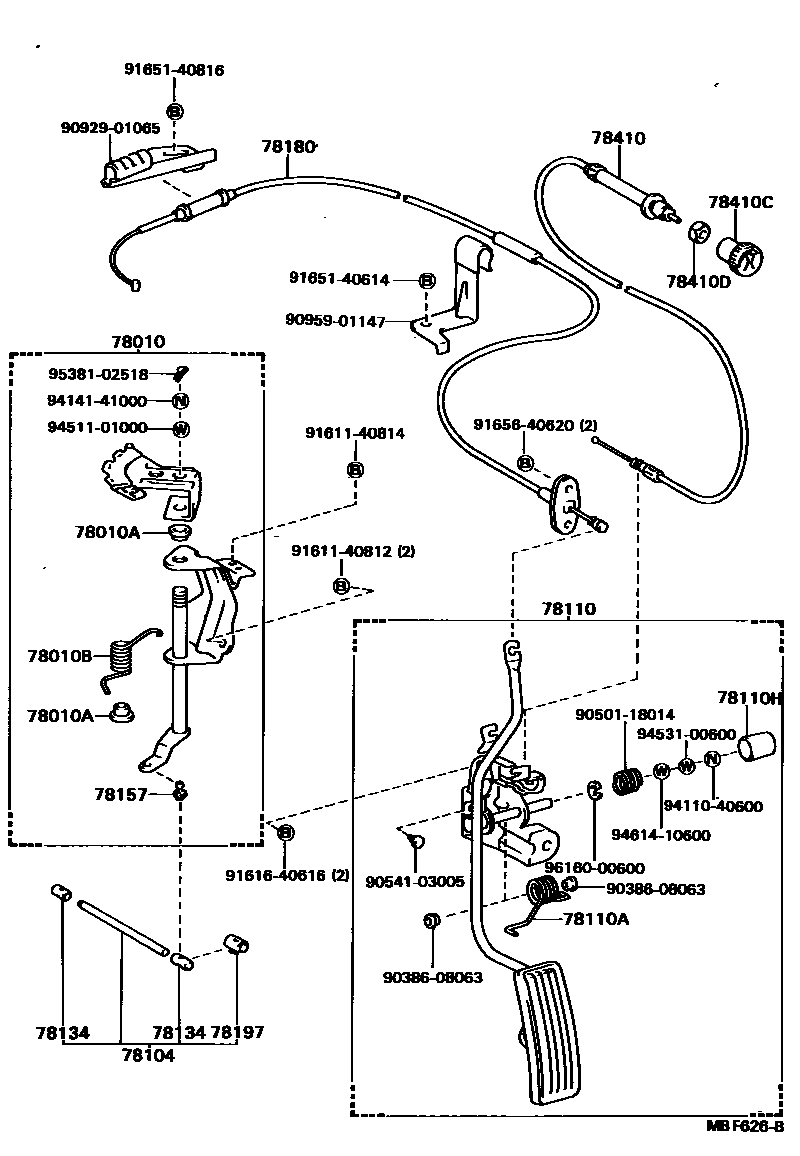

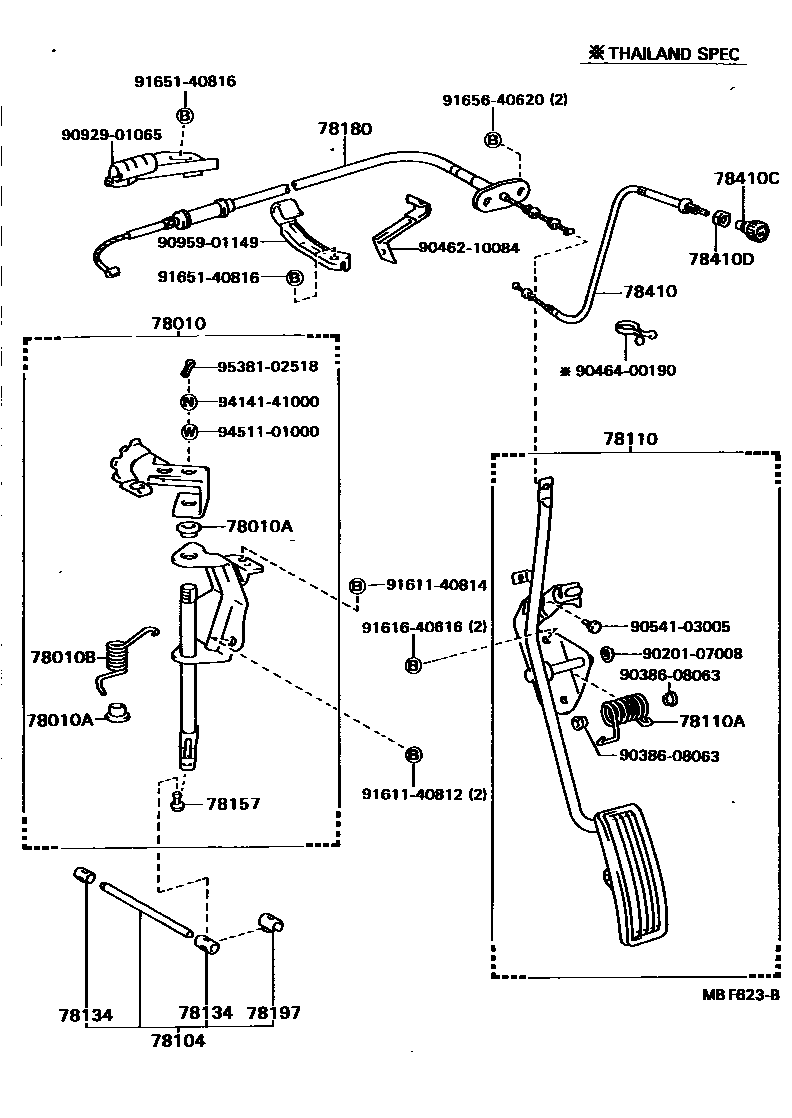

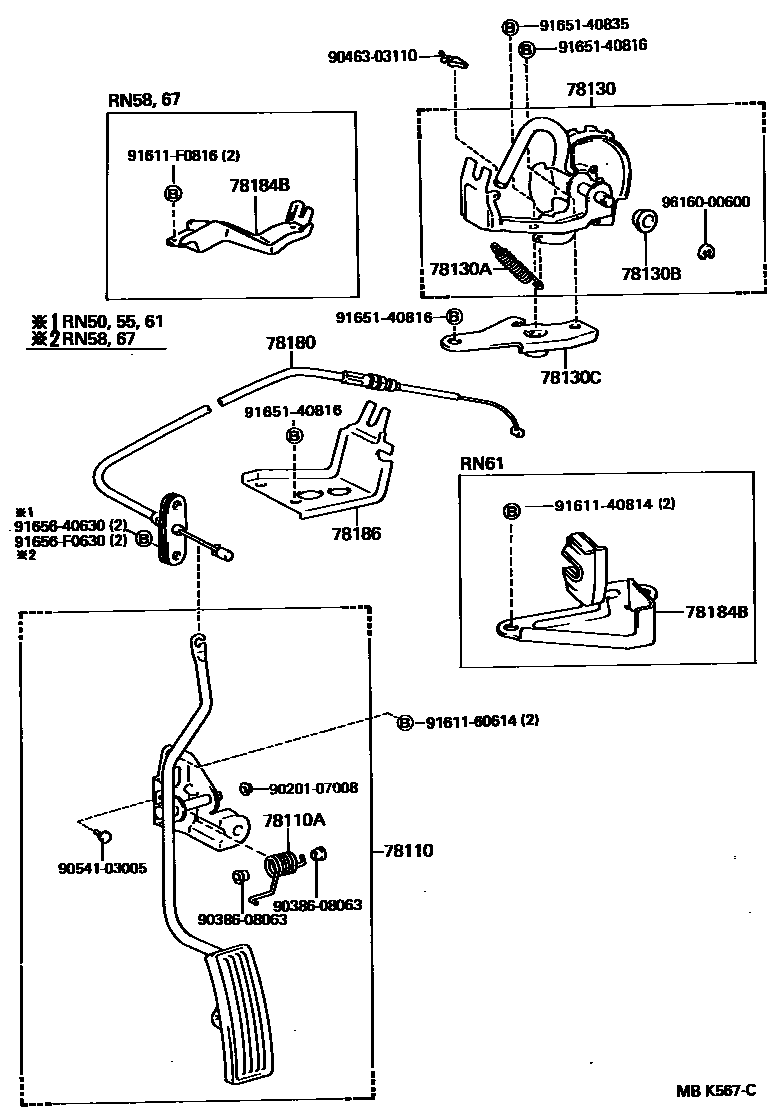

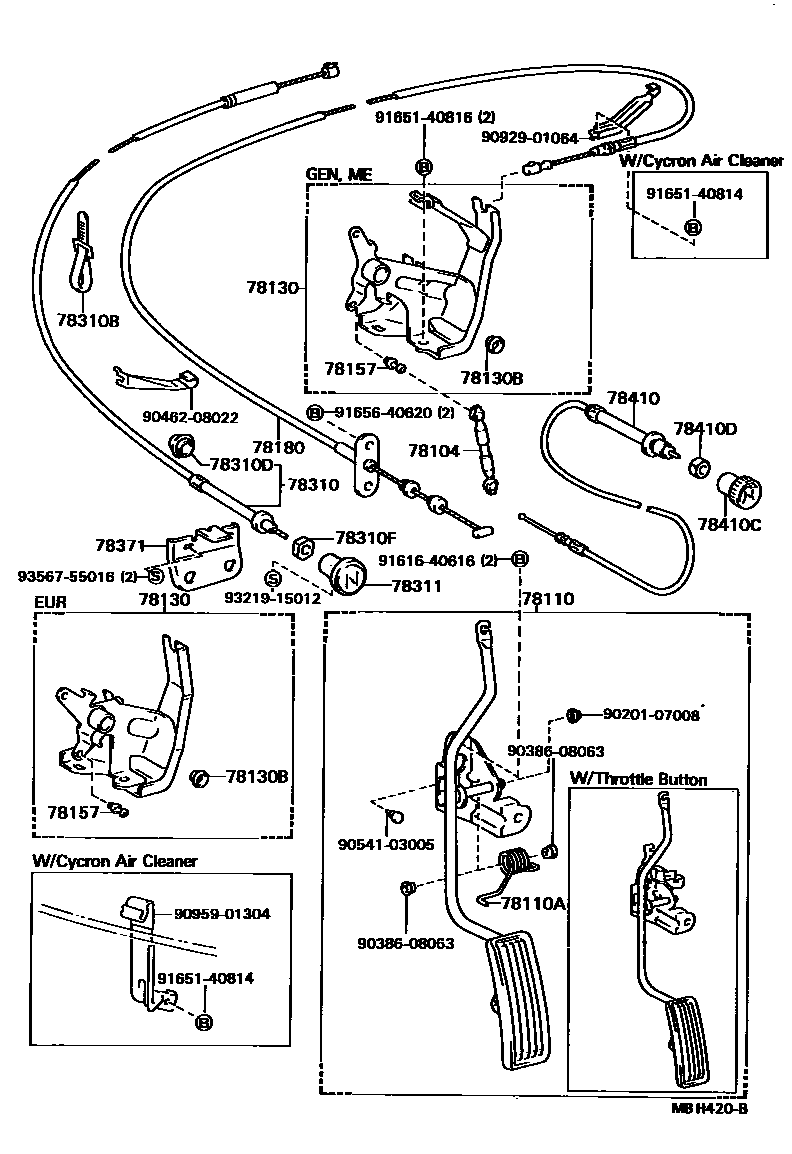

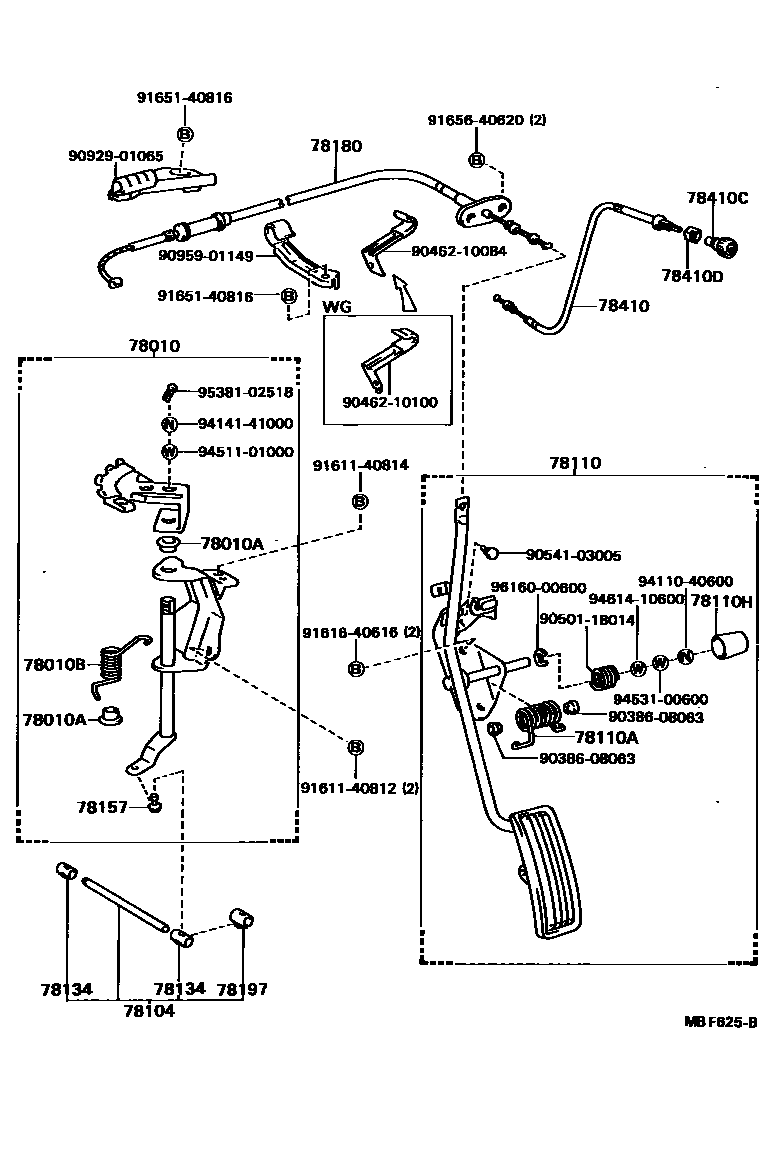

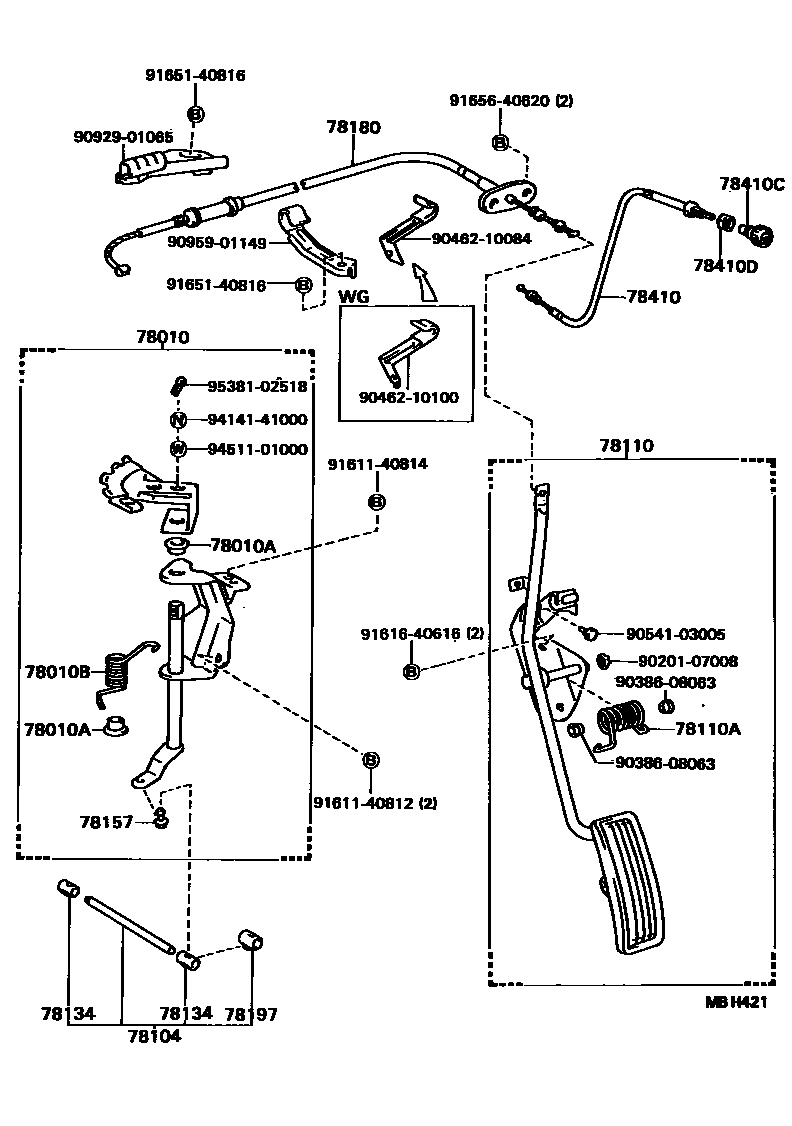

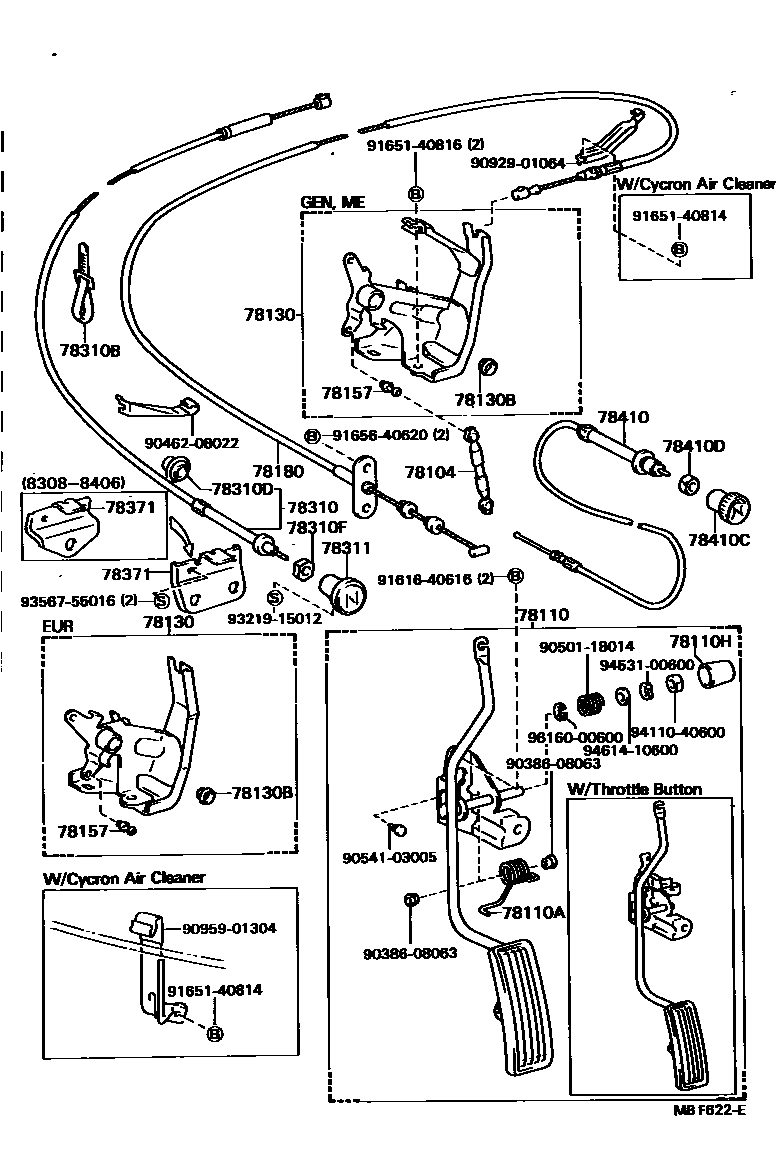

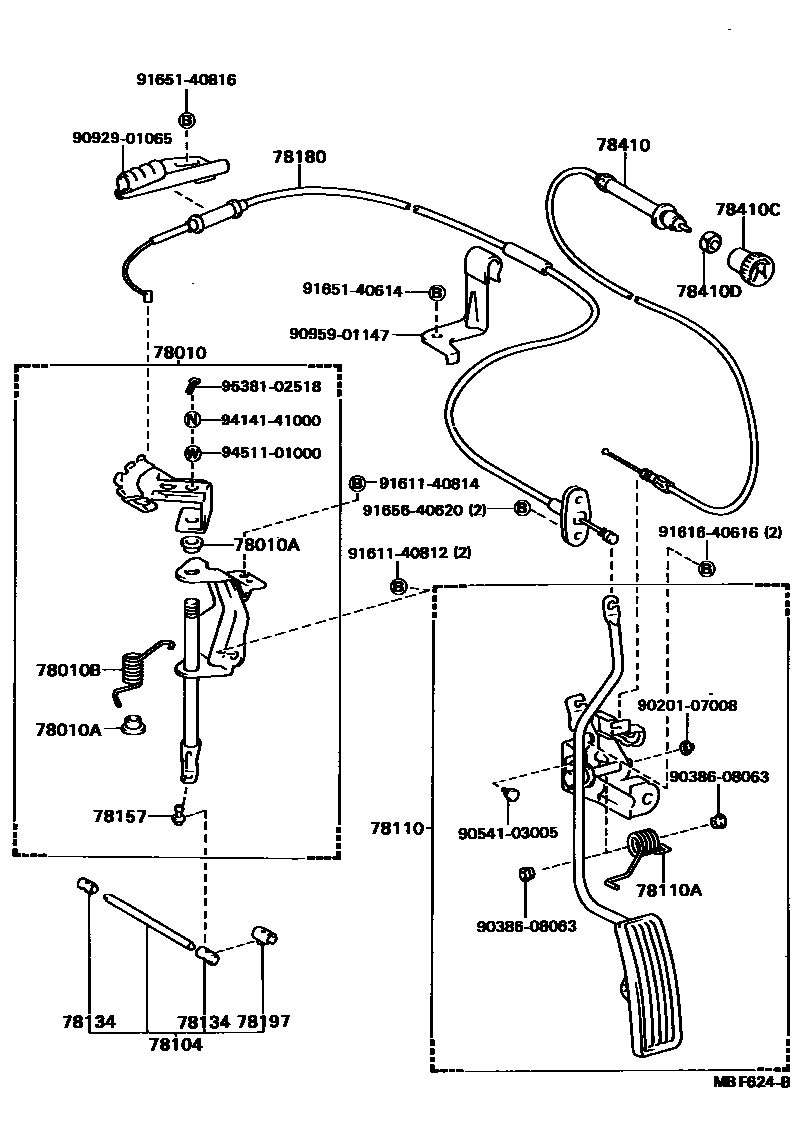

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 12 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010 | accelerator pedal connecting rod | 78100-89103 · 78100-89104 · 78100-89105 |
| 78010A | Bushing (for accelerator pedal linkage) | 90386-10138 |
| 78010B | Torsion spring (for accelerator pedal linkage) | 90508-20063 · 90508-23079 · 90508-23080 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-89105 · 78104-89106 |
| 78110 | Accelerator pedal lever assembly | 78120-35100 · 78120-35110 · 78120-89112 · 78120-89113 · 78120-89114 · 78120-89115 · 78120-89116 · 78120-89117 · 78120-89118 · 78120-89119 · 78120-89120 · 78120-89122 · 78120-89124 · 78120-89125 · 78120-89126 · 78120-89128 · 78120-89129 · 78120-89130 · 78120-89131 · 78120-89132 |
| 78110A | Spring (for accelerator pedal lever) | 90508-14066 · 90508-14075 · 90508-23075 · 90508-26060 · 90508-32019 · 90508-32031 |
| 78110H | Cover (for accelerator pedal lever) | 78116-22010 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-89109 · 78130-89110 · 78160-89101 |
| 78130A | Spring (for accelerator pedal lever return) | 90508-14076 |
| 78130B | Throttle pedal right angle lever bushing | 90386-08003 · 90386-08063 |
| 78130C | Accelerator pedal right angle lever bracket | 78166-89101 |
| 78134 | Accelerator pedal connecting rod end | 78134-10010 |
| 78157 | accelerator pedal ball joint | 78157-10010 |
| 78180 | Throttle cable assembly | 78180-89128 · 78180-89129 · 78180-89130 · 78180-89134 · 78180-89137 · 78180-89138 · 78180-89141 · 78180-89142 · 78180-89143 · 78180-89144 · 78180-89145 · 78180-89147 · 78180-89148 · 78180-89154 · 78180-89156 |
| 78184B | Throttle pedal control cable bracket | 78024-20020 · 78184-35030 · 78184-87005 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-89109 |
| 78197 | Accelerator pedal ball joint clip | 78197-10010 |
| 78310 | Choke door cable assembly | 78310-89112 · 78310-89113 · 78310-89114 |
| 78310B | Choke cable clip | 90463-12002 |
| 78310D | retaining ring (for choke cable) | 90480-21005 |
| 78310F | choke nut | 90170-11006 |
| 78311 | Choke control cable button | 78311-89103 |
| 78371 | Choke control cable bracket | 77338-89101 · 78371-89101 |
| 78410 | Throttle valve control cable assembly | 78401-89106 · 78401-89107 · 78401-89108 |
| 78410C | Throttle Cable Section | 78411-89102 · 78411-89103 |
| 78410D | throttle nut | 90170-11006 |
