Toyota HILUX 防护条 — Figure 7552

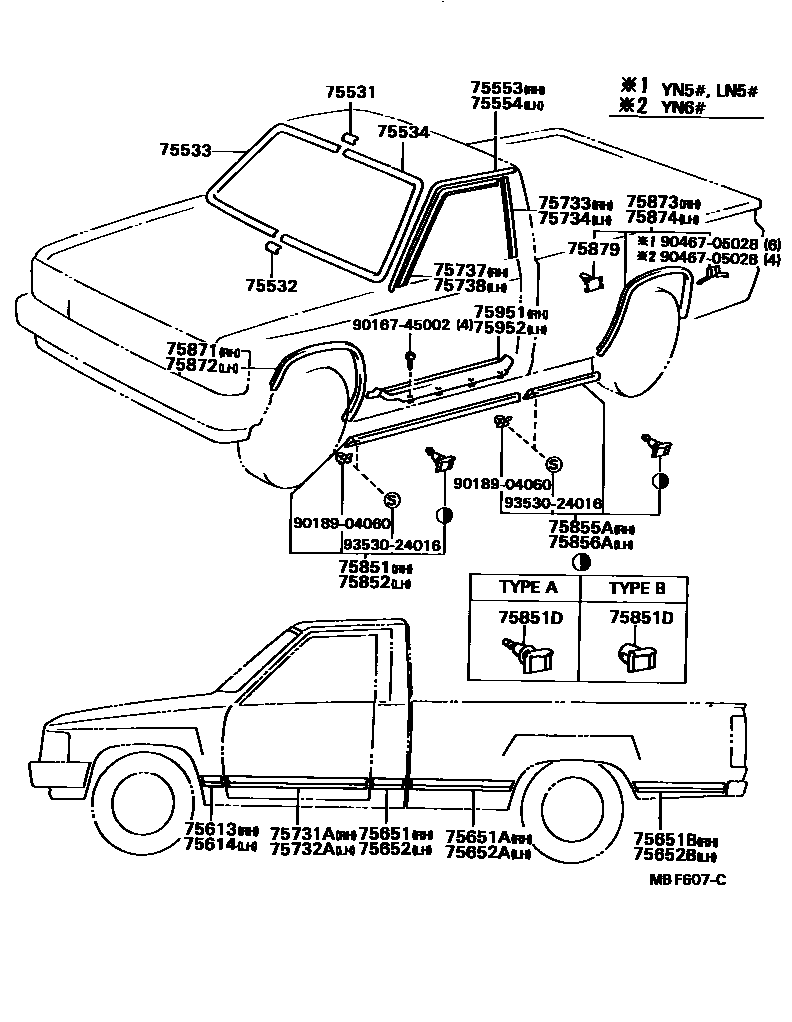

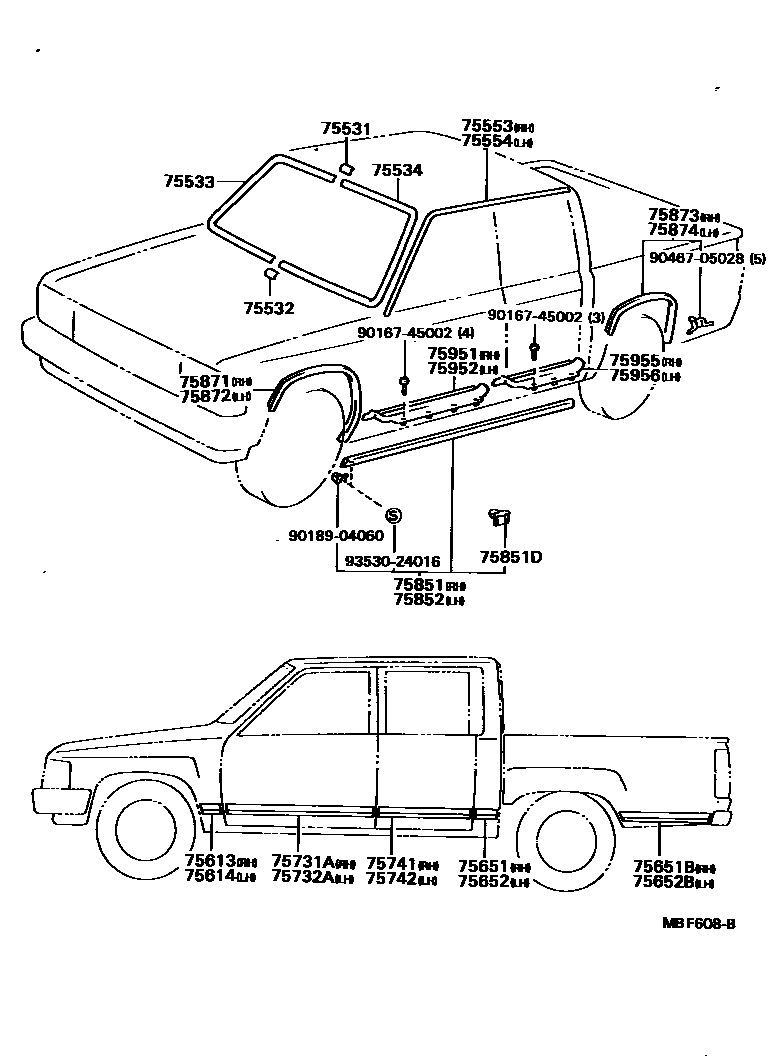

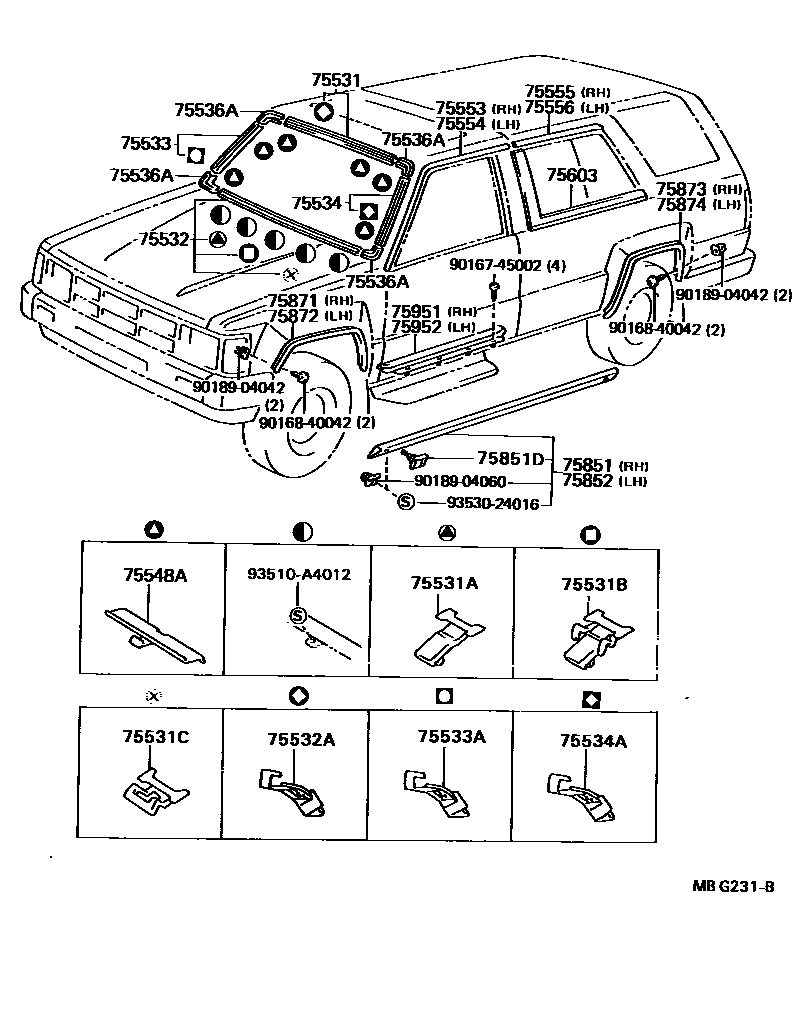

Toyota HILUX EPC diagram 7552, 防护条, with 3 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-89103 · 75531-89104 · 75581-10010 |
| 75531A | No. 1 windshield protection strip fixing clip | 75546-89102 |
| 75531B | No. 2 windshield protection strip fixing clip | 75546-89101 |
| 75531C | No. 3 windshield protective strip fixing clip | 75547-89101 |
| 75532 | Lower windshield protection strip | 75535-89101 · 75535-89102 · 75581-10010 |
| 75532A | Windshield protection strip fixing clip | 75545-89101 |
| 75533 | Windshield right outer protective strip | 75533-89105 · 75533-89106 · 75533-89107 |
| 75533A | Windshield right side protective strip clip | 75545-89101 |
| 75534 | Windshield left outer protective strip | 75534-89103 · 75534-89104 · 75534-89105 |
| 75534A | Windshield left protective strip clip | 75545-89101 |
| 75536A | Windshield outer protective strip joint cover | 75541-89101 · 75541-89102 · 75542-89101 · 75542-89102 · 75543-89101 · 75543-89102 · 75544-89101 · 75544-89102 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-89101 · 75548-89102 · 75548-89103 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75551-89108 · 75551-89109 · 75551-89110 · 75551-89111 · 75551-89112 · 75551-89113 · 75551-89114 · 75551-89115 · 75551-89116 · 75551-89117 · 75551-89118 · 75551-89119 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75552-89108 · 75552-89109 · 75552-89110 · 75552-89111 · 75552-89112 · 75552-89113 · 75552-89114 · 75552-89115 · 75552-89116 · 75552-89117 · 75552-89118 · 75552-89119 |
| 75555 | Decorative strip on the right side of the roof, rear gutter side | 75553-89101 · 75553-89102 |
| 75556 | Decorative strip on the left side of the roof, rear gutter side | 75554-89101 · 75554-89102 |
| 75603 | Sliding window side panel outer protective strip sub-assembly | 75603-89101 · 75604-89101 |
| 75613 | Right front fender outer protective strip | 75615-89105 · 75615-89107 |
| 75614 | Left front fender outer protective strip | 75616-89105 · 75616-89107 |
| 75651 | Right side outer protective strip | 75651-89109 · 75651-89110 · 75651-89113 · 75651-89114 |
| 75651A | No. 1 right rear side panel outer protective strip | 75653-89122 · 75653-89124 · 75653-89130 · 75653-89132 |
| 75651B | No. 2 right rear side panel outer protective strip | 75653-89123 · 75653-89125 · 75653-89131 · 75653-89133 |
| 75652 | Left side outer protective strip | 75651-89109 · 75651-89113 · 75652-89108 · 75652-89110 |
| 75652A | No. 1 left rear side panel outer protective strip | 75654-89120 · 75654-89122 · 75654-89128 · 75654-89130 |
| 75652B | No. 2 left rear side panel outer protective strip | 75654-89121 · 75654-89123 · 75654-89129 · 75654-89131 |
| 75731A | Right front door outer protective strip | 75731-89104 · 75731-89106 |
| 75732A | Left front door outer protective strip | 75732-89104 · 75732-89106 |
| 75733 | Right front door window frame rear protective strip | 75755-89101 |
| 75734 | Left front door window frame rear protective strip | 75756-89101 |
| 75737 | Right front door window frame front protective strip | 75751-89101 · 75751-89102 |
| 75738 | Left front door window frame front protective strip | 75752-89101 · 75752-89102 |
| 75741 | Right rear door outer protective strip | 75741-89104 · 75741-89106 |
| 75742 | Left rear door outer protective strip | 75742-89104 · 75742-89106 |
| 75851 | Right side door sill panel protective strip | 75850-89101 · 75850-89102 · 75850-89103 · 75850-89104 · 75850-89109 · 75850-89110 |
| 75851D | Clip (for rocker panel protective strip assembly) | 75867-89102 · 75867-89103 |
| 75852 | Left side door sill panel protective strip | 75860-89101 · 75860-89102 · 75860-89103 · 75860-89104 · 75860-89109 · 75860-89110 |
| 75855A | Right rear door sill panel protective strip | 75850-89105 · 75850-89106 · 75850-89107 · 75850-89108 |
| 75856A | Left rear door sill panel protective strip | 75860-89105 · 75860-89106 · 75860-89107 · 75860-89108 |
| 75871 | Right front fender wheel well protection strip | 75085-89101 · 75085-89102 |
| 75872 | Left front fender wheel well protection strip | 75086-89101 · 75086-89102 |
| 75873 | Right side panel wheel mouth protection strip | 75087-89101 · 75087-89103 · 75087-89104 · 75873-89105 |
| 75874 | Left side panel wheel mouth protection strip | 75088-89101 · 75088-89103 · 75088-89104 · 75874-89105 |
| 75879 | Side panel opening fixings | 75879-89102 |
