Toyota HILUX 徽标和铭牌 — Figure 7551

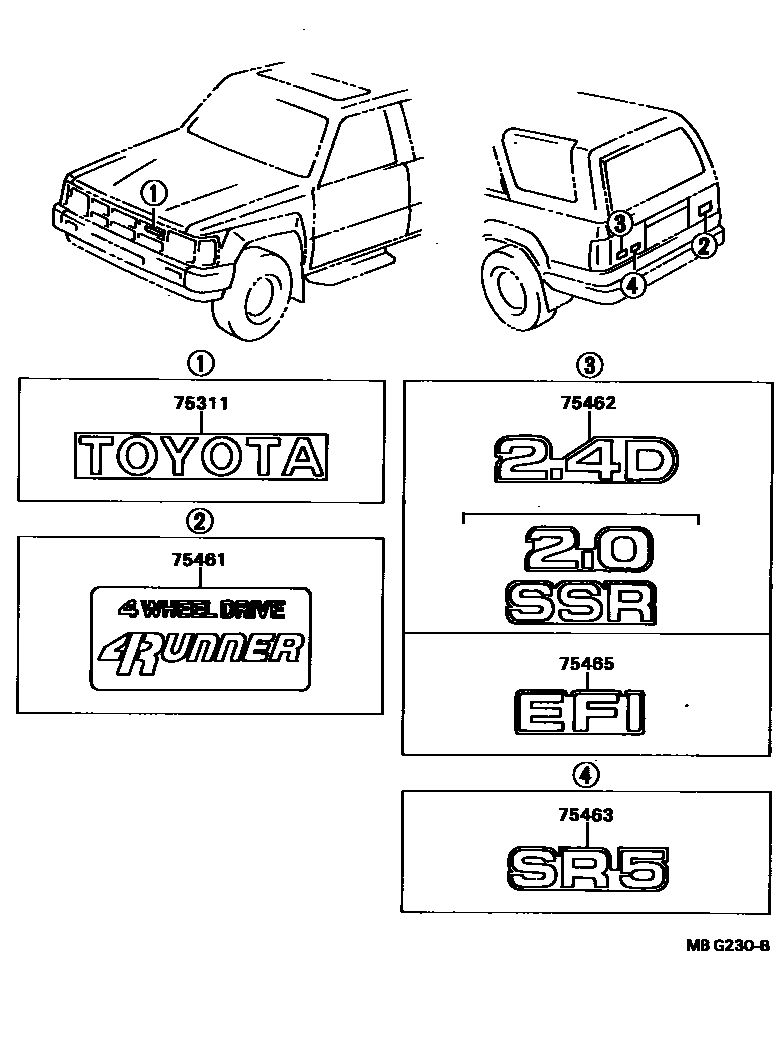

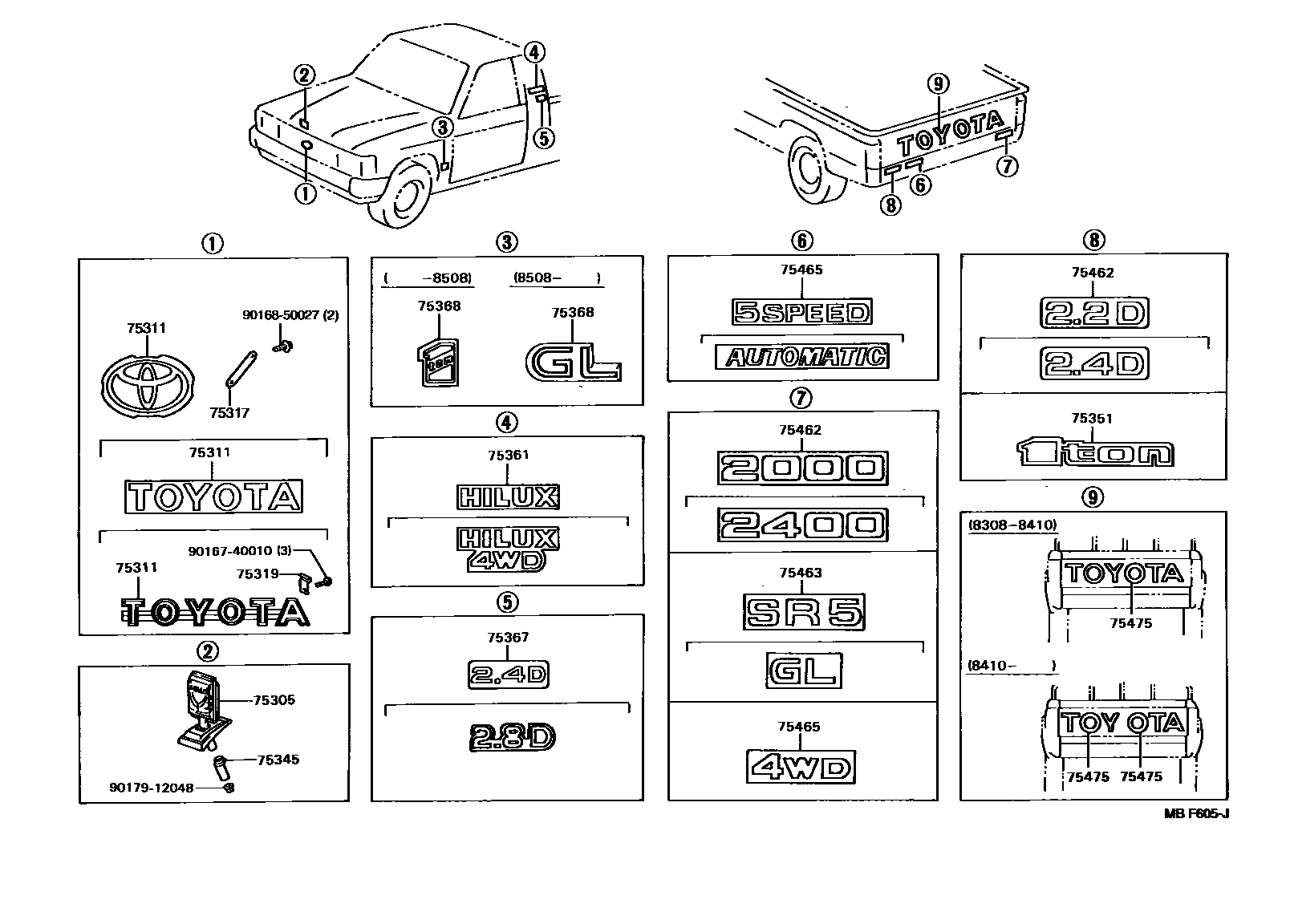

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75305 | engine cover plate | 75303-89101 |
| 75311 | Radiator grille (or front panel) plate | 75311-35130 · 75311-89109 · 75311-89110 · 75311-89113 · 75311-89114 · 75311-89115 · 75311-89116 |
| 75317 | Radiator grille decorative panel | 75317-35010 |
| 75319 | Radiator grille (or front panel) nameplate fixings | 75318-89101 · 75318-89102 |
| 75345 | Engine trim part 1 gasket | 75346-89101 |
| 75351 | No. 6 rear nameplate (maximum load) | 75471-89117 |
| 75361 | Front fender No. 1 nameplate (model mark) | 75351-89118 · 75351-89120 |
| 75367 | Front fender No. 3 nameplate (displacement) | 75351-89116 · 75351-89126 · 75351-89127 |
| 75368 | Front fender No. 4 nameplate (load capacity mark) | 75351-89122 · 75351-89124 |
| 75461 | No. 2 rear nameplate (model mark) | 75441-89102 |
| 75462 | No. 3 rear nameplate (displacement) | 75435-89103 · 75435-89104 · 75435-89108 · 75473-89106 · 75473-89107 · 75473-89108 · 75473-89116 |
| 75463 | No. 4 rear nameplate (grade mark) | 75435-89102 · 75472-89121 · 75472-89123 |
| 75465 | No. 5 rear nameplate (organization) | 75435-89105 · 75471-89113 · 75473-89112 · 75474-89109 · 75474-89110 · 75474-89111 |
