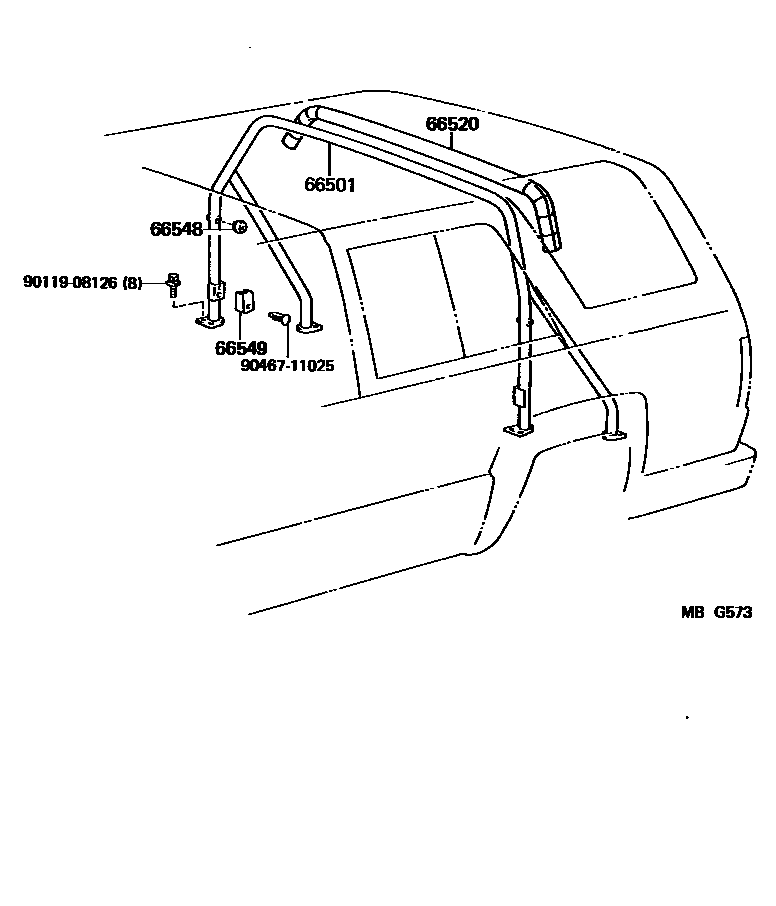

Toyota HILUX 防护管、翻车保护杆和扶手 — Figure 7453
Toyota HILUX EPC diagram 7453, 防护管、翻车保护杆和扶手, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 66501 | Rollover bar sub-assembly | 66501-89102 |
| 66520 | Front rollover bar protection assembly | 66520-89101 |
| 66548 | Roll bar belt anchor top cover | 66548-89101 |
| 66549 | Rollover bar belt anchor lower cover | 66549-89101 |
