Toyota HILUX 座椅和座椅滑轨 — Figure 7151

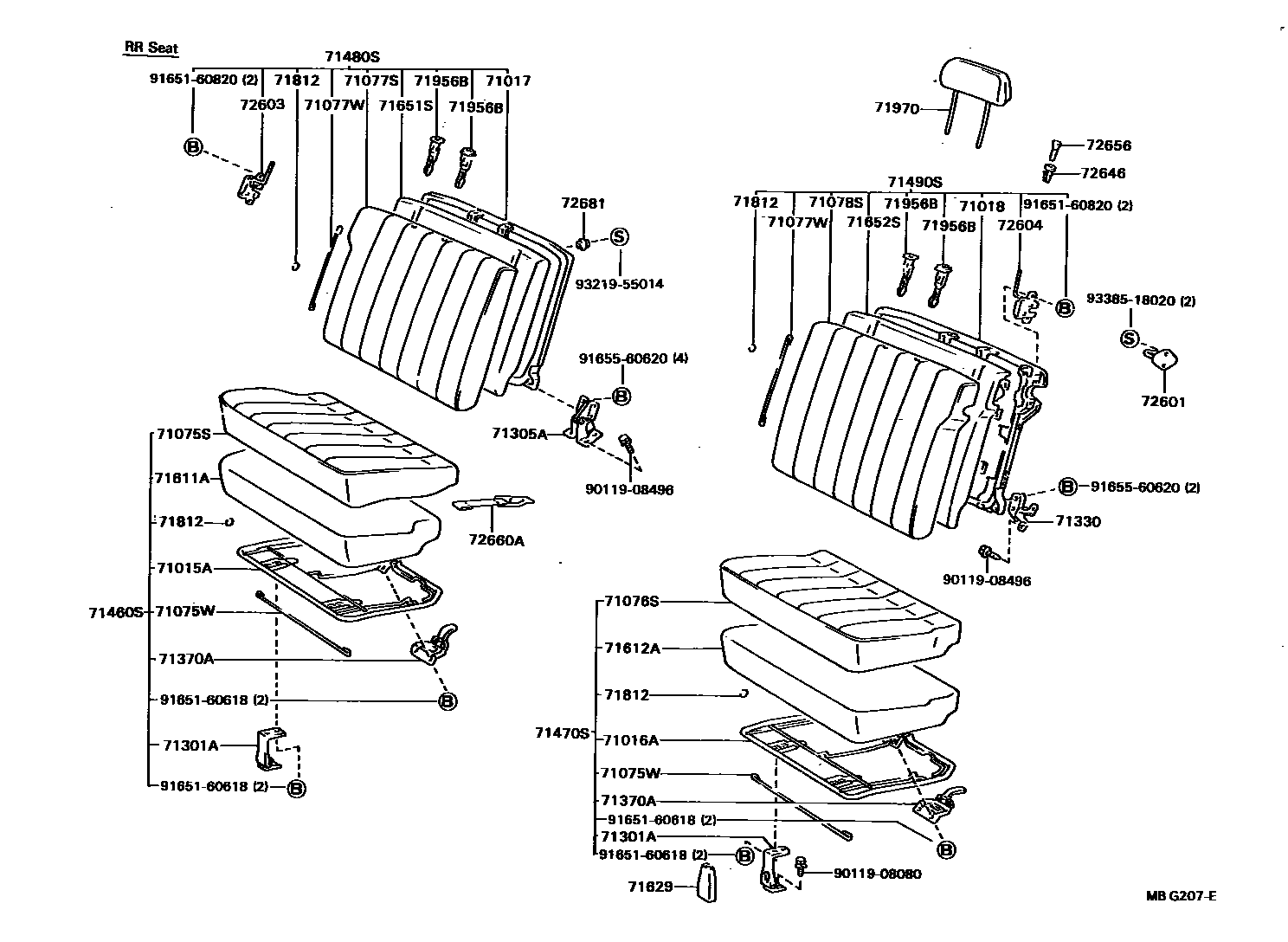

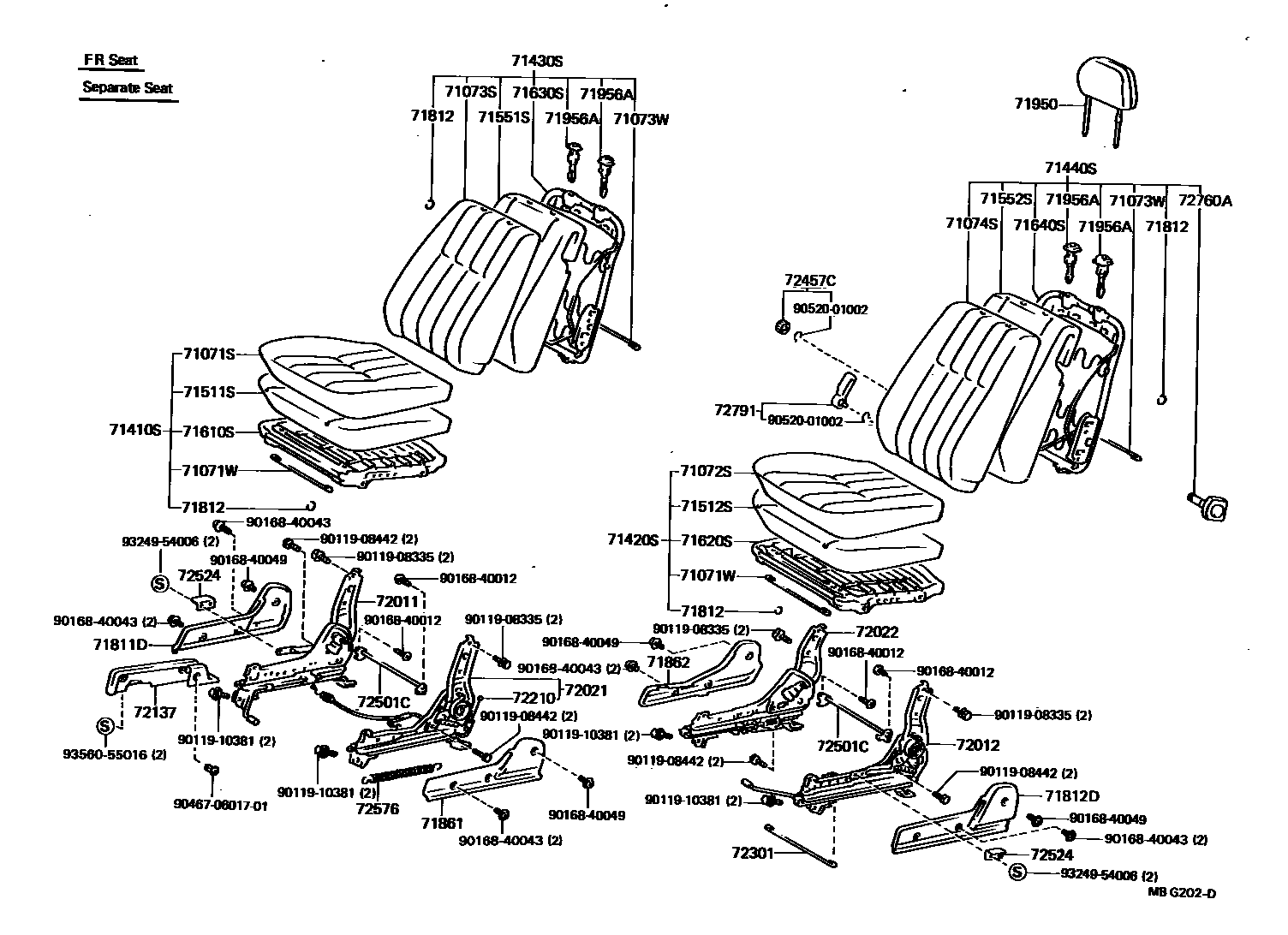

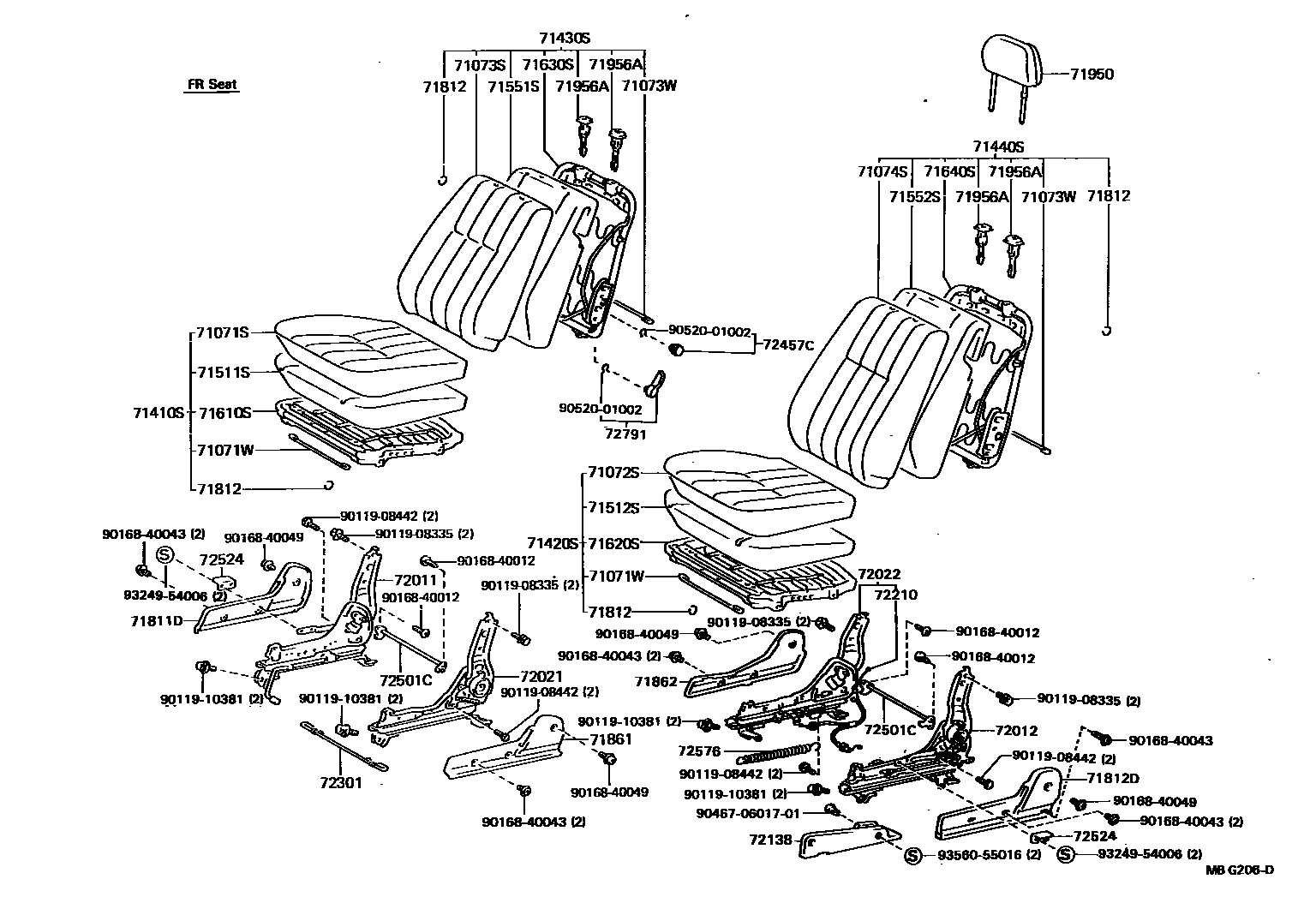

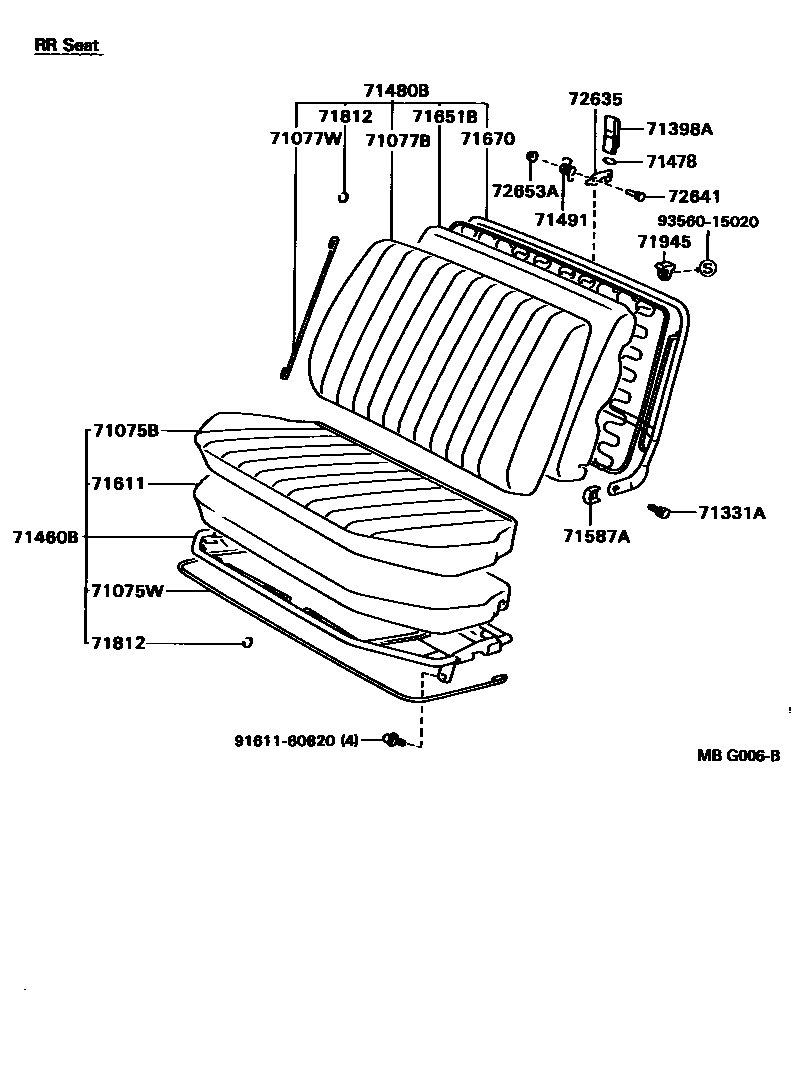

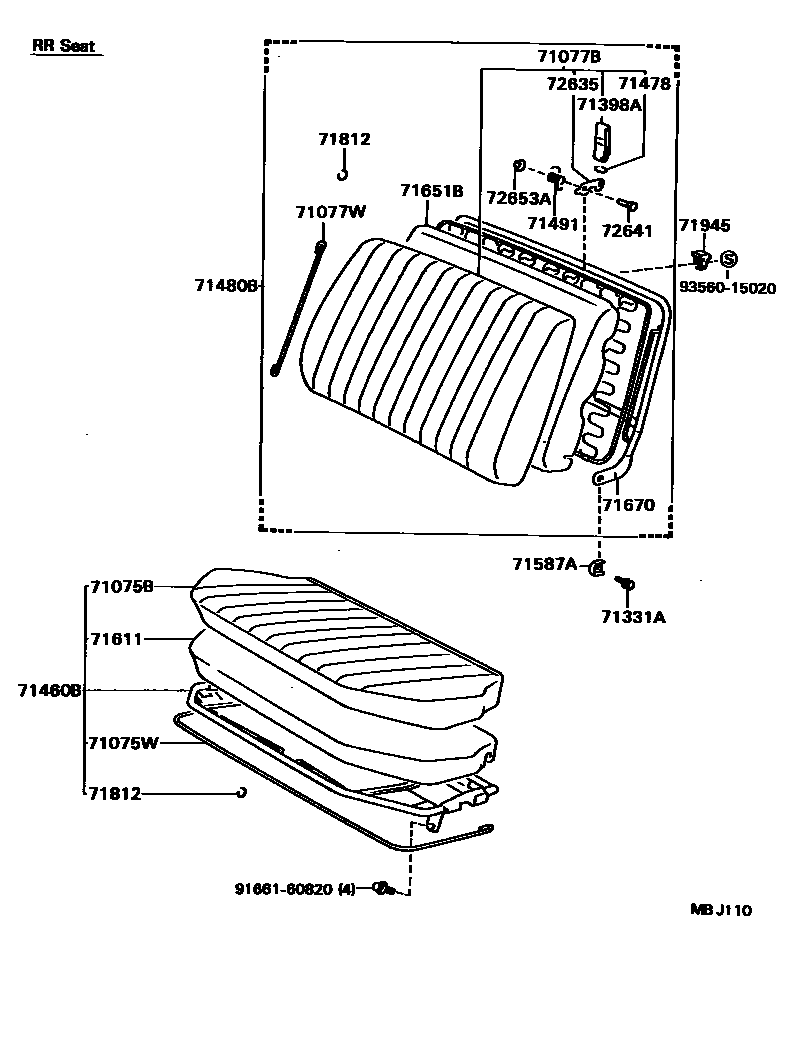

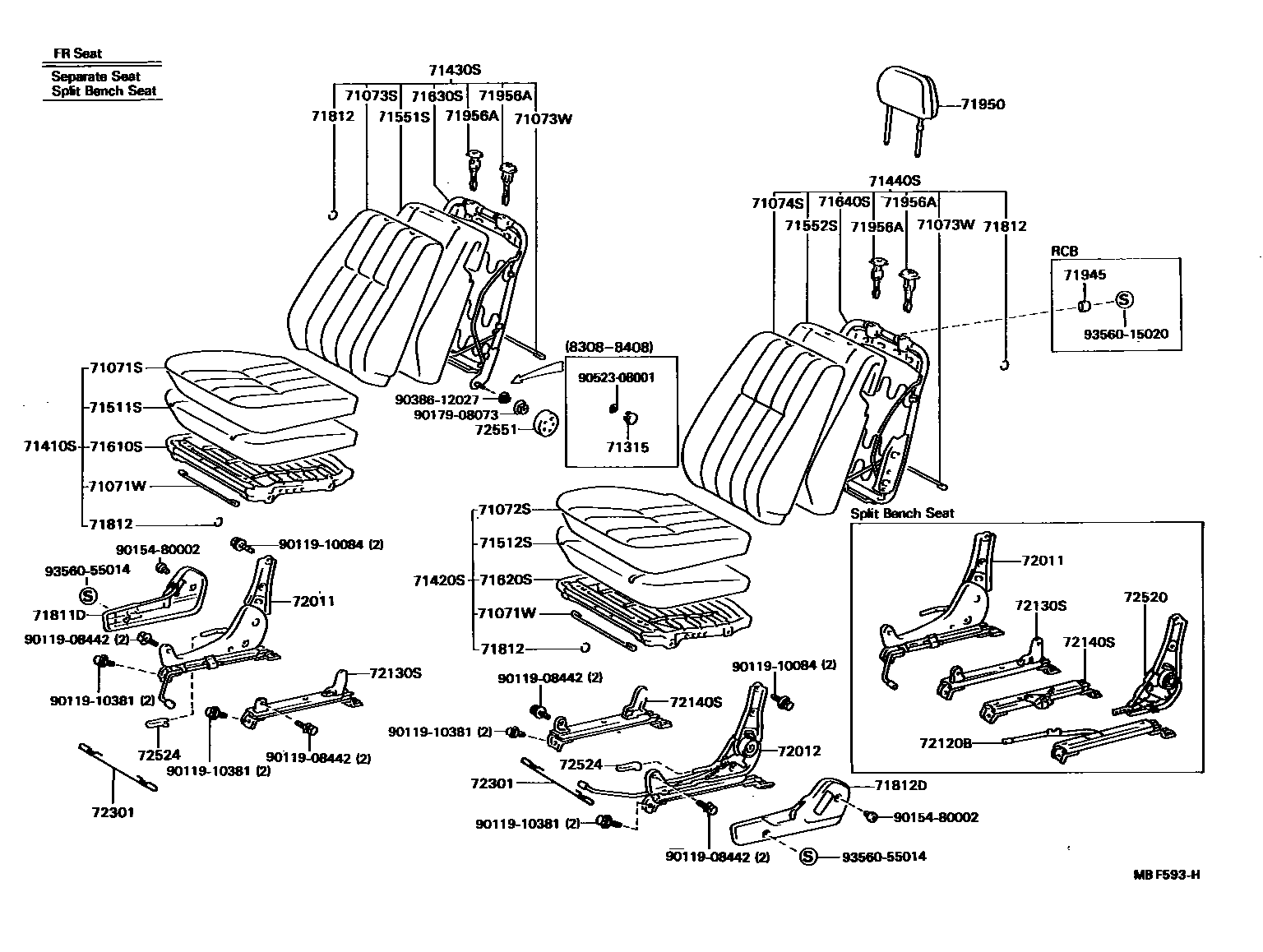

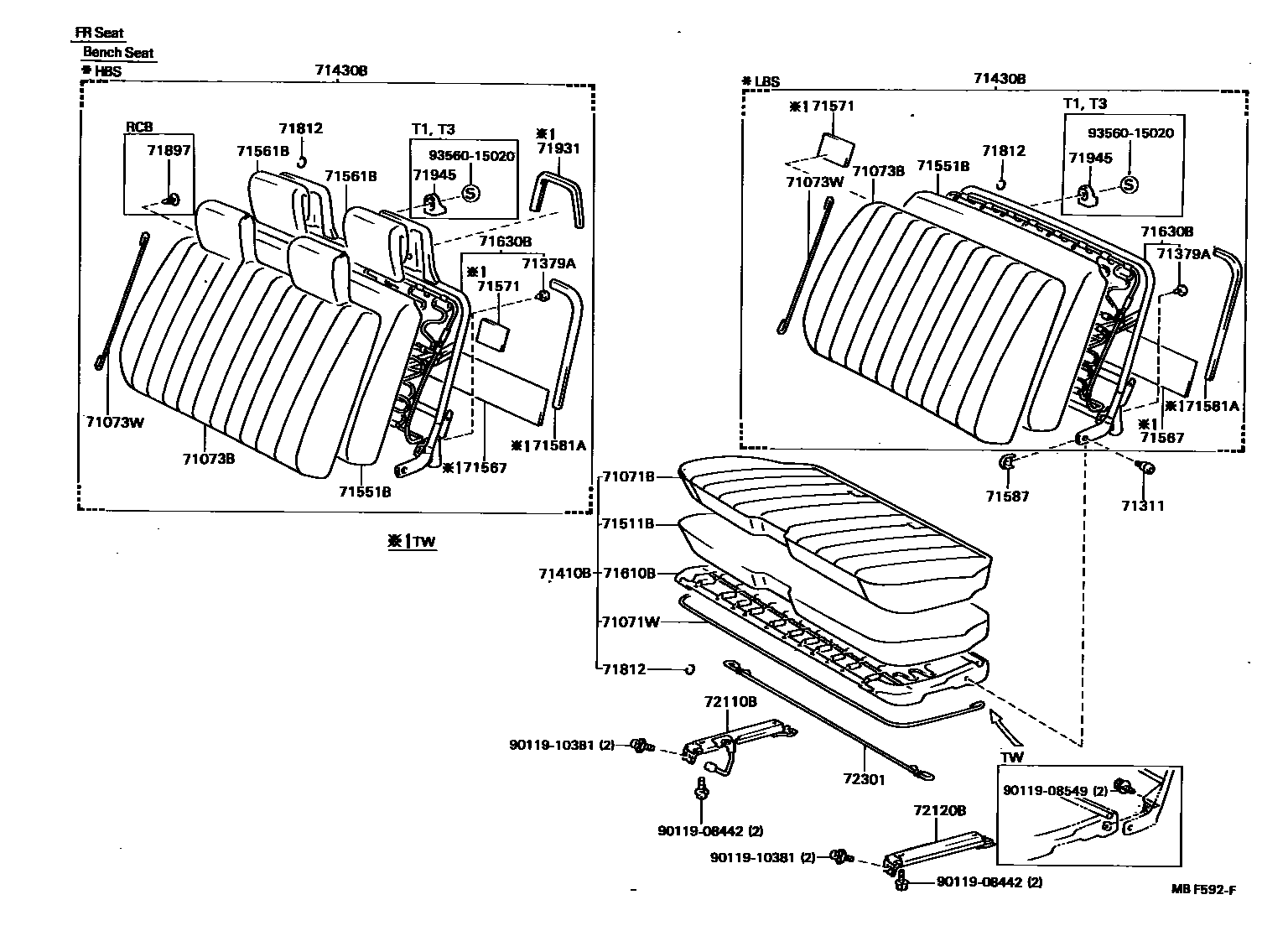

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-89103 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-89101 |
| 71017 | Right rear seat back frame sub-assembly | 71017-89103 |
| 71018 | Rear left seat back frame sub-assembly | 71018-89101 |
| 71071W | Front seat cushion protective wire | 90580-20007 · 90580-20079 · 90580-20103 · 90580-20133 · 90580-20153 · 90580-20157 · 90580-26024 · 90580-29021 |
| 71073W | Front seat back cover wire | 90580-16003 · 90580-16004 · 90580-16025 · 90580-20030 · 90580-20099 · 90580-20128 · 90580-20160 |
| 71075W | Rear seat cushion protective wire | 90580-16025 · 90580-16028 · 90580-20011 · 90580-26008 |
| 71077W | Rear seat backrest protective wire | 90580-16003 · 90580-16004 · 90580-16007 · 90580-16014 · 90580-16025 · 90580-16041 · 90580-26018 |
| 71301A | Rear seat cushion hinge sub-assembly | 71301-89101 · 71301-89102 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-89101 |
| 71311 | Front seat hinge pin | 71311-89105 |
| 71315 | Front seat hinge plate | 71315-89103 |
| 71330 | Rear seat cushion hinge assembly | 71330-89101 · 71340-89101 |
| 71331A | Rear seat hinge pin | 71331-89101 |
| 71379A | Front seat vertical handle stop | 71379-89101 |
| 71478 | Rear seat back spring wire | 71478-89101 |
| 71491 | Rear seat back latch spring | 71491-89101 |
| 71511B | Front seat cushion upholstery (for bench seats) | 71511-89124 · 71511-89125 · 71511-89128 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-89126 · 71511-89129 · 71512-89106 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-89126 · 71511-89129 · 71512-89104 · 71512-89105 · 71512-89106 |
| 71551B | Front seat back cushions (for bench seats) | 71505-89127 · 71505-89128 · 71505-89129 · 71505-89130 · 71505-89131 |
| 71551S | Front right seat back cushion (for split seats) | 71551-89118 · 71551-89119 · 71551-89121 · 71551-89122 · 71552-89109 |
| 71552S | Front left seat back cushion (for split seats) | 71506-89104 · 71551-89118 · 71551-89119 · 71551-89121 · 71551-89122 · 71552-89109 |
| 71561B | Padded front seat backrest | 71561-89110 · 71561-89111 · 71561-89113 |
| 71567 | Front seat back safety cushion | 71567-89101 |
| 71571 | Front A seat back silencer | 71571-89102 |
| 71581A | Front A seat back corner cushions | 71581-89103 · 71581-89105 |
| 71587 | Front seat back edge protective cover | 71587-89103 |
| 71587A | Rear seat back edge protective cover | 71587-89104 |
| 71610B | Front seat cushion spring assembly (for bench seats) | 71610-89123 · 71610-89124 · 71610-89129 · 71610-89130 · 71610-89137 · 71610-89141 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-89125 · 71610-89127 · 71610-89138 · 71610-89139 · 71610-89140 |
| 71611 | Rear seat cushion cushion | 71611-89106 |
| 71611A | Rear right seat cushion | 71611-89107 · 71611-89108 |
| 71612A | Rear left seat cushion | 71613-89102 · 71613-89103 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-89125 · 71620-89104 · 71620-89105 · 71620-89106 · 71620-89108 · 71620-89109 |
| 71630B | Front seat back spring assembly (for bench seat) | 71630-89113 · 71630-89114 · 71630-89117 · 71630-89118 · 71630-89119 · 71630-89121 · 71630-89124 · 71630-89125 · 71630-89126 · 71630-89136 · 71630-89137 · 71630-89138 · 71630-89139 · 71630-89140 · 71630-89141 · 71630-89142 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-89116 · 71630-89123 · 71630-89127 · 71630-89128 · 71630-89135 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-89123 · 71630-89127 · 71640-89107 · 71640-89110 · 71640-89112 · 71640-89114 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-89104 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-89105 · 71651-89106 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-89101 · 71652-89102 |
| 71670 | Rear seat back spring assembly (for bench seat) | 71670-89102 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 71931 | Front seat headrest bracket | 71931-89102 |
| 71945 | Seat back limiter | 71739-89108 · 71739-89109 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-89101 · 72010-89102 · 72010-89106 · 72010-89107 · 72011-89101 · 72011-89103 · 72011-89105 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-89102 · 72012-89103 · 72012-89104 · 72012-89105 · 72020-89101 · 72020-89102 · 72020-89106 · 72020-89107 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-89101 · 72021-89103 · 72021-89105 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-89102 · 72022-89103 · 72022-89104 · 72022-89105 |
| 72110B | Right seat outer slide rail assembly (for bench seat) | 72110-89140 · 72110-89142 |
| 72120B | Left side seat outer slide rail assembly (for bench seat) | 72120-89138 · 72120-89140 |
| 72130S | Right seat inner slide rail assembly (for separate seats) | 72130-89102 · 72130-89103 · 72130-89104 · 72130-89105 |
| 72140S | Left seat inner slide rail assembly (for separate seats) | 72140-89102 · 72140-89103 · 72140-89104 · 72140-89105 · 72140-89106 |
| 72210 | Seat slide rail control cable assembly | 72210-89103 · 72210-89104 · 72210-89105 · 72210-89106 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-89105 · 72301-89106 · 72301-89108 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-89101 |
| 72520 | Left seat back tilt adjuster assembly | 72520-89105 |
| 72551 | Seat No. 1 backrest tilt hinge cover | 72551-12070 |
| 72576 | Seat back recliner memory spring | 72576-89101 |
| 72601 | Rear seat lock sub-assembly | 72601-89101 |
| 72603 | Rear right seat back lock sub-assembly | 72630-89101 |
| 72604 | Rear left seat back lock sub-assembly | 72640-89101 |
| 72635 | Rear seat back lock hook | 72635-89101 |
| 72641 | Rear seat back lock pin | 72641-89101 |
| 72653A | Rear seat back lock lever buckle | 72653-89101 |
| 72681 | Rear seat backrest lower hook | 72681-89101 |
| 72760A | Lumbar support adjuster assembly | 72750-89101 |
