Toyota HILUX 背门板和背门玻璃 — Figure 6761

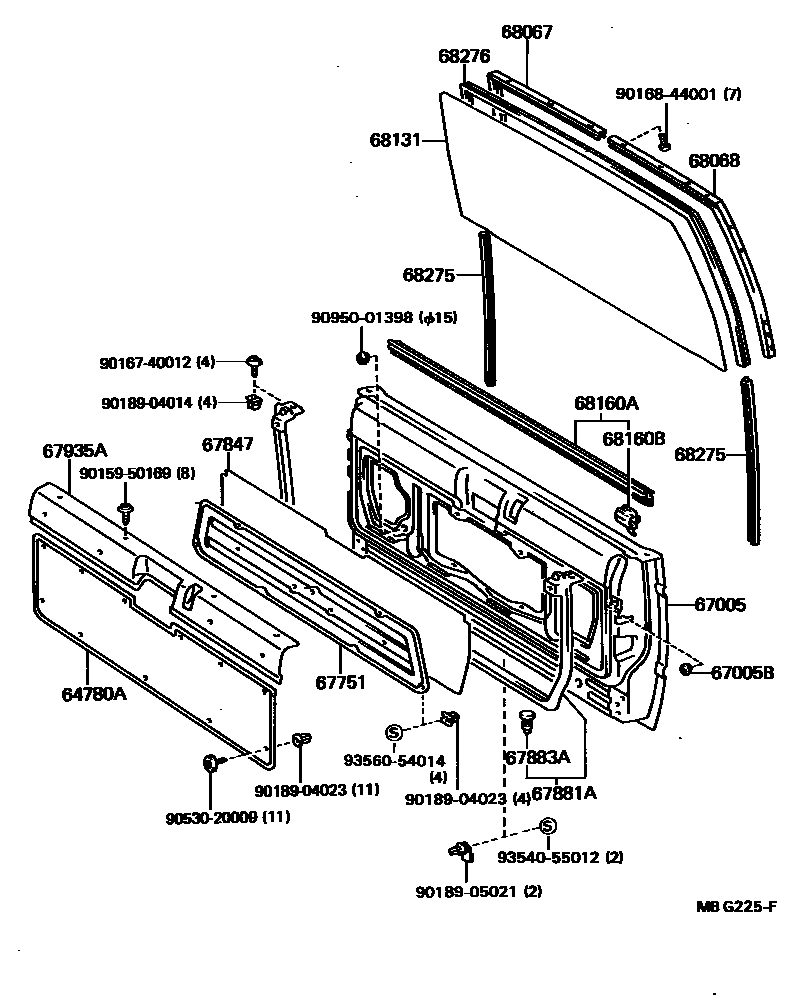

Toyota HILUX EPC diagram 6761, 背门板和背门玻璃, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67005 | Rear door panel sub-assembly | 67008-89103 |
| 67005B | Cushion pad (for back door panel) | 90541-09036 |
| 67751 | Rear door decorative panel | 64917-89101 |
| 67847 | Back door right access hole cover | 67847-89101 |
| 67881A | Back door seal | 67881-89101 |
| 67883A | Rear door sealing strip fixings | 67868-30040 |
| 68067 | Rear door upper right window frame assembly | 68067-89101 |
| 68068 | Rear door upper left window frame assembly | 68068-89101 |
| 68131 | back door glass | 68105-89103 · 68131-89101 · 68131-89102 |
| 68160A | Back door glass outer sealing strip assembly | 68160-89111 |
| 68160B | Rear door glass seal strip clip | 68211-89106 |
| 68275 | Rear door glass lift chute | 68275-89101 |
| 68276 | Rear door glass lift chute | 68276-89101 |
