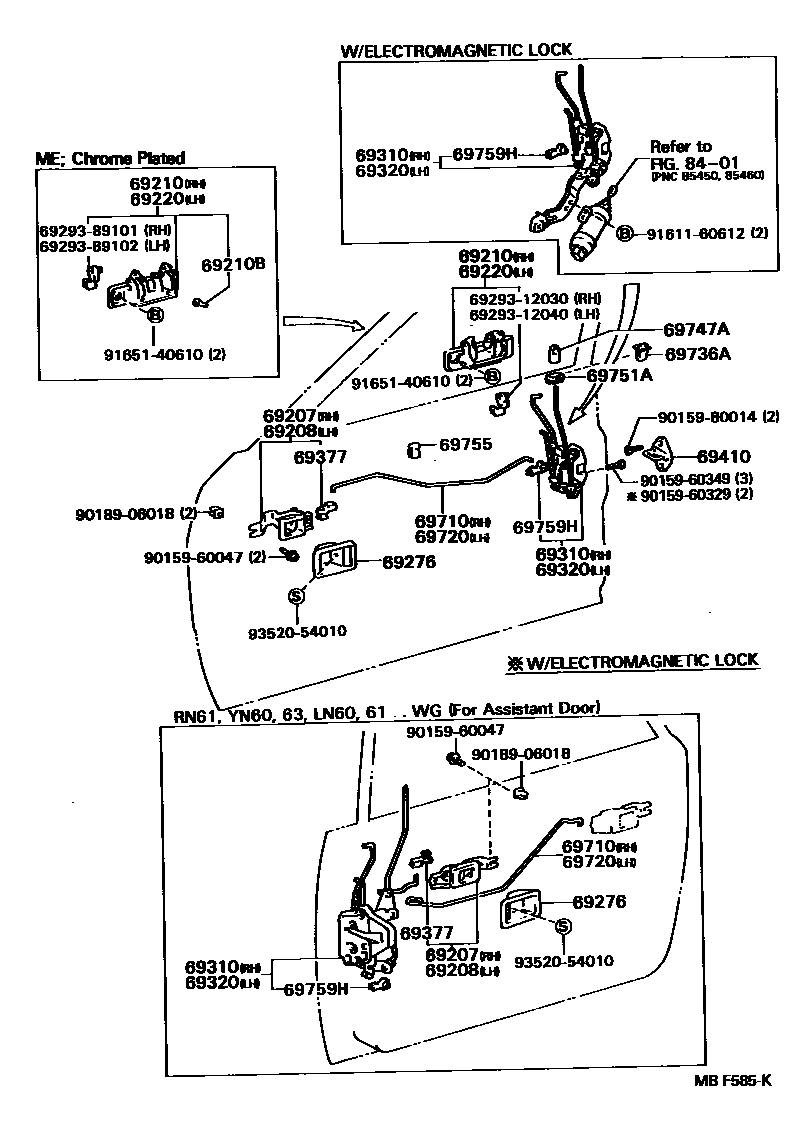

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69207 | Right front door inner handle sub-assembly | 69205-89104 |
| 69208 | Left front door inner handle sub-assembly | 69206-89104 |
| 69210 | Right front door outer handle assembly | 69210-89108 · 69210-89109 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 |
| 69220 | Left front door outer handle assembly | 69220-89108 · 69220-89109 |
| 69276 | Front door inner handle frame | 69277-89107 |
| 69310 | Right front door lock assembly | 69310-89109 · 69310-89110 · 69310-89112 |
| 69320 | Left front door lock assembly | 69320-89109 · 69320-89111 · 69320-89112 |
| 69377 | Front door lock control link buckle | 69759-20060 · 69759-20070 · 69759-22060 · 69759-22070 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69711-89102 · 69711-89103 |
| 69720 | Left front door opening control linkage assembly | 69712-89102 · 69712-89103 |
| 69736A | Front door lock link guide block | 69736-12030 · 69736-22021 |
| 69751A | Door lock fixings (for front doors) | 69751-20040 |
| 69755 | Front door lock link silencer | 69759-89102 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-20040 · 69759-20050 · 69759-20100 · 69759-20110 · 69759-24010 · 69759-24020 |
