Toyota HILUX 前门通风车窗 — Figure 6752

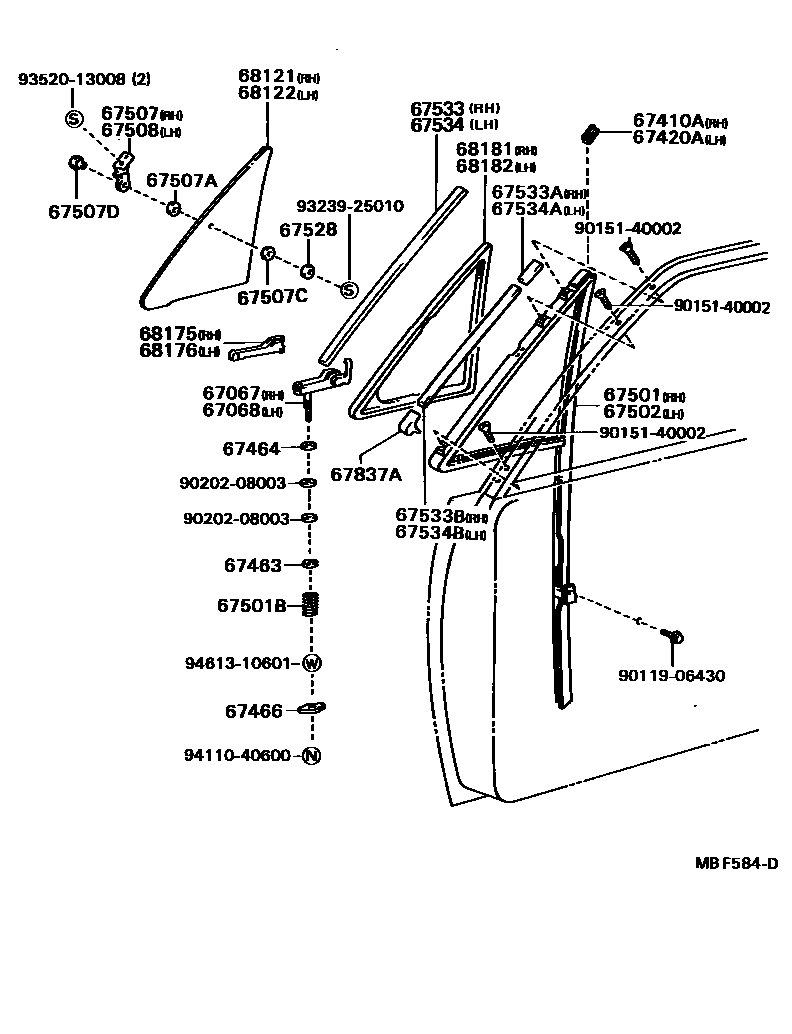

Toyota HILUX EPC diagram 6752, 前门通风车窗, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67067 | Right ventilation triangle window locking frame sub-assembly | 67067-89101 |
| 67068 | Left ventilation triangle window locking frame sub-assembly | 67068-89101 |
| 67410A | No. 1 right front door divider strip seal | 67533-89101 |
| 67420A | No. 1 left front door divider strip seal | 67534-89101 |
| 67463 | Front door ventilation triangle window lower pivot gasket | 67463-20011 |
| 67464 | Front door ventilation triangle window opening stop | 67464-89102 |
| 67466 | Locking washers (for ventilation triangular glazing frames) | 67466-89101 |
| 67501 | Right ventilated triangular window glass frame sub-assembly | 67505-89103 |
| 67501B | Compression spring (for ventilation triangular window glass frame) | 90501-40205 |
| 67502 | Left ventilated triangular window glass frame sub-assembly | 67506-89103 |
| 67507 | Right ventilation triangular window upper pivot sub-assembly | 67507-89103 |
| 67507A | No. 1 Ventilation Triangular Window Pivot Upper Pad | 90430-07001 |
| 67507C | No. 2 Ventilation Triangular Window Pivot Upper Pad | 90430-04003 |
| 67507D | Ventilation triangular window upper pivot fixing | 62735-89101 |
| 67508 | Left ventilation triangle window upper pivot sub-assembly | 67508-89103 |
| 67528 | Ventilation triangular window upper pivot plate | 67528-89101 |
| 67533 | No. 2 right front door divider strip seal | 67533-89102 |
| 67533A | No. 3 right front door divider seal | 67533-89103 |
| 67533B | No. 4 right front door divider seal | 67533-89104 |
| 67534 | No. 2 left front door divider strip seal | 67533-89102 |
| 67534A | No. 3 left front door divider seal | 67533-89103 |
| 67534B | No. 4 left front door divider seal | 67533-89104 |
| 67837A | Right front door ventilator seal | 67837-89102 |
| 68121 | Right ventilation triangular window glass | 68121-89109 · 68121-89110 · 68121-89111 |
| 68122 | Ventilation triangle window left | 68122-89107 · 68122-89108 · 68122-89109 |
| 68175 | Right ventilation triangular window frame sealing strip | 68175-89109 |
| 68176 | Left ventilation triangular window frame sealing strip | 68176-89102 |
| 68181 | Right ventilating triangle window No. 1 sealing strip | 68181-89105 |
| 68182 | No. 1 sealing strip of left ventilation triangle window | 68182-89105 |
