Toyota HILUX 后车身防护架和背门 — Figure 6553

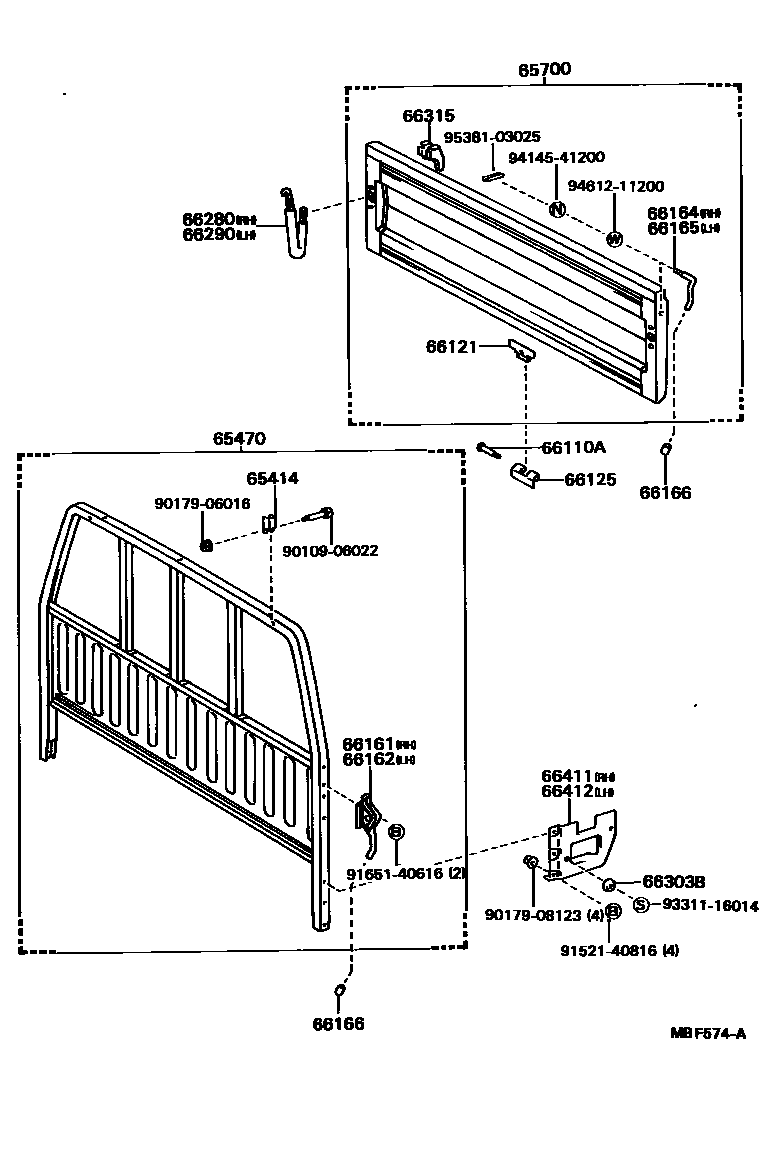

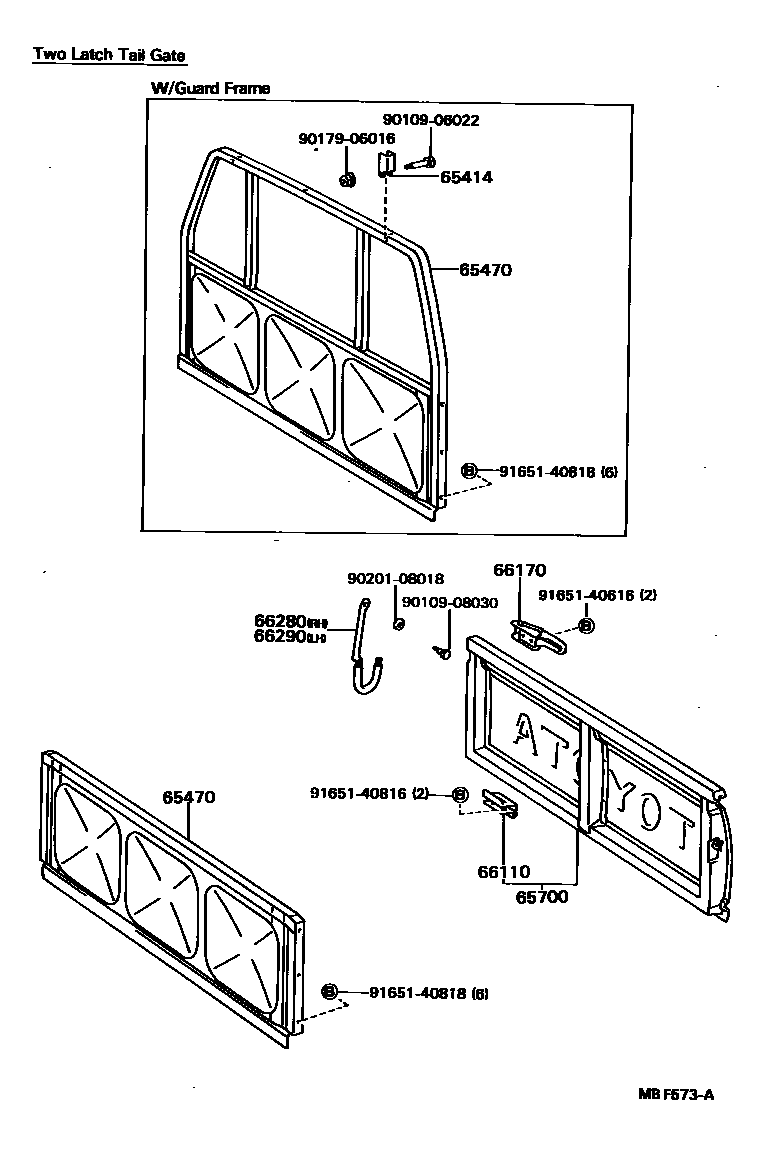

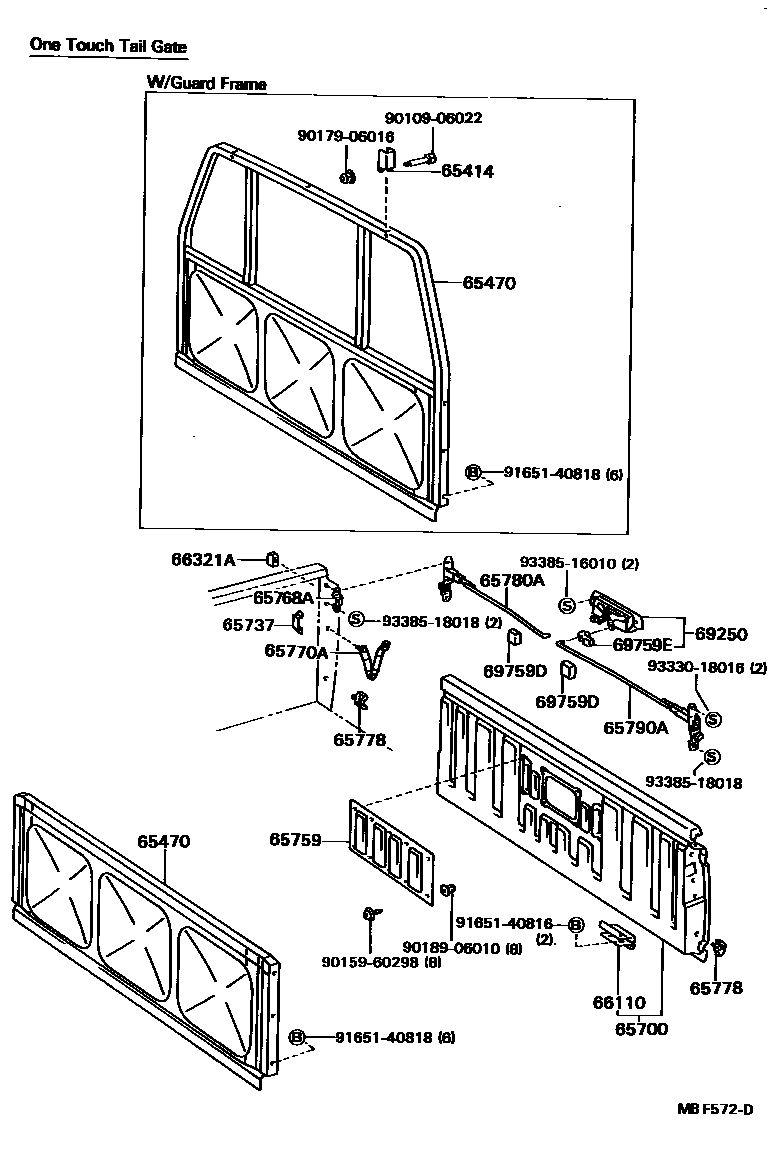

Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65414 | guardrail frame stop | 65414-89102 |
| 65470 | Top plate assembly | 65470-89111 · 65470-89112 · 65470-89113 · 65470-89116 · 65470-89117 · 65470-89122 · 65470-89123 · 65470-89125 · 65470-89126 · 65470-89127 · 65470-89128 · 65470-89130 · 65470-89131 · 65470-89132 · 65470-89133 |
| 65700 | Rear body back door assembly | 65700-89128 · 65700-89129 · 65700-89131 · 65700-89137 · 65700-89142 · 65700-89143 · 65700-89145 · 65700-89158 · 65700-95702 |
| 65737 | Back door stopper | 65737-89105 |
| 65759 | Rear door access hole cover | 65759-89102 |
| 65768A | Back door latch | 65768-89102 |
| 65770A | Back door support rod assembly | 65770-89102 |
| 65778 | Back door support rod stop | 65778-89102 · 65778-89104 |
| 65780A | Back door right lock assembly | 65780-89102 · 65780-89103 |
| 65790A | Back door left lock assembly | 65790-89102 · 65790-89103 |
| 65865A | Top cover guide pin | 65865-89101 |
| 66110 | Back door hinge assembly | 66110-89105 |
| 66110A | Back door hinge pin | 66113-87402 |
| 66121 | Rear door protruding hinge | 66111-87403 · 66111-87404 |
| 66125 | Recessed hinge for back door | 66112-87402 |
| 66161 | Right side rail latch handle | 66101-87401 |
| 66162 | Left side rail latch handle | 66102-87401 |
| 66164 | Rear door latch right handle | 66161-87403 |
| 66165 | Rear door latch left handle | 66162-87402 |
| 66166 | Railing latch handle cover | 66165-87402 |
| 66170 | Rear body back door lock bolt assembly | 66170-89106 |
| 66280 | Back door right chain assembly | 66280-89106 · 66280-95700 |
| 66290 | Back door left chain assembly | 66280-89106 · 66280-95700 |
| 66303B | Rubber buffer pad sub-assembly | 66303-87403 |
| 66315 | rope hook | 66311-87401 |
| 66321A | Railing rubber buffer block | 66321-89107 · 66321-89108 |
| 66411 | Right guardrail frame bracket | 66411-95700 |
| 66412 | Left guardrail frame bracket | 66412-95700 |
| 69250 | Rear door lock handle assembly | 69230-89101 |
| 69759D | Rear door lock link silencer | 69759-89105 |
| 69759E | Rear door lock link buckle | 69759-20100 · 69759-20110 |
