Toyota HILUX 车顶内衬和消声垫 — Figure 6452

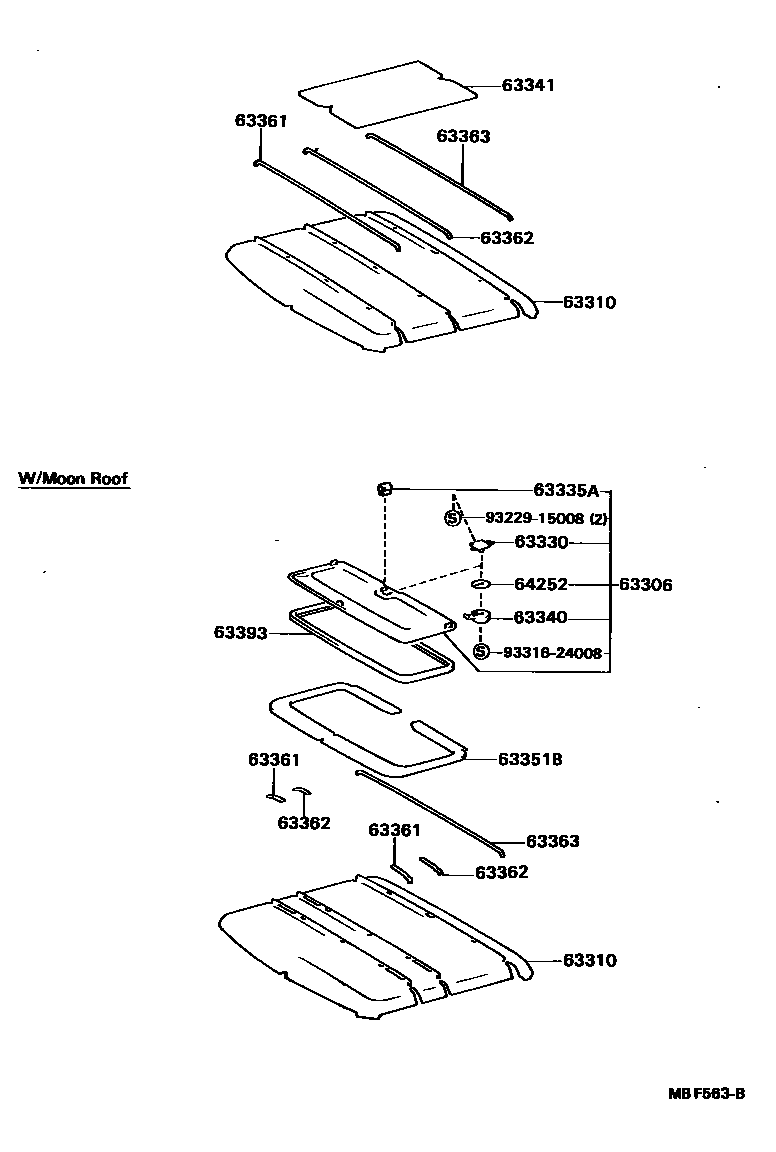

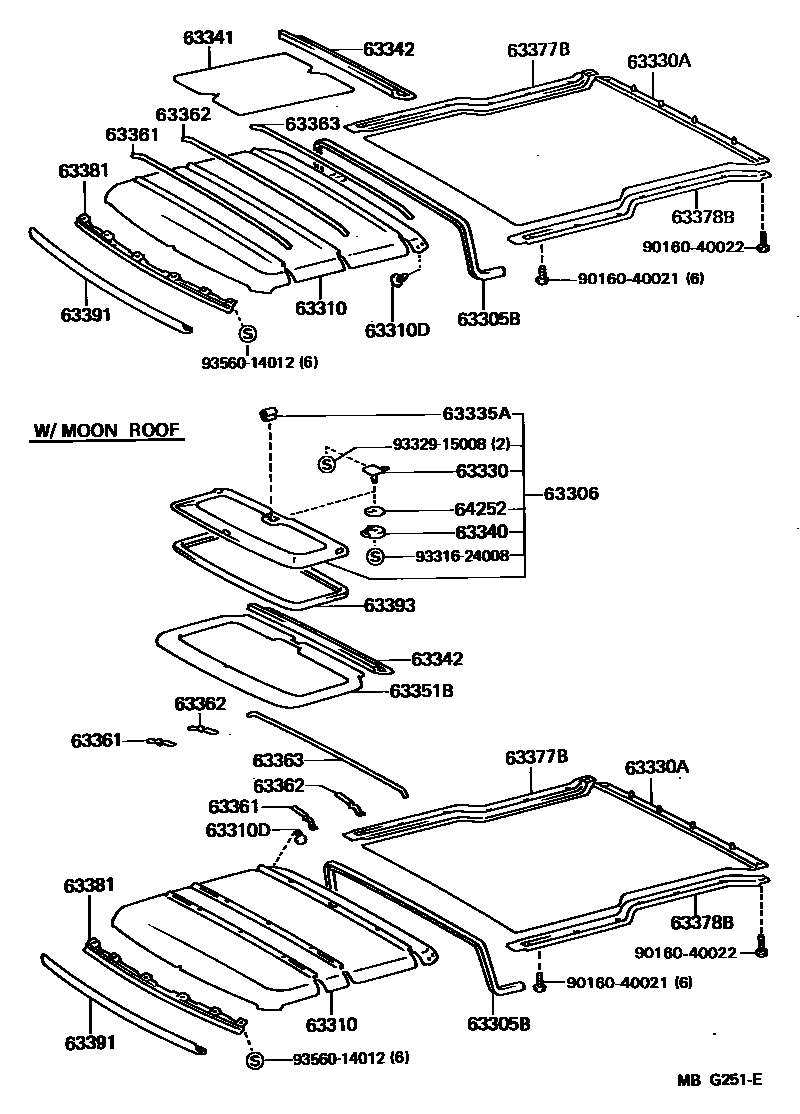

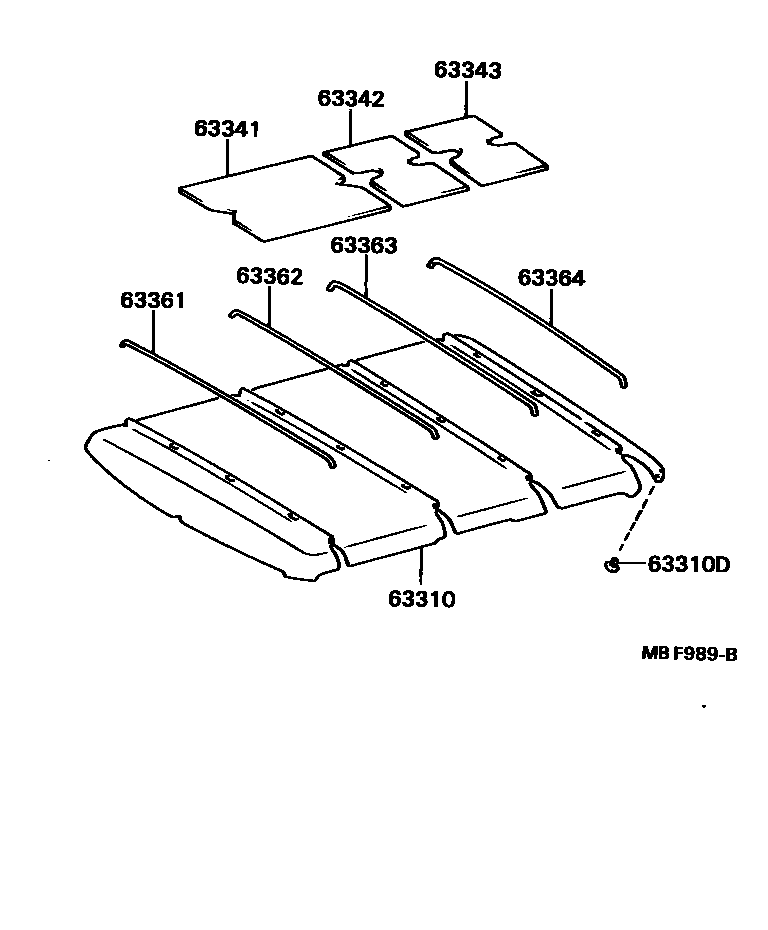

Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63330 | Sunshade trim panel lock assembly | 63330-89101 |
| 63335A | No. 1 sunshade decorative panel cushion | 63335-89101 |
| 63341 | No. 1 roof silencer mat | 63341-89110 · 63341-89111 · 63341-89114 · 63341-89116 |
| 63342 | No. 2 roof muffler pad | 63343-89102 · 63351-89105 |
| 63343 | No. 3 roof muffler pad | 63351-89105 |
| 63351B | roof lining pads | 63351-89103 · 63351-89104 · 63351-89106 |
| 63361 | Headlining bracket No. 1 | 63361-89110 · 63361-89112 · 63362-89101 · 63362-89105 |
| 63362 | Headlining bracket No. 2 | 63361-89110 · 63361-89112 · 63362-89101 · 63362-89105 |
| 63363 | No. 3 roof lining bracket | 63362-89101 · 63362-89103 · 63362-89105 · 63363-89102 |
| 63364 | No. 4 roof lining bracket | 63362-89106 |
| 63381 | Front lining fastener | 63381-89103 |
| 64252 | Sunshade decorative panel spacer | 64252-12010 · 64252-17010 |
