Toyota HILUX 车内装饰板 — Figure 6451

Toyota HILUX EPC diagram 6451, 车内装饰板, with 3 images and 7 PNC and OE references.

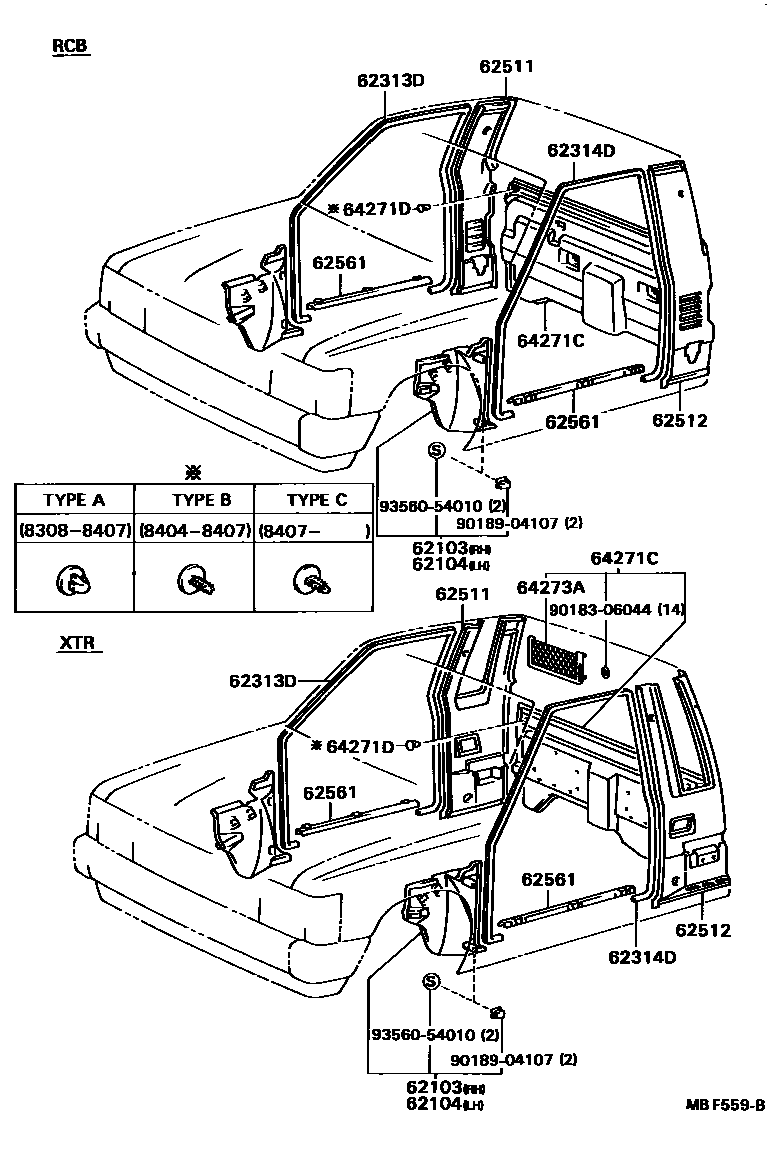

Toyota HILUX 车内装饰板 EPC diagram — MBF559B
车内装饰板 — MBF559B (198308 – 999999)

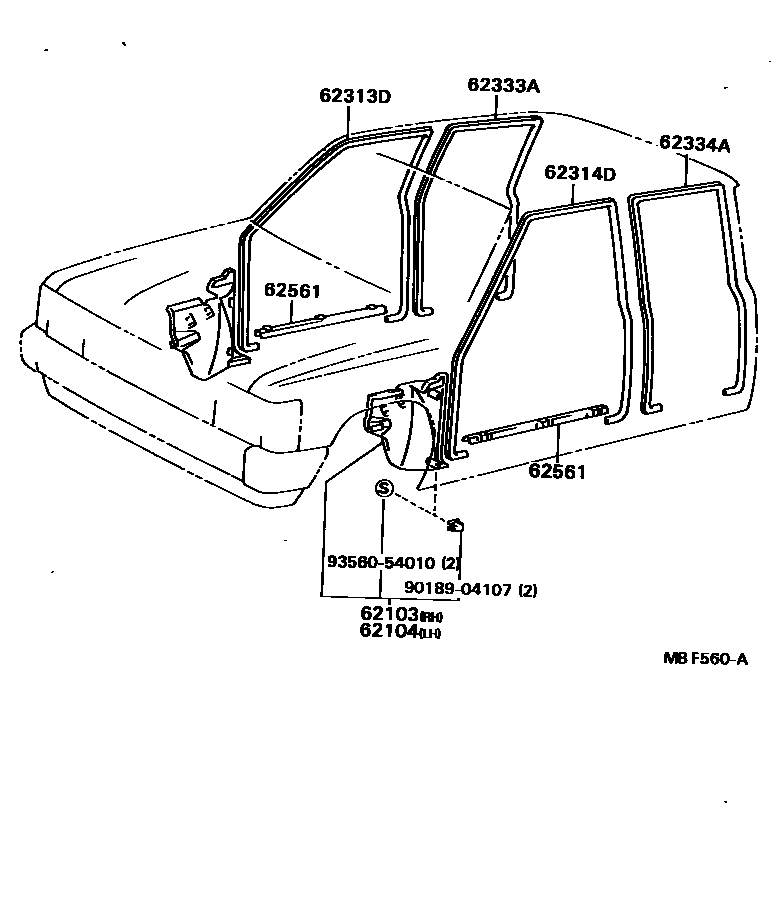

Toyota HILUX 车内装饰板 EPC diagram — MBF560A
车内装饰板 — MBF560A (198312 – 999999)

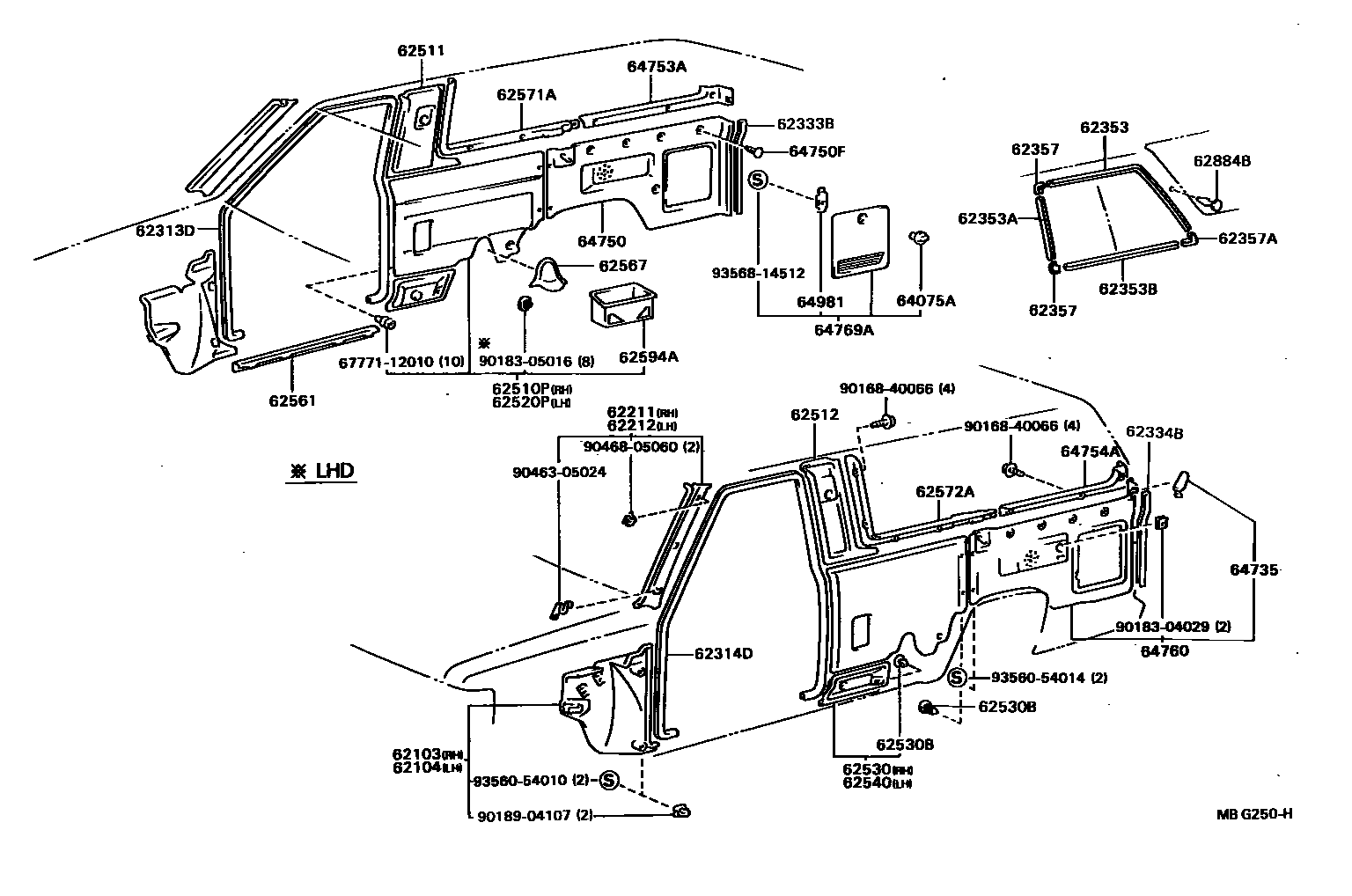

Toyota HILUX 车内装饰板 EPC diagram — MBG250H
车内装饰板 — MBG250H (198403 – 198903)

PNC and OE references

PNCPart nameOE numbers
623531st corner window interior trim strip62353-89101
62353A2nd corner window interior trim strip62353-89102
62353B3rd corner window interior trim strip62353-89103
62357No. 1 corner window interior trim strip cover62357-89101
62357ANo. 2 corner window interior trim strip cover62357-89102
62561Front door inner sill protection strip62561-89102 · 62561-89103
64981Washer water tank cover stopper64981-16021
