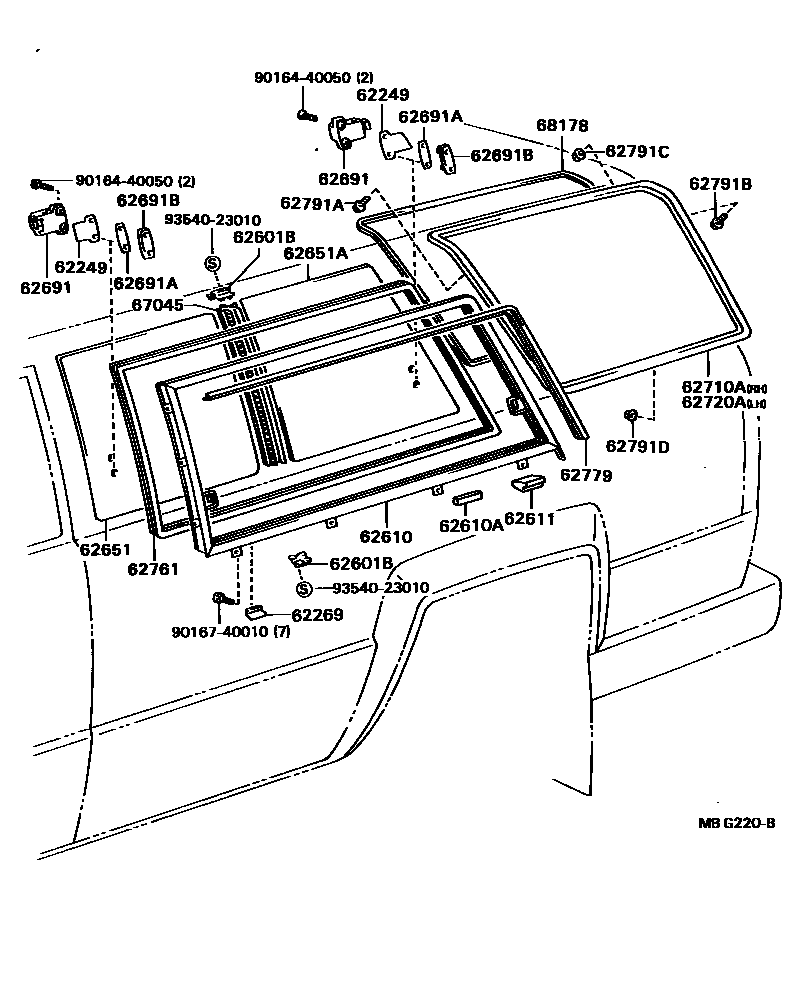

Toyota HILUX 侧窗 — Figure 6152
Toyota HILUX EPC diagram 6152, 侧窗, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62249 | right window panel | 62249-89101 · 62249-89102 · 62249-95700 |
| 62269 | Right window frame protective film | 62269-87001 |
| 62601B | No. 1 side window inner window frame guide device | 62729-87001 |
| 62610 | No. 1 side window window frame assembly (for sliding type) | 62705-89101 · 62706-89101 |
| 62610A | No. 1 side window window frame seal | 62229-95J00 |
| 62611 | No. 1 side window bracket spacer | 62785-89104 |
| 62651 | No. 1 side window front glass (for sliding type) | 62711-89107 · 62711-89108 · 62712-89107 · 62712-89108 |
| 62651A | No. 1 side window rear glass (for sliding type) | 62713-89106 · 62713-89107 · 62714-89106 · 62714-89107 |
| 62691 | Side window glass lock No. 1 (for sliding type) | 62910-95702 · 62910-95703 |
| 62691A | No. 1 side window lock seal | 62792-95A00 |
| 62691B | No. 1 side window lock fastener | 62793-95704 · 62793-95J00 |
| 62710A | Right corner window assembly | 62710-89105 · 62710-89106 · 62710-89109 · 62710-89110 |
| 62711 | Right corner window glass | 62711-89101 · 62711-89102 · 62711-89111 |
| 62712 | Left corner window glass | 62712-89101 · 62712-89102 · 62712-89111 |
| 62720A | Left corner window assembly | 62720-89105 · 62720-89106 · 62720-89109 · 62720-89110 |
| 62741 | Right corner window sealing strip | 62741-89101 · 62742-89101 |
| 62761 | No. 1 side window lift chute (for sliding type) | 62757-89101 · 62757-89102 |
| 62779 | Side window glass seal No. 1 | 62746-89107 |
| 67045 | Center sliding window frame sub-assembly | 67045-89102 |
| 68178 | Corner window glass seal No. 2 | 68177-89101 |
