Toyota HILUX 前围板和挡风玻璃 — Figure 5553

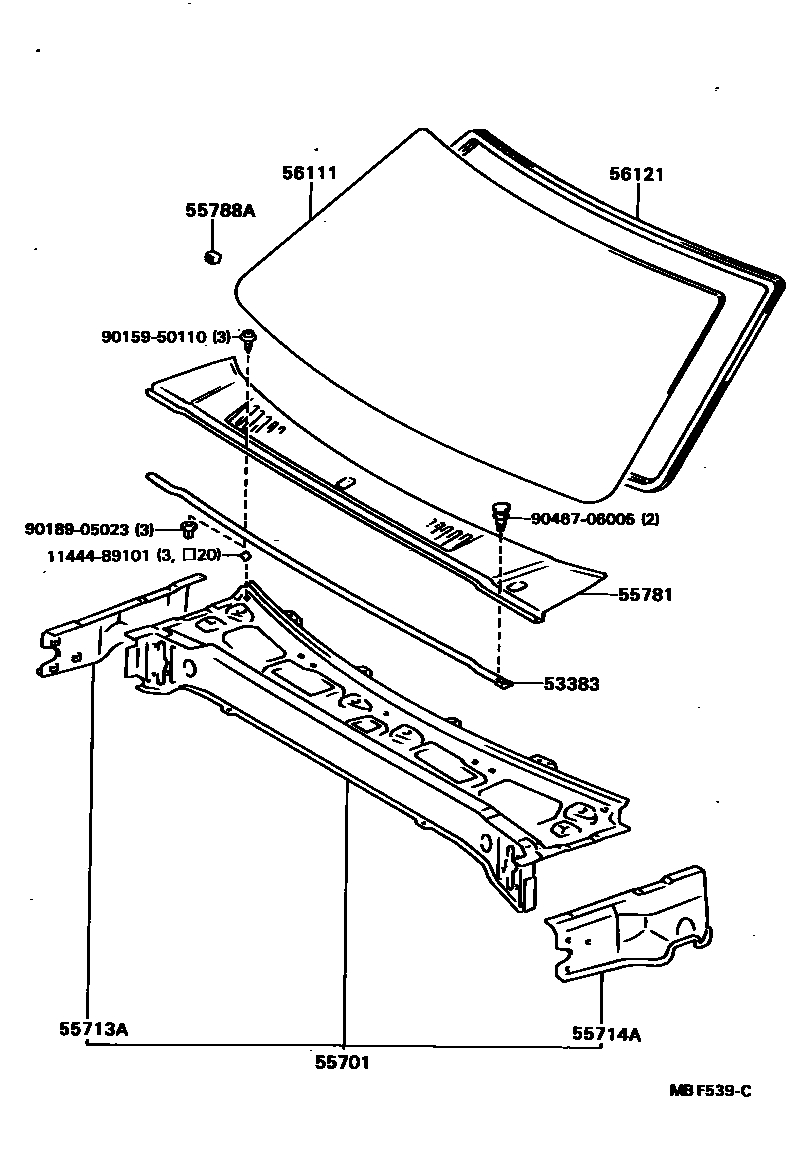

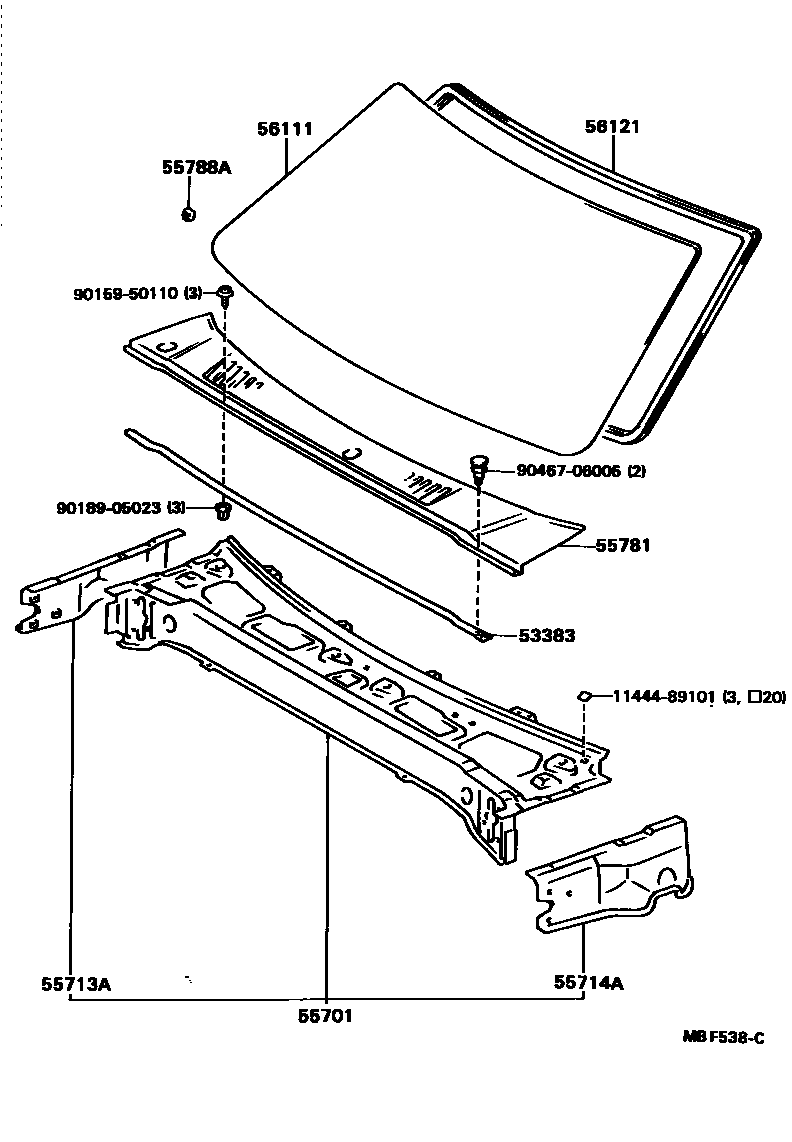

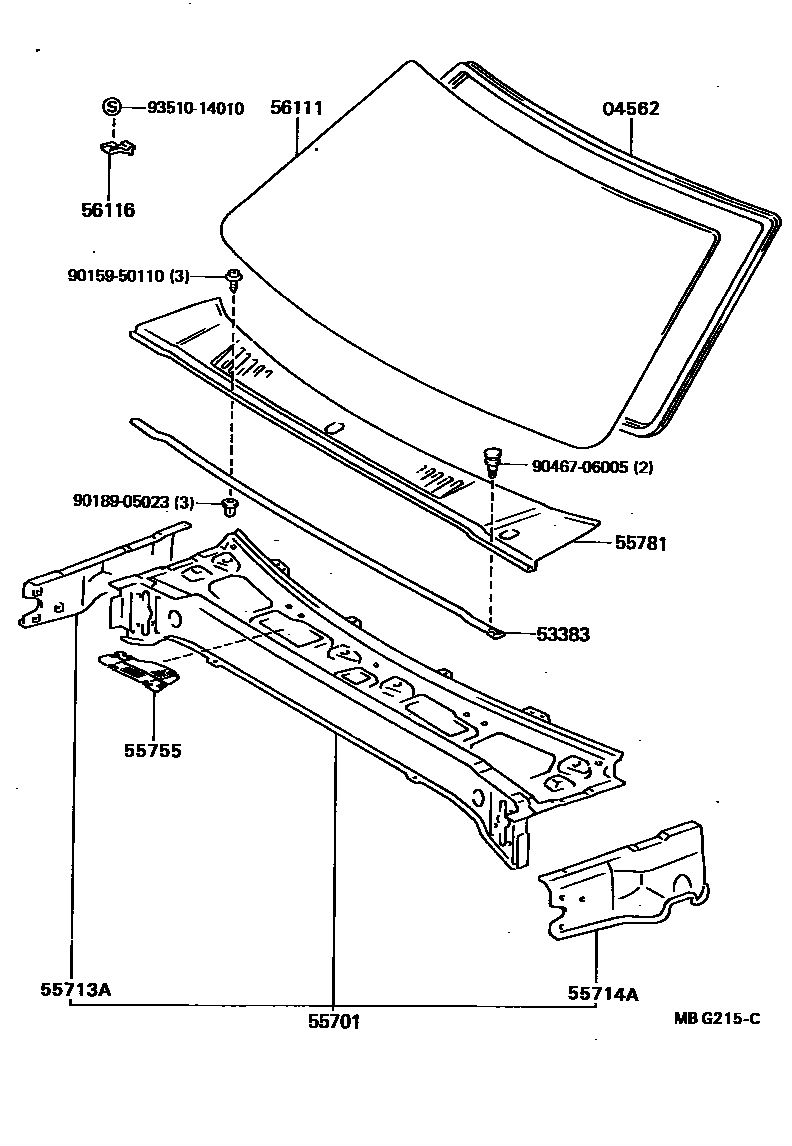

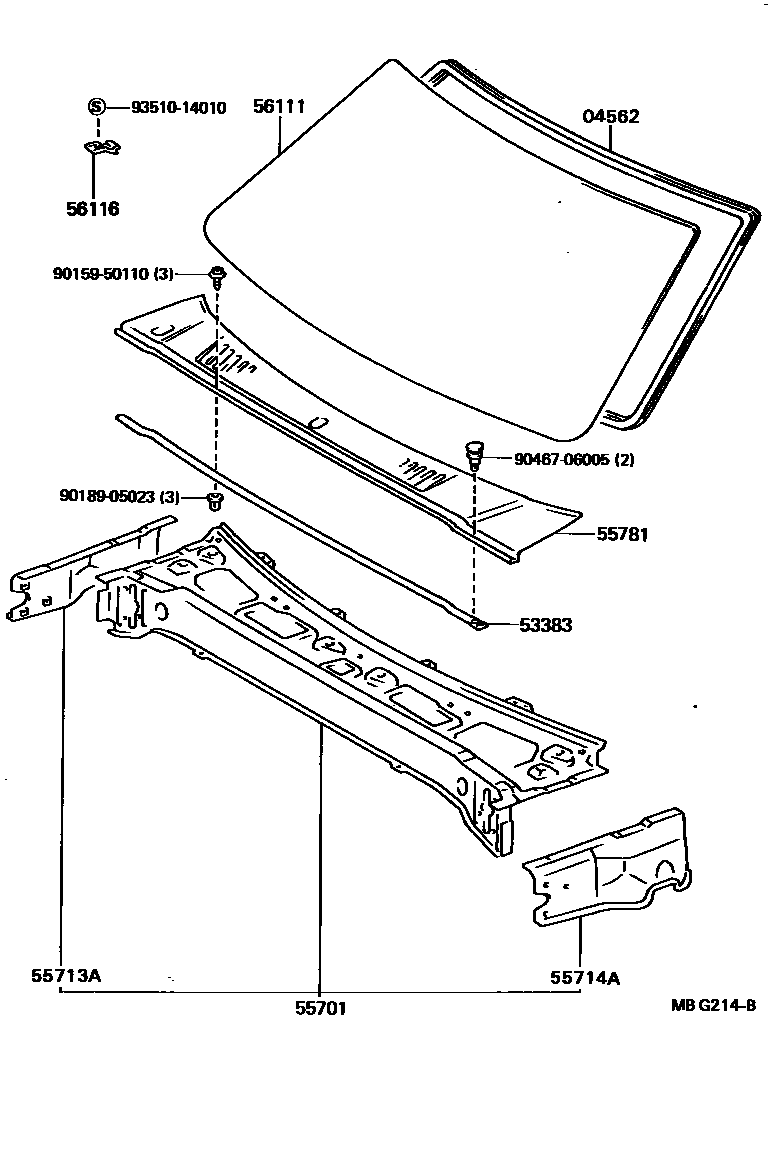

Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-89101 |
| 53383 | Engine cover to cowl upper cover seal | 53383-89105 |
| 55701 | Front apron sub-assembly | 55700-89114 · 55700-89115 · 55700-89116 · 55700-89117 · 55700-89120 · 55700-89121 · 55700-89122 · 55700-89123 · 55700-89126 · 55700-89128 |
| 55713A | Right front wall upper side panel | 55713-89104 |
| 55714A | Left front wall upper side panel | 55714-89105 |
| 55755 | heater duct partition | 55076-89103 |
| 55781 | Front apron ventilation grille | 55781-89101 · 55781-89102 |
| 55788A | Ventilation grille protector on front apron | 55788-89101 |
| 56111 | windshield | 56111-89125 · 56111-89126 · 56111-89128 · 56111-89129 · 56111-89130 · 56111-89131 · 56111-89132 · 56111-89133 · 56111-89135 · 56111-89136 · 56111-89137 |
| 56116 | windshield spacer | 56116-89101 |
| 56121 | windshield seal | 56121-89117 · 56121-89118 |
