Toyota HILUX 驾驶室悬置和车身悬置 — Figure 5251

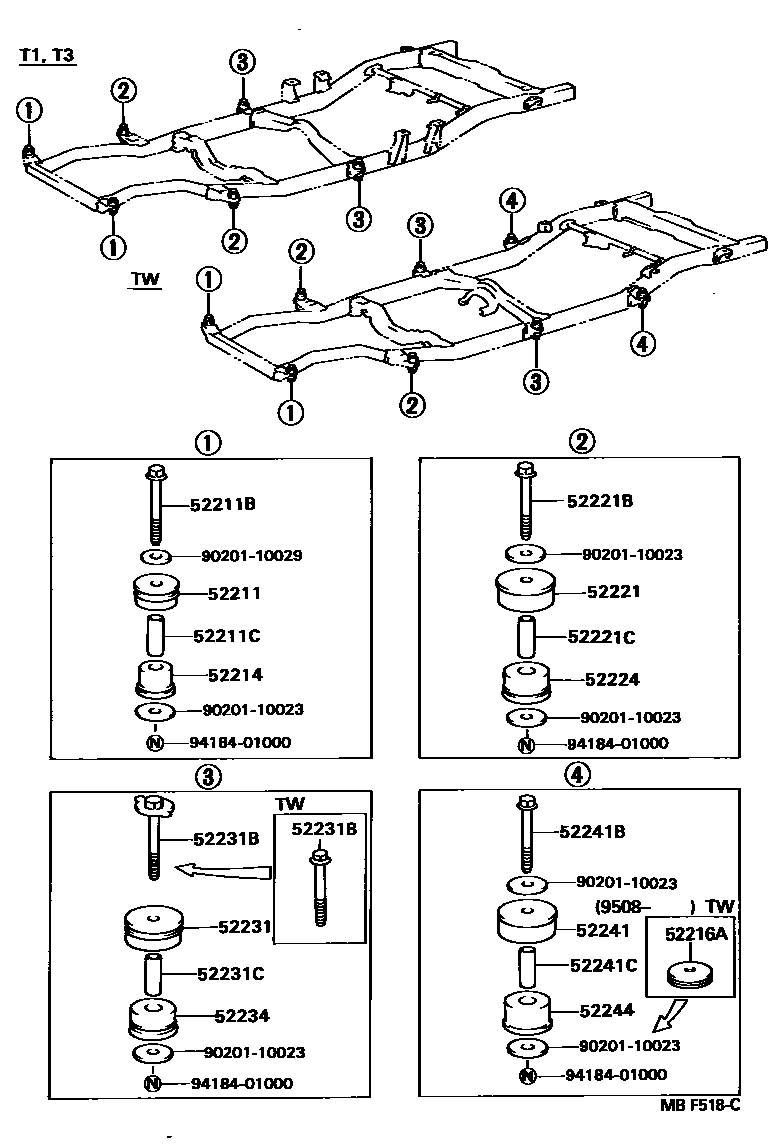

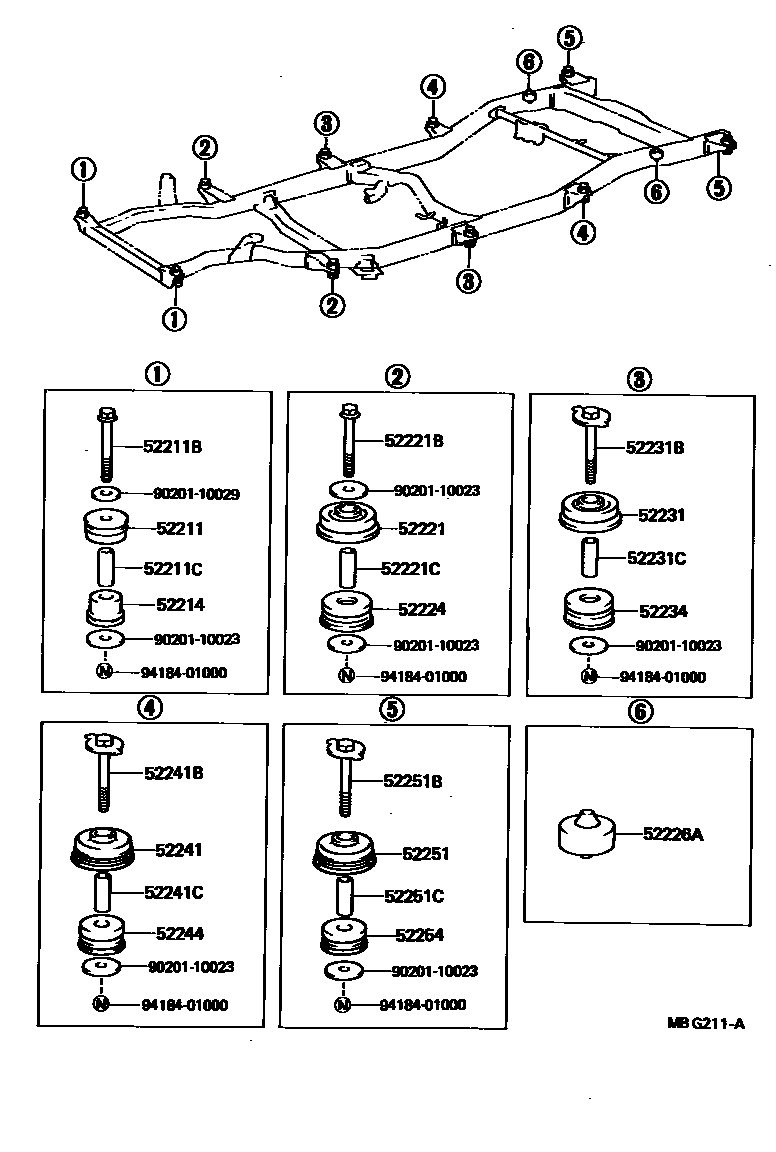

Toyota HILUX EPC diagram 5251, 驾驶室悬置和车身悬置, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52211 | Fixed cushion pad on body No. 1 | 52201-35021 · 52201-35030 |
| 52211B | Bolt (for body No. 1 fixed buffer pad) | 90105-10019 · 90119-10545 |
| 52211C | Spacer sleeve (for body No. 1 fixed buffer pad) | 90440-16007 |
| 52214 | Body No. 1 lower fixed cushion | 52202-35021 · 52202-35030 |
| 52216A | Cab suspension cushion block | 52216-35020 |
| 52221 | Fixed cushion pad on body No. 2 | 52203-35031 · 52203-35100 |
| 52221B | Bolts (for body No. 2 fixed buffer pad) | 90105-10019 · 90119-10545 |
| 52221C | Spacer (for body No. 2 fixed cushion) | 90440-16007 |
| 52224 | Body No. 2 lower fixed cushion | 52204-35031 · 52204-35100 |
| 52226A | Fixed cushion pad on rear body | 52226-89101 |
| 52231 | Body No. 3 upper fixed cushion pad | 52203-35031 · 52203-35040 · 52205-35020 |
| 52231B | Bolts (for body No. 3 fixed buffer pad) | 90105-10019 · 90109-10066 · 90109-10124 |
| 52231C | Spacer (for body No. 3 fixed cushion) | 90440-16007 |
| 52234 | Body No. 3 lower fixed cushion | 52204-35031 · 52204-35040 · 52206-35010 |
| 52241 | Body No. 4 upper fixed cushion pad | 52203-35031 · 52205-35020 · 52207-35010 |
| 52241B | Bolts (for body No. 4 fixed buffer pad) | 90105-10019 · 90109-10066 · 90109-10124 |
| 52241C | Spacer sleeve (for body No. 4 fixed buffer pad) | 90440-16007 |
| 52244 | Body No. 4 lower fixed cushion | 52204-35031 · 52206-35010 · 52208-35010 |
| 52251 | Body No. 5 Upper Fixed Cushion Pad | 52207-35010 |
| 52251B | Bolts (for body No. 5 fixed buffer pad) | 90109-10066 · 90109-10124 |
| 52251C | Spacer (for body No. 5 fixed cushion) | 90440-16007 |
| 52254 | Body No. 5 lower fixed cushion | 52208-35010 |
