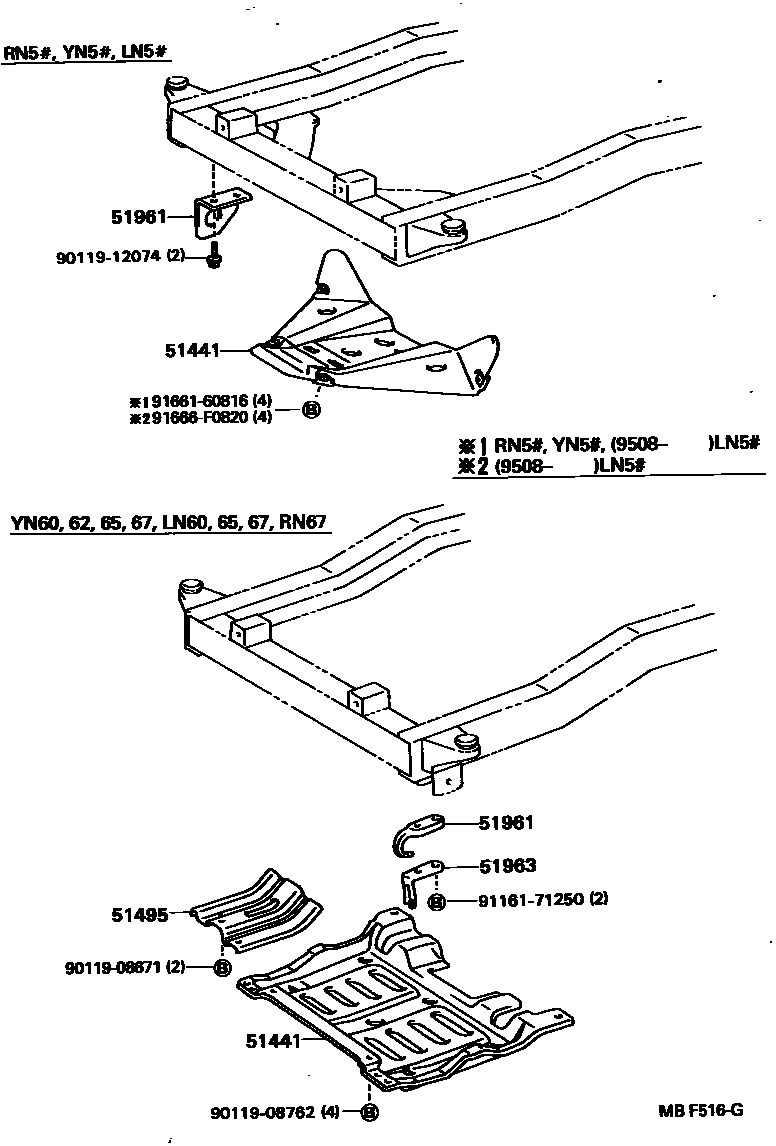

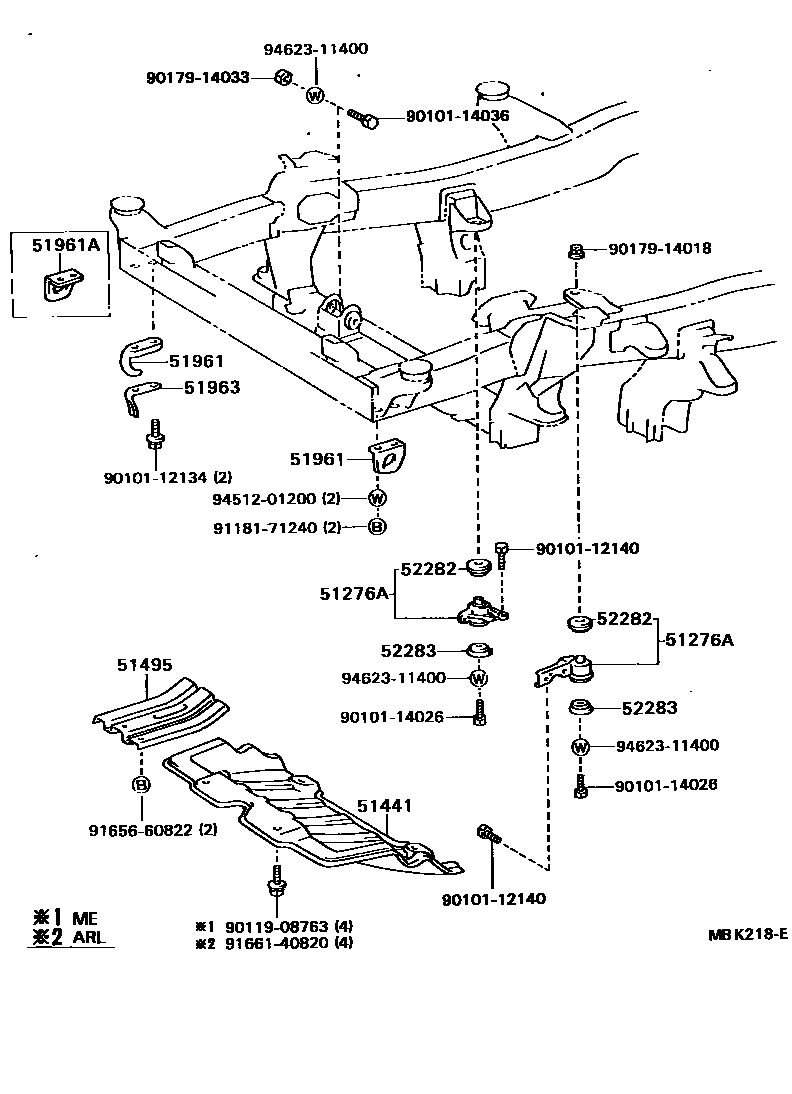

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51276A | Differential support bracket | 51250-35010 · 51260-35010 · 51260-35020 |
| 51441 | No. 1 engine bottom cover | 51405-35020 · 51405-35030 · 51405-35040 · 51441-35110 · 51441-35120 · 51441-35121 · 51441-35140 · 51441-35150 |
| 51495 | transmission bottom cover | 51447-35020 · 51447-35030 · 51447-35031 |
| 51961 | No. 1 hook | 51961-35030 · 51961-60010 · 51963-35050 · 51963-35070 · 51964-35040 · 51964-35050 |
| 51961A | No. 3 hook | 51963-35050 |
| 51963 | Hook wire block | 51963-35010 · 51963-35080 |
| 52282 | Differential support beam upper stop | 52282-35010 · 52292-35010 |
| 52283 | Differential support beam lower block | 52283-35010 |
