Toyota HILUX Steering Wheel — Figure 4504

Toyota HILUX EPC diagram 4504, Steering Wheel, with 5 images and 17 PNC and OE references.

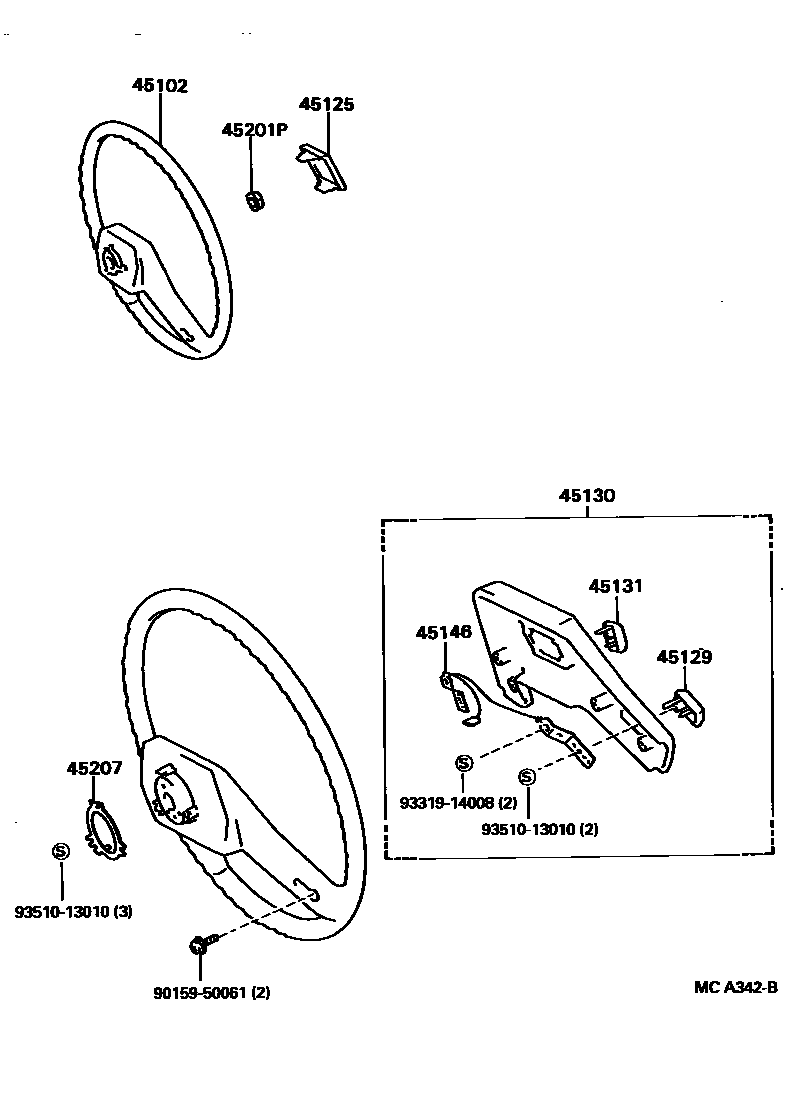

Toyota HILUX Steering Wheel EPC diagram — MCA342B
Steering Wheel — MCA342B (198308 – 999999)

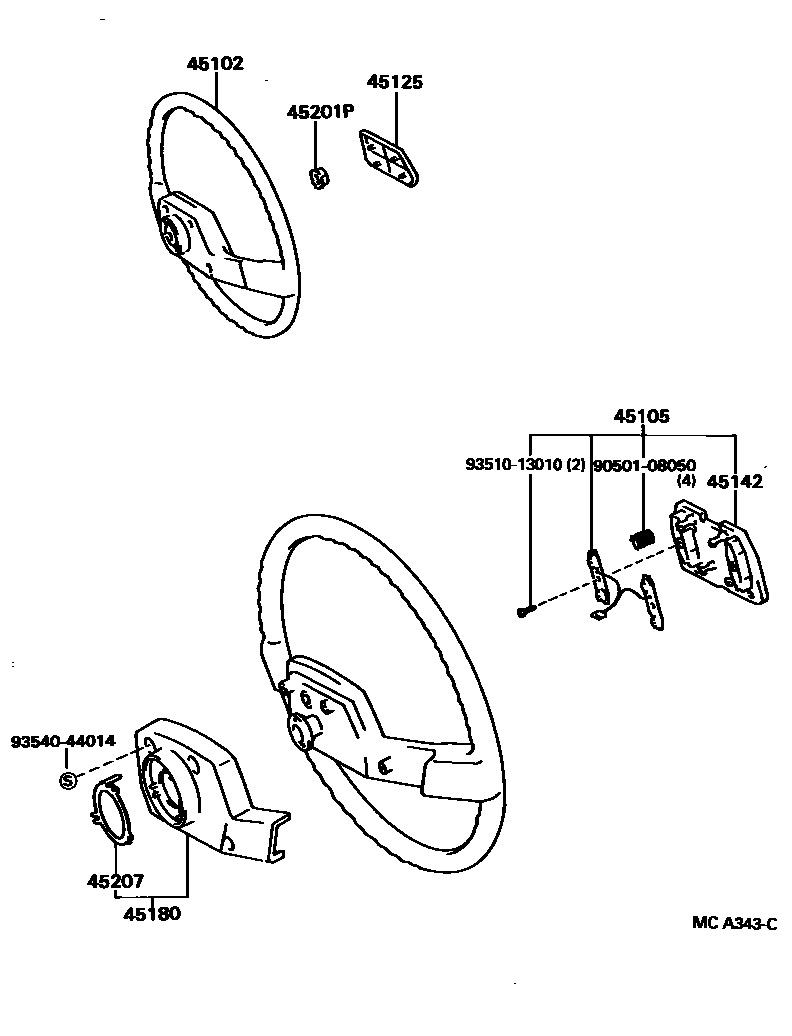

Toyota HILUX Steering Wheel EPC diagram — MCA343C
Steering Wheel — MCA343C (198308 – 999999)

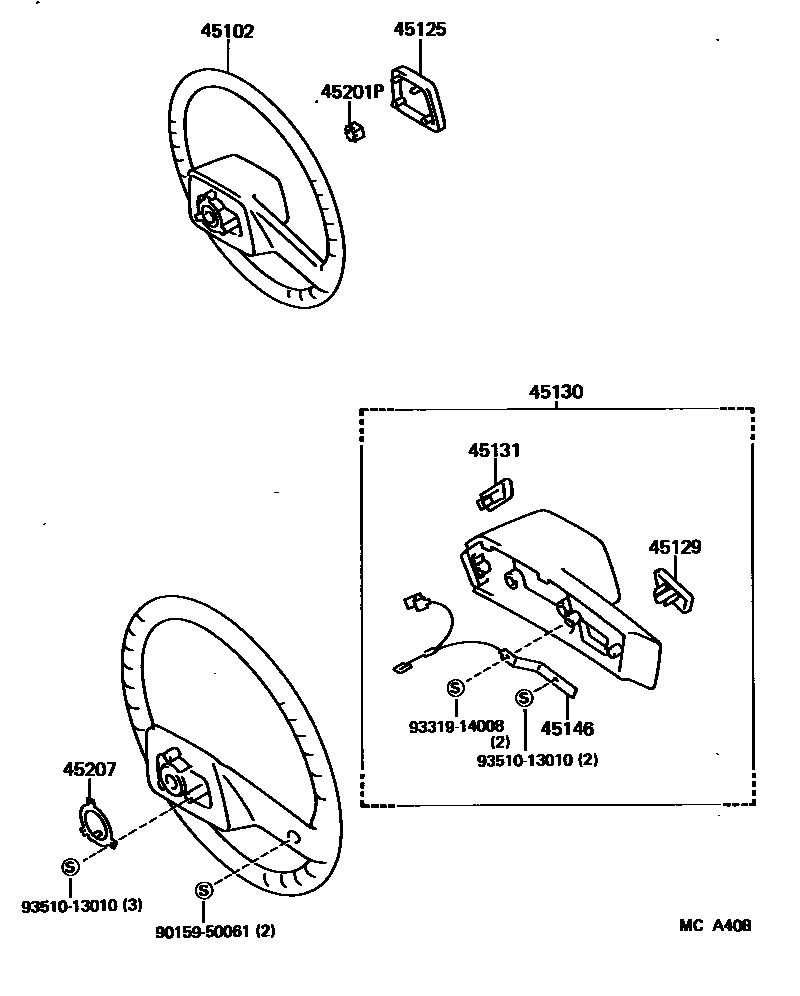

Toyota HILUX Steering Wheel EPC diagram — MCA408
Steering Wheel — MCA408 (198308 – 198608)

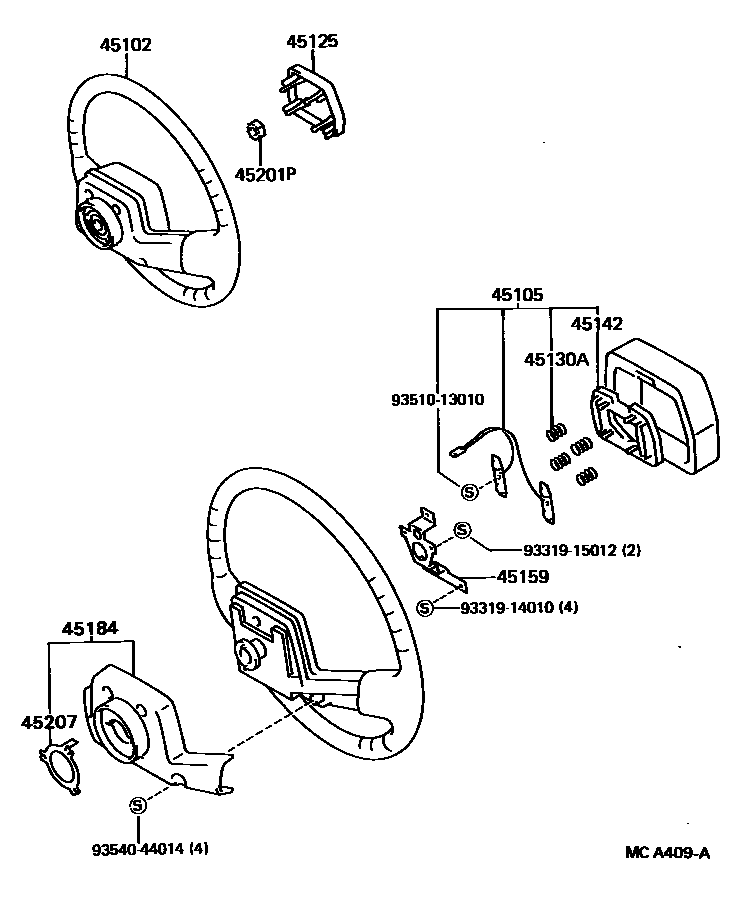

Toyota HILUX Steering Wheel EPC diagram — MCA409A
Steering Wheel — MCA409A (198308 – 198608)

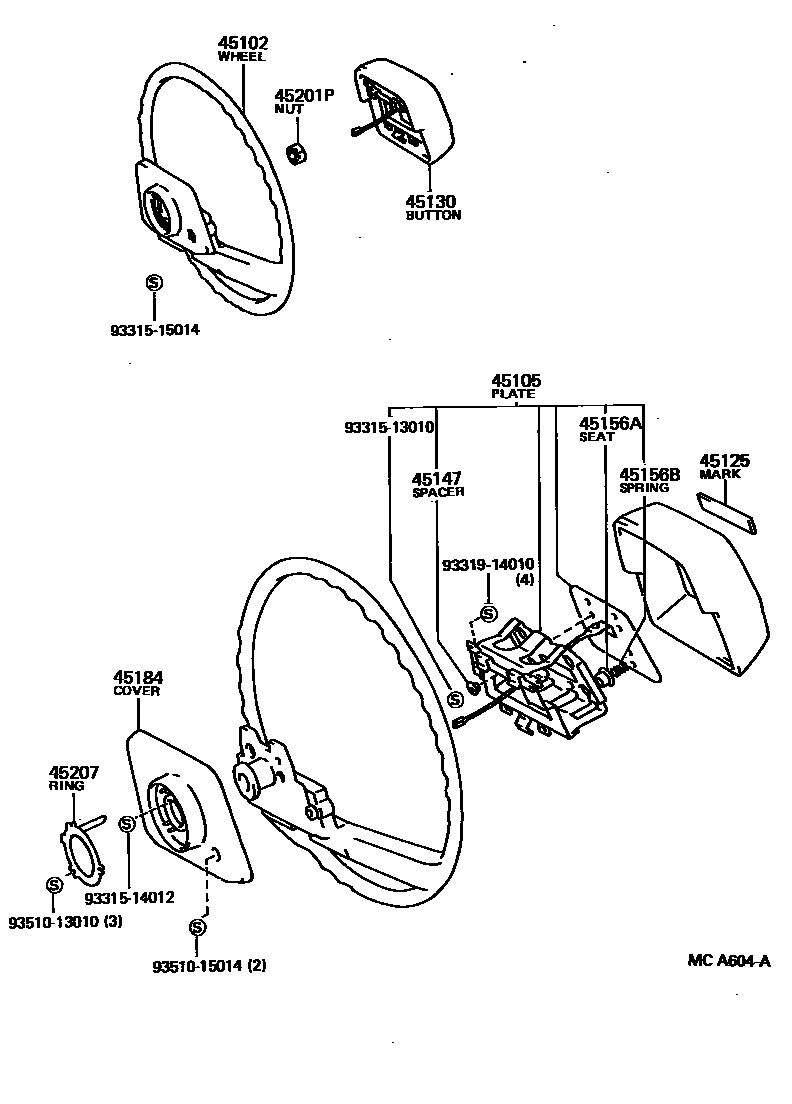

Toyota HILUX Steering Wheel EPC diagram — MCA604A
Steering Wheel — MCA604A (198601 – 999999)

PNC and OE references

PNCPart nameOE numbers
45102Steering wheel sub-assembly45100-35210 · 45100-35220 · 45100-35230 · 45100-35240
45105No. 1 horn button contact piece sub-assembly45105-22070 · 45105-22071 · 45105-35020 · 45105-35021 · 45105-35030
45125Steering wheel trim cover markings45125-35080 · 45125-35090 · 45125-35100 · 45125-35110 · 45125-35120 · 45125-35130 · 45125-35140 · 45125-35141
45129Speaker button No. 245129-35040 · 45129-35050
45130Speaker button assembly45130-35170 · 45130-35180 · 45130-35190 · 45130-35220
45130ACompression spring (for horn button)90501-08050
45131Speaker button No. 145131-35120 · 45131-35130
45142No. 1 horn button contact seat45142-35030 · 45142-35031
45146Horn button contact spring45146-35070
45147Speaker button spacer90561-02001
45156ASpeaker contact spring holder45156-16010
45156BSpring (for horn contact spring holder)90501-06032
45159Steering wheel decorative cover fixed retaining ring45159-35020 · 45159-35021
45180Steering wheel cover sub-assembly45180-35030
45184Steering wheel boss lower cover45180-35030
45201PSteering wheel fixing nut90179-12071 · 90179-12086
45207Speaker contact ring45176-20030 · 45176-22050 · 45176-35020
